Vehicle Type：
Fits for Chevrolet for Corvette C8 Stingray Z51 2020-Present (NOT for Z06

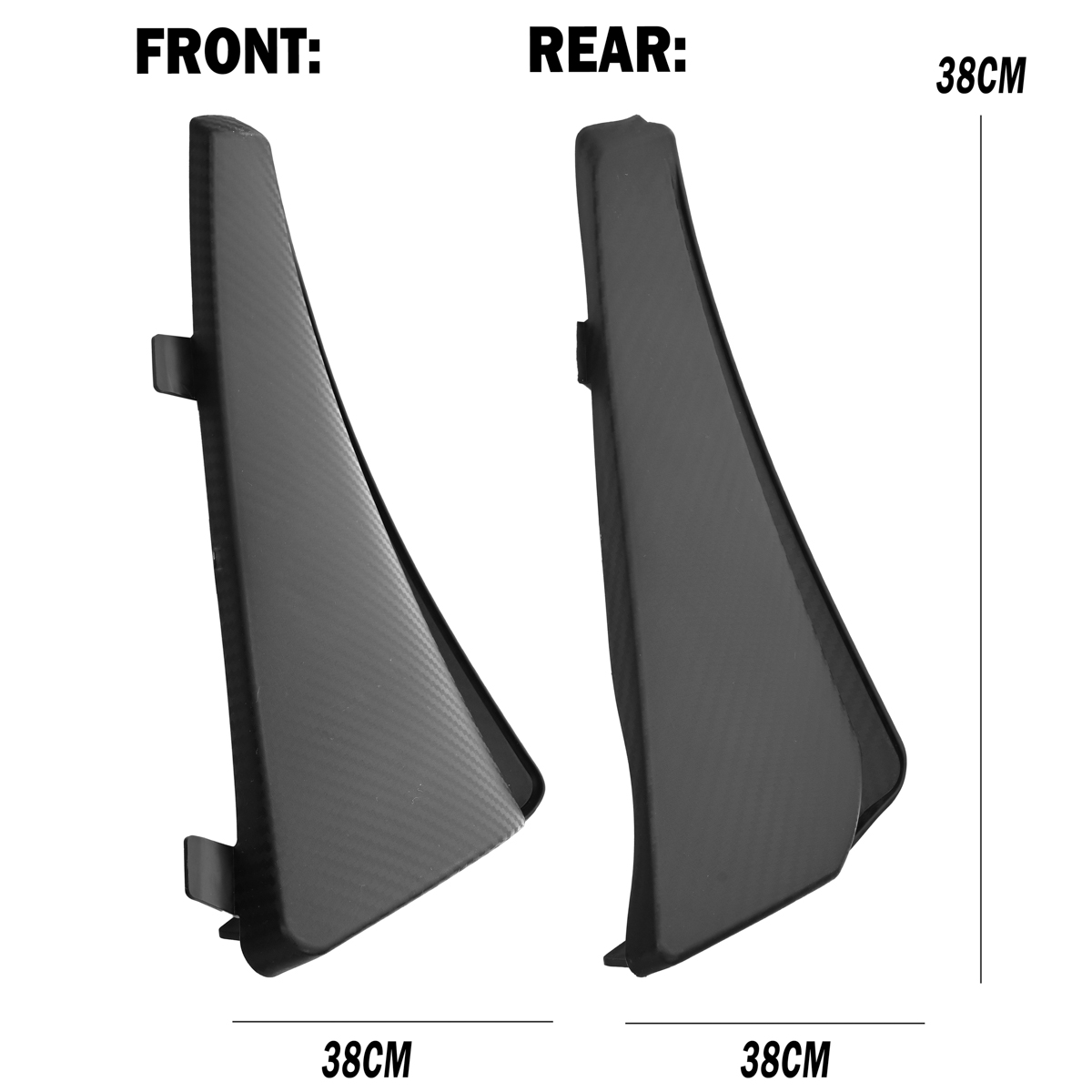

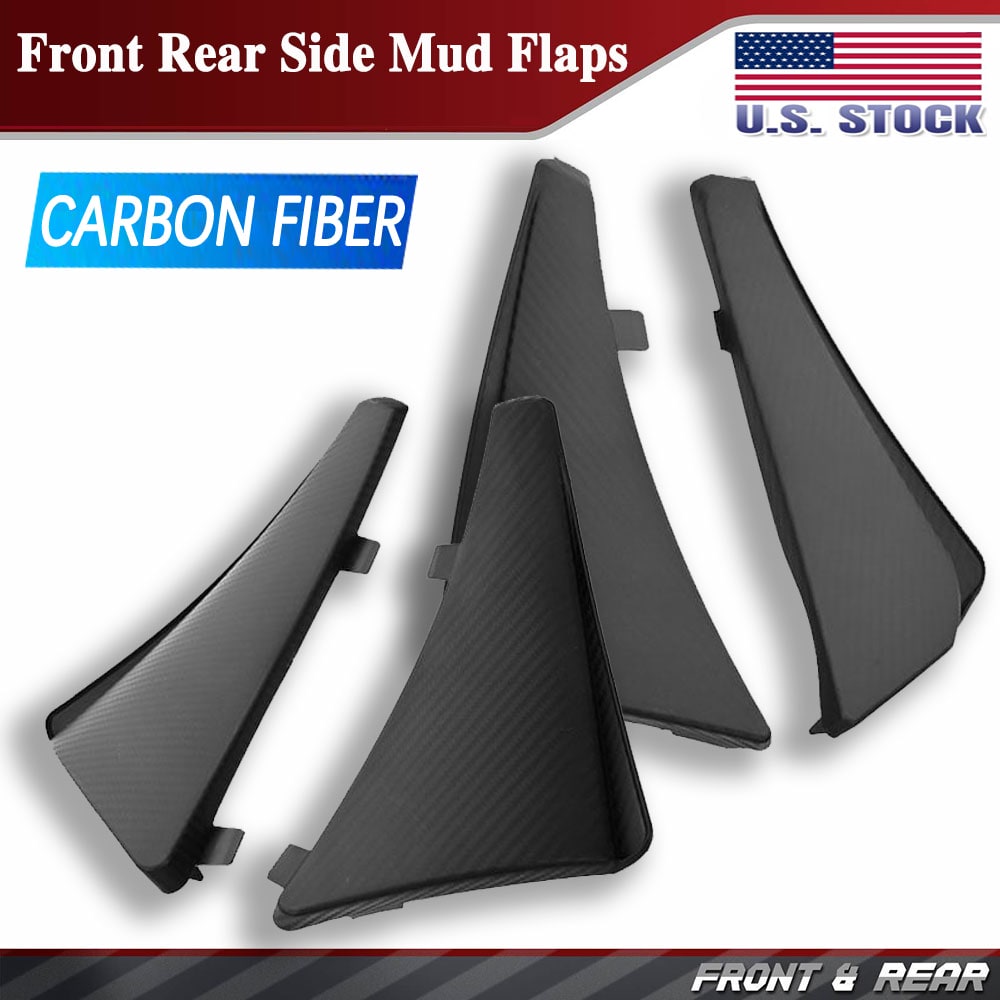

Product: Front Rear Side Mud Flaps
Condition: 100% BRAND NEW
Surface Finish: Carbon Fiber Style

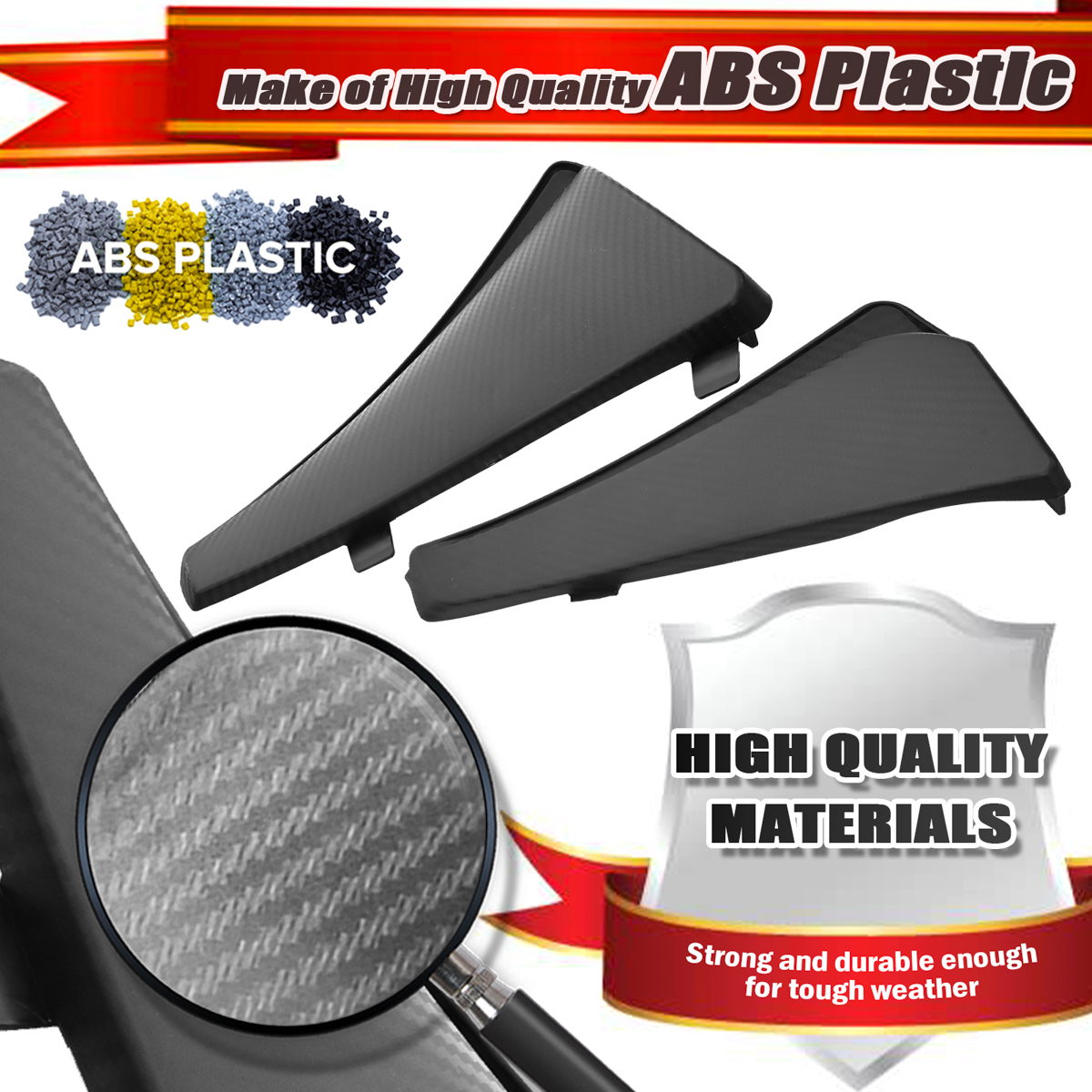

Material: Make of High Quality ABS Plastic
OE NUMBER:
Rear Right:84859966 Rear Left: 84859965
Front Right:84698728 Front Left:84698727
Features：
1. The Splash guard prevents any debris from directly entering the wheel well and is almost twice the size of the factory generic splash guard.
2. The rock guards are designed to match the for C8 aggressive and edgy design.
3. Make of black ABS-PC plastic, the rock guards will withstand the impact of rocks and other road debris, protecting your for Corvette.

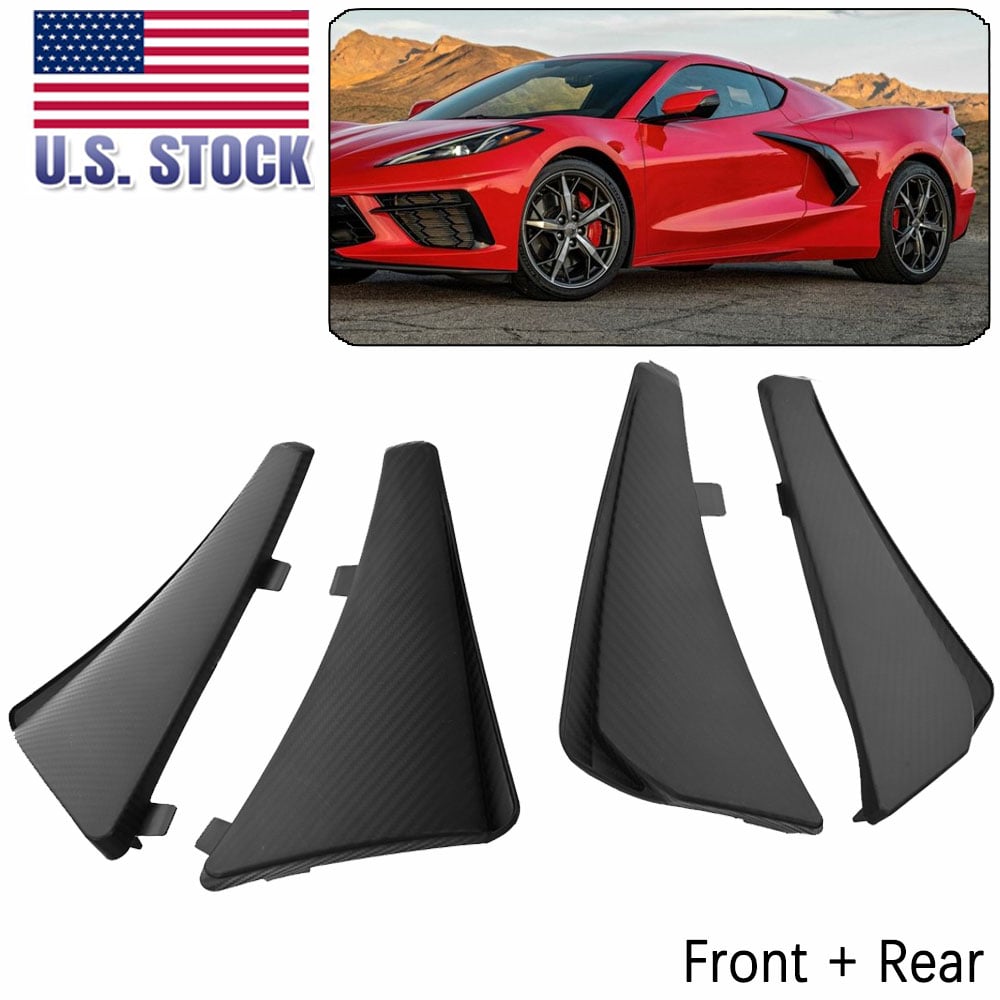

Package includes：

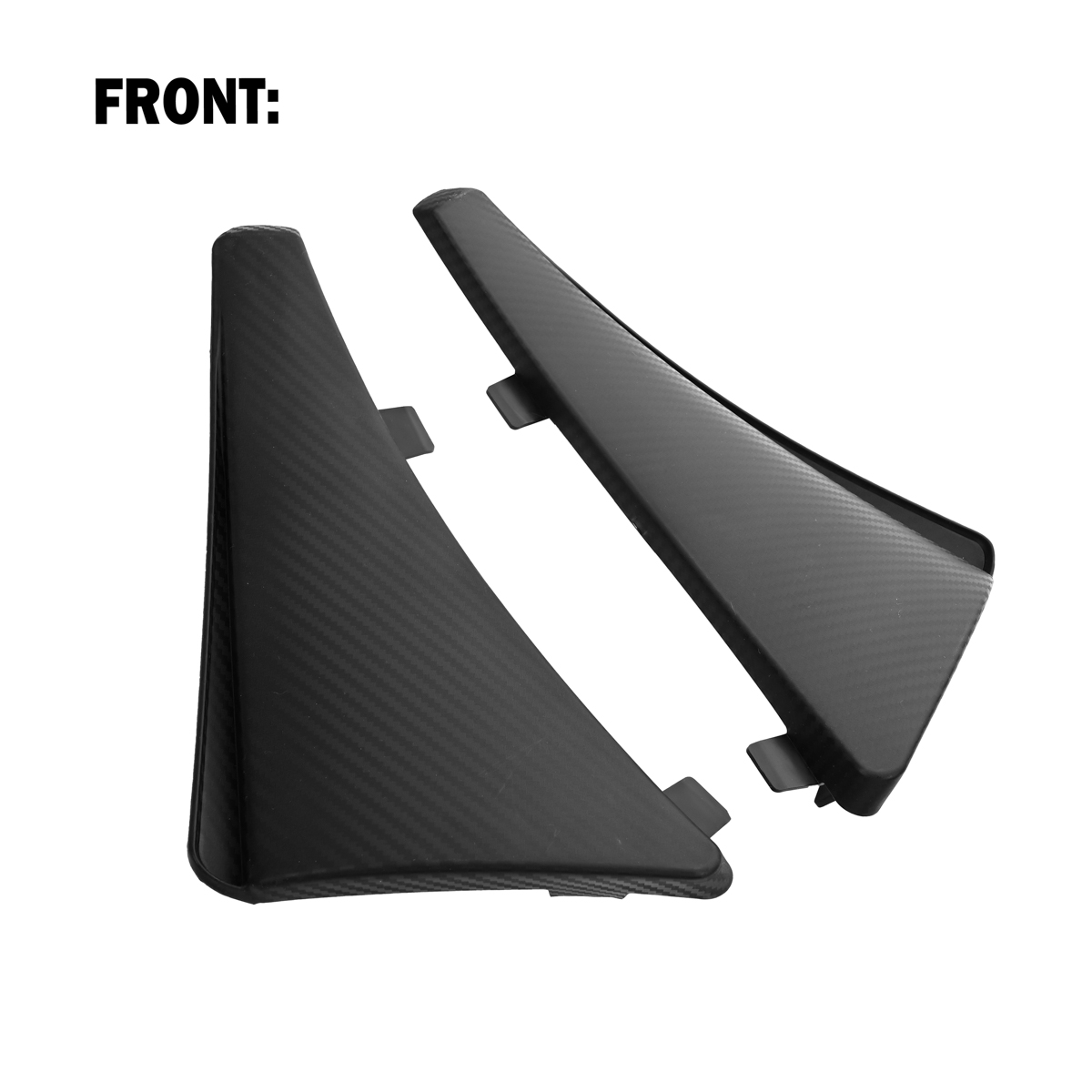

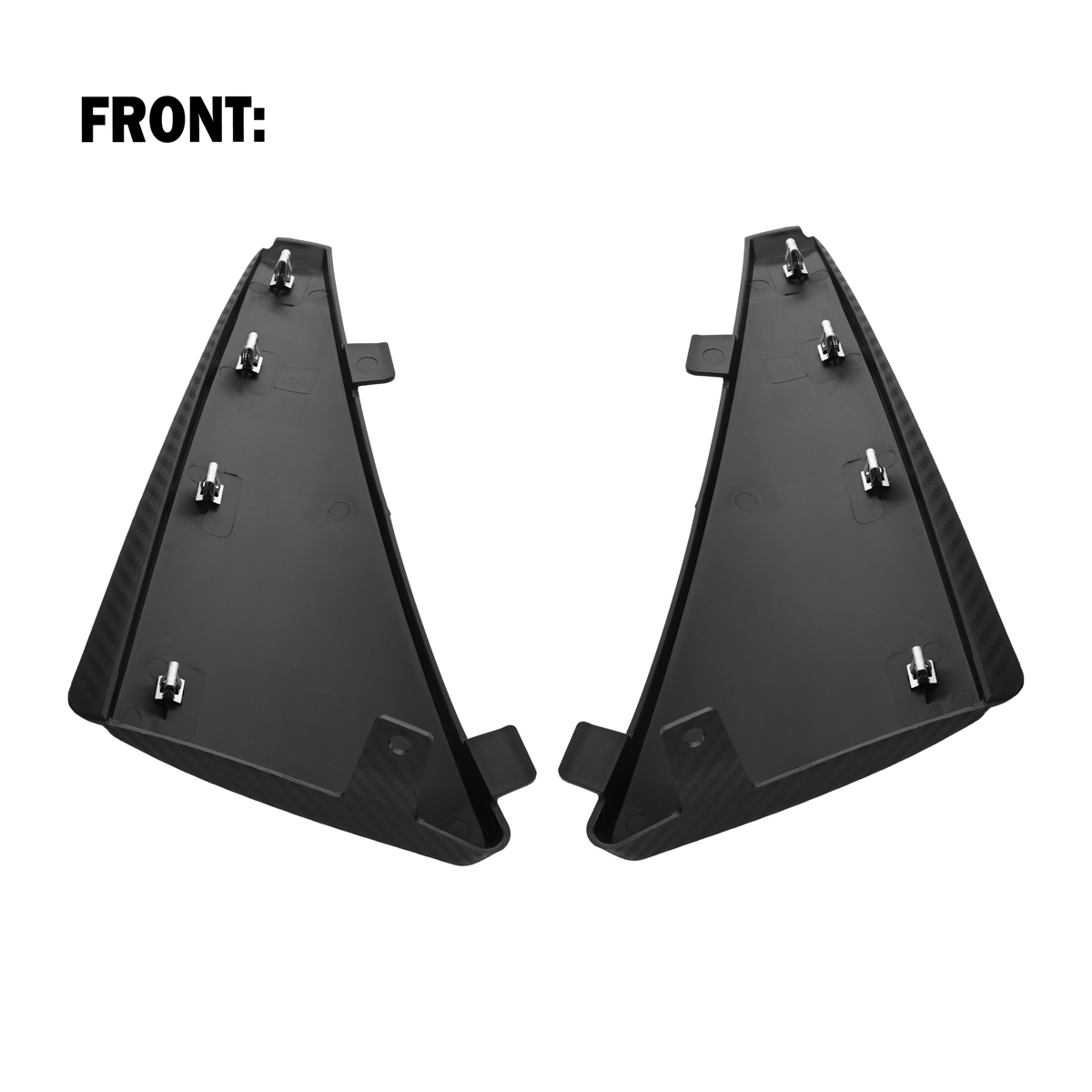

2PCS Front Side Mud Flap ( Left + Right )

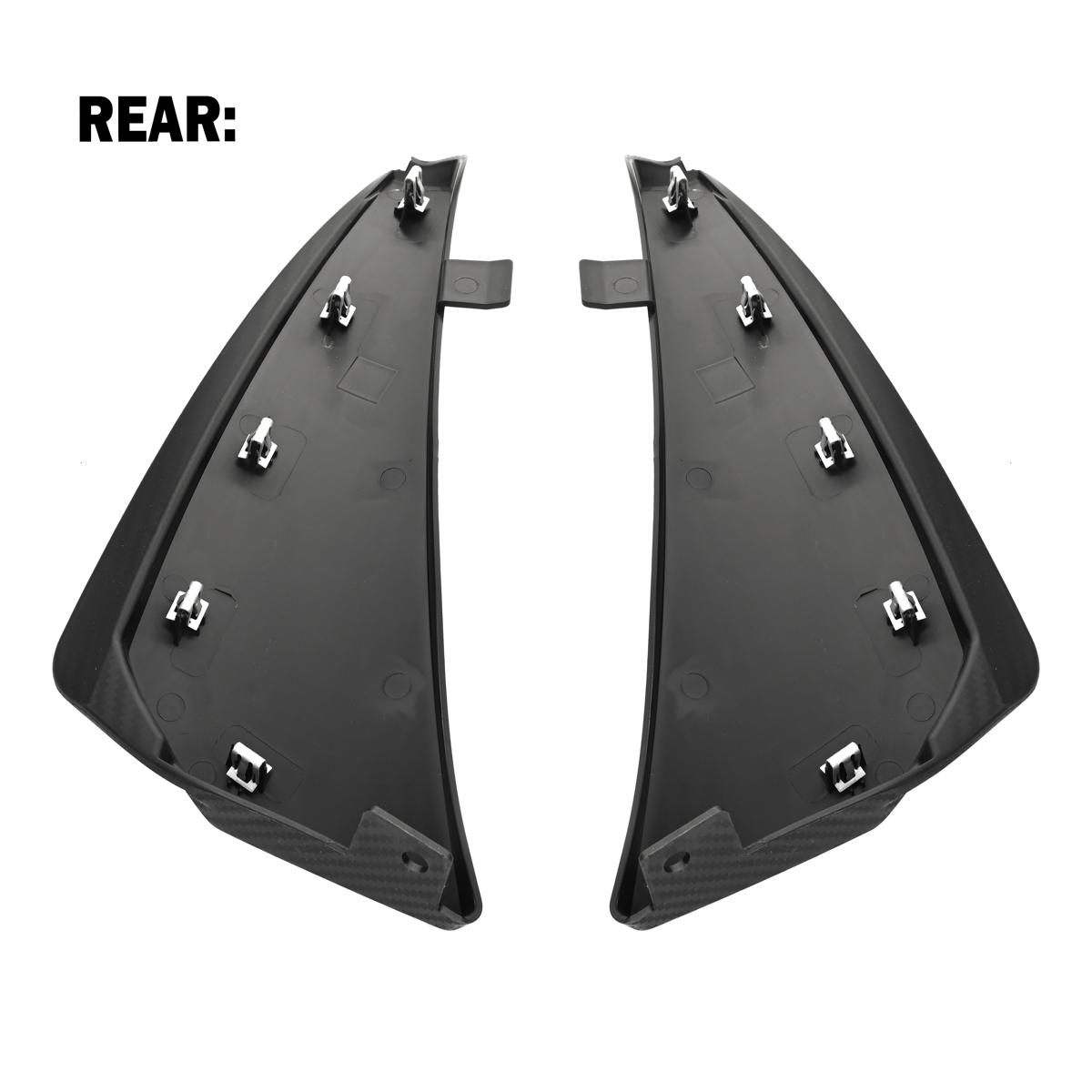

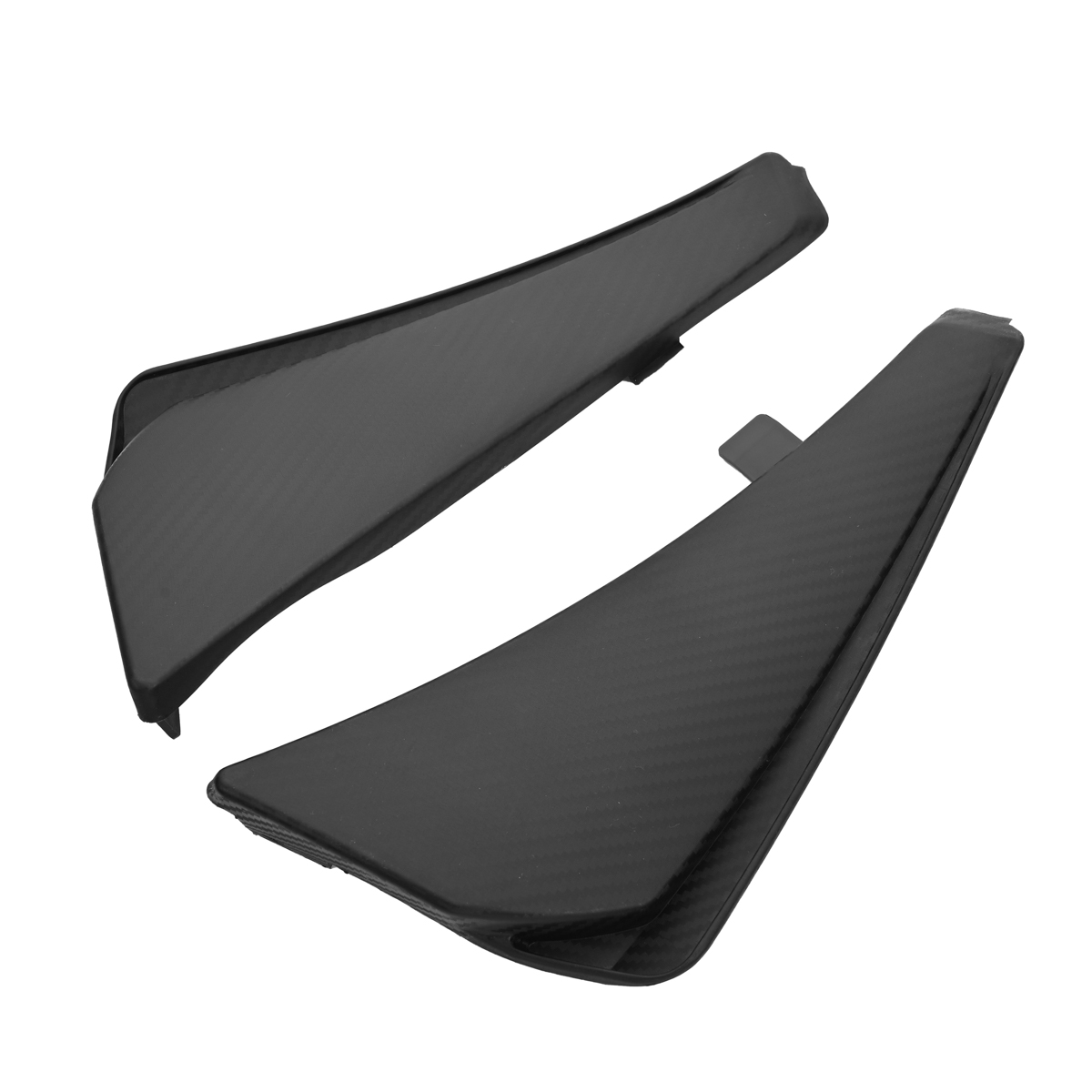

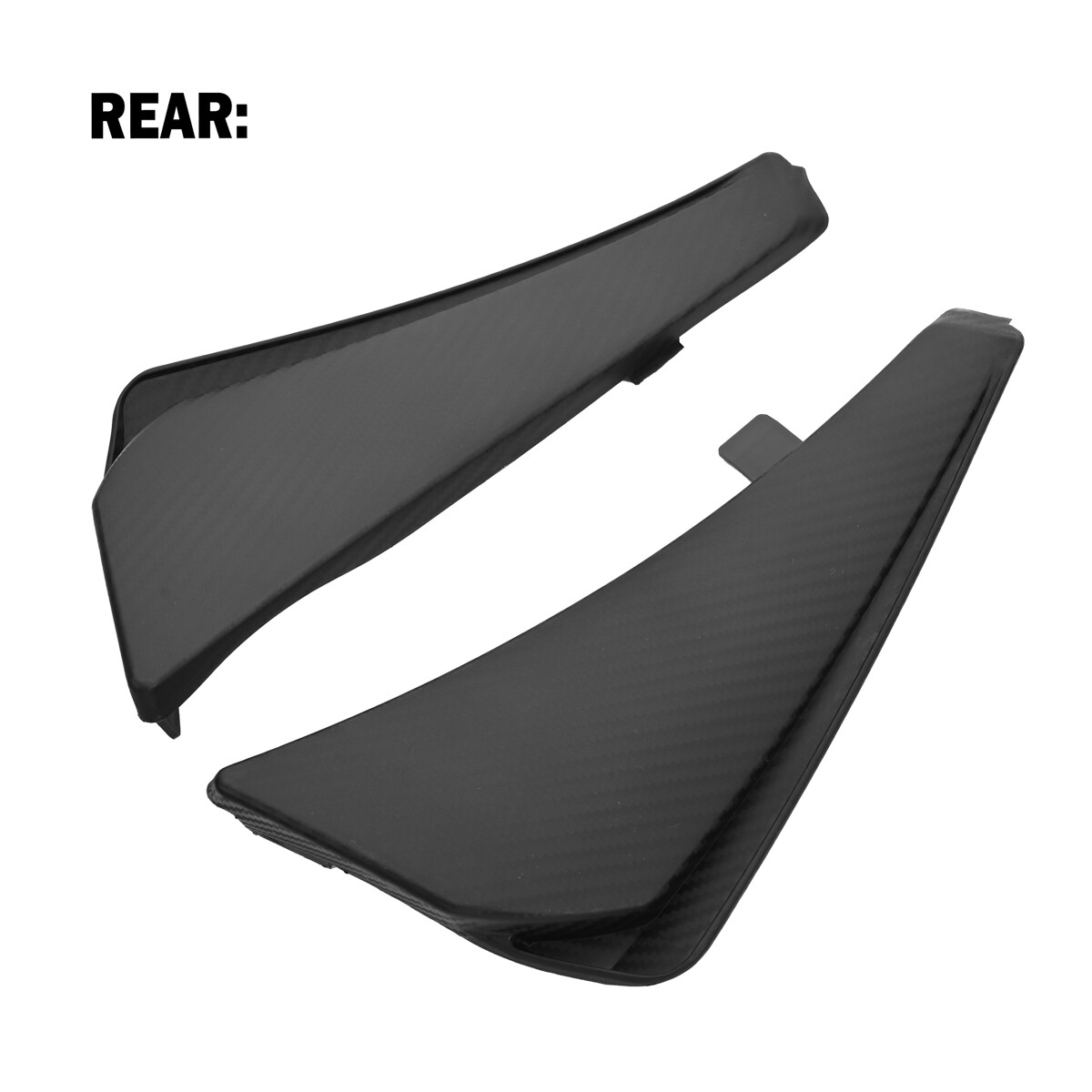

2PCS Rear Side Mud Flap ( Left + Right )
Installation：Installation Manual Is Included ,you can directly use bolts to Install,we recommend professional installation.

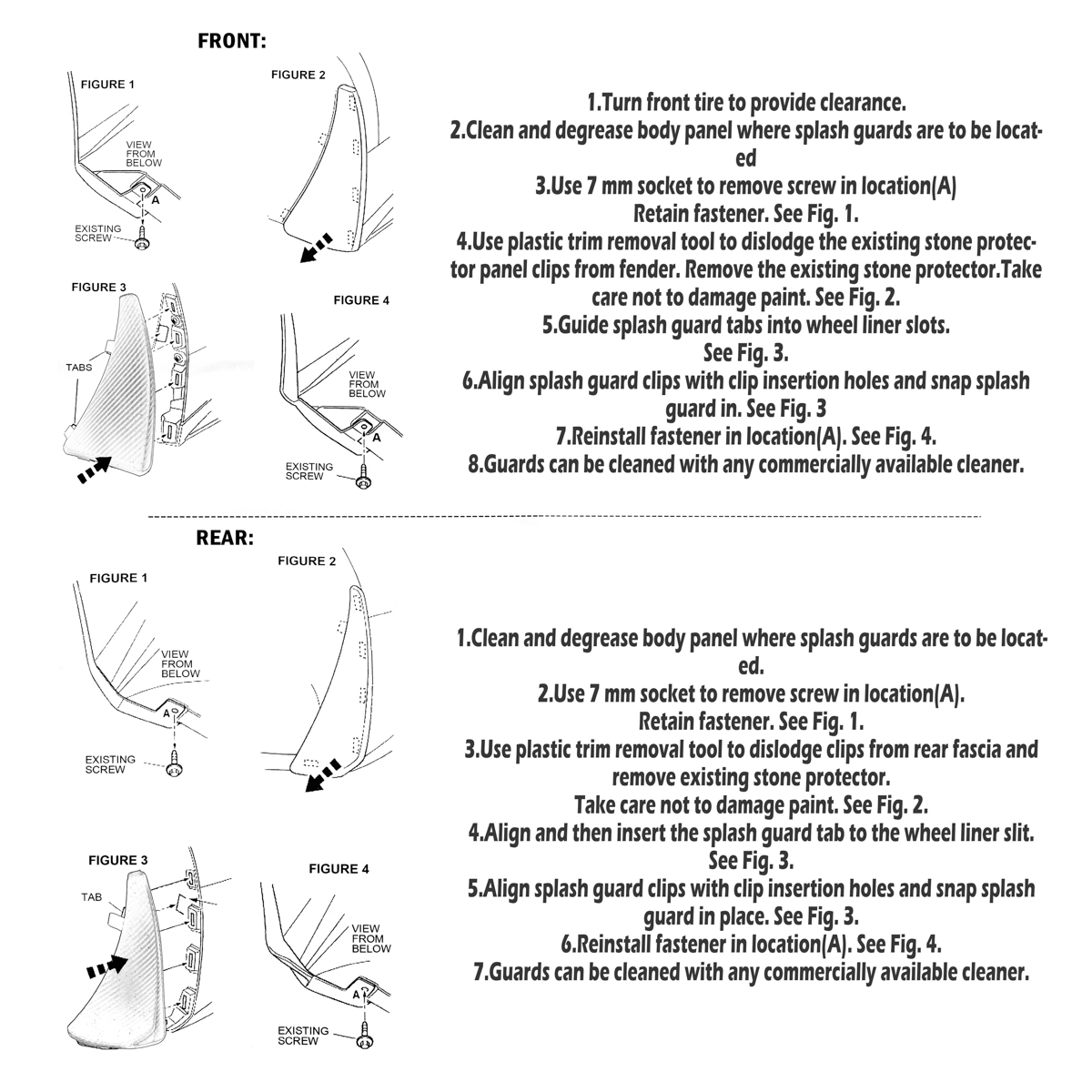

Front Splash Guard Installation
Please read instructions thoroughly before starting.
Tools Required
Socket wrench
7 mm Socket
Plastic Trim Removal Tool
Clean Cloth/Rag
Note: Do not use power tools to install splash guard fasteners.
1.Turn front tire to provide clearance.
2.Clean and degrease body panel where splash guards are to be located
3.Use 7 mm socket to remove screw in location(A)
Retain fastener. See Fig. 1.
4.Use plastic trim removal tool to dislodge the existing stone protector panel clips from fender. Remove the existing stone protector.Take care not to damage paint. See Fig. 2.
5.Guide splash guard tabs into wheel liner slots.
See Fig. 3.

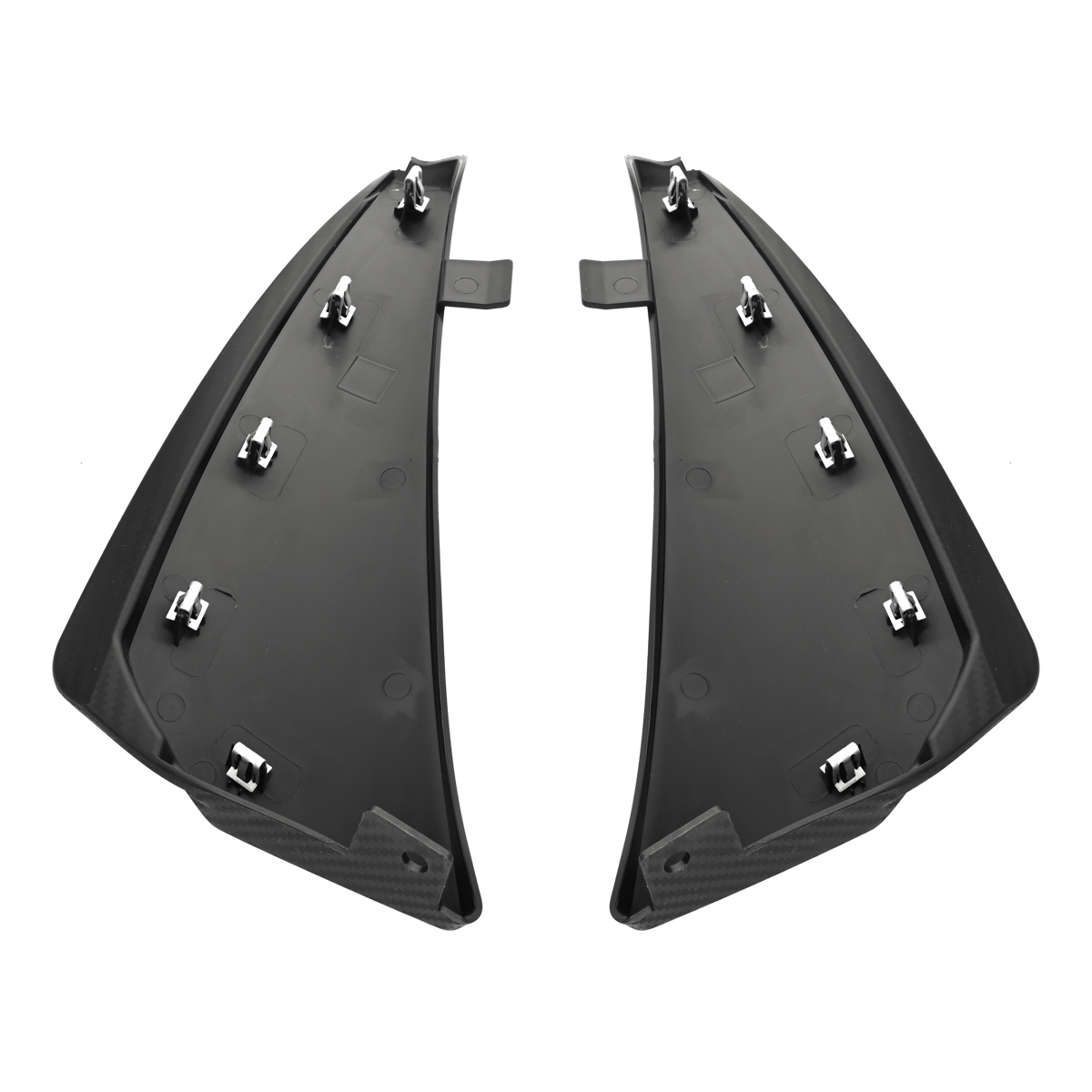

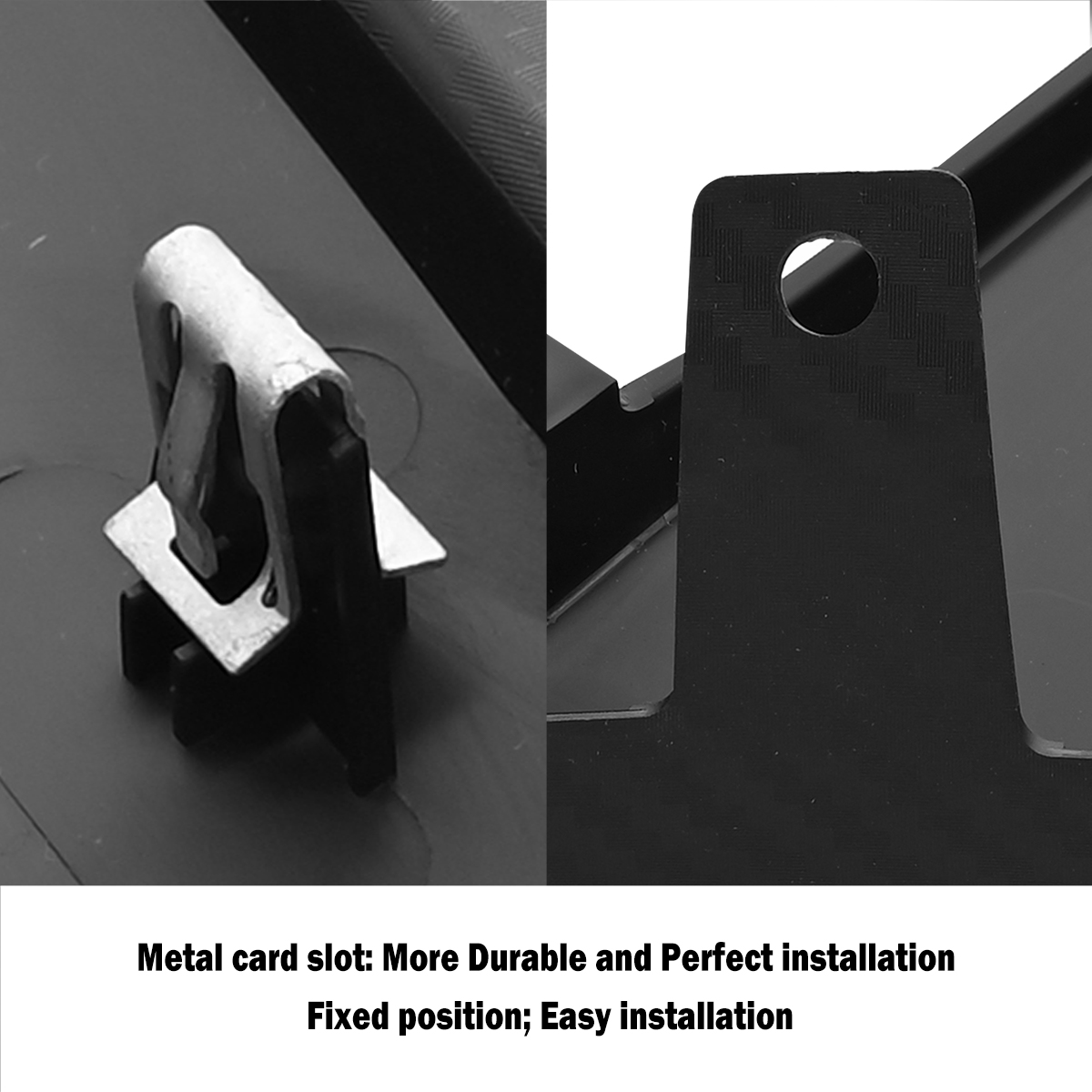

6.Align splash guard clips with clip insertion holes and snap splash guard in. See Fig. 3
7.Reinstall fastener in location(A). See Fig. 4.
8.Repeat procedure for the other side.
9.Guards can be cleaned with any commercially available cleaner.
NOTE: Max torque on M4.2 Screw is 3.0 N m
The installation of rear guard is a little bit different with the front guard,Please see the installation instructions for details
