Features:
1.High efficiency, low energy consumption
2.Manufactured to high quality control Level
3.With high reliability, quality and durability
4.Using high-quality materials to extend the service life of Products
Symptoms of a Bad Fuel Pump:
1.Difficult Start
2.Engine Stalling
3.Fuel Tank Noise
4.lower gas mileage
5.Actual Stall
6.Pressure Gauge Problems
7.Lower Fuel Efficiency
Working Principle of Fuel Pumps:
A fuel pump is a fluid handling device that moves gasoline from the fuel tank to the engine. Its often found in internal combustion engines. The fuel pump in spark-ignition engines transports gasoline from the tank to the fuel bowl, where the carburetor mixes the fuel with air and transports it to the engine’s combustion chamber. In combustion ignition engines, the fuel pump delivers high-pressure fuel straight to the combustion chamber. In combustion ignition engines, the combustion enclosure is already filled with highly compressed air at the moment of combustion. As a result, the fuel pump must deliver fuel to the combustion chamber at a pressure greater than that of the combustion chamber, and ignition occurs.
Types of Fuel Pump:
1.Mechanical fuel pump
These are mostly low-pressure fuel pumps, however they are occasionally employed for high-pressure applications whose primary function is to move gasoline from the tank to the spark-ignition engine’s fuel bowl. There are two types of mechanical fuel pumps: diaphragm-type fuel pumps and plunger-type fuel pumps
2.Electric fuel pump
These pumps are commonly found in fuel injection systems.This tremendous pressure might cause the gasoline within the pump to ignite, resulting in an explosion. As a result, the electric fuel pump should be maintained away from the engine.
3.High-pressure fuel pump
These pumps are often employed in combustion ignition engines for the direct injection of fuel into the combustion chamber. Pumps of this sort operate at pressures of more than 200 Pascals. These pump systems are particularly complicated and durable to manage such high pressure. The basic high-pressure pump system, which includes flow rails, metering units, and distribution units, aids the pump in delivering fuel to the combustion chamber without wasting or over fueling it.
| Item Specifics | |
|---|---|
| Type | Fuel Pump |
| Drive Type | Electrical |
| Fuel Type | Gasoline |
| Placement on Vehicle | Fuel Tank |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Pressure | 43-65 psi |
| Outlet Outside Diameter | 3/8" |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Flow Rate | 20 gph |
| Fuel Level Sender Resistance | 80-290 ohm |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Amperage | 8 A |
| Voltage | 12 V |
| Manufacturer Warranty | 5 Years |
| Items Included | Mounting Hardware |
| Manufacturer Warranty | 5 Years |
| Performance Part | No |
| Universal Fitment | No |
| Vintage Car Part | No |
| Manufacturer Part Number | US133616G01 |
| Brand | Usdiyparts-auto |
| OE/OEM Part Number | E8484M |
| Interchange Part Number | 8980321720, 825341205, 98032172 |
| Superseded Part Number | P76433M,FG0290,SP4003M,25341205 |
1. Package handling takes about 1 business days at our warehouse, so please make sure entering correct payment and shipping information before checking out. Once your payment is completed, we are not going to accept any more changes to your order.
We use USPS or Fedex Smartpost or UPS and so on.
International Buyers Please Note:
a. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyers responsibility.
b. Please check with your country customs office to determine what these additional costs will be prior to bidding/buying.
Payments are expected within 7 days after the last winning auction is closed; Otherwise Unpaid Item Dispute will be filed with eBay.
- We offer a 30 days Free Return
1. We will leave positive feedback once we get your payment.
2. If you are dissatisfied for any reason, please do not be quick to leave negative/neutral feedback. We will work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers.
3. If you are satisfied with the product you received, please leave us positive feedback and 5 scores DSR

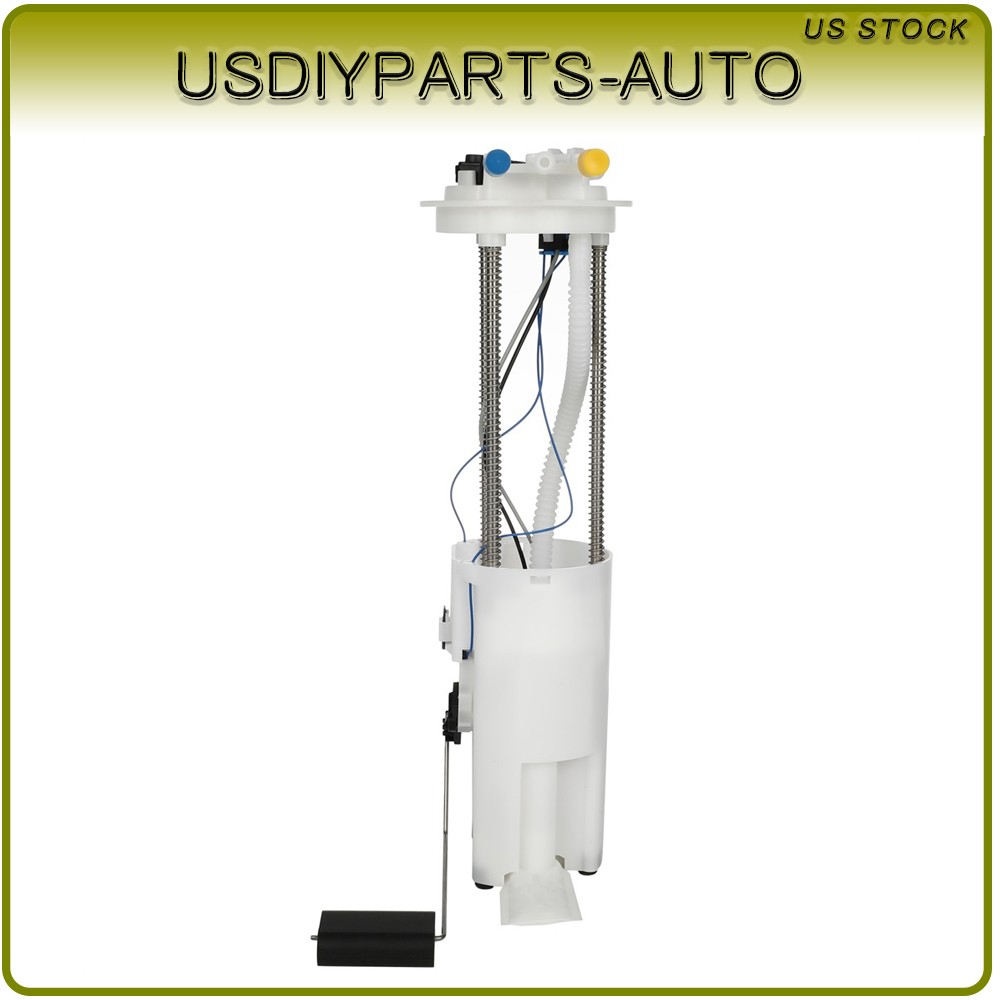

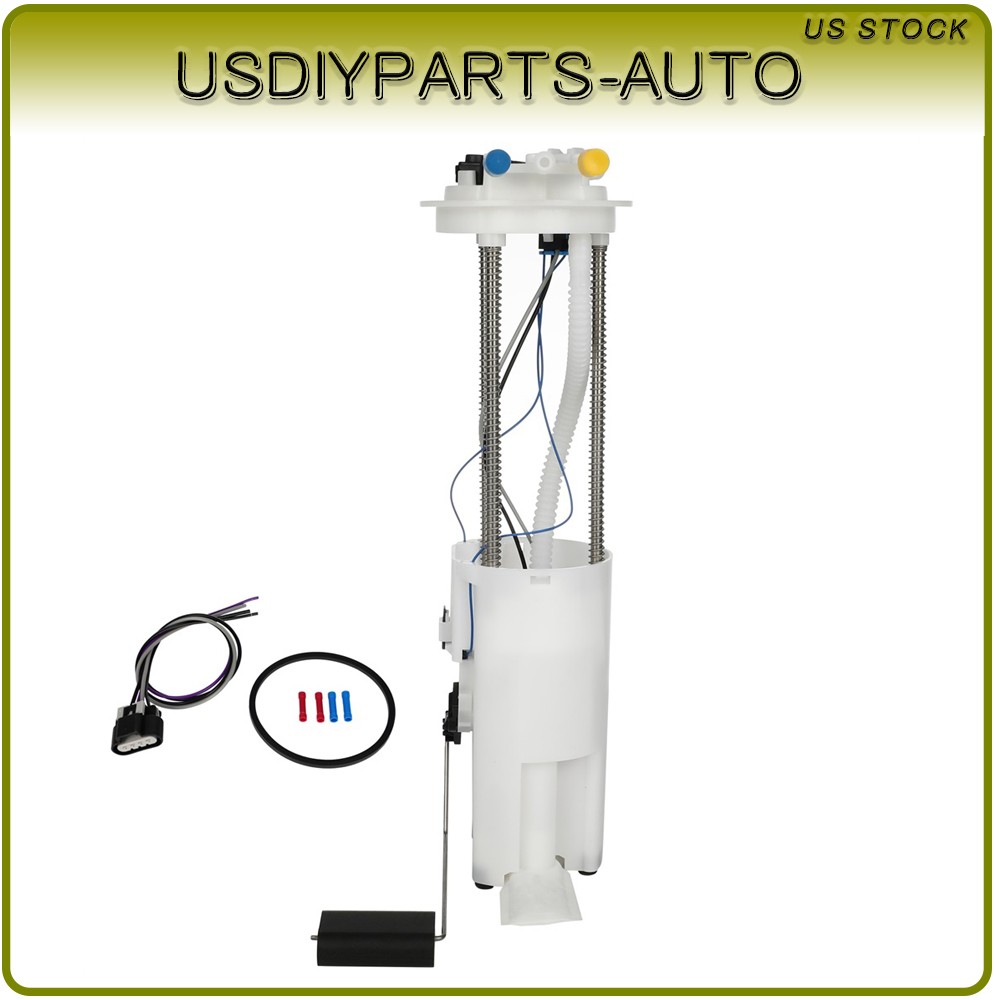

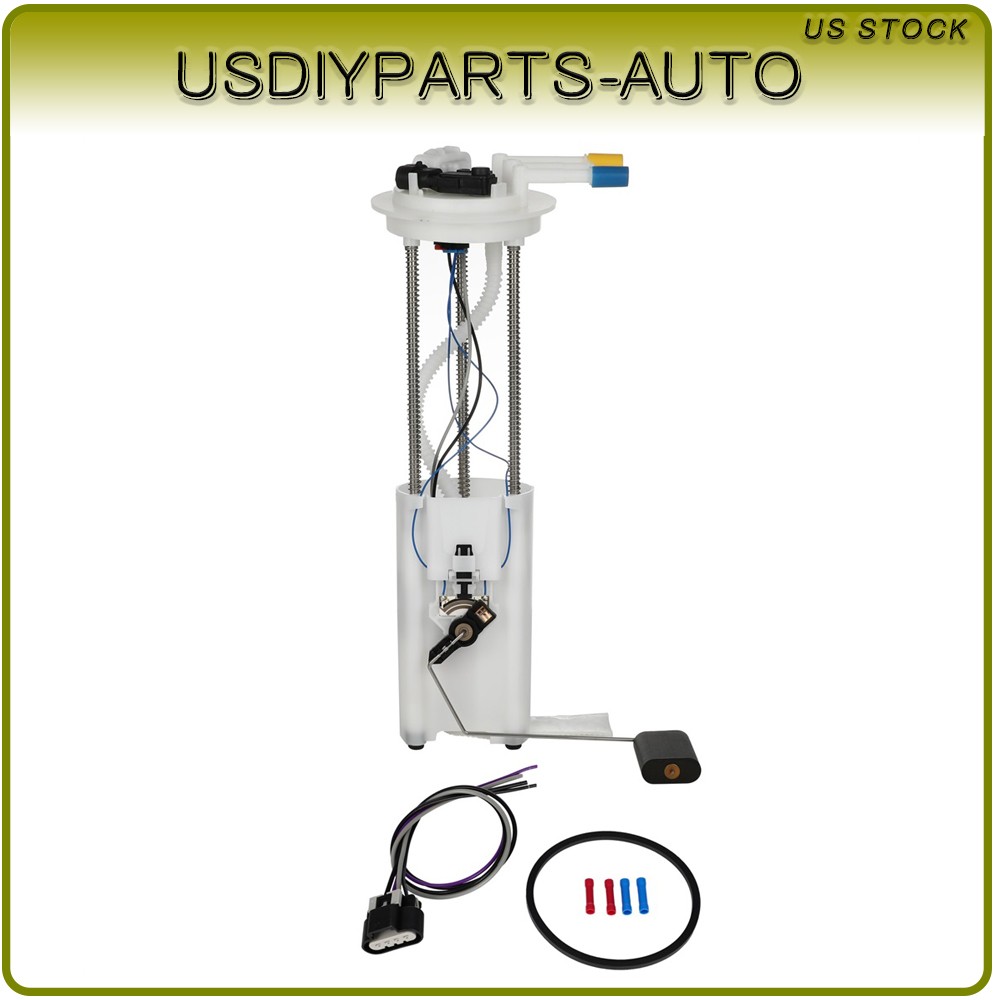

For Isuzu Rodeo Sport S 3.2L 2002 2003 Sport Utility Fuel Pump Assembly
Features: 1.High efficiency, low energy consumption 2.Manufactured to high quality control Level 3.With high reliability, quality and durability 4.Using high-quality materials to extend the service life of Products
Symptoms of a Bad Fuel Pump: 1.Difficult Start 2.Engine Stalling 3.Fuel Tank Noise 4.lower gas mileage 5.Actual Stall 6.Pressure Gauge Problems 7.Lower Fuel Efficiency
Working Principle of Fuel Pumps: A fuel pump is a fluid handling device that moves gasoline from the fuel tank to the engine. Its often found in internal combustion engines. The fuel pump in spark-ignition engines transports gasoline from the tank to the fuel bowl, where the carburetor mixes the fuel with air and transports it to the engine’s combustion chamber. In combustion ignition engines, the fuel pump delivers high-pressure fuel straight to the combustion chamber. In combustion ignition engines, the combustion enclosure is already filled with highly compressed air at the moment of combustion. As a result, the fuel pump must deliver fuel to the combustion chamber at a pressure greater than that of the combustion chamber, and ignition occurs.
Types of Fuel Pump: 1.Mechanical fuel pump These are mostly low-pressure fuel pumps, however they are occasionally employed for high-pressure applications whose primary function is to move gasoline from the tank to the spark-ignition engine’s fuel bowl. There are two types of mechanical fuel pumps: diaphragm-type fuel pumps and plunger-type fuel pumps
2.Electric fuel pump These pumps are commonly found in fuel injection systems.This tremendous pressure might cause the gasoline within the pump to ignite, resulting in an explosion. As a result, the electric fuel pump should be maintained away from the engine.
3.High-pressure fuel pump These pumps are often employed in combustion ignition engines for the direct injection of fuel into the combustion chamber. Pumps of this sort operate at pressures of more than 200 Pascals. These pump systems are particularly complicated and durable to manage such high pressure. The basic high-pressure pump system, which includes flow rails, metering units, and distribution units, aids the pump in delivering fuel to the combustion chamber without wasting or over fueling it.
