**Fitment**

Land Rove Rang Rover L322 2010-2012 with VDS

**Replacement part Number**

LR032567 LR012885
LR012886

**Package Includes**

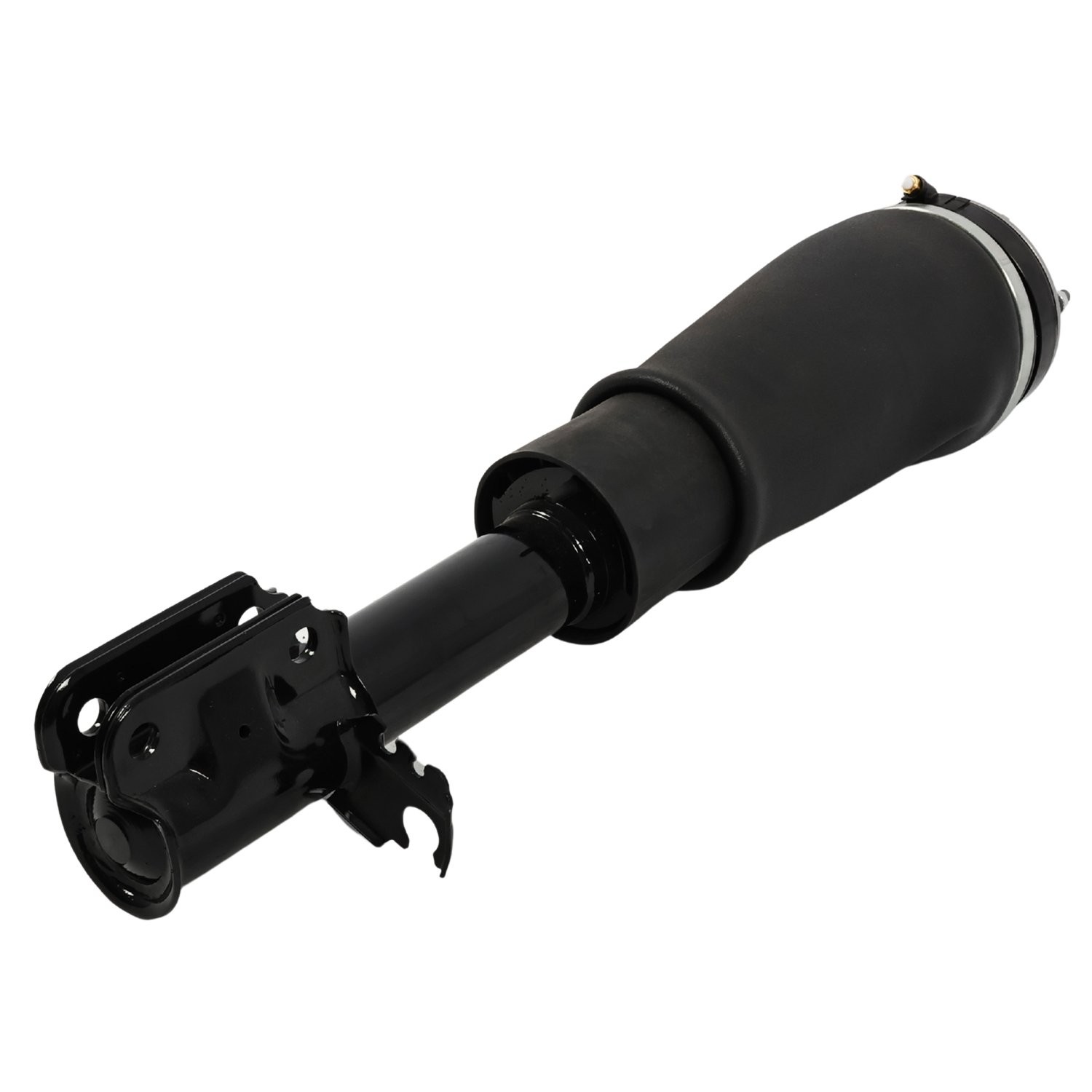

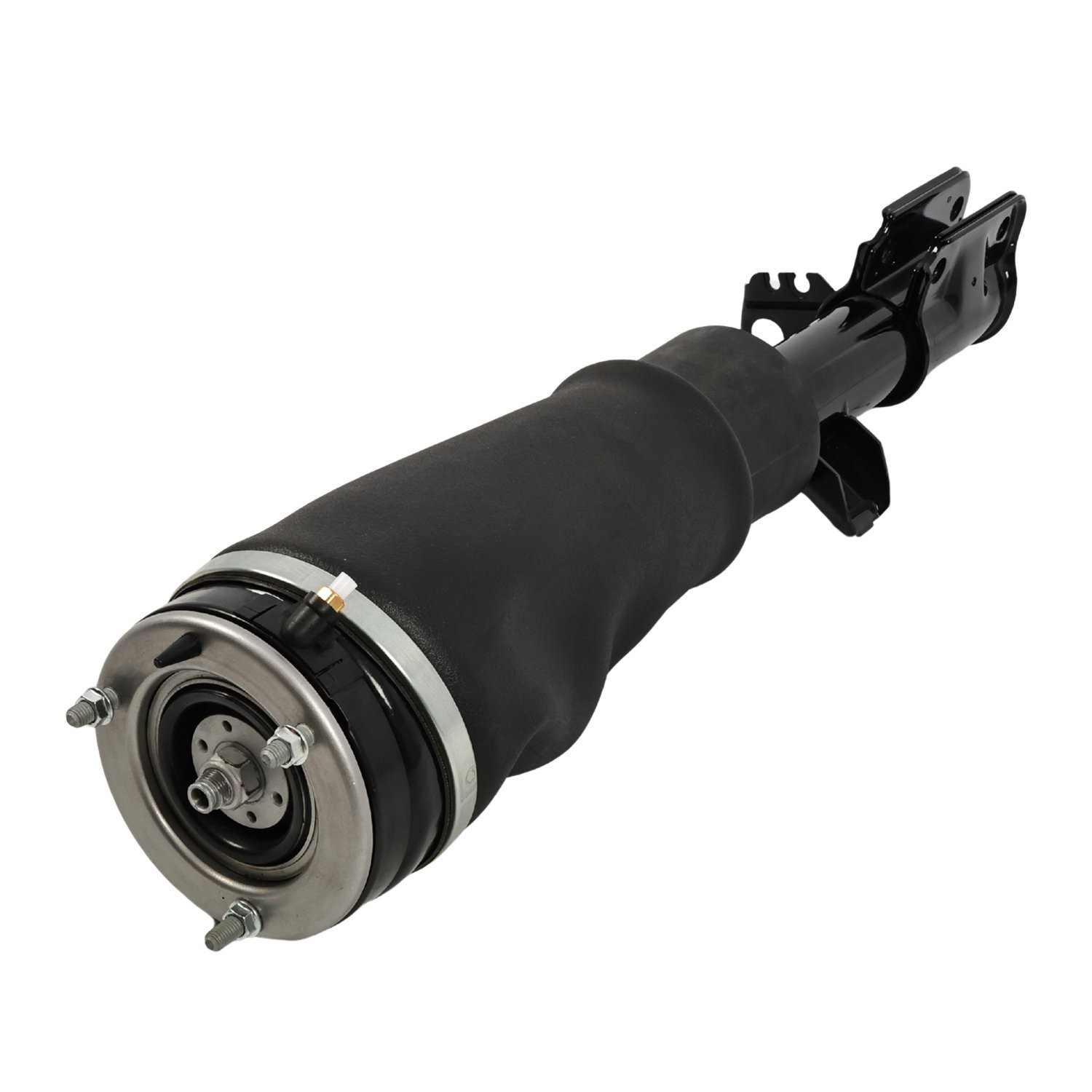

• Single for Front Left Air Suspension Shock Strut

Removal Guideline:

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise the hood to access the air strut's top damper.

3.Remove the two (2) bolts holding the damper to the top of the air strut.

4.Remove the damper from the wire.

5.Remove the electrical plug from the top of the shock rod by pressing in on the two (2) sides and pulling up.

6.Raise vehicle and remove front left wheel.

7.Remove the brake hose and abs sensor wire from the retention bracket on the strut.

8.Removethe sensor from the small plastic clip at the bottom of the shock.

9.Disconnect the sway bar link by removing the nut holding the ball joint to the strut. you may need to hold the ball joint from spinning by placing a wrench on the two flats of the ball joint on the back side of the bracket.

10.Remove the three (3) upper mount nuts.

11.Remove the two large bolts that hold the strut to the spindle assembly. (figure d) with the nuts and bolts removed from the spindle assembly,  pull the spindle outward while pushing the strut.

12.With the air strut removed you can now gain access to its hose connection, slowly   remove the fitting to deflate and free the assembly. remove the air line fitting from the air hose and discard.

13.Removal complete.

Installation Guideline:

Installation is in reverse order of removal.

**Note**

• 3 years warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
