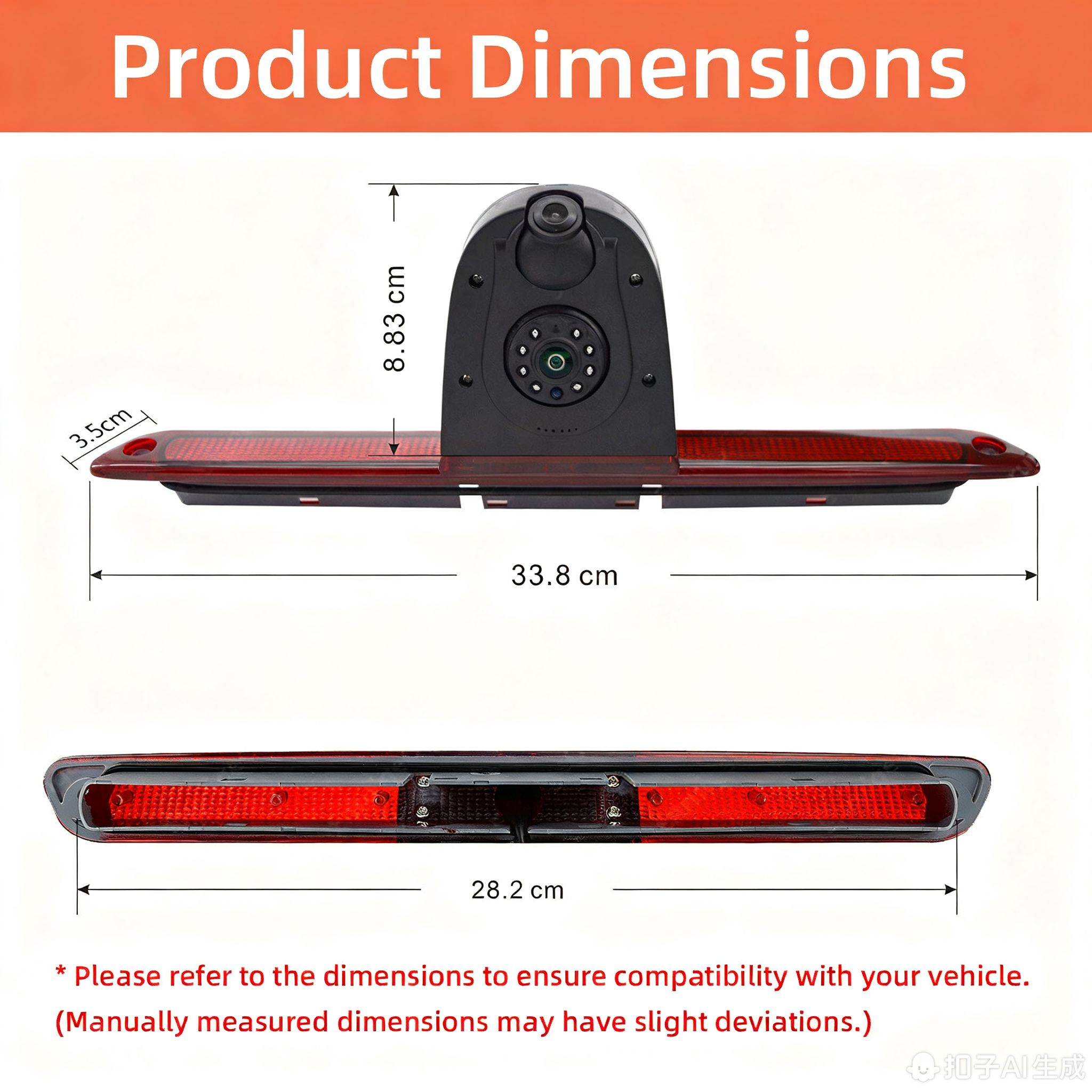

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.
Camera Compatibility:
✅Mercedes Sprinter [W906 NCV3] (2006-2018)
✅Mercedes Sprinter [W907/W910 VS30] (2019-On)
✅Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)
【No LED brake light strip】
This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

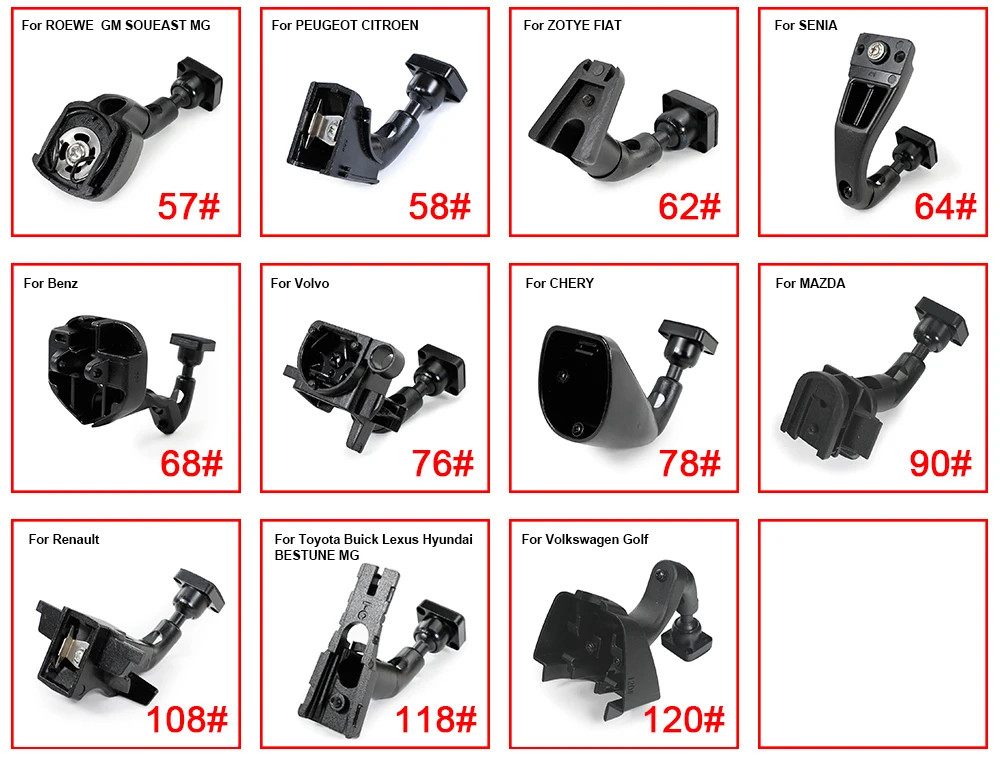

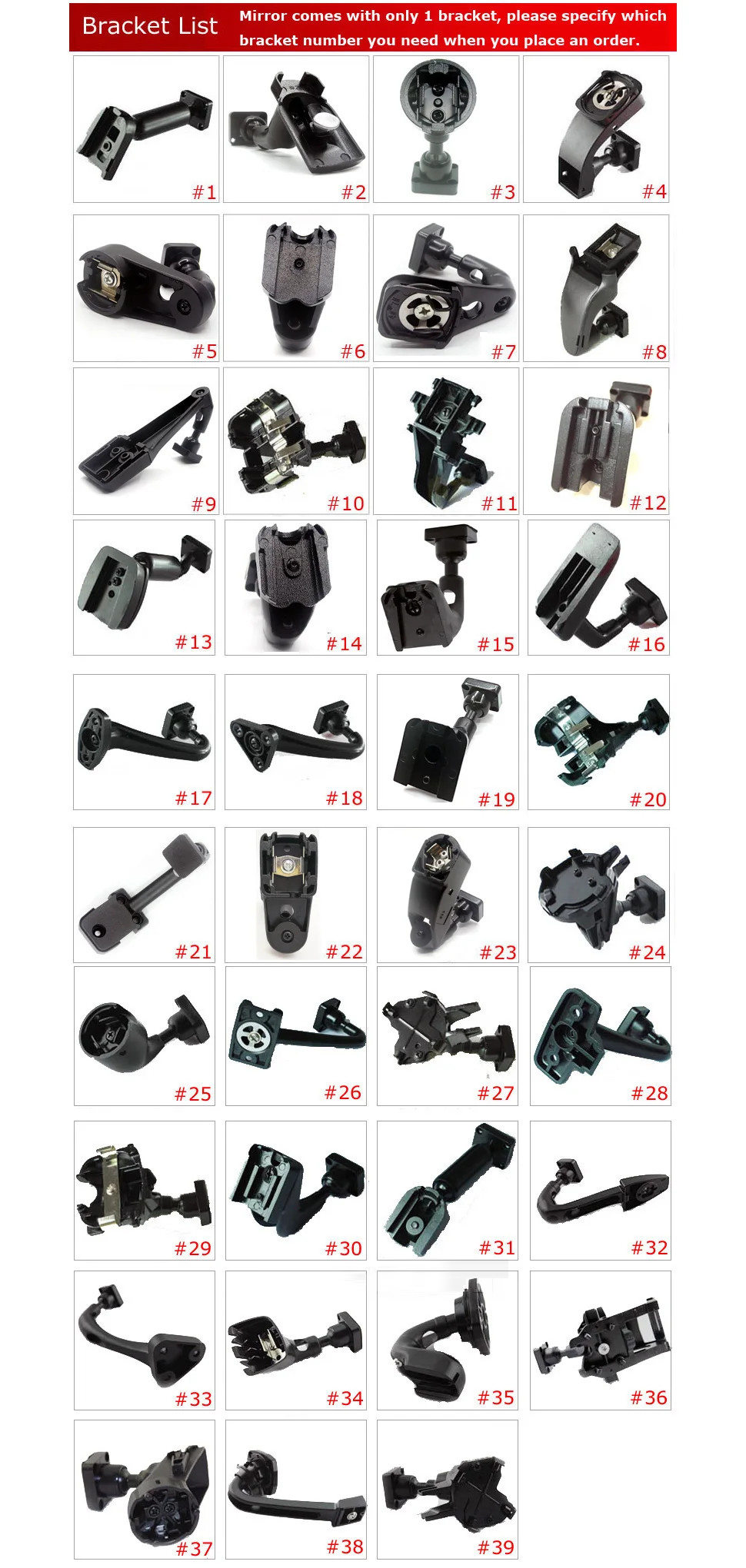

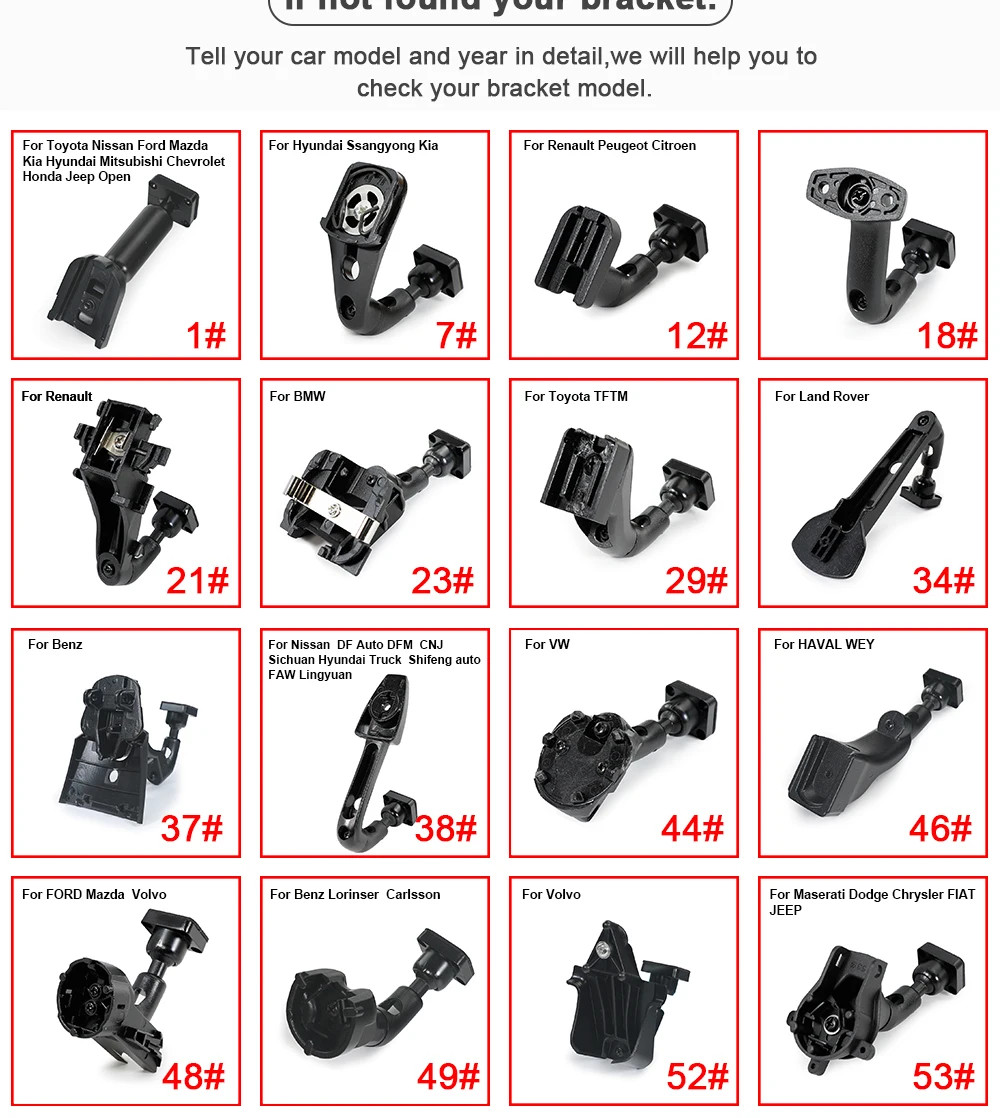

Monitor Bracket Note:
This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering. We have other bracket styles that may fit your vehicle.
Description:
* Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.
* TWIN LENS !!! Dual lens reversing camera: One for mirror view while driving, one for reversing view while parking.
* Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.
* Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.
* Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.
* Complete Parking Aid: Includes a dual-lens reversing camera and a 7" TFT-LCD monitor. The monitor displays rear camera footage while reversing, ensuring safer parking.
Camera Specifications:
Image sensor: 1/3" CMOS
Lens: 2.8mm&3.6mm
Effective pixel: 733(H)x493(V)
TV Line: 700TV Lines
Night Vision distance: Approx.35ft
Waterproof rating: IP68
Viewing angle: 120°&90°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0Lux(IR LED ON)
Power: DC 9V-35V
Operating temperature: -20℃ to +70℃

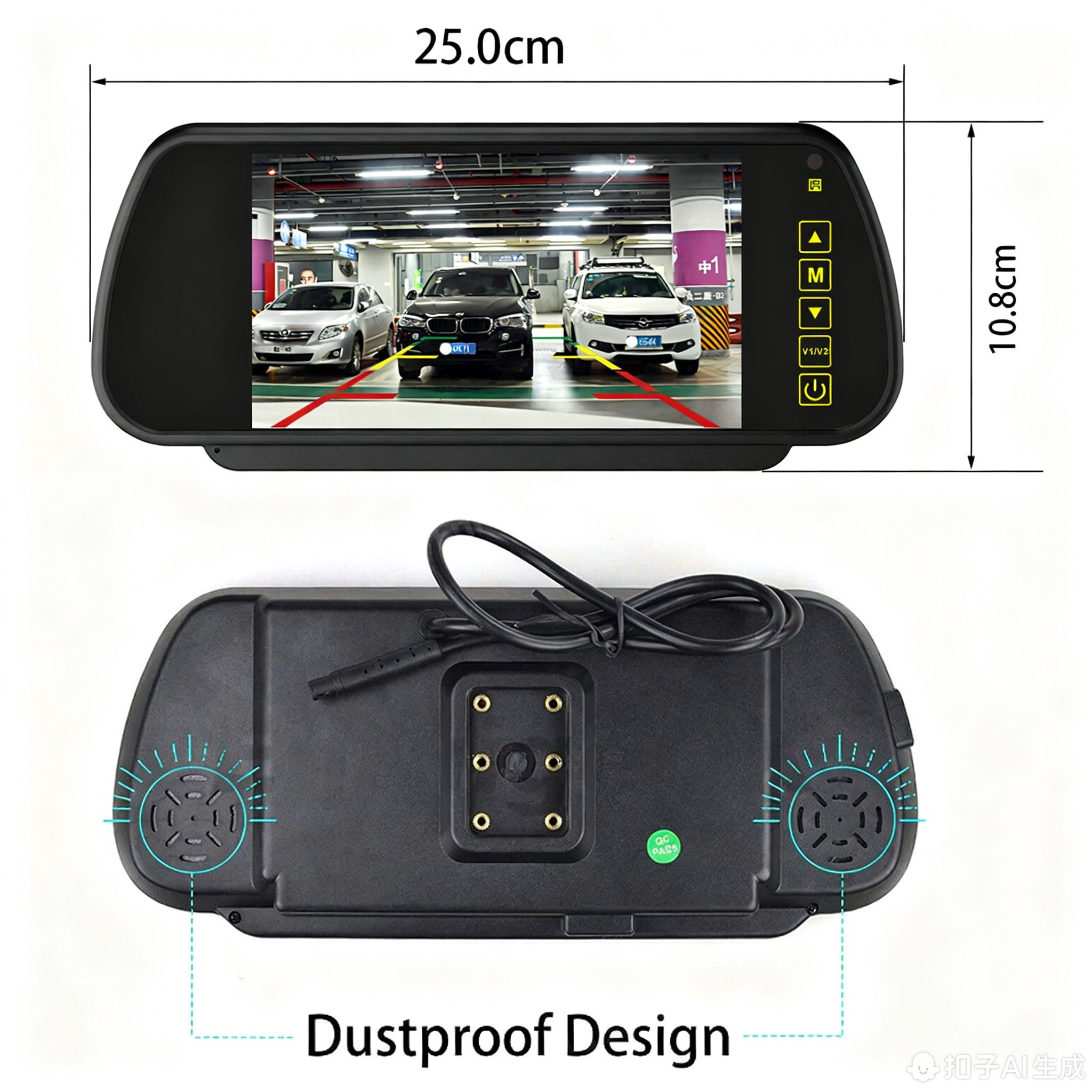

Monitor Specifications:
*Screen: 7 inch
*Resolution: 800x(RGB)x480
*TV System: PAL/NTSC auto
*Screen ratio 16:9/4:3 adjustable
*Video Input: Dual video inputs, AV1 and AV2(For reversing camera) video input, the monitor will automatically turn on and switch to the rear view camera (image) when the reversing gear is engaged.
*Blue screen displayed when no signal is detected.
*Parking Guidelines: Adjustable (ON/OFF via monitor settings).
*Power Supply: DC 9V-35V
*Power consumption: 6W
*Rear watching: Image can be changed left and right
*Operate mode: The touch key operation and remote control
*Remote control: a CR2025 button battery (battery not included)

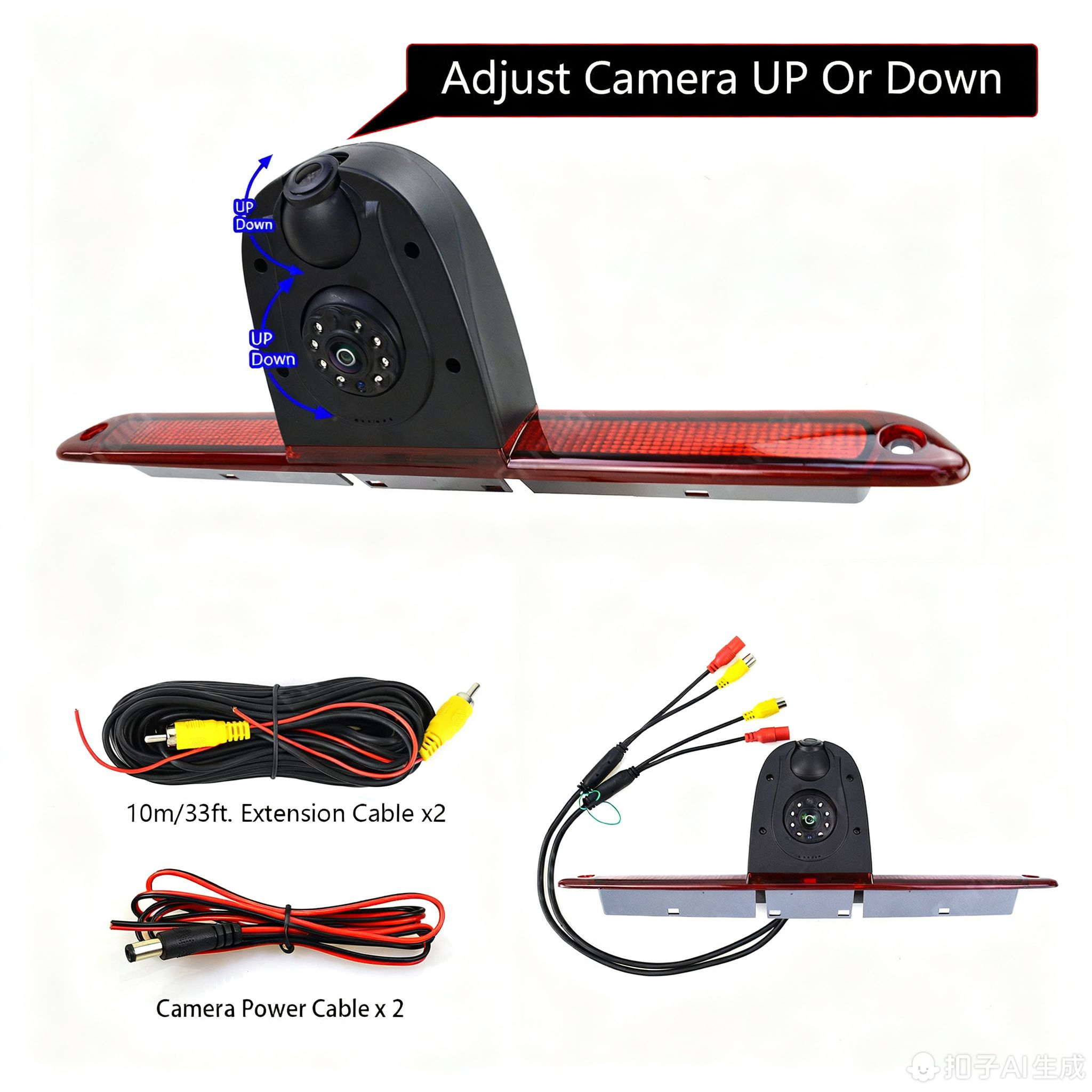

Package contents:
1 X Brake light camera
1 X 7'' Mirror monitor
1 X Remote controller(battery not included)
1 X 2.5m monitor power cable
2 X 10m/33ft. video extension cable
2 X 1m DC power cable
1 X #1 Bracket(check your windshield mount)
1 X Manual
Note:
1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)
3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.
