What is a Window Regulator?
The window regulator is a device (electric or manual) that raises or lowers the glass in car windows. It’s usually mounted in the space behind the door panel and held in place by bolts and screws. Spaces on the body of the door allow for insertion or removal of the regulator assembly.
Most regulators today are electrical and equipped with an electric motor. These are operated by a switch mounted near the driver or on a door-mounted panel. A few are manual and worked by a hand-driven crank fitted to the door.
The car window regulator has a long history. The first version of the device aappeared as early as a century ago, in the 1920’s. Regulators of that time were simple parts and mostly manual. Fast forward to the present, and device is a lot more sophisticated.
Today’s window regulator mechanism incorporates complex electronics and auto controls.The window regulator function is to allow the window to open when needed and close when required. It helps the occupants of a vehicle to lock out weather changes such as or let in fresh air. In emergencies, a working regulator allows for exit through the window. A window that closes properly also prevents theft.
Window regulator design varies from one manufacturer to another. It’s also different for different vehicles and working mechanisms. That said, the device features similar main components. A typical window regulator assembly consists of these parts
- Lifting mechanism
- Window tray
- Drive assembly
The tray holds the glass in place and allows it to move up and down as required. The lifting mechanism is the part of the device that’s responsible for the rising and lowering of the window. It exists in different constructions. The drive assembly contains the parts that cause movement. Now that you have an idea of what the regulator is and the basic parts it uses, let’s now see how it raises and lowers a window.

Window Regulator Operation: How does a Window Regulator Work?
Before answering the question, it’s good to note that window regulators exist in different designs. There are also those that you operate manually and the types that are powered by an electric motor. The working mechanisms of the device, therefore, vary depending on the type that you have installed in your car or truck.
When you have a powered regulator, pressing a button activates a motor. The motor then spins to operate a drive mechanism. The mechanism then lifts or lowers the window. A manual system employs a crank that mounts on the door and features a hand-operated handle to rotate.
The drive mechanism consists of gears. These connect to the lifting assembly, which is often a scissor-like structure, rack gear, or a set of pulleys and cables. The scissor-type mechanism expands to raise the window and collapses to lower it.
In a pulley-cable setup, the drive assembly winds or unwinds a cable along pulley grooves. The movement then raises or lowers the glass. A rack gear system uses a pinion to work the window upon or down.
Because the regulator has many components, it’s usually lubed. Window regulator lubrication helps to reduce friction and prevents excessive wear of the moving parts. It also allows a smooth and noiseless operation of the assembly.

How to Buy a Window Regulator
Manufacturers build window regulators to fit specific vehicle types and models. Finding the right model, therefore, requires that you be conversant with the factors to consider. Choose the device following these guidelines.
1. Use your car details such as type, model, and year of manufacture to find the right regulator to buy. That will help you ensure compatibility. Many window regulator suppliers have the option to search for the part using the details. You only have to input them in a search box on their websites.
2. Establish the kind of regulator you need. There’s the manual and powered type. Powered regulators offer more comfort to use but cost more. They are also modern and the norm for modern cars. Other options include choosing between cable, lever, and rack/pinion regulator types.
3. Consider the brand, too. Some brands are more quality than others. Some are more affordable while offering an acceptable level of performance or lifespan. Researching the different companies can help you make the right decision.
4. The car window regulator price varies. You may want to scout for deals, especially if replacing several pieces of the device.
5. If considering to install the device yourself, you may want to opt for a window regulator kit instead of those that come as a single unit. You also need manufacturer instructions concerning the process to install the assembly or window regulator manual. Some are sold with one, others without.
| Item Specifics | |
|---|---|
| Type : | Regulator & Motor Assembly |

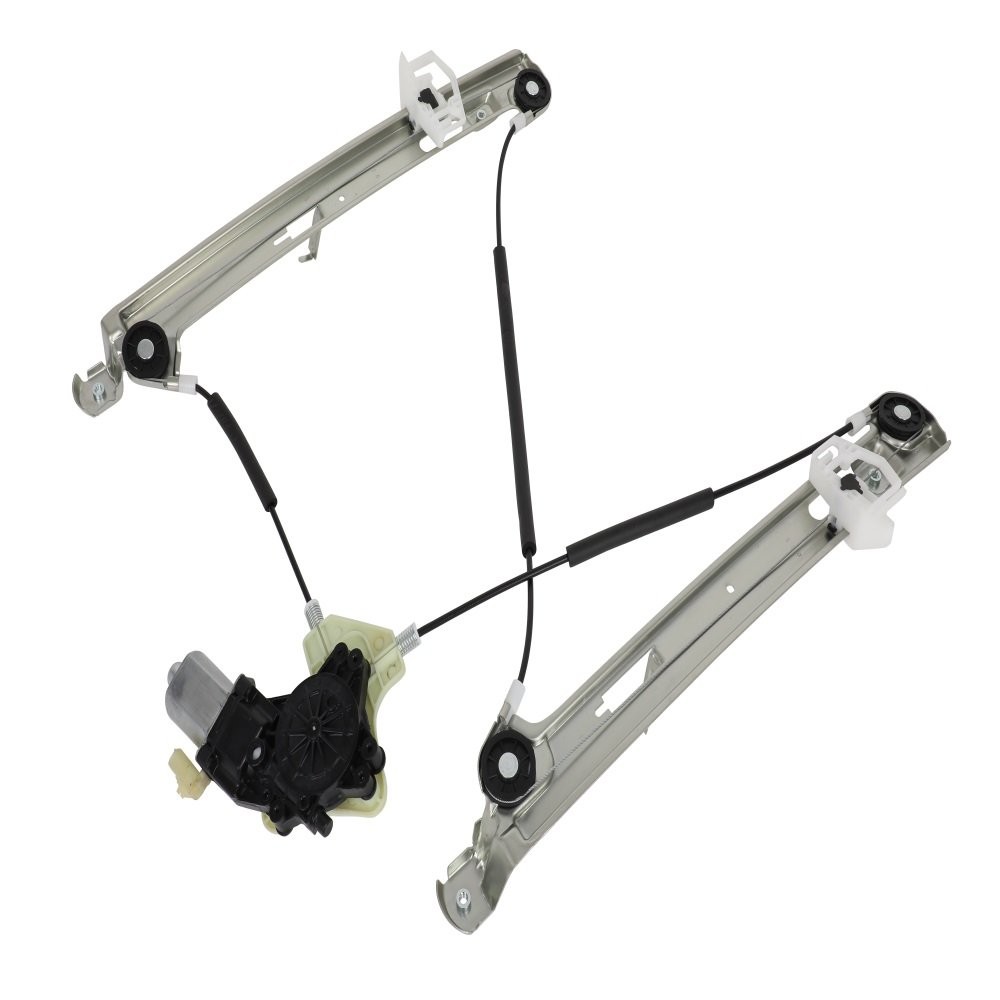

| Part Type : | Front Left Driver Side Double Bowden Window Regulator & Motor |
| Window Regulator Style : | Factory |
| Window Regulator Motor Included : | Yes |
| Placement on Vehicle : | Front Left |
| Quantity : | 1 item per lot |
| Package Included : | Same AS The Picture |
| Features : | Factory Window Regulator & Motor Assembly ISO-Certified OE-Certified |
| Packaging Type : | Box |
| Model : | For Compass Sport Utility 4-Door Only |
| Window Regulator Parts Structure : | Drive Mechanism Lifting Mechanism Window Bracket |
| Material : | Stainless Steel Plastic |
| Operating Mode : | Electric |
| Gear Material : | ABS Plastic |
| Color : | Same AS The Picture |
| Attachment Type : | Bolt On |
| Fitment Type : | Direct Replacement |
| Terminal Quantity : | 2-pin Plug |
| Manufacturer Warranty : | 5 Years |
| Universal Fitment : | Yes |
| Performance Part : | Yes |
| Vintage Part : | Yes |
| Item Weight : | 1.97 kg / 4.34188 lb |
| Instructions & Mounting Hardware Included : | Not Included |
| Fitment(Note) : | Verify this part fits your vehicle using the compatibility chart |
| Surface Finish : | Smooth |
| OE/OEM Part Number : | 751-316 |
| Interchange Part Number : | 68002896AA, 68002899AA |
| Superseded Part Number : | 68002896AA, 68002899AA |
| Manufacturer Part Number : | ALH151666WRM |
| Brand : | autolighthub |
| Shipping Address : | Shipped from California |
Item will be shipped out within 24 hours after payment cleared, except for weekends and holidays.
All orders will be shipped out within 1 business day after payment is cleared. Most of orders will be shipped out at the same day if ordered before 8:00 AM PST(Pacific Standard Time) during business days.
All orders will be shipped out via USPS or UPS or Fedex express with a tracking number, which will take 2-6 business days for the delivery.
The freight cost listed in the auction will be for domestic 48 states only. For customers from Guam, Puerto Rico, Northern Mariana Islands, Virgin Islands, Marshall Islands, Alaska or Hawaii, please kindly message us for an accurate quotation.
Please make sure that the address is correct before you check out.
30 Days Free Return and Money Back
If you are not satisfied with your purchase, you can return the item with original packaging back to us for full refund, not any re-stock fee. The return cost should be paid by seller.
If you receive any wrong items, or damage during the transportation or defect items, please contact us, we will send refund to you.
The full refund or replacement will be available for all faulty items, including the original shipping cost.
The guarantee will be only for the cost of the item, we will not responsible for installation or other fees like labor expenses, towing expenses, additional repair expenses or other related expenses.
We fully understand how challenging it is to be a successful transaction. If you are not satisfied with our products, please do not hesitate to tell us, our sales representatives will try the best to make you happy. Customer satisfaction is our priority consideration!
Welcome to AutolightHub, your ultimate destination for all things automotive lighting. We’re passionate about helping you illuminate the road with top-quality products designed to enhance safety, style, and performance. Whether you’re upgrading your vehicle’s look or seeking reliable lighting solutions, AutolightHub offers expert advice and exceptional customer service to guide you every step of the way. Experience convenience, quality, and innovation all in one place—because your vehicle deserves nothing less than the best. Light up your drive with AutolightHub today!

Front Driver Side Power Window Regulator With Motor For Jeep Compass 2007-2017
