What Are The Signs Of a Failing CV Axle?
Those cute little rubber boots that form the joints in a CV axle can become brittle and crack over time. When this happens, the grease and lubricant that is packed inside can leak out, or dirt and debris from the road can creep their way in.
You may notice a clicking sound when turning the wheel or accelerating and feel a vibration as the vehicle is in motion. You may also notice grease on the inside of your wheels or tires as the lubricant leaks out from a damaged CV boot.
Feature:

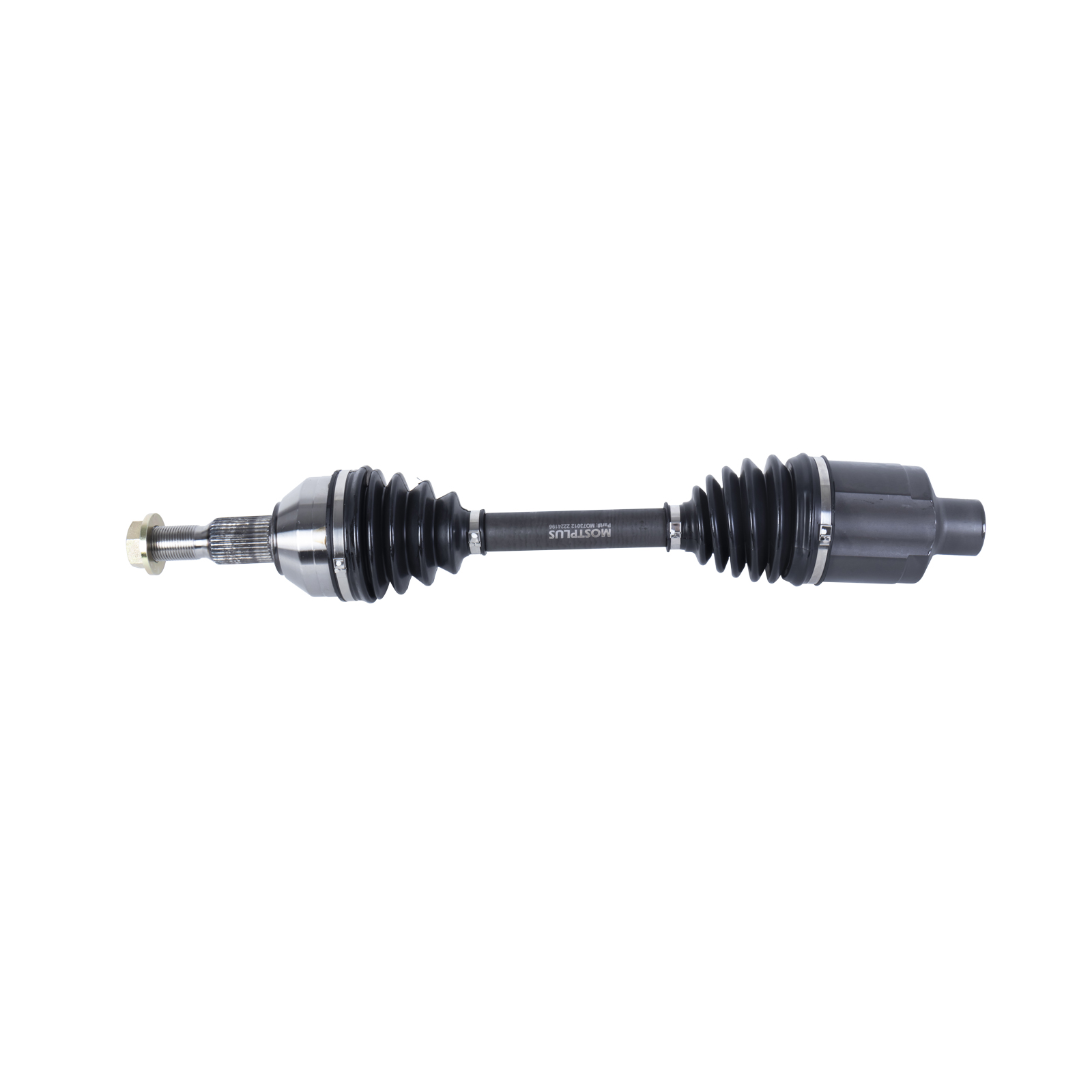

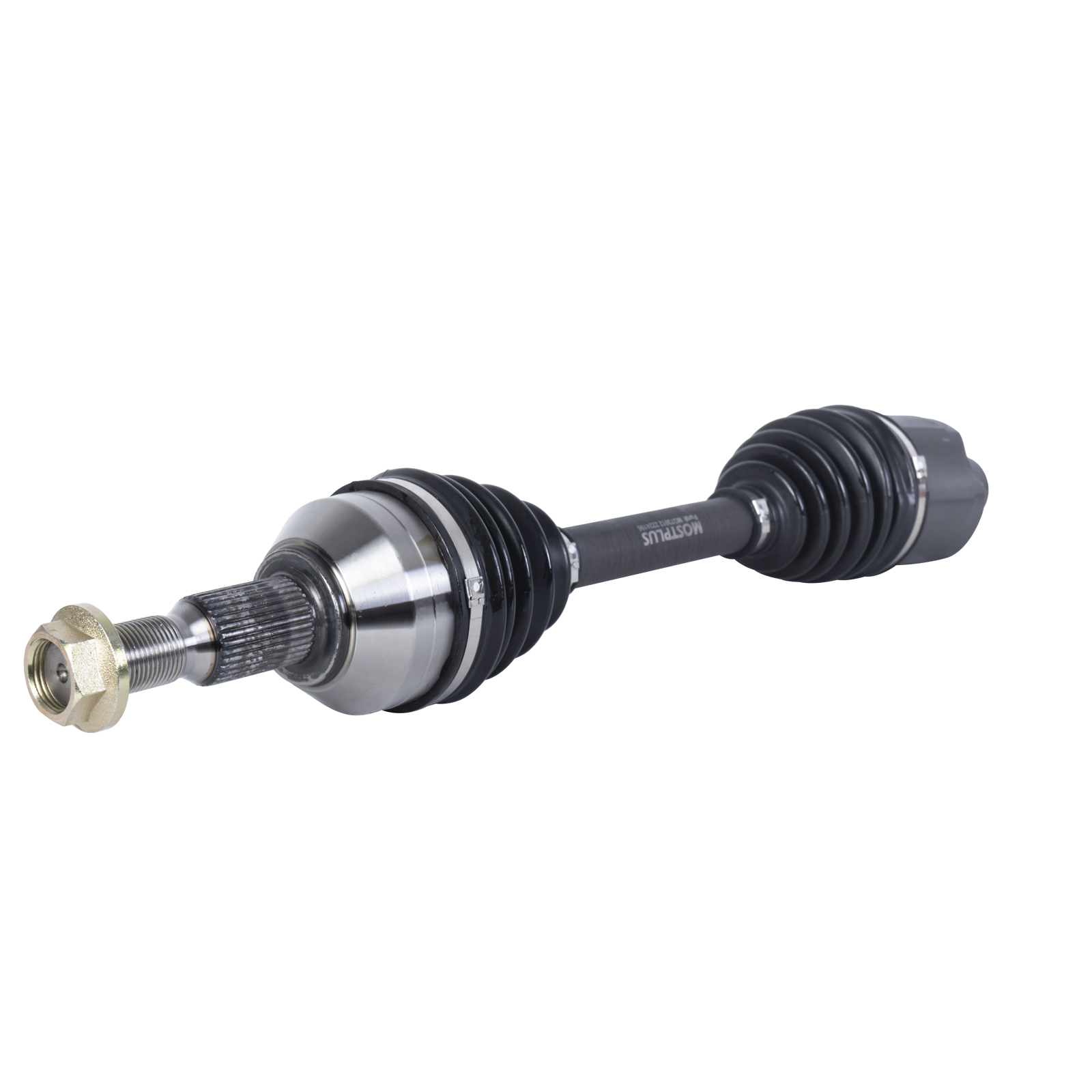

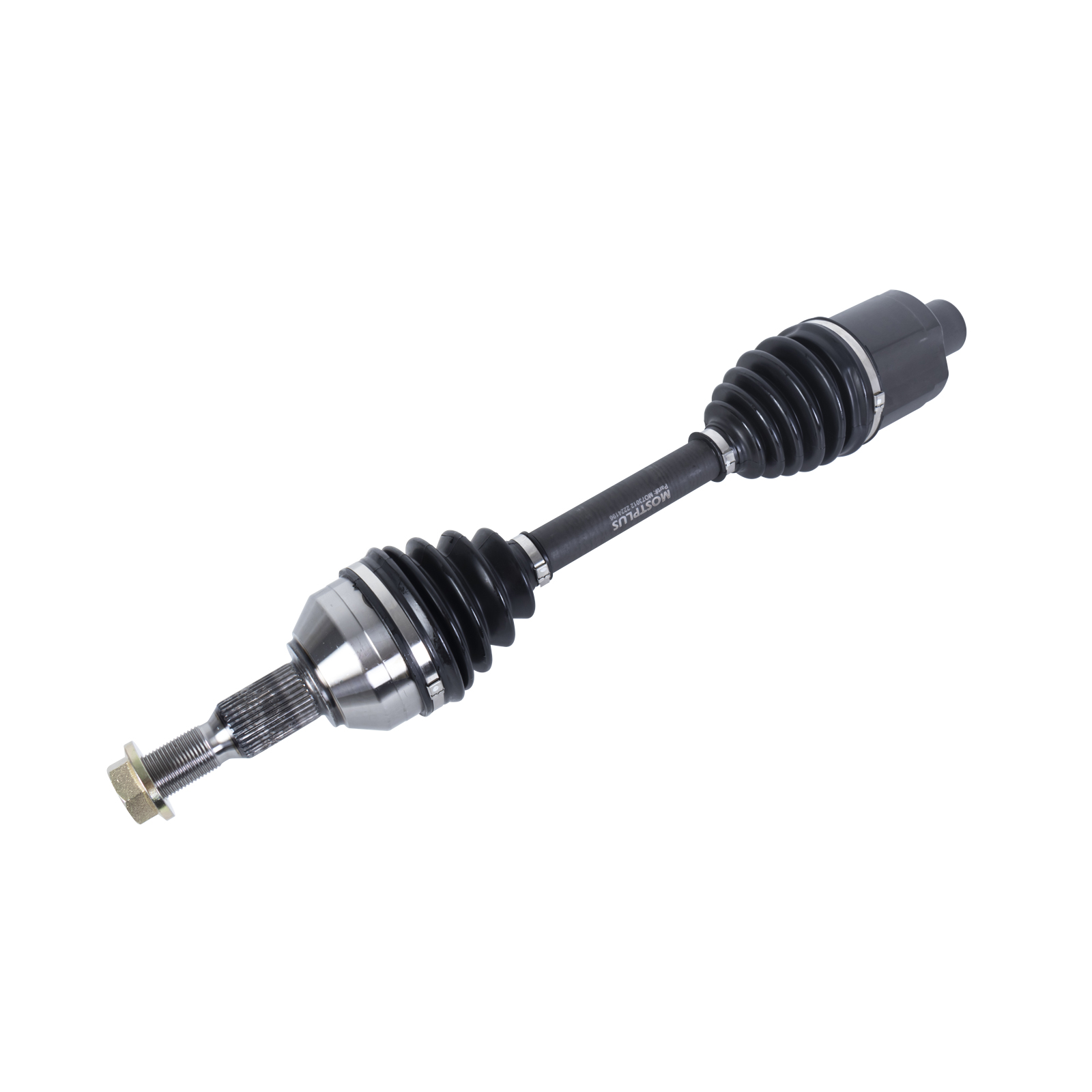

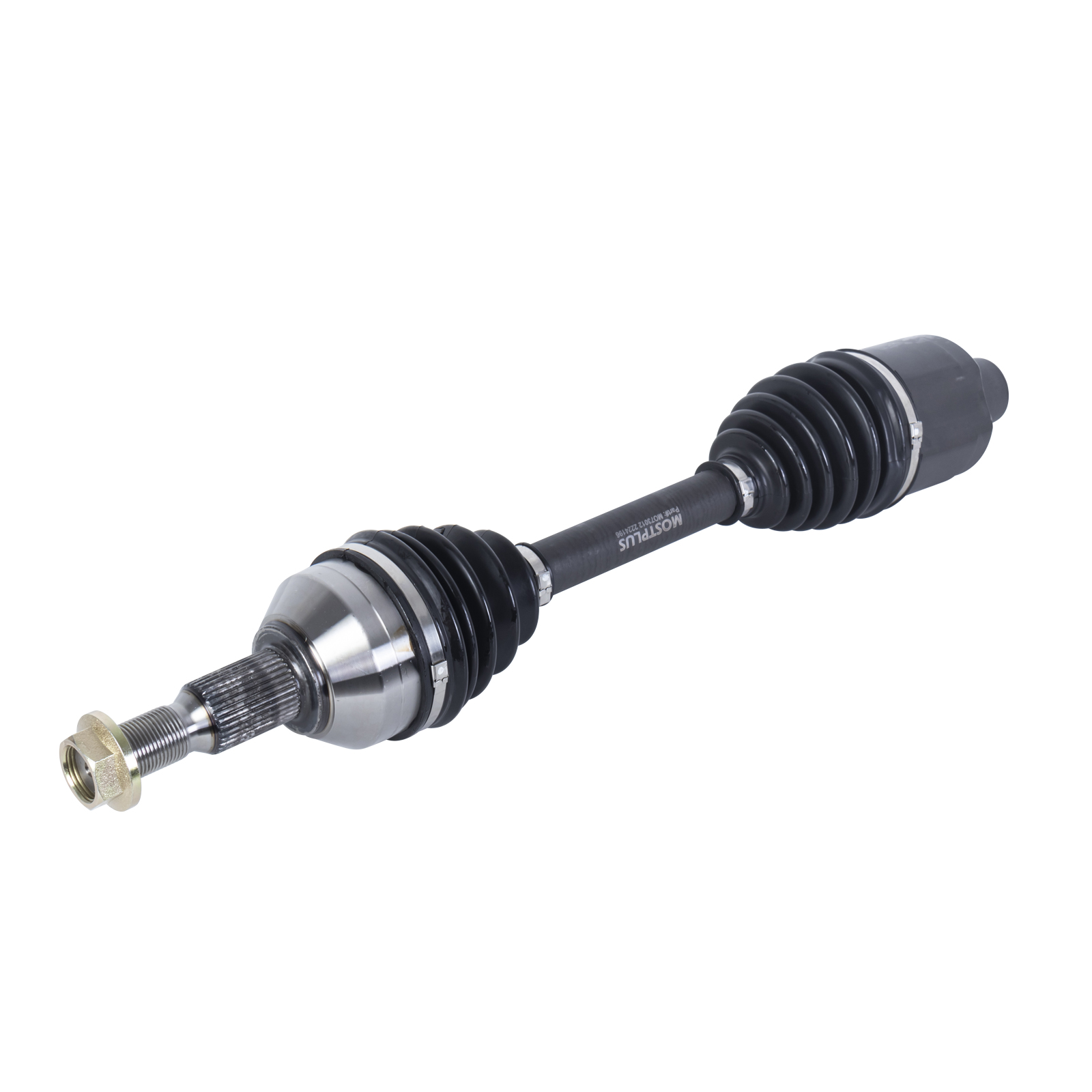

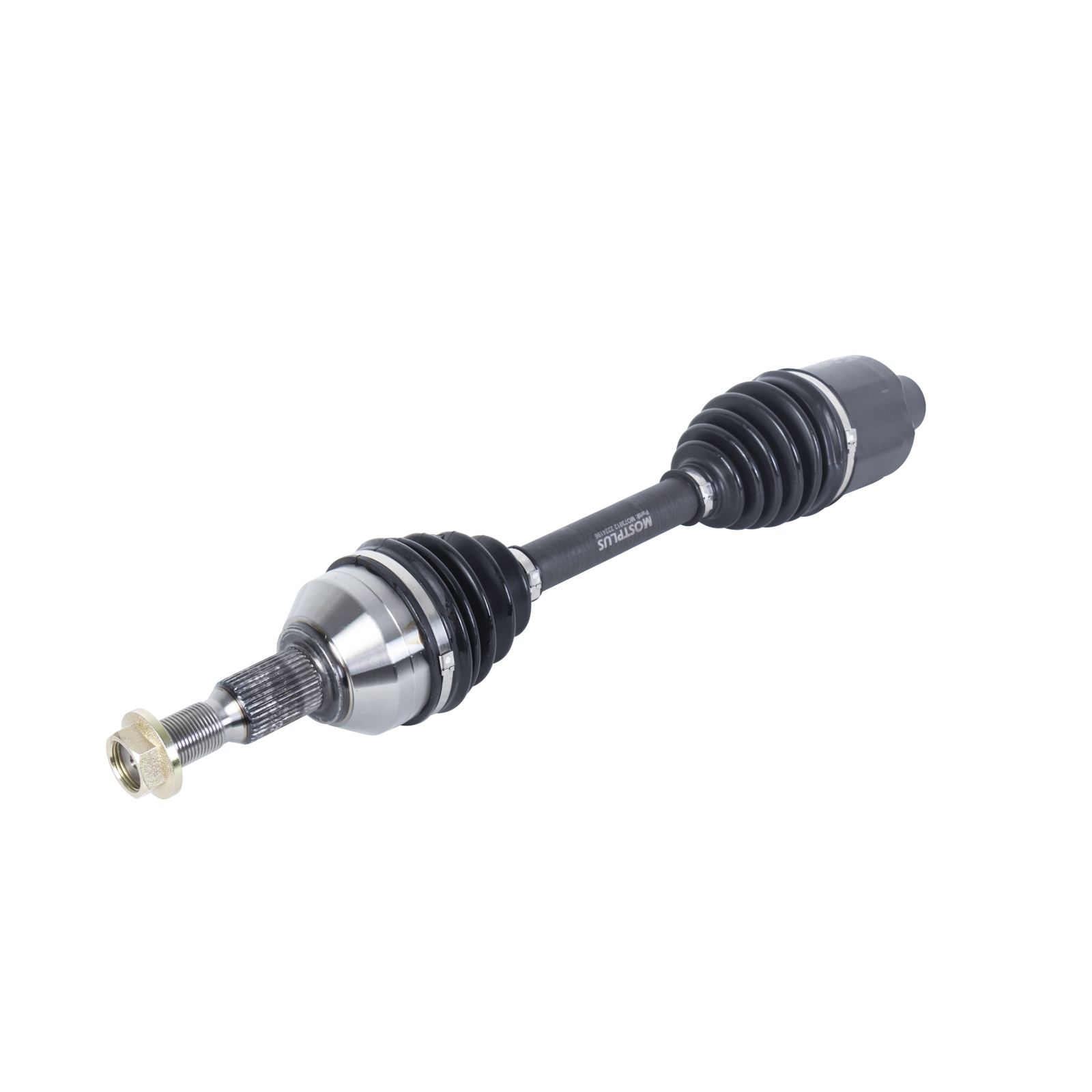

Compressed Length: 23.78 in/604 mm
Inboard Joint Type: Female
Inboard Spline Quantity: 27
Outboard Spline Quantity: 33
OE Number: 25789729, 25849949, 20985786, 22796414, 25822833, 15116785, 661466, NCV10639
Application:
For 2008-2017 Buick Enclave Front Passenger Side CV Axle Assembly
For 2009-2017 Chevrolet Traverse Front Passenger Side CV Axle Assembly
For 2007-2017 GMC Acadia Front Passenger Side CV Axle Assembly
For 2017 GMC Acadia Limited Front Passenger Side CV Axle Assembly
For 2007-2010 Saturn Outlook Front Passenger Side CV Axle Assembly
Benefits:
1. Proprietary engineering processes ensure that all CV Drive Axles meet O.E. form, fit and function.
2. Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure.
3. A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped.
4. CV Drive Axle measurements are validated after assembly to ensure a proper fit.
5. Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing.
6. High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance.
7. Splines are precision rolled to ensure proper fit of CV Drive Axle into the mating hub and transmission, which eliminates installation hassles.
8. Threads are precision rolled to ensure proper fit when axle nut is installed.
9. Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life.
How to Prevent a Bad CV Axle
To prevent your CV axle from going bad, you need to follow below-given control measures:
- Proper lubrication of the axle
- Periodically inspection of the CV axle
- Follow the owner’s manual maintenance instructions
- Avoid aggressive driving
- Avoid off-road driving
- Ensure the proper installation of the axle
- Protect your CV joint boots from water or moisture
