Key Benefits
- Designed for a direct replacement to ensure compatibility with vehicles.
- Comes complete with a strainer for enhanced fuel filtration.
- Features a maximum pressure rating of 95.0 PSI to maintain optimal fuel delivery.
- Equipped with a female quick connect outlet type for easy installation.

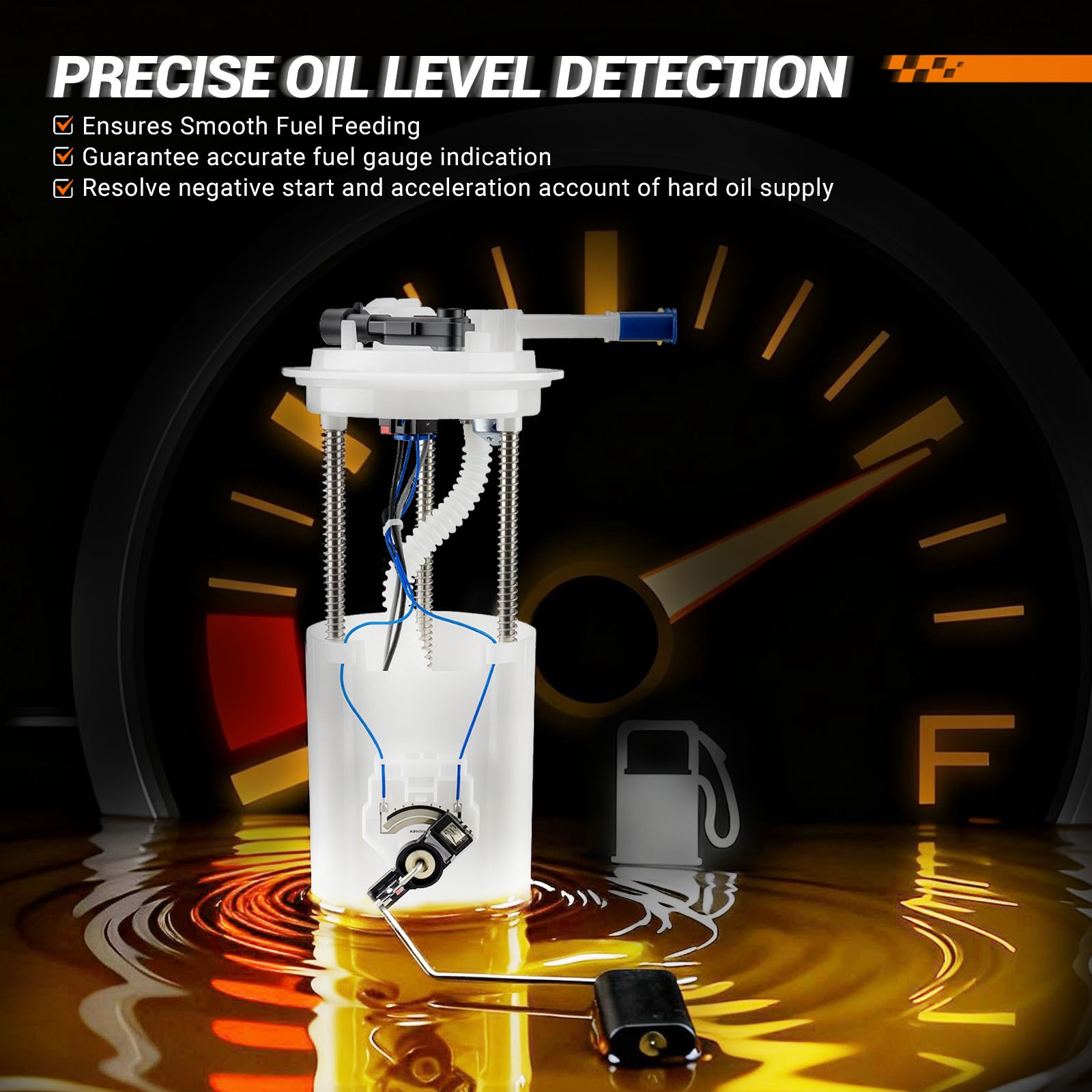

- Includes a fuel level sender assembly to accurately monitor fuel levels.
- Backed by a 5-year manufacturer warranty for peace of mind.
Features & Details
Items Included: 1x Fuel Pump Assembly - FG1697
Gasket or Seal Included: No
Outlet Outside Diameter (IN): 0.375
Fitment Type: Direct Replacement
Outlet Quantity: 1
In Tank or External: In Tank
Manufacturer Part Number: Does Not Apply
Resistance Ohms Empty (82): 990.0
UPC: Does Not Apply
Lock Ring Included: No
Superseded Part Number: E9125M,FG1697,DFG1697,SP5140M,P77430M
Average Flow Rating GP: 53
Strainer Included: Yes
Brand: SEALIGHT
Type: Fuel Pump
Interchange Part Number: E9125M,FG1697,DFG1697,SP5140M,P77430M
Vapor Pressure Sensor Included: No
Manufacturer Warranty: 5 Years
OE/OEM Part Number: LR020015,LR038599,LR003779,LR008218,LR005568,LR005619,LR010431
Maximum Pressure (PS): 95.0
Resistance Ohms Full (82): 51.0
Outlet Type: Female Quick Connect
Fuel Level Sender Assembly Included: Yes
Fitment
For Land Rover:2008-2012 LR2
Package Includes
1x Fuel Pump Assembly - FG1697
Installation Guide
- Ensure the vehicle is parked on a level surface and disconnect the battery before beginning installation.
- Safely drain the fuel tank to reduce pressure and prevent spills during installation.
- Remove the old fuel pump assembly carefully, following the manufacturer's guidelines.
- Install the new fuel pump assembly in reverse order of removal, ensuring that all connections are secure.
- Reconnect the battery and check for any fuel leaks before starting the vehicle.
- It's recommended to consult a professional if you're not familiar with vehicle repairs.
Important Notes
- This fuel pump assembly is specifically designed for use in 2008-2012 Land Rover LR2 models.
- Before purchasing, verify that your vehicle's specifications match the provided OE numbers (FG1697, E9125M, LR020015, LR038599, DFG1697).
- Do not attempt to modify the assembly or install it in incompatible vehicles to avoid potential damage.
- Follow all safety precautions when working with fuel systems to prevent accidents.
