Product Features This fuel injector test unit is designed to test a range of modern automotive fuel injectors, including the latest model GDl injectors. This unit features a range of innovative technical designs distinguishing itself from othersimilar units on the market.

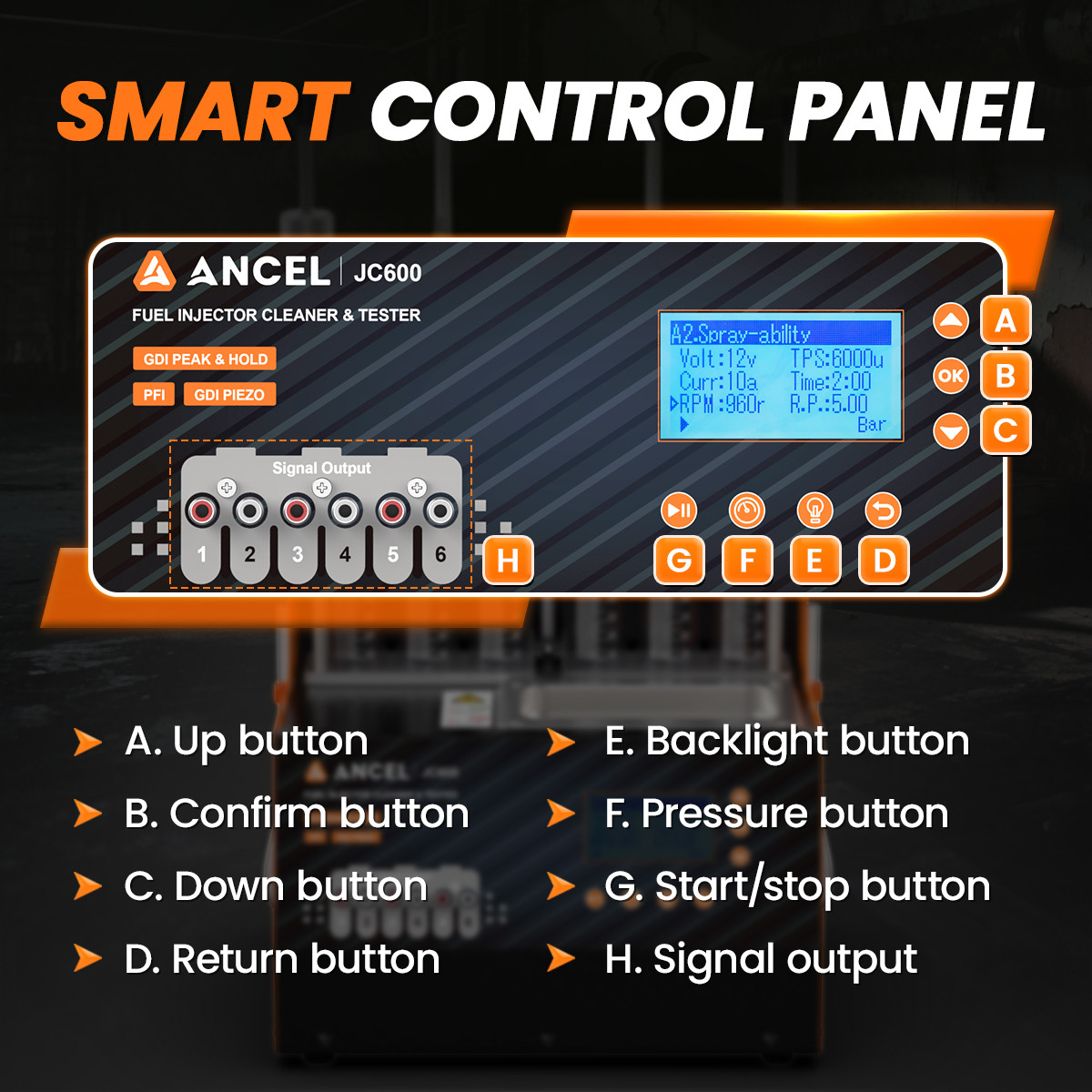

●An LCD control panel which enables all operations to be configured in one display area. ●An inbuilt high accuracy digital pressure sensor with closed-loop pressure control circuit. ●Unique Air-Lock pressurebalancing & stabilizing technology. ●An inbuilt Innovative piston fuel pump which enables the use of a wider range of test fluids. ●Dim.50mm toughborosilicate tubes forbetter observation of spray-ability tests. ●Controllablebacklight. ●Zero pressure connection and disconnection of the injectors.

Specifications:
Working voltage: AC 90-240V 50/60Hz Power: Maximum 150W Ambient temperature: -5°C to +50°C Tank capacity: Maximum 1500 mL Output signal: Low PFI / High PFI / GDI Dimensions and weight: 8.00*34.5*45 cm, 11.8 kg Pulse width: 4000–9900 micro seconds Ultrasound: Maximum 60 W, frequency 28 kHz–46 kHz Pressure: 0–20 bar


Functions: ● Digital display screen ● Ultrasonic cleaning ● Injector spray testing ● Seal testing ● Variable speed testing ● Pressure return testing ● Automatic pressure relief

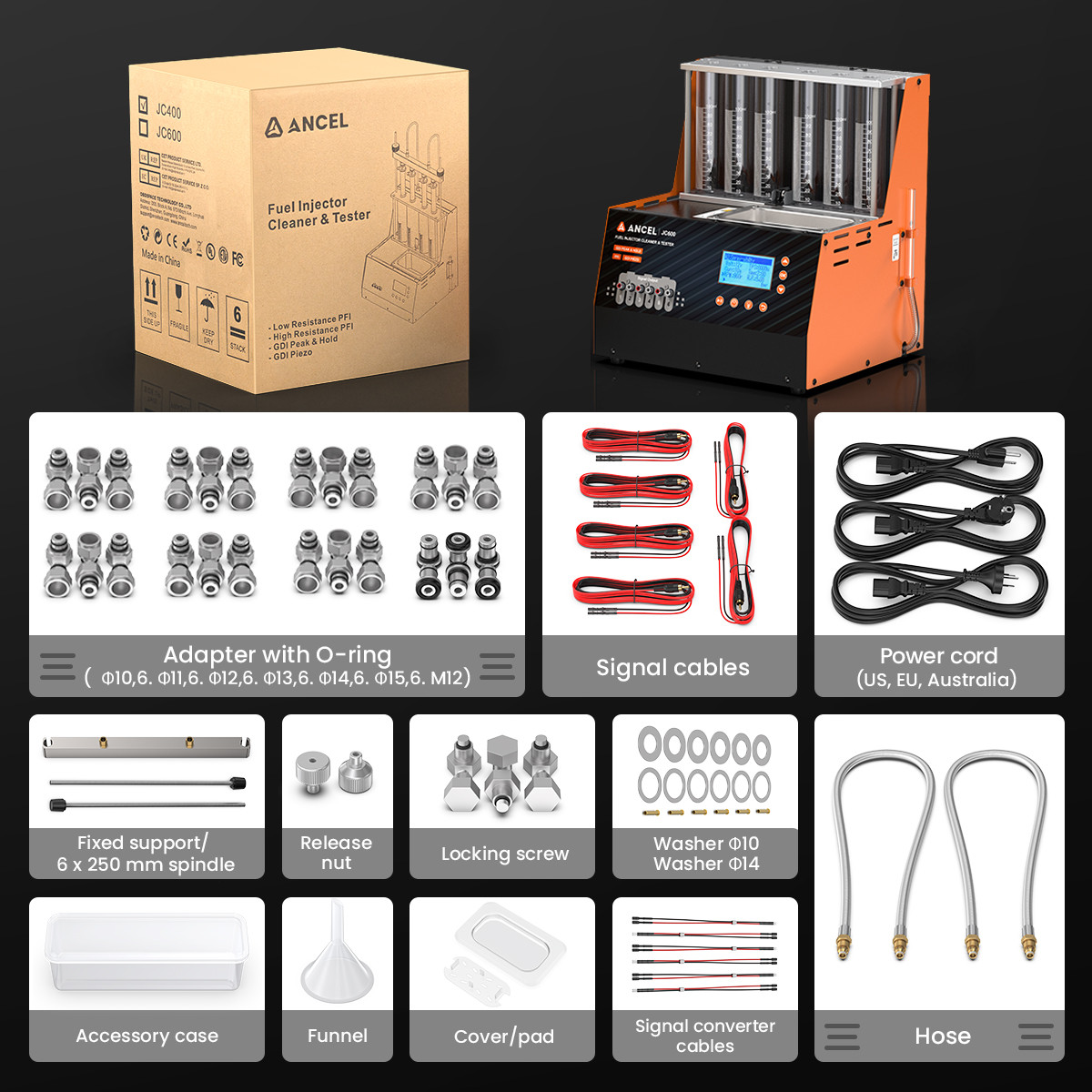

Package List:
US standard power cord 1.2m * 1 Oil separator connection tube * 2 Funnel * 1 Ultrasonic bracket * 1 Ultrasonic cover * 1 Oil separator * 1 Accessory box * 1 M6*250 screw * 2 Adjustment nut * 2 8mm open-end wrench * 1 2mm hex wrench *1 Manual *1 Signal cable *6 Signal adapter cable *6 Φ10 washer *6 Φ14 washer *6 Plug *5 M12 connector with adapter *6 10.6 connector *6 11.6 connector *6 12.6 connector *6 13.6 connector *6 14.6 connector *6 15.6 connector *6








|
