Features:

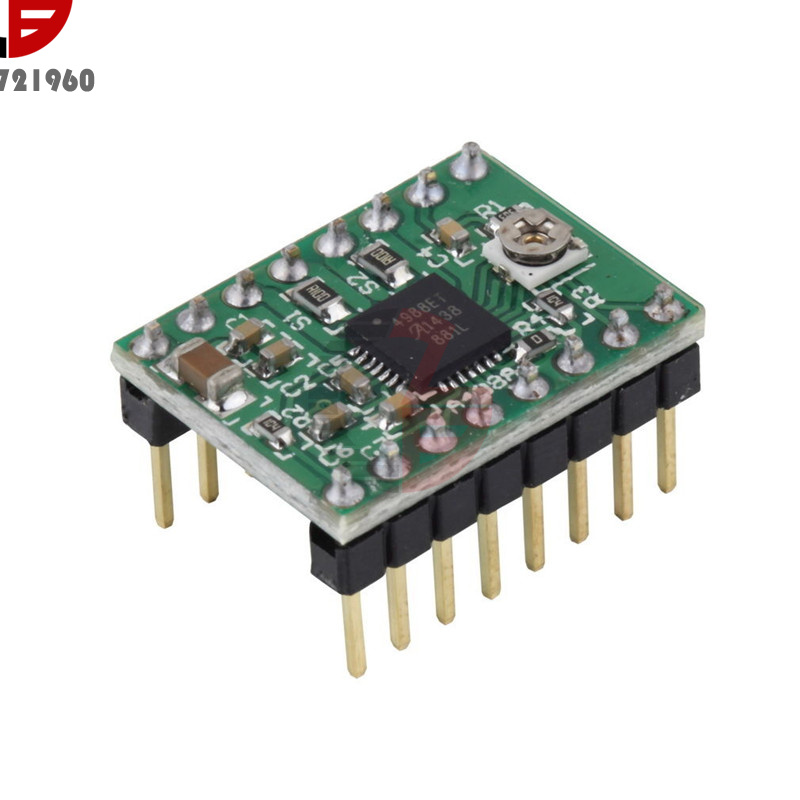

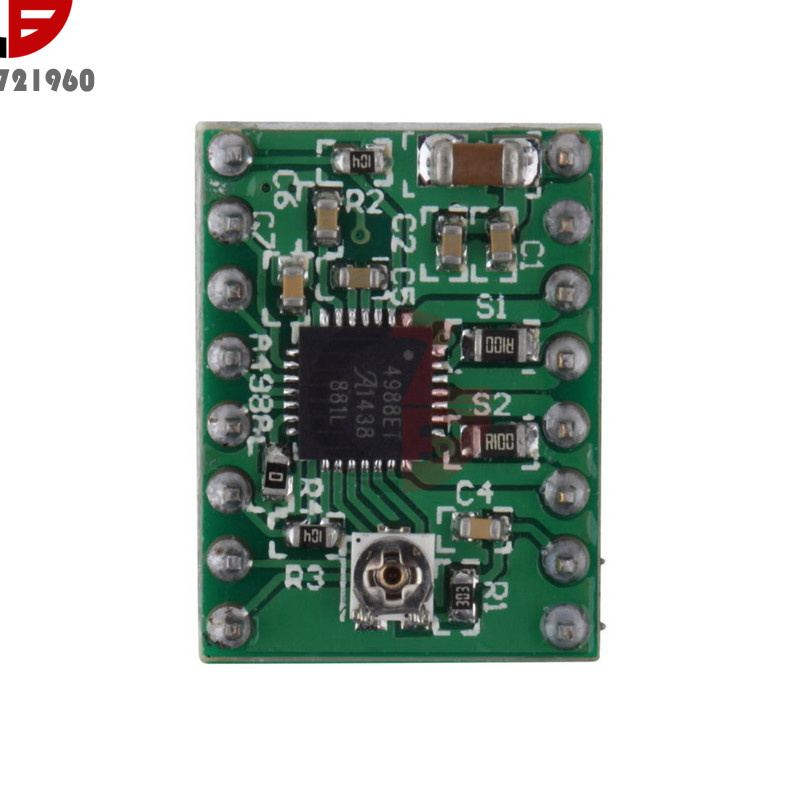

This product is a breakout board for A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection.
This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 AMaximum output current is 1A.
Simple step and direction control interface Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-stepAdjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor¡¯s rated voltage toachieve higher step ratesIntelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protectionShort-to-ground and shorted-load protection
Specifications:
Dimensions:20 x 15 x 11 mm

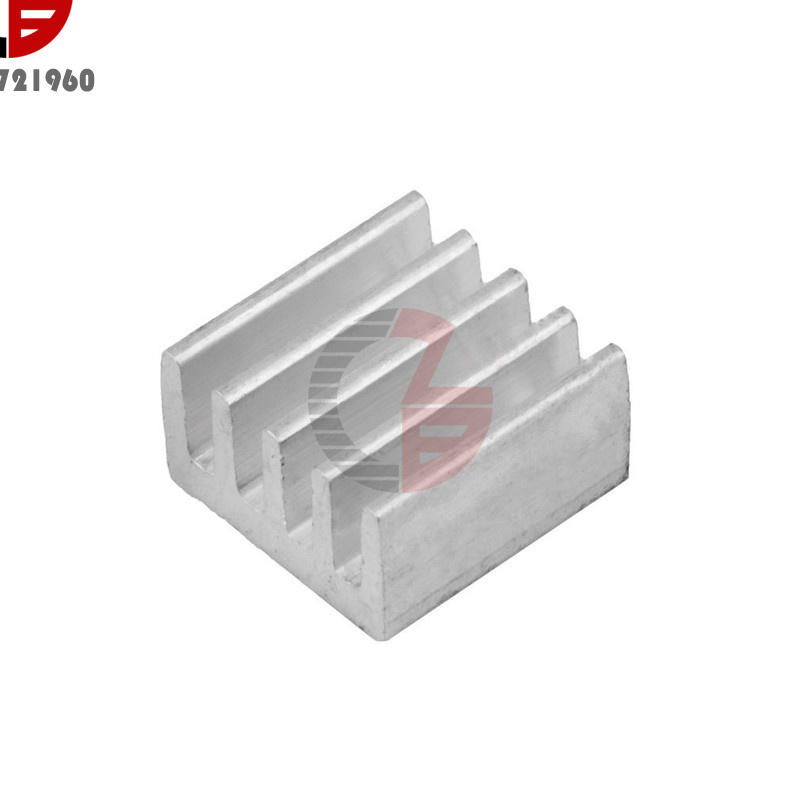

Heatsink size:9 x 9 x 5 mm
Color:Green
Net weight: 3 g

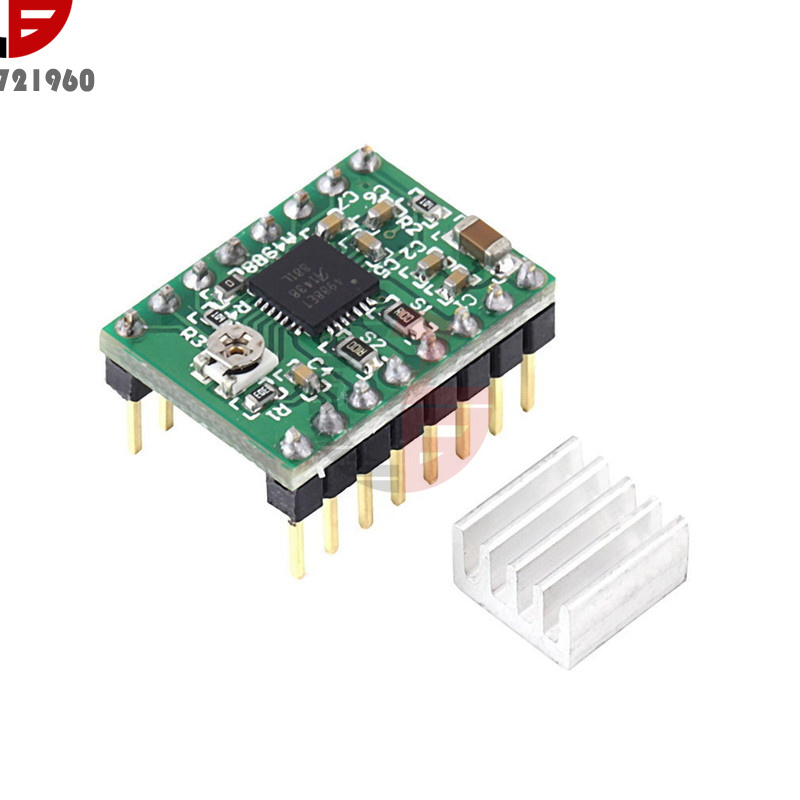

Package Include:
1 x A4988 stepper motor
1 x heatsink
