DESCRIPTION
HOMSECUR Weatherproof WIFI Fingerprint RFID Access Control Set Lock APP Unlock
/10
Descriptions
DIY Access Control System with Electric Strike Lock
Fail Secure
Fail Secure
Waterproof Wifi Fingerprint RFID Access Controller + Power Supply Module + Electric Strike Lock
Fail Secure + 10 RFID Keyfobs + 2 Remote Controls + Exit Button
Fail Secure + 10 RFID Keyfobs + 2 Remote Controls + Exit Button
This standalone access control is built for both indoor and outdoor use, protecting the doors and gateways at your business, private properties, or any other area that you wish to guard against intruders.
Waterproof Design
Door Open Detection
Door Open Too Long Detection
When using an optional magnetic sensor or built-in magnetic contact of the lock, if the door is opened normally but not closed after 1 minute, the inside buzzer will beep automatically to remind you to close the door.
Door Forced Open Detection
When using an optional wired door sensor or built-in magnetic contact of the lock, if the door is opened by force, the inside buzzer and external siren (if there is one) will beep.
Anti-Tamper Alarm
Using an LDR (light-dependent resistor) as an anti-tamper alarm. When the keyboard is removed from the cover, the host will sound a buzzer alarm and at the same time, the Tuya APP will display anti-tamper alarm records.
User Information Transfer (Valid for Card/PIN Users)
The device supports of transferring user information. The enrolled cards and PINs can be transferred from one (Master Unit) to the other unit (Accept Unit). No repeated registration when adding extra same units.
4 Modes Access: Card, PIN, Fingerprint, Tuya APP
4 modes of access can be set for unlocking access.
WG26~44 Input & Output
With WG26~44 input & output, it can work with a card reader and also work as a standard wiegand card reader.
Backlit Keypad
The keypad has backlight but you can always know where to unlock your gate in the night.
Management Cards
You can set up management cards (delete card and added card) for easy operation.
900 Card/Password User & 100 Fingerprint User
It supports 900 Card/Password User & 100 Fingerprint User for storing and reading.
Support Different Identity Setting
It supports common user, panic user, visitor user setting to meet the usage needs of different scenarios.
Unlock Duration Adjustment
The door open time can be set within 0-99s (The default unlock duration is 5 seconds.).
Manage Easily in Tuya APP
The lock connects to Tuya App via Wifi.
DIY
This access control unit can work with the below accessories to customize security solutions. Do-It-Yourself is available and reliable.
During a power outage, the door would remain locked. It is generally used only for internal door, not exit door.
Wiring with Access Control Power Supply
The wiring diagrams are for reference only. The products are not included, please refer to [what's in] for the package contents.
Specifications
| Waterproof Wifi Fingerprint RFID Access Control Unit | ||
| Material | ABS |  |
| Color | Black | |
| Keypad | Touch Keypad | |
| Entry Access Mode | Card, Password, Fingerprint, Tuya APP | |
| Fingerprint User | 100 | |
| Card/Password User | 900 | |
| Password Format | 4-6 digits | |
| Card Type | EM 125KHz RFID card | |
| Reading Distance | 2-6cm | |
| Door Open Time | 0-99s (adjustable) | |
| Working Voltage | DC 12V-18V | |
| Working Current | ≤ 150mA | |
| Idle Current | ≤ 60mA | |
| Lock Output Load | Max. 2A | |
| Working Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | 0-98% rh | |
| Ingress Protection Rating | IP66 | |
| Interface | Wiegand 26~44 Input & Output | |
| Backlight | Yes(cannot turn off) | |
| Net Weight | 160g | |
| HOMSECUR RFID Keyfobs | ||
| Material | Epoxy coated |  |
| Frequency | 125KHz | |
| Reading Range | Max 10cm (depend on the card reader) | |
| Read/ Write Endurance | 100000 time | |
| Operating Temperature | -40 °C~65 °C | |
| Net Weight | 80g | |

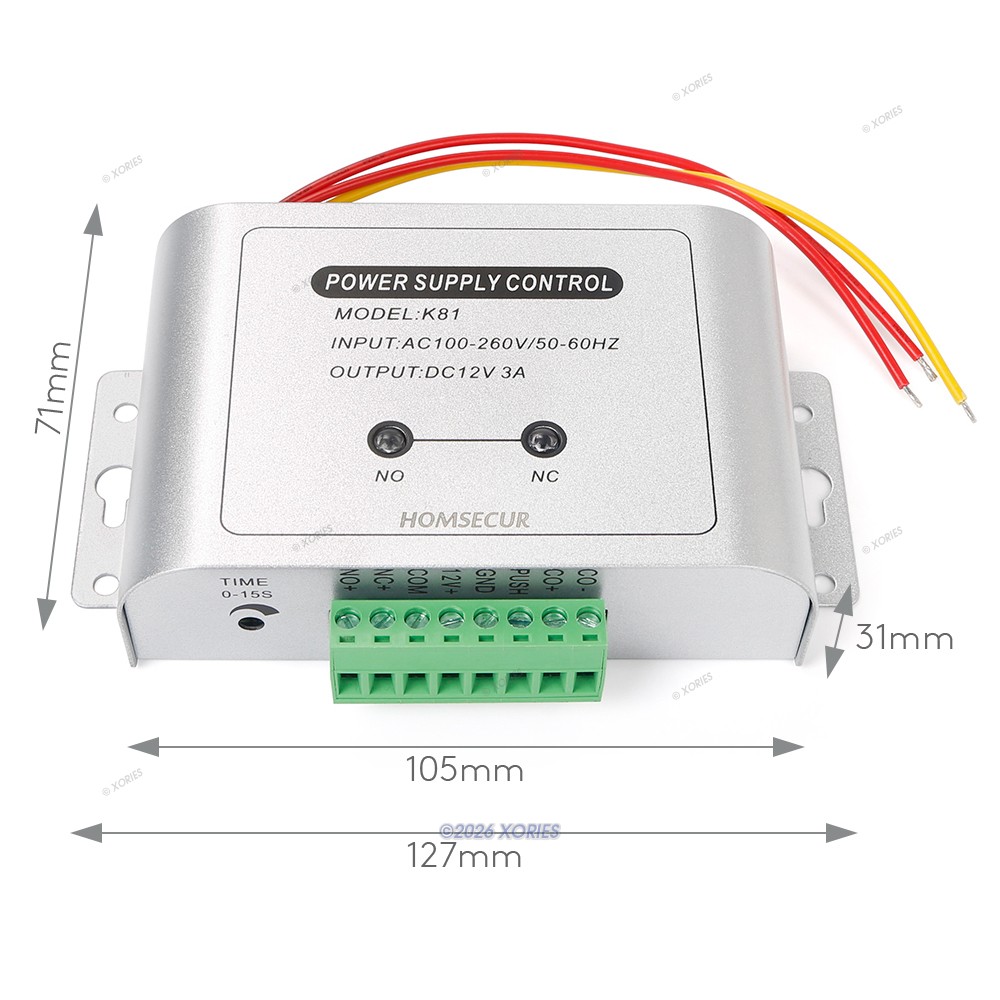

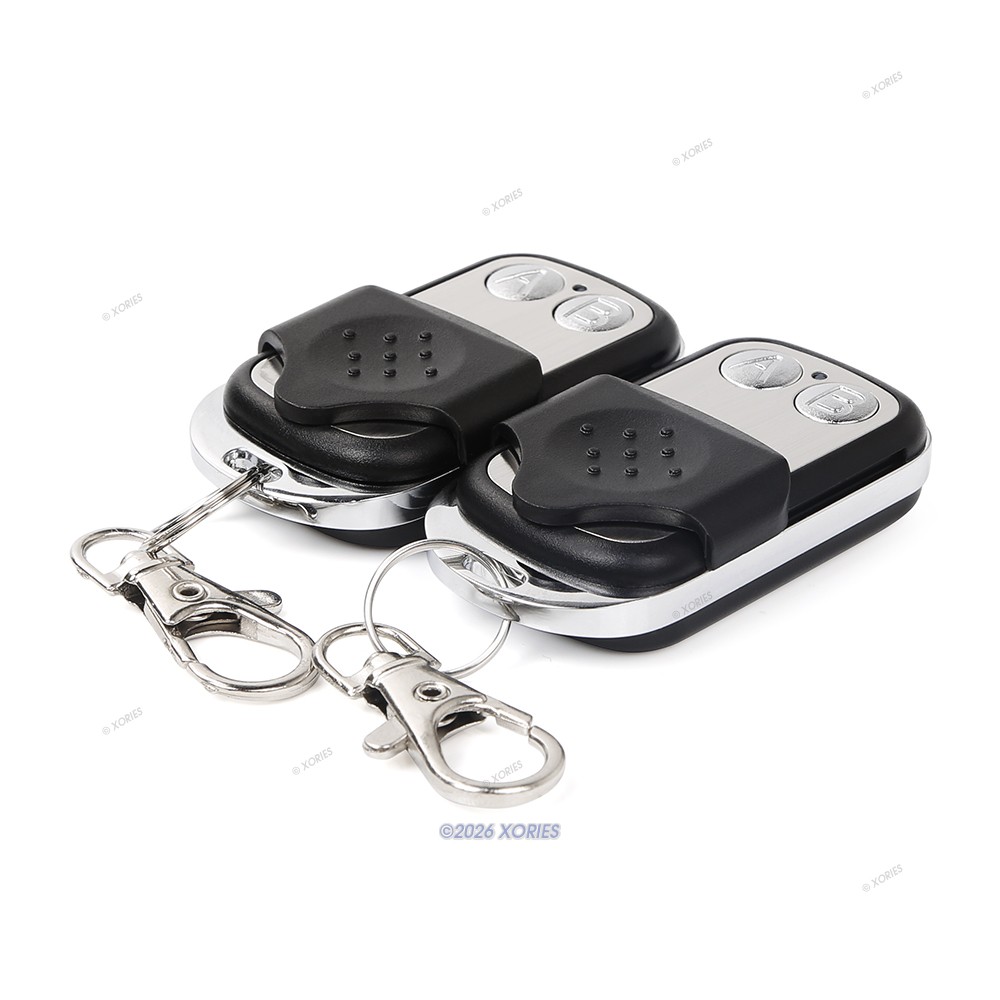

| Power Supply Module with 2 Wireless Remote Controllers | ||
| Model NO. | K81 |  |
| AC Input | AC100-260V 50-60HZ | |
| DC Output | DC 12V 3A | |
| Unlocking Delay | 0-15s (adjustable) | |
| Wireless Frequency | 433MHz EV1527 | |
| Battery Model for Remote Controller | 27A 12V battery | |
| Remote Control | Max support 200 remote controllers | |
| Net Weight | 322g | |
| HOMSECUR No Touch IR Exit Button | ||
| Model NO. | Ebutton3 |  |
| Power Supply | DC9V-18V | |
| Material | Stainless Steel | |
| Output Contact | NC/NO/COM | |
| Infrared Detecting Distance | 5-15cm (adjustable) | |
| Unlock Duration | 3 Modes Selectable 5s/10s/Toggle | |
| Ingress Protection Rating | IP66 | |
| Installation | Flush Mount | |
| Net Weight | 138g | |
| Electric Strike Lock Fail Secure | ||
| Holding Strength | 500kg/1100lbs |  |
| Lock Mode | Fail Secure (door locked when power off) | |
| Voltage | DC 12V | |
| Current | 200mA | |
| Function | Built-out MOV | |
| Suitable for | Wooden Door, Metal Door, PVC Door | |
| Surface Temperature | Within +20°C | |
| Suitable Temperature | -10~+55°C (14~131°F) | |
| Operating Humidity | 0-90% (non-condensing) | |
| Structure | Stainless Steel | |
| Weight | 335g | |
