DESCRIPTION
Features:
- Compact Body: Integrated detachable design, mini size, lighter & thinner, easy to carry.
- High-precision Sensor: High sensitivity & high precision & high response speed.
- High-definition LCD Screen: The clear LCD display with backlight enables you to read values clearly even in the dark environment.
- LED Lighting Function: Equipped with a small bright LED lamp, capable of playing a role as a flashlight for simple inspection in the dark.
- 3 Types of Interface Supported: FC interface, SC interface and ST interface.
- 7 Optic Wavelengths for Selection: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.
- DIY Self Calibration: Adjust test parameters at will according to the actual test.
- Automatic Shutdown: No operation within 10 minutes, saving energy.
- Additional Features: 5km high-definition red light, replaceable ceramic core, selectable intelligent standby mode, energy-saving design, dual mode of power supply, switchable units, network cable test, wavelength data memory, frequency identification, overcharge protection, over current protection, over voltage protection, over power protection, short circuit protection and temperature protection.
- Wide Application: Applied in optic fiber engineering, optic fiber sensor research, optic elements production, optic elements research, etc.

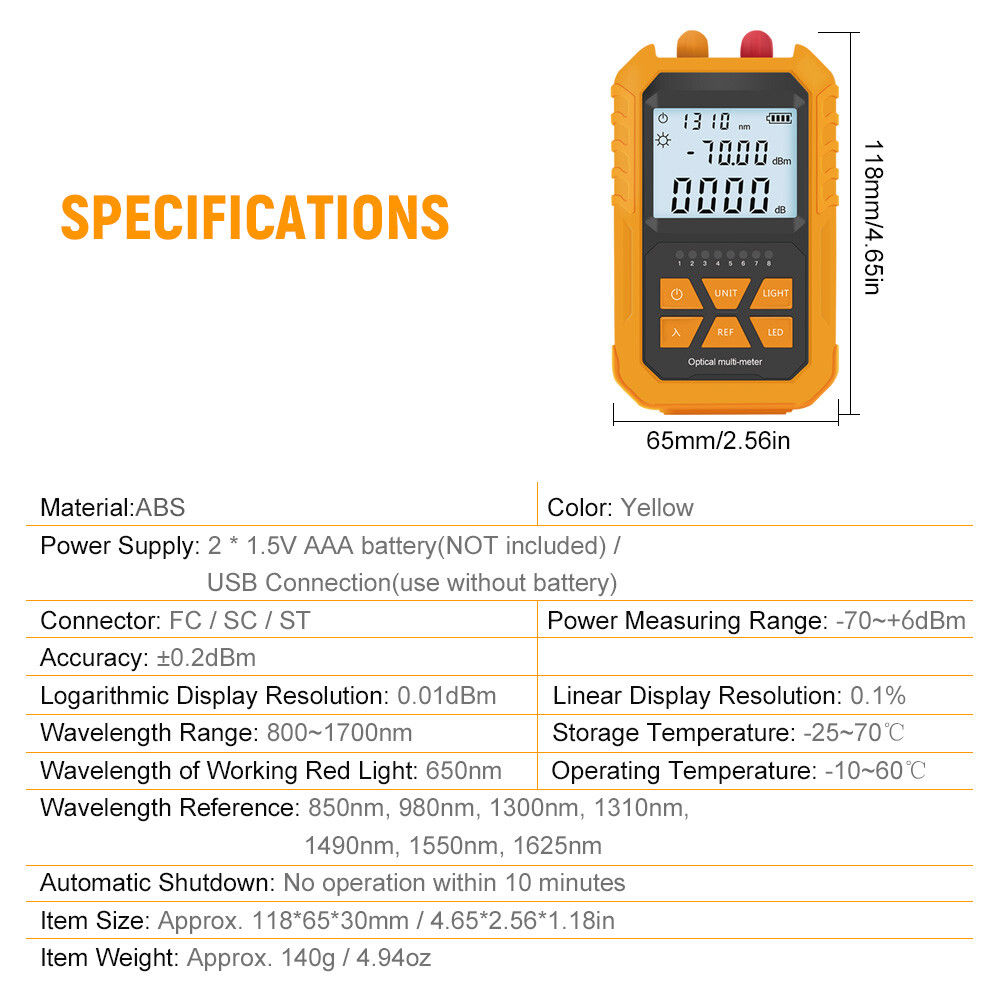

Specifications:
Material: ABS
Color: Yellow
Power Supply: 2 * 1.5V AAA battery(NOT included) / USB Connection(use without battery)
Connector: FC / SC / ST
Power Measuring Range: -70~+6dBm
Accuracy: ±0.2dBm
Logarithmic Display Resolution: 0.01dBm
Linear Display Resolution: 0.1%
Wavelength Range: 800~1700nm
Wavelength Reference: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Wavelength of Working Red Light: 650nm
Operating Temperature: -10~60℃
Storage Temperature: -25~70℃
Automatic Shutdown: No operation within 10 minutes
Item Size: Approx. 118*65*30mm / 4.65*2.56*1.18in
Item Weight: Approx. 140g / 4.94oz
Package Size: Approx. 130*77*60mm / 5.12*3.03*2.36in
Package Weight: Approx. 300g / 10.58oz
Note:
Please read the Users Manual before use.
Packing List:
1 * Optical Power Meter
1 * Network Test Module
1 * Ceramic Core
1 * Lanyard
1 * Users Manual(English)
