Description:
A Fiber Microscope is used for inspecting fiber terminations. This utilizes white LED for coaxial illumination and provides the most befitting view of ferrule end face. It has good optical performance and integrated safety filters and produces excellent detail of scratches and contamination.
Light is introduced into the optical track (axes) so that it comes out of the tip of the objective and strikes the sample perpendicular to the fiber end-face.
For strict examination of polish quality, we strongly recommend to use this fiber microscope in all your inspections.
If you frequently terminating fiber and have received professional training, It is best tool for you. We recommend 200x magnification for multi-mode and 400x magnification for single-mode
Features:
-

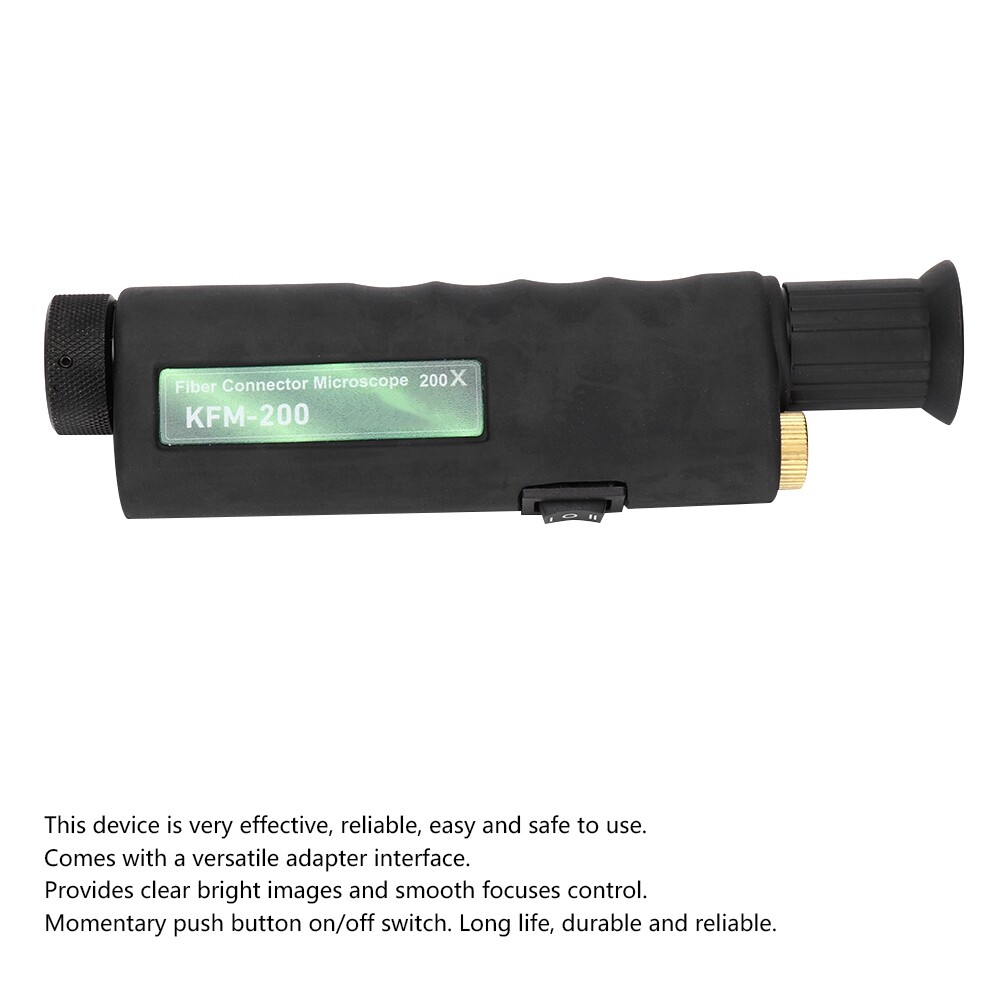

This device is very effective, , easy and safe to use.
-
Equipped with LED illumination and a lasering filter installed for eye .
-
Comes with a versatile adapter interface. Provides clear bright images and smooth focuses control.
-
Momentary push button on/off switch. Long life, and .
-
Approved by strict quality and safety standards ensures a long and trouble life.
Specification:
Condition: Brand New
Color: As shown in the picture
Housing Material: Non-Slip Rubber

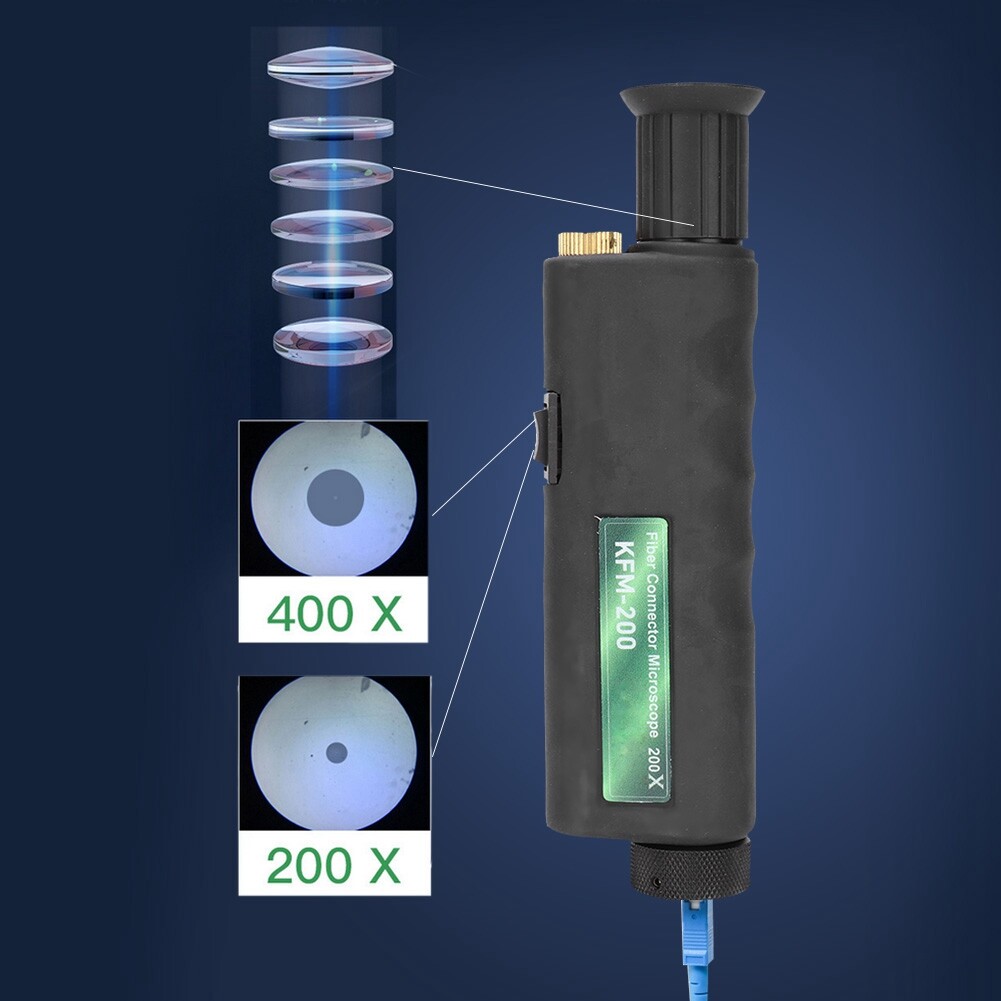

Optical Magnification: 200X, 400X
Power Source: 3 x button batteries (Not included)
Light Source: White LED, rated life: 100,000 hours
Weight: Approx.431g/15.2oz
Controls:

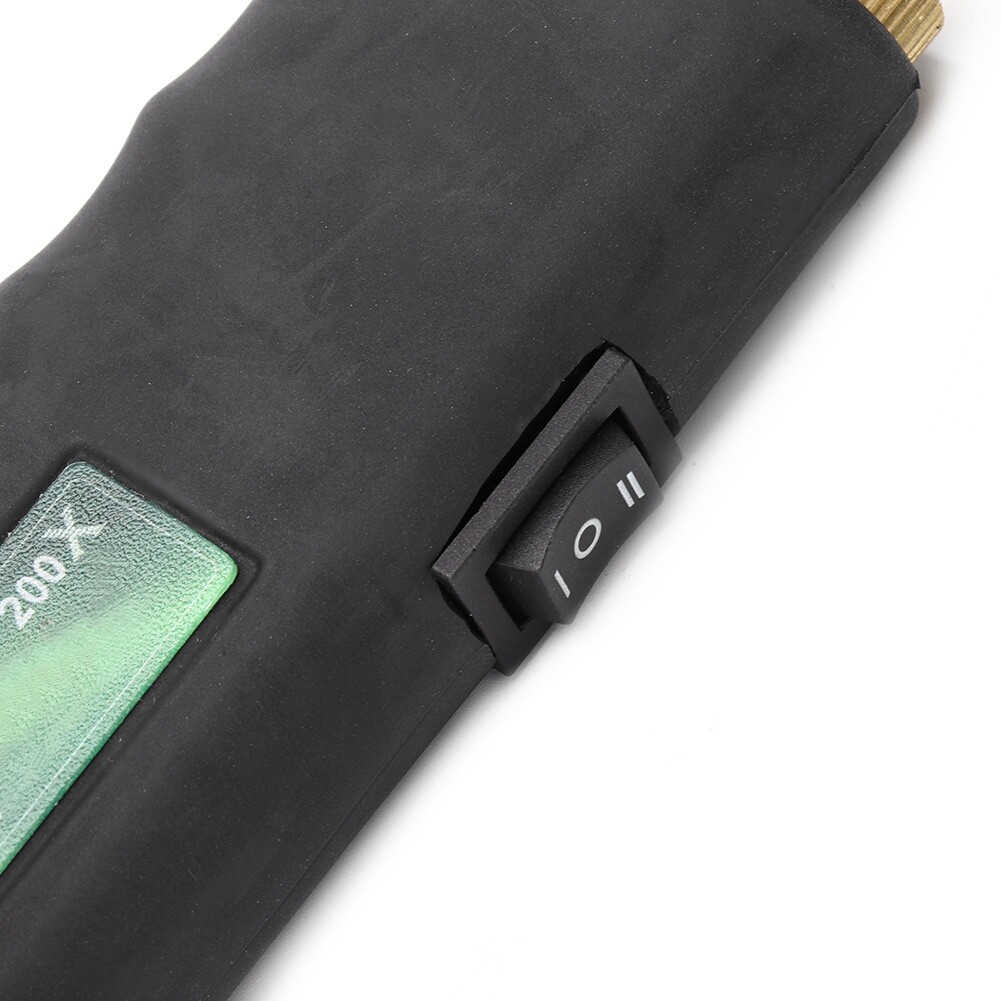

Momentary on/off switch
Fine control wheel
Safety Filter: Built-in IR filter
Adapter Interface: Uses interchangeable, presented universal or dedicated adapter.

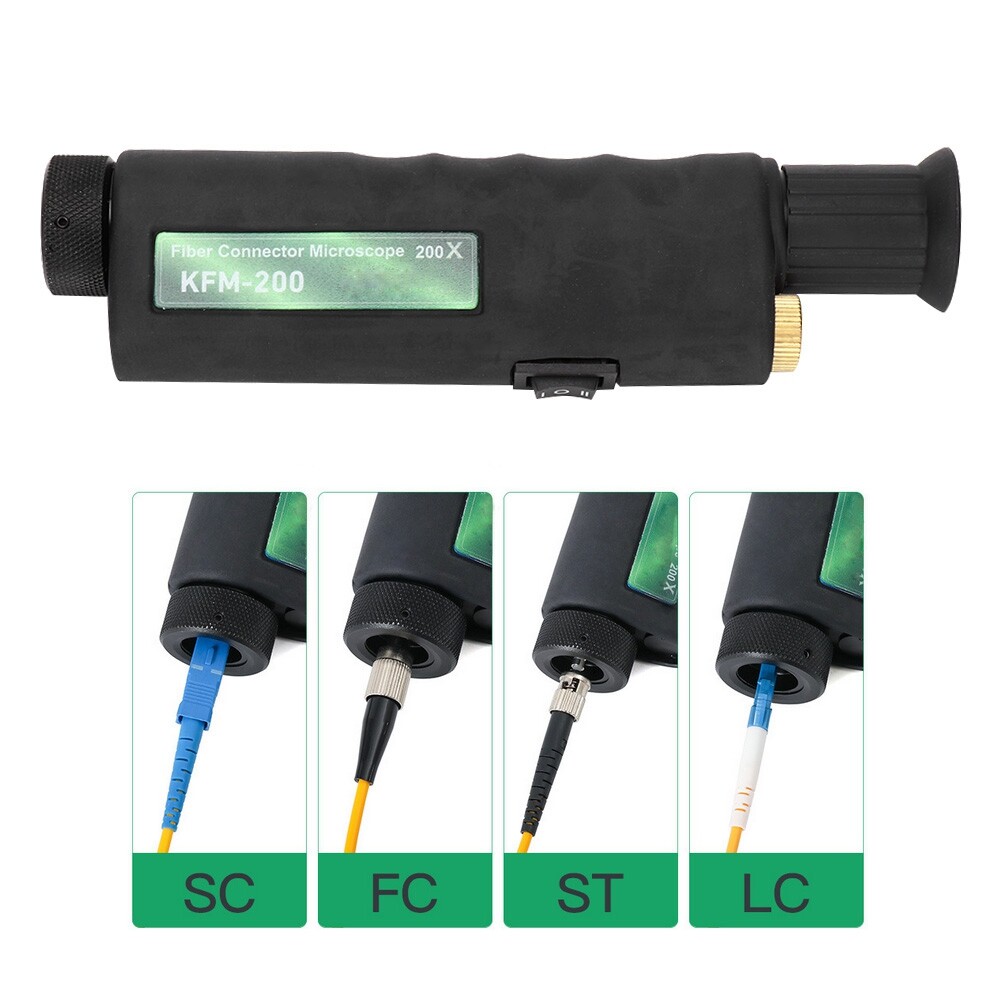

Adapter: Universal adapter (2.5mm) Compatible with ST, FC, SC, E2000, and 2.5mm Di and 1.25mm(LC,MU) ferrule connector.
Safety Information:
Our CL Series Fiber Scope is equipped with an attenuating, safety filter to reduce the risks of accidental viewing of active fiber emissions. Since many of the wavelengths of light used in the fiber optic industry are not seen to the bare eye, the natural aversion reflect to viewing bright light is suppressed resulting in the potential for long periods of accidental exposure which can to permanent damager.
The filter we install will provide over 35dBm of attenuation at wavelengths from1310nm to 1550nm. In addition,it will provide over 20.5dBm of attenuation at 850nm. However, it should be stressed that in spite of the offered, under no circumstances should an actively emitting fiber be viewed with a visual inspection scope such as this.
Step:

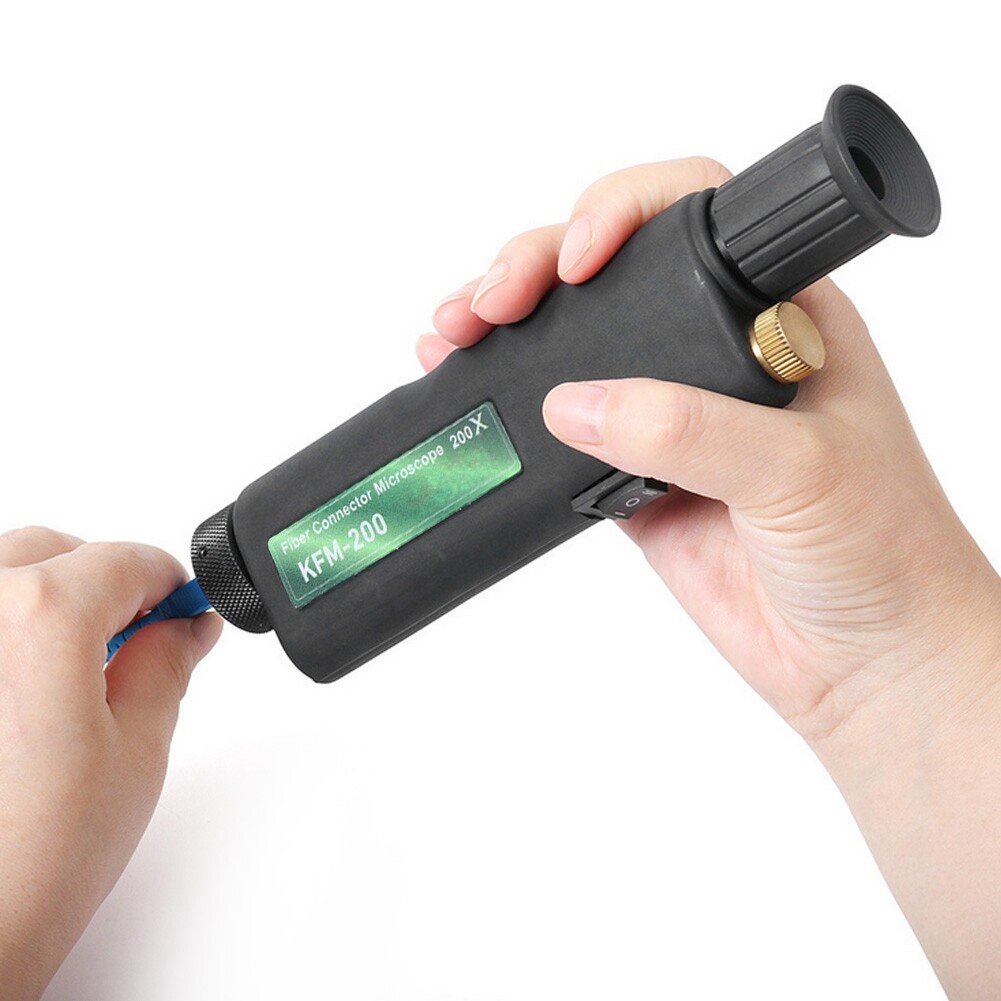

Input the fiber which will be checked into the fiber insert entrance, insert another fiber connector into the light source entrance.
See from the eyepiece and press the ON/OFF LED switch (Illumination).
Adjust the control, just to find the clearest viewing.
Package List:
1 x Mini 200x CL Series Fiber Scope
1 x 1.25mm Adaptor(On the machine itself)
1 x 2.5mm Adaptor
1 x Carrying Case
