DESCRIPTION
MATCH MEC BT HDMATCH Plug & Play Car HiFi
High Definition Bluetooth® Audio Streaming Module for MATCH DSP Products
MEC BT HD
Model:
Technologies
Bluetooth logoQualcomm aptX logo HDQualcomm aptX logo
MATCH MEC BT HD
Wireless audio transmission in HD quality via Bluetooth®
The BT HD Extension Card adds Bluetooth® audio streaming functionality to your MATCH DSP product, delivering HD quality audio up to 576 kbps and 24-bit/48 kHz thanks to the BT5.0 standard. It supports the SBC, AAC, aptX, and aptX HD audio codecs. An optical digital output in SPDIF format is also included.
High Definition Audio
Thanks to the Qualcomm® aptX ™ HD Audio Codec, wireless and consistent HD-quality audio transmission is possible. Furthermore, the direct processing of digital signals from the BT HD module to the DSP without additional AD/DA conversion ensures lossless signal processing and thus exceptional sound performance.
Full control
The MEC BT HD supports control commands such as play/pause, track forward/back, and connecting, pairing, and disconnecting a connected DSP remote control (e.g., CONDUCTOR and DIRECTOR). The DIRECTOR's display also shows the current artist and track title, as well as the currently used audio codec.
Wireless DSP tuning
The enhanced data transmission of the BT5.0 standard, in conjunction with the upcoming DSP PC-Tool software version 5 (available in early 2022) and a PC with Bluetooth® wireless technology, enables wireless configuration of all DSP devices with the ACO platform. Cumbersome USB cable connections are thus a thing of the past.
Everything included
For seamless installation, a device-specific side panel and a high-quality antenna for optimal reception are naturally included in the scope of delivery.
Note: Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Used with permission of the owner. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries. Used with permission of the owner. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of these marks by Audiotec Fischer GmbH is under license. Other trademarks and trade names are the property of their respective owners.
Features
Bluetooth ® audio streaming with Qualcomm ® aptX™ HD audio codec
High-definition audio transmission with up to 576 kbps and 24 bits at 48 kHz thanks to the BT5.0 standard.
Supported audio codecs: SBC, AAC, aptX & aptX HD
Lossless signal processing through direct transmission of the digital signals to the DSP
Enables wireless configuration of the DSP for all DSP devices with ACO platform using the DSP PC-Tool 5 software.
Support for artist and title display via the DIRECTOR display remote control (only ACO products / from DIRECTOR software version 2.10)
Support for control commands such as play/pause, track forward/back, connecting, pairing and disconnecting a connected DSP remote control (e.g. CONDUCTOR and DIRECTOR) and displaying the currently used audio codec.
Additional optical digital output in SPDIF format
Including device-specific side panel
Technical data
Bluetooth® standard
5.0 + EDR
Bluetooth® profile
A2DP, AVRCP, SPP
Bluetooth® codec
SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX ™ HD
Number of paired devices
8
Wireless frequency bandwidth
2402 ~ 2480 MHz
reach
Up to 10 m
Optical digital output
Depending on the device-specific sampling rate,
SPDIF is available at 96 kHz / 24 bits or 48 kHz / 24 bits.

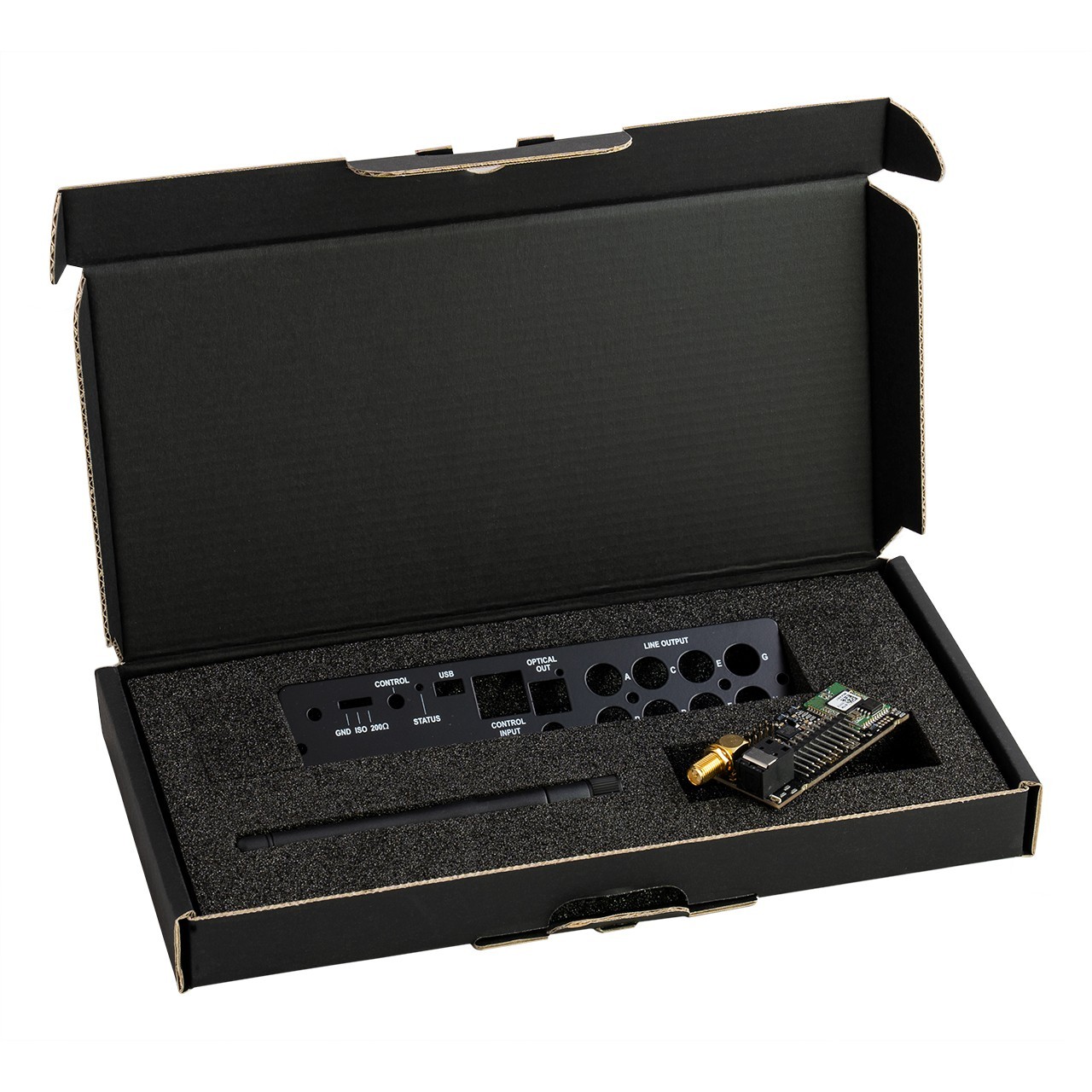

Scope of delivery
1 x MEC BT HD module,
1 x device-specific side panel
, 1 x antenna,
1 x user manual
