l Fully complying with ISO13818 and EN300 468 standard
l Integrated demodulating and multiplexing functions
l 2 channels ASI input for re-multiplexing
l 1 IP input over UDP and RTP
l Support accurate PCR adjusting
l Support PID filtering, re-mapping

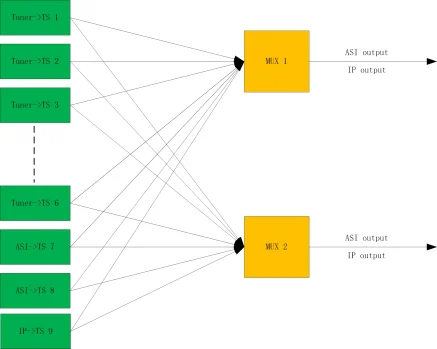

l Two groups (each group has 2 channels) separate TS outputs
l Support IP output over UDP output as a mirror of ASI output (RJ45), GE Port
l Support PSI/SI (PAT and PMT tables) generation and edit
l Huge buffer memory for saving the overflowing code stream
l Supporting to multiplex one program to all outputs
l Network long-distance upgraded
l LCD/keyboard and net management, support NMS/SNMP
| Input interface |
1 IP + 2 ASI+6 tuners(DVB-C/DVB-S/DVB-S2/DVB-T/DVB-T2/ISDB/ATSC) |
|
|
Re-multiplex |
2 channels TS re-multiplex |
|
|
|
PID re-mapping (auto/manual optional) |
|
|
|
PCR accurate adjusting |
|
|
|
PSI/SI (PAT, PMT) tables auto generation and edition (For SFT3107); PSI/SI (PAT, PMT) and PSIP (STT, MGT, VCT) tables auto generation and edition (For SFT3107B) |
|
| Input |
Packet format |
204/188 self-adaption |
| Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
|
|
IP |
TS over UDP output as mirror of ASI output(RJ45), GE Port |
|
PID |
Output range |
0x0000—0x1FFF |
|
|
PID transparently |
Any PID transparent and mapping achievable |
|
|
Amount of output PID per input |
64 |
| NMS port |
Ethernet port |
10/100M |
|
General |
Demission(WxLxH) |
482mm×410mm×44mm |
|
|
Weight |
6kg |
|
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power supply |
AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
|
|
Consumption |
18W |
