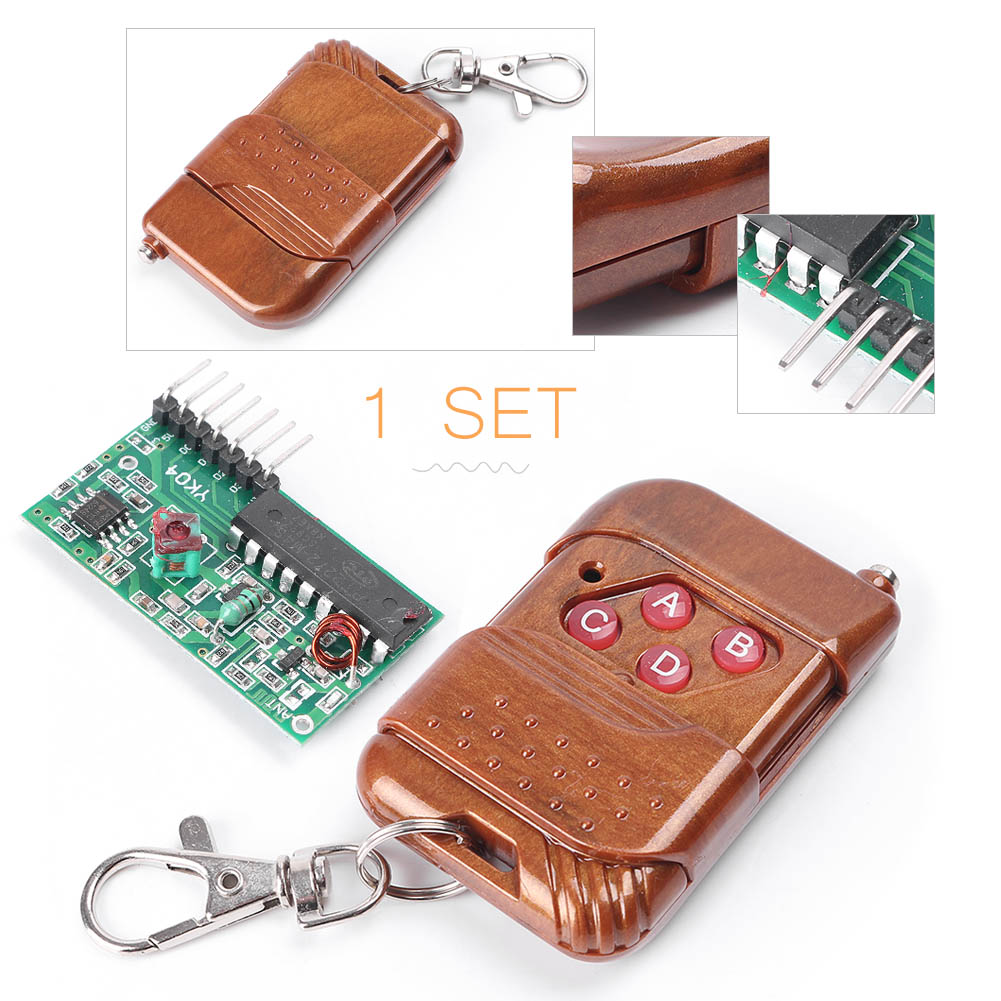

IC 2262/2272 4 CH Key Wireless Remote Control Kit Receiver Module F

Product Description

IC 2262/2272 4 CH Key Wireless Remote Control Kit Receiver Module F

Features:
100% Brand New.
Operating voltage: DC12V (27A/12V battery x1)
Size: 6.2 x 3.8 x1.4cm(LxWxD)
Modulation mode: ASK (Amplitude Modulation)
Transmitting frequency: 315MHz (SAW frequency stabilization)
Transmission distance :50-100M (Open field the receiver sensitivity-100dbm)
Encoder types: fixed code
The frequency of this product is 315 mhz.

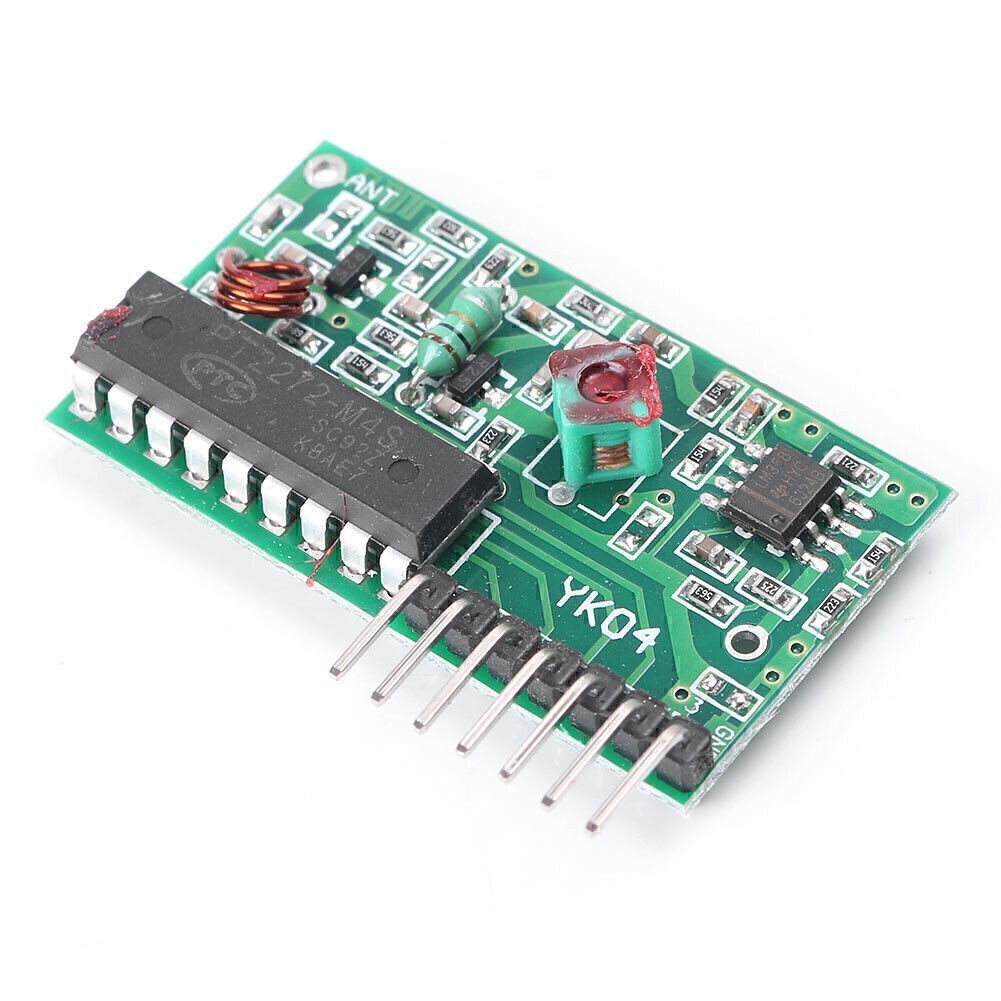

With decoding receiver board
The operating voltage DC5V, receiver sensitivity is-98db. Leg 7 bits, respectively, VT, D3, D2, D1, D0, the +5 V and GND. VT is a valid signal high output pin Upon receiving a valid signal, the pin output high, may also drive the relay.
Size: 6*22*41mm

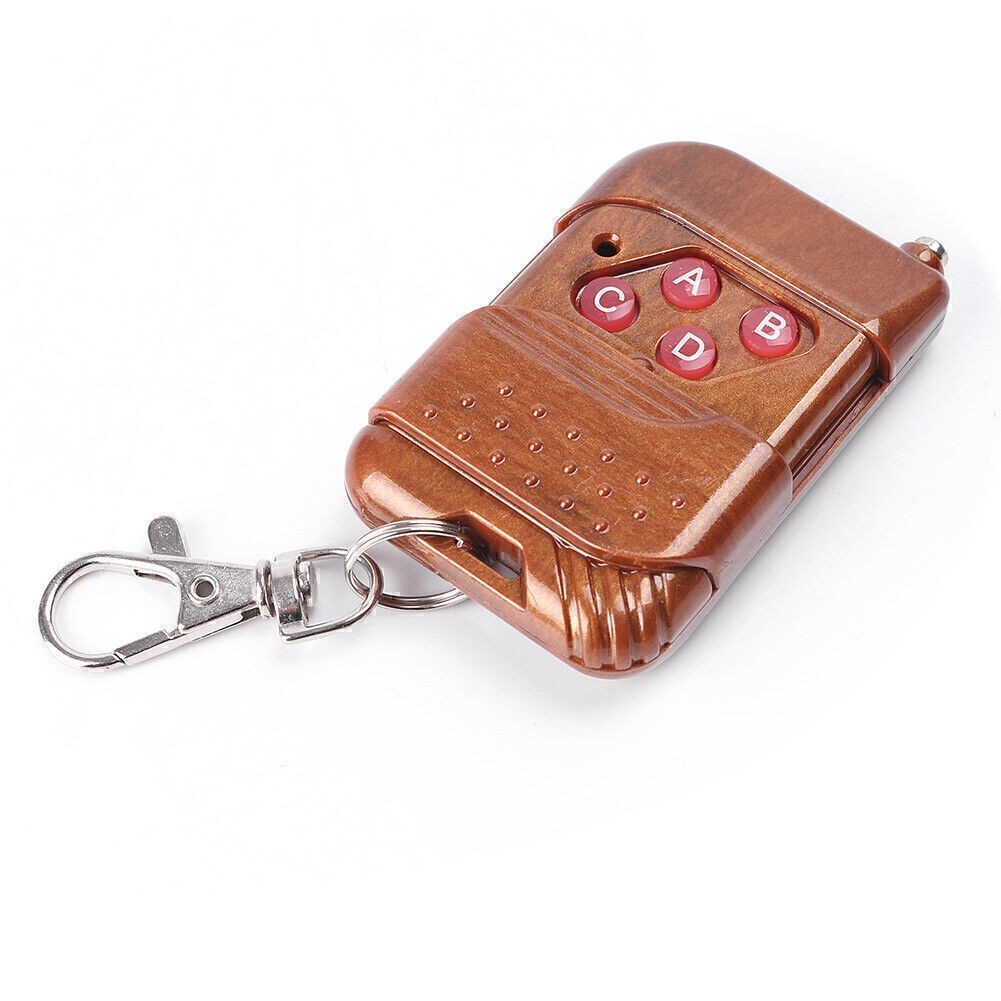

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.

NOTE : our item comes WITHOUT Battery ,Battery Not Included !!
Package Included:
1 x IC 2262/2272 4 CH Key Wireless Remote Control Kits Receiver module F Arduino
