Packaging: Cut Tape (CT) Alternate Packaging
Series: 74F
Part Status: Active
Function: Master Reset
Type: D-Type
Output Type: Differential
Number of Elements: 1
Number of Bits per Element: 4
Clock Frequency: 140MHz
Max Propagation Delay @ V Max CL: 8.5ns @ 5V 50pF
Trigger Type: Positive Edge
Current - Output High Low: 1mA 20mA
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 34mA
Input Capacitance: -
Operating Temperature: 0°C ~ 70°C (TA)
Mounting Type: Surface Mount

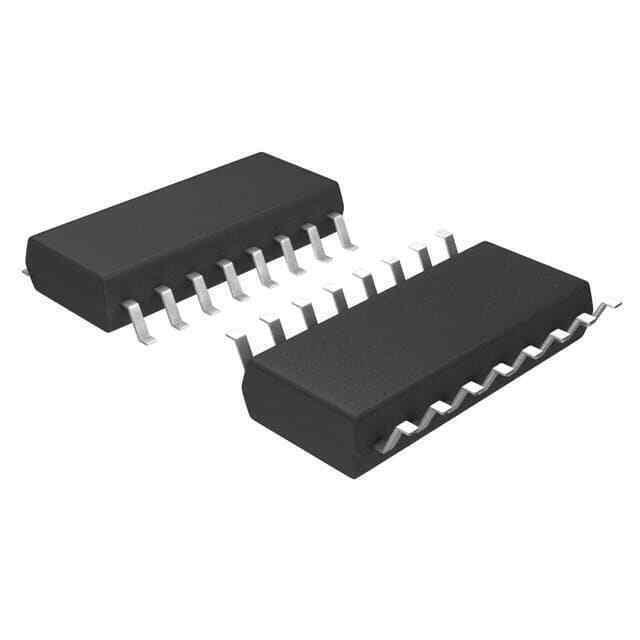

Package / Case: 16-SOIC (0.209 5.30mm Width)


SN74F175NSR
