Packaging: Cut Tape (CT) Alternate Packaging
Series: -
Part Status: Active
Switch Circuit: SPDT
Multiplexer/Demultiplexer Circuit: 2:1
Number of Circuits: 2
On-State Resistance (Max): 4.5Ohm
Channel-to-Channel Matching (ΔRon): 100mOhm
Voltage - Supply, Single (V+): 1.8V ~ 5.5V
Voltage - Supply, Dual (V±): -
Switch Time (Ton, Toff) (Max): 80ns, 40ns
-3db Bandwidth: 300MHz
Charge Injection: 5pC
Channel Capacitance (CS(off), CD(off)): 9pF
Current - Leakage (IS(off)) (Max): 500pA
Crosstalk: -110dB @ 1MHz
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount

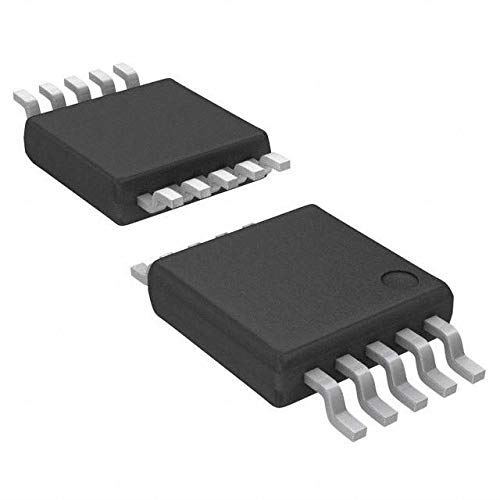

Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 10-uMAX
