OSD Audio’s SVC100 is an impedance-matching volume control that lets you adjust the volume of a pair of speakers independently of other speakers within a whole house audio system. Ideal for areas such dining or conference rooms where you may want softer volumes or for saunas or garages where you may want higher volumes, the SVC100 maintains the full hi-fi audio frequency response with no low frequency roll-off. Equipped with the same features of volume controls that cost twice as much, the SCV100 is rated at 100 Watts peak and includes adjustable jumpers to add up to eight pairs of 8-ohm speakers simultaneously. The impedance-matching feature helps stabilize the ohm load going back to the amp or receiver to avoid overheating and damaging expensive equipment. A complete volume control kit that fits into a standard single-gang box, the SVC100 also includes the junction box, screws and assorted color trim plates (white, ivory and almond) so you can choose the color that best matches the room. This versatile whole house volume control is compatible with almost any dedicated audio zone or whole house system, and the 12-step rotary knob adjusts the volume from inaudible to loud and everything in between.
. Decora style impedance-matching volume control for whole house audio systems and dedicated audio zones
. Rated at 100 Watts per channel with minimal bass roll-off
. Impedance-matching feature stabilizes the ohm load so parallel connections of multiple volume controls can be installed without damaging the amplifier
. Front-mounted adjustable jumpers allow easy adjustment when multiple pairs of speakers are connected to a single receiver or amplifier
. Accepts up to 14-gauge wiring and fits in a standard gang box with a depth of 2.9”
. Includes junction box and screws as well as white, ivory and almond trim plates to match any room décor
. Precision electronics provide low distortion and a ruler flat frequency response
. 12-step linear rotary-style knob for a wide range of listening volumes
. Installs easily and works with almost any audio system
Specifications
- Impedance matching volume controller with Autoformer
- Power handling: 100W per channel
- Frequency Response 20Hz - 20kHz
- Impedance matching for 2, 4 or 8 pairs of speakers and can be used as non-impedance matching if leaving default on jumper setting at 1X
- Steps: 12 (make before break)
- Total Attenuation: 42 dB (Max)

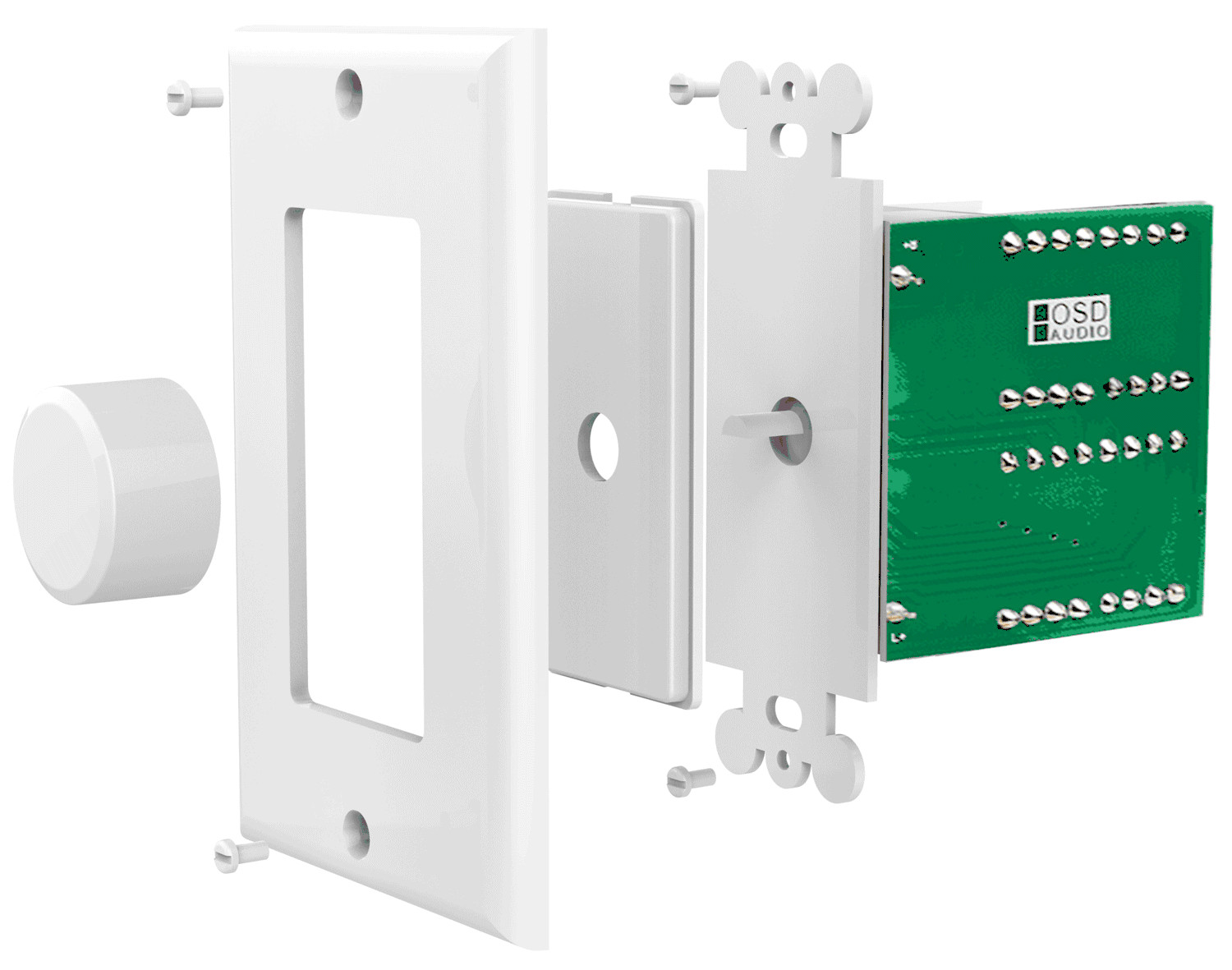

- Includes White, Ivory and Almond Plates, Inserts and Knobs
- Fits in a standard gang box
- Measures 4.125cm W x 6.35cm H x 6.35cm D
