Features:
*Made of high-quality plastic and aluminum, with stable output and sensitive sensors. Very suitable for home, shopping malls, shops, .
*Fully automatic, it turns on the light when it senses someone walking, and turns off the light when someone leaves.
*It has the characteristics of anti-leakage, stable output, and safer to use.
*Touch the setting button to adjust the speed at which the light turns off on the controller.
*Press and hold for 5 seconds to set the number of stair lights. The blue light indicates that the serial number light is on. Click the button until all lights are on. Up to 32 stair lights can be controlled. Press and hold again to confirm.
Installation Tips:
1. When the light is plugged into the controller, be sure to find the socket with the corresponding serial number.
2. The controller and sensor can be placed in the electrical box.
3. Be sure to connect the positive and negative poles. Red is positive and blue is negative. The low-voltage current is DC 12-24V, not AC 220V/110V.
4. It is recommended to bury the wires and install the lights in for advance when decorating the stairs.
5. The wiring must be done under power failure to avoid short circuit.
Specifications:
Part name: 32-channel stair sensor
Material: plastic
Size: 185*85*20mm
Color: black
Voltage: DC12V/DC24V
Power: ≤500W
Channel: 32
Sensor: 2
Product function description:
1.
Quickly press the button to adjust the speed of the light strip. There are
four gears (60 seconds, 45 seconds, 30 seconds, 15 seconds)
2. Press and hold the
key for 5-6 seconds to enter the step setting mode. *Long
press the switch once to set the first step, *short press the switch
second time to set the second step. Short press
third time to set the third step, and so on.
3. After the operation is completed, press and hold again for 5-6 seconds to automatically save the corresponding settings.

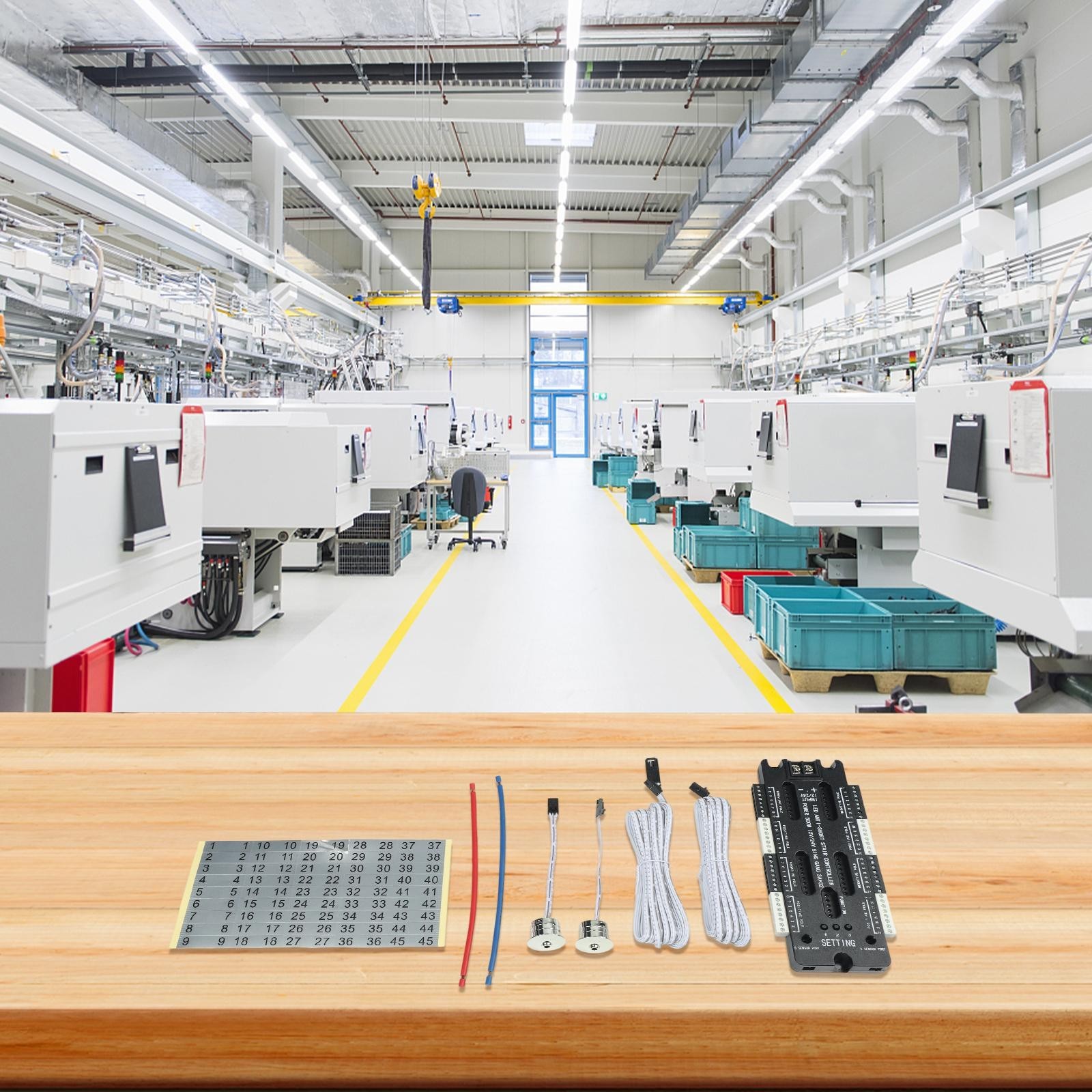

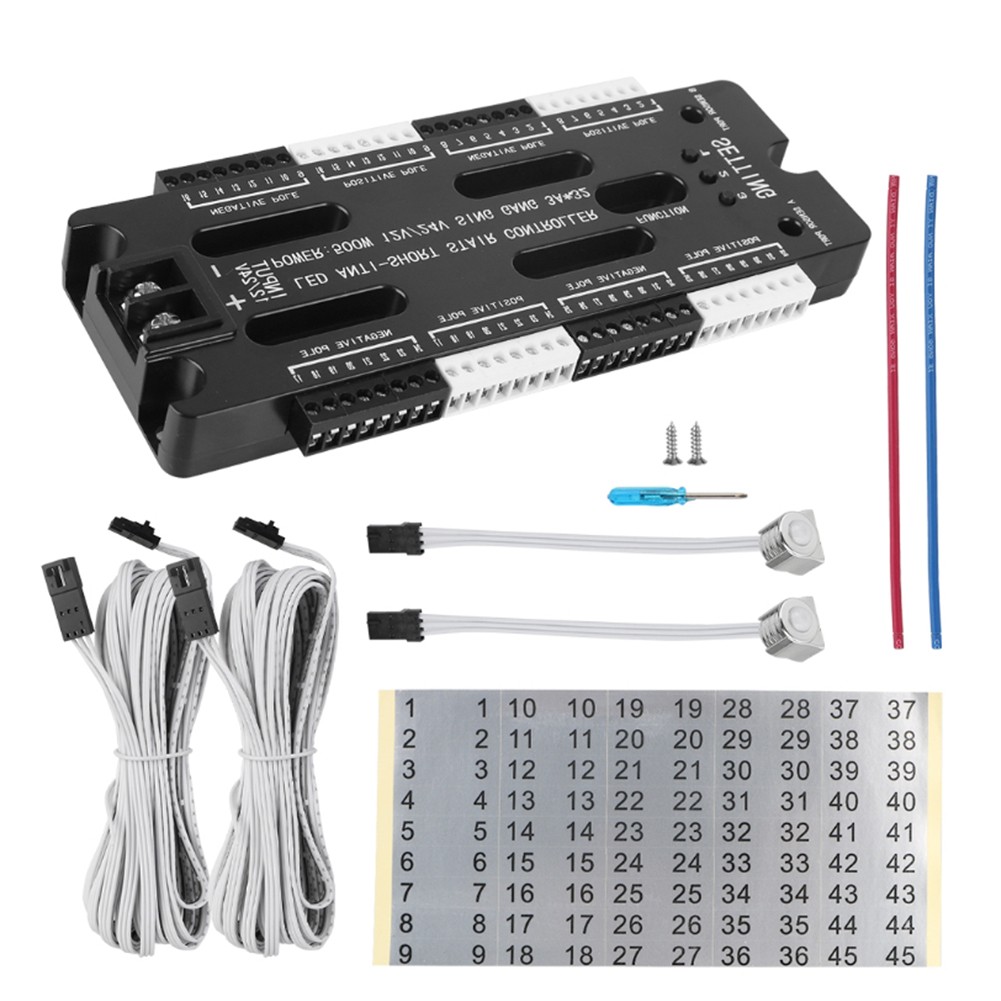

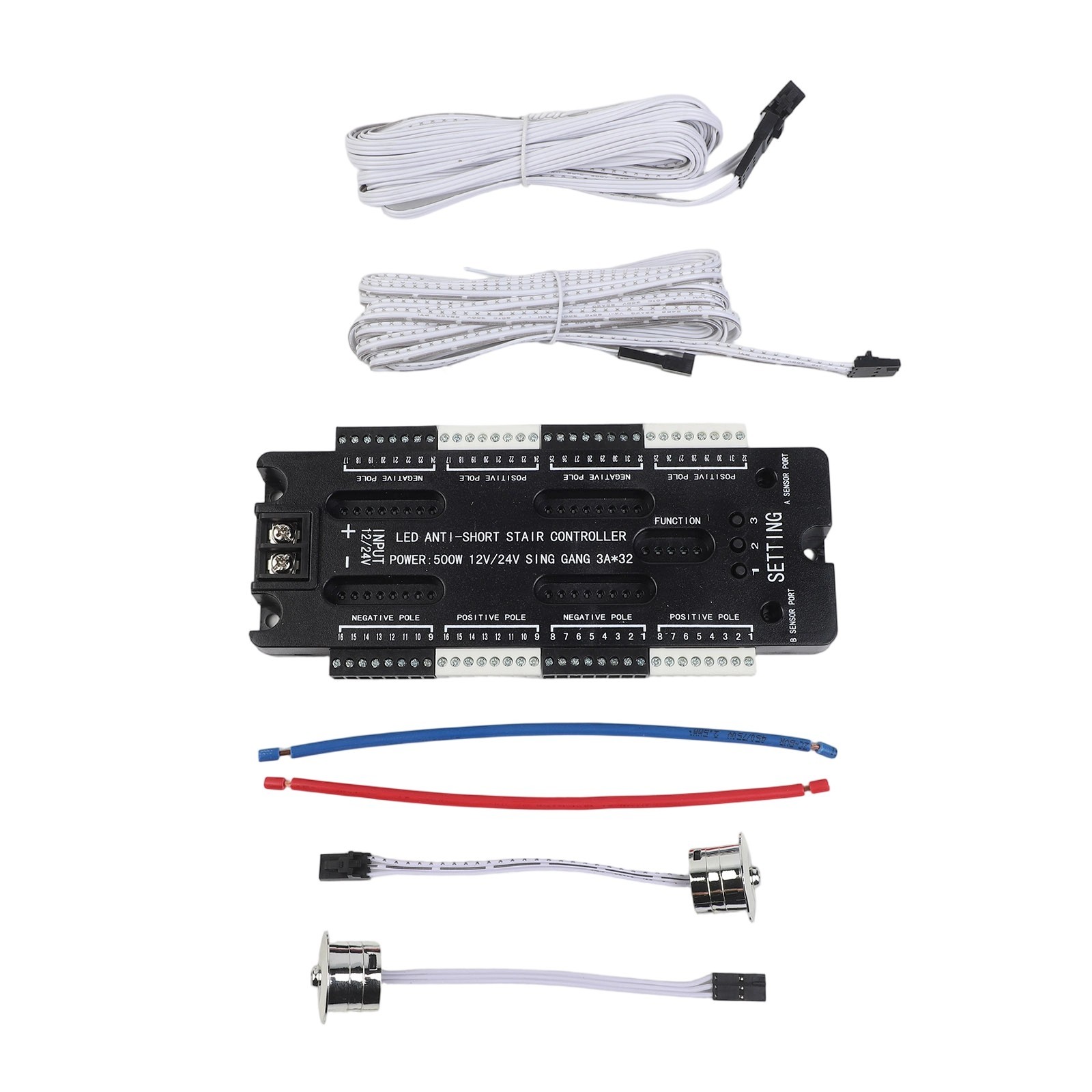

Package Content:
1 LED controller
2 sensors
2 output lines
Notes:

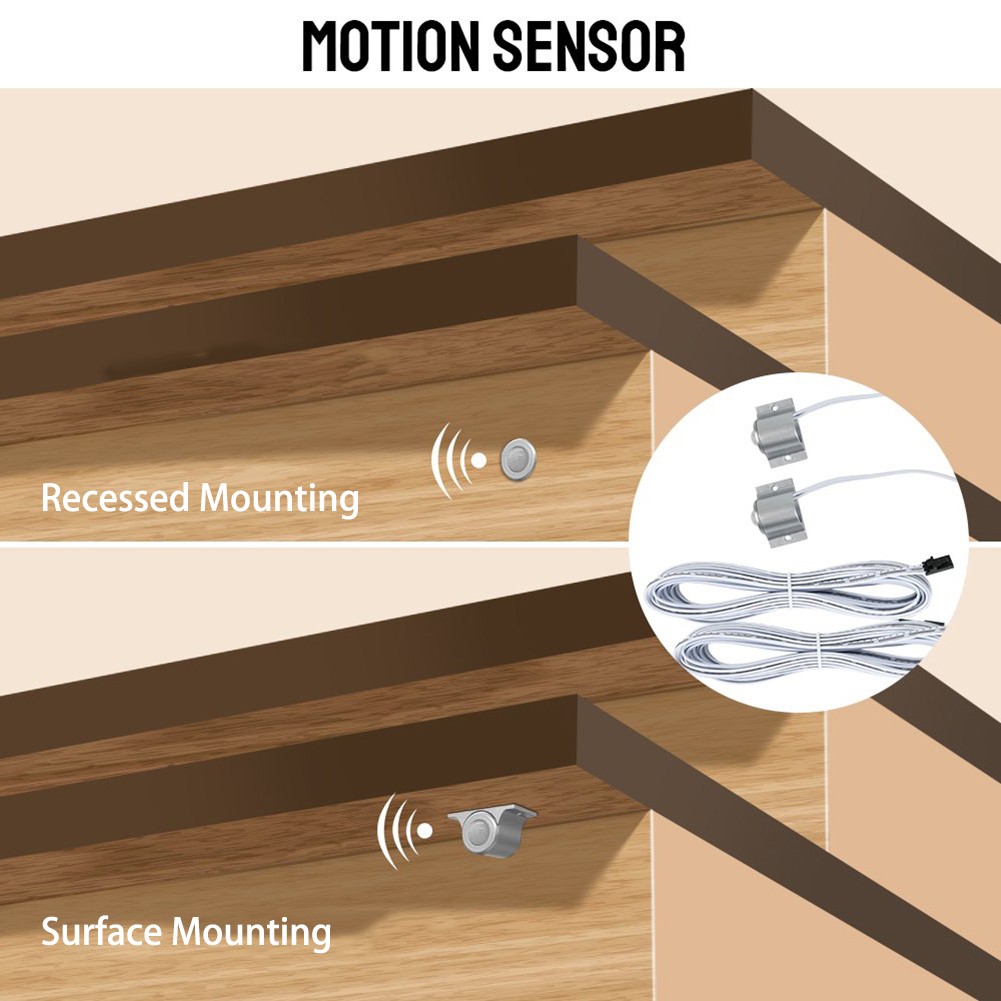

Sensor 1-A/B should be installed at the entrance and exit of the stairs and face the human body.
2-This product is low-voltage 12V-24V and needs to be connected to a transformer. Do not connect directly to 220V, which will burn the controller.
3-This product is not waterproof.
Important Tips: The positive and negative terminals of the controller power input cannot be connected in reverse. The red V+ line is connected to the positive pole of the switching power supply, and the blue (or black) V- line is connected to the negative pole of the switching power supply.
