Description:

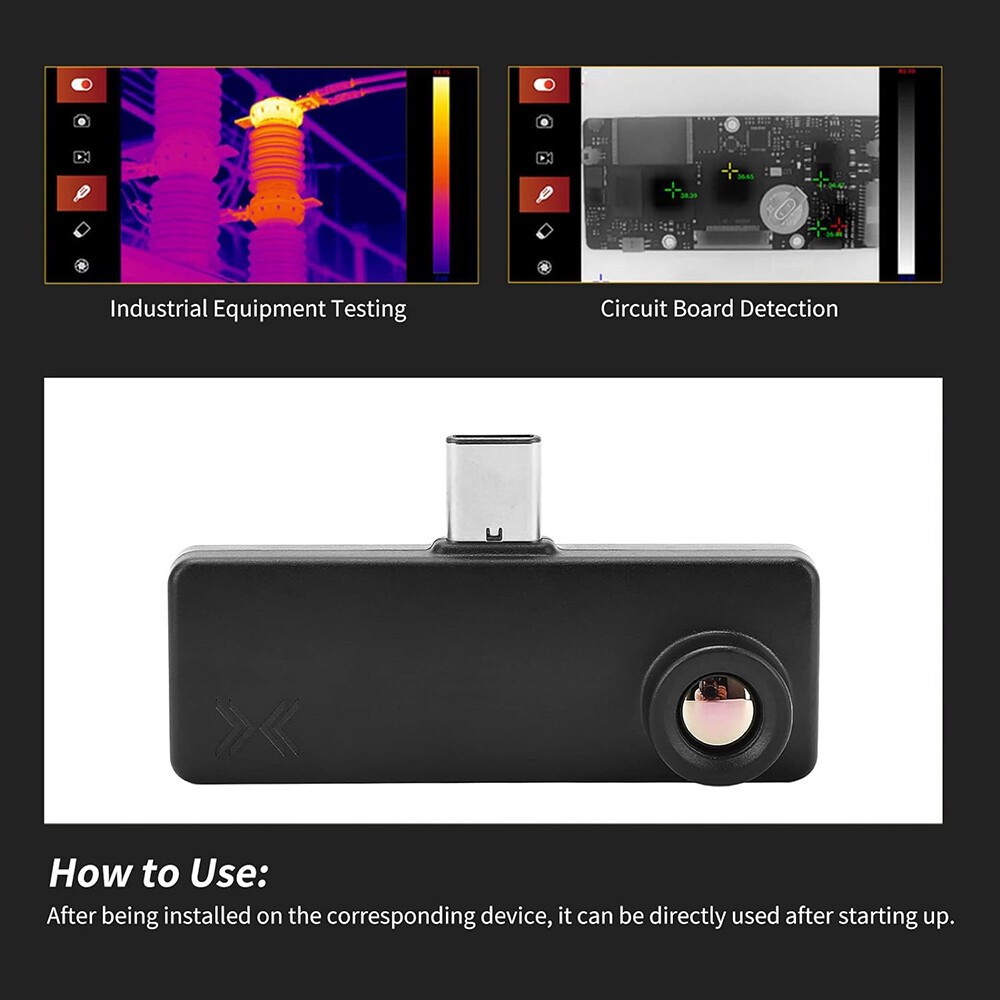

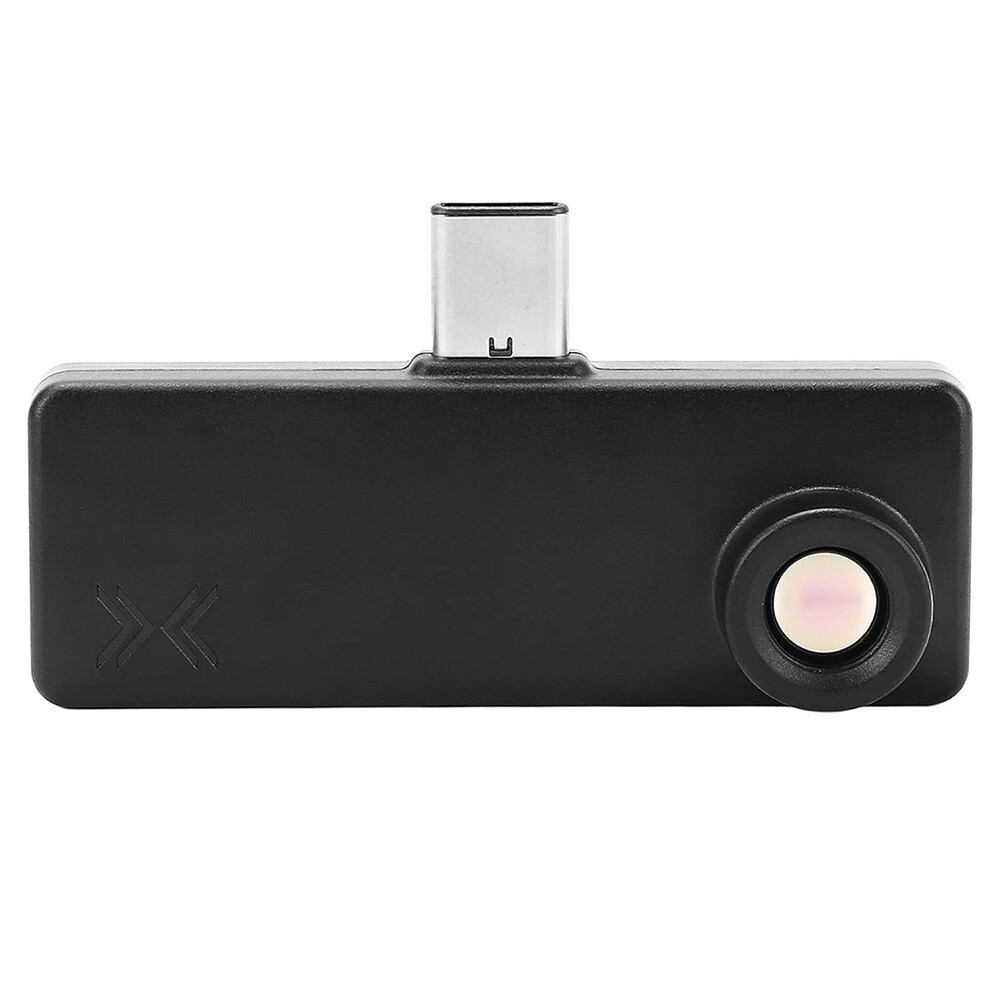

A very tiny sized thermal imager, an extension camera for smartphone. It provides you a way to sense the invisible, measure the unfathomable, and analysis the improbable by providing thermal image and temperature measurements in a new way.
Portable and light weight, convenient for taking anywhere and anytime.

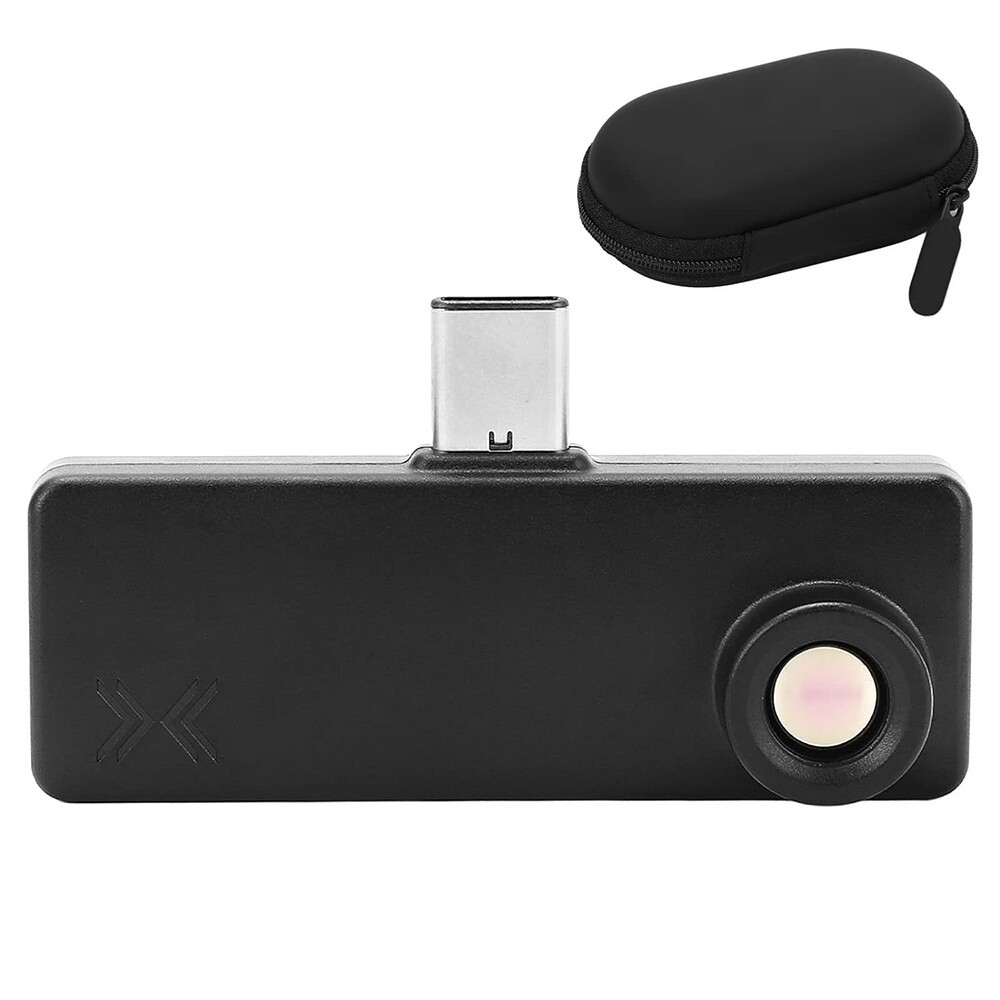

Mini camera with compact case, durable for using.
Fever detection is supported, you can detect and measure the forehead surface and core temperature.
Using the dedicated App, users can get the real-time thermal video on smartphones.
It supports various functions that enable users to detect potential issues in many applications, such as home inspection, animals monitoring and electrical maintenance.
It is also a good choice by personal video maker to help with content creation.
| Specification: | |
| Compatibility | Android (USB-C) devices |
| FOV (angles in degrees) | 44.2° (H), 34.5° (V) |
| Maxium frame rate | 15FPS |
| Max scene temperature range | -40° C to 1000° C |
| Thermal Sensitivity/NETD | 150mK |
| Thermal Resolution | 80 x 62 |
| Accuracy | up to +/- 1° C |
| Operating Temperature | -20 - 85° C |
| Storage Temperature | -40 - 85° C |
| Power Consumption | 300mW |
| Android dongle connector | USB Type-C |
| Android dongle size | about 62mm x 30mm x 14mm (2.44'' x 1.18'' x 0.55'') |
| Android dongle weight | 16g |
Package included:
1x IR Thernal Imaging Camera
1x Manual
Note:
Please kindly note that the android device need to support USB OTG function before installing!
