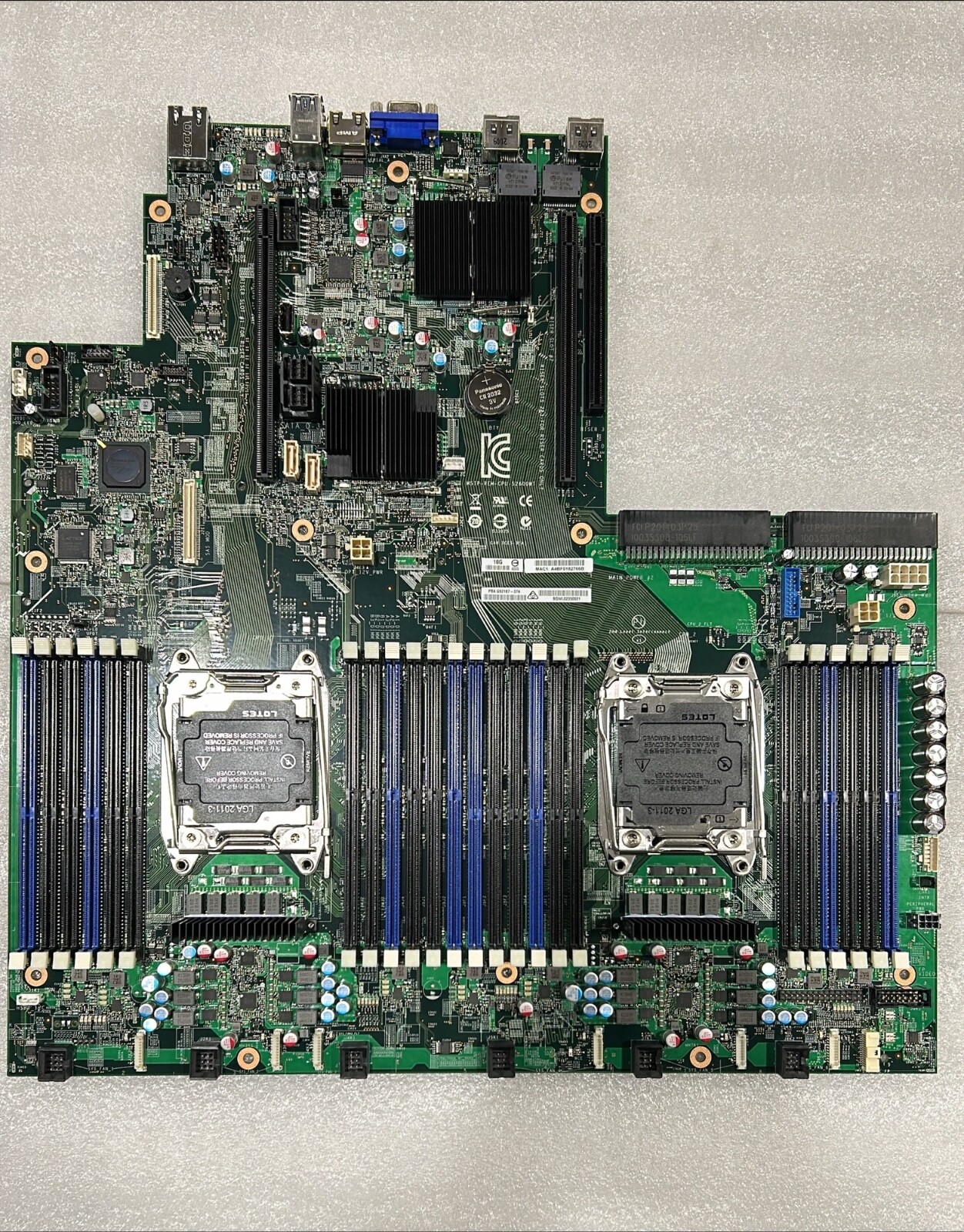

| Intel® Server Board S2600WTTR () |
|
|
Essentials |
|
Product Collection | Intel® Server Board S2600WT Family |
Code Name | Products formerly Wildcat Pass |
Marketing Status | Discontinued |
Launch Date | Q1'16 |
Expected Discontinuance | Q3'20 |
EOL Announce | Friday | July 19 | 2019 |
Last Order | Sunday | July 5 | 2020 |
Last Receipt Attributes | Monday | October 5 | 2020 |
# of QPI Links | 2 |
Compatible Product Series | Intel® Xeon® Processor E5-2600 v4 Family |
Board Form Factor | Custom 16.7" x 17" |
Chassis Form Factor | Rack |
Socket | Socket R3 |
Integrated Systems Available | Yes |
Integrated BMC with IPMI | IPMI 2.0 with OEM extensions |
Rack-Friendly Board | Yes |
TDP | 145 W |
Included Items | (1) Intel® Server Board S2600WTTR w/two 10Gb ports (Intel® Ethernet Controller X-540) and TPM module |
Board Chipset | Intel® C612 Chipset |
Target Market | Cloud/Datacenter |
New Design Availability Expiration Date | Friday | January 1 | 2021 |
|
|
Supplemental Information |
|
Embedded Options Available | No |
Datasheet | View now |
Description | A rack optimized server board supporting two Intel® Xeon® processor E5-2600 V3/V4 family up to 145W 24 DIMMs and two 10-Gb ethernet ports |
|
|
Memory Specifications |
|
Max Memory Size (dependent on memory type) | 1.5 TB |
Memory Types | DDR4 ECC RDIMM/LRDIMM 1600/1866/2133/2400 |
Max # of Memory Channels | 8 |
Max Memory Bandwidth | 153.6 GB/s |
Physical Address Extensions | 46-bit |
# of Memory Slots | 24 |
ECC Memory Supported ‡ | Yes |
|
|
GPU Specifications |
|
Integrated Graphics ‡ | Yes |
Graphics Output | VGA |
Discrete Graphics | Supported |
|
|
Expansion Options |
|
PCI Express Revision | 3.0 |
Max # of PCI Express Lanes | 84 |
PCIe x4 Gen 3 | 1 |
PCIe x8 Gen 3 | 1 |
Connector for Intel® I/O Expansion Module x8 Gen 3 | 1 |
Connector for Intel® Integrated RAID Module | 1 |
|
|
I/O Specifications |
|
# of USB Ports | 8 |
USB Revision | 2.0 & 3.0 |
Total # of SATA Ports | 10 |
RAID Configuration | SW RAID 0 1 10 optional 5 |
# of Serial Ports | 2 |
# of LAN Ports | 2 |
Integrated LAN | 2x 10GbE |
Firewire | No |
Embedded USB (eUSB) Solid State Drive Option | Yes |
Integrated SAS Ports | 0 |
Integrated InfiniBand* | No |
|
|
Package Specifications |
|
Max CPU Configuration | 2 |
|
|
Advanced Technologies |
|
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® Remote Management Module Support | Yes |
Intel® Node Manager | Yes |
Intel® Quick Resume Technology | No |
Intel® Quiet System Technology | No |
Intel® HD Audio Technology | No |
Intel® Matrix Storage Technology | No |
Intel® Rapid Storage Technology | No |
Intel® Rapid Storage Technology enterprise | Yes |
Intel® Fast Memory Access | Yes |
Intel® Flex Memory Access | Yes |
Intel® I/O Acceleration Technology | Yes |
Intel® Advanced Management Technology | Yes |
Intel® Server Customization Technology | Yes |
Intel® Build Assurance Technology | Yes |
Intel® Efficient Power Technology | Yes |
Intel® Quiet Thermal Technology | Yes |
TPM Version | 1.2/2.0 |
|
|
Security & Reliability |
|
Intel® AES New Instructions | Yes |
Intel® Trusted Execution Technology ‡ | Yes |
