USA SELLER - QKMall LLC
|
|
|
|
|
|
SHIP FROM USA
Only For off-Grid PV Solar System.
For 10A 12V Pv System: 360W Solar Panel,12V Lead-acid Battery,22V for Max input Voltage
For 10A 24V Pv System: 720W Solar Panel,24V Lead-acid Battery,44V for Max input Voltage
Package including:
1.1PCS 10A Solar Contorller
2.1PCS English User Manual
Protection:
Overcharging protection
Can be used for all panels
Overdischarging protection
Short and Open Circuit protection
Full specification available if required
Fail Safe and cannot be damaged by accidental wiring mistakes
Advanced design with simple plug and play technology. No need for complicated adjustments
Full LED status indication: State of Charge(SOC) Red-Flat Battery: Amber-Low charge: Green- good charge: Green Flashing- Full Charge
Features:
???Microcontroller digital accuracy
???PWM charge mode & State of Charge(SOC)
???Fully automatic operation & Electronic protections
???Detects day and night using the PV array, timer setting
???Double digital LED display, numbers equal to timer setting
???Temperature compensation, with inside temperature sensor
???Big terminals, big distance between terminals
Rating:
10I: 12 Volt or 12/24 Volt auto work, 10 Amps (for PV and load)
Equalisation voltage: 14.8Volt
High voltage disconnect(HVD): 14.4Volt
Float voltage: 13.6Volt
Low voltage disconnect(LVD) 11.1Volt
Low voltage reconnect(LVR): 12.6Volt
Self-consumption: 6mA maximum
Temperature compensation: -30mV/???/12V
Terminals: for wire sizes to 10mm2
Temperature: -35??? to +55???
LED indicator:
Solar Panel LED:
Green ON when solar is charging Battery.
Green blink when the syetem over voltage
Battery LED:
Green ON when battery level in the right range
Green Slowly flashing when battery level full
Yellow ON when battery level low
RED ON when loads cut off.
LOAD LED:
RED ON when the output is on
RED slowly flashing when it`s over load
(the load amps is 1.24 times of rated current for 60 seconds,or the load amps is 1.5 times of rated current for 5 seconds.)
RED blink when the load is short -circuit.
This controller has Light and Timer control Function
Light control:When daylight starts to occur then the light source goes off. Meanwhile the Solar Panels will charge the batteries. when there is no sunlight the garden light will switch on.
Time control:There is an eight hours time control,that means it will go off when the Lights automatically switch off after 0-15 hours.
Lighting control Option
1.Press the power switch for 5 seconds and select the desired LIGHTING CONTROL option.The LED is on,which confirmed you have selected the right one.
2.The controller requires 10 munites of countinuous transiton values before it starts to work.These constraints avoid false transitions due to lighting or dark storm clouds.
3.10 minutes off before the controller start to work
4.A brief description follows belows:
Number 0:
Dusk-to-Dawn, light is on all night
Number 1:
Light is turn on after sundown for 1 hour.
Number 2:
Light is turn on after sundown for 2 hour.
Number 3:
Light is turn on after sundown for 3 hour.
Number 4:
Light is turn on after sundown for 4 hour.
Number 5:
Light is turn on after sundown for 5 hour.
Number 6:
Light is turn on after sundown for 6 hour.
Number 7:
Light is turn on after sundown for 7 hour.
Number 8:
Light is turn on after sundown for 8 hour.
Number 9:
Light is turn on after sundown for 9 hour.
Number 0:
Light is turn on after sundown for 10 hour.
Number 1:
Light is turn on after sundown for 11 hour.
Number 2:
Light is turn on after sundown for 12 hour.
Number 3:
Light is turn on after sundown for 13 hour.
Number 4:
Light is turn on after sundown for 14 hour.
Number 5:
Light is turn on after sundown for 15 hour.
Number 6:
Lights remain turn off ,ON/OFF mode
Number 7:
Test Mode, lights on after it dects no light,
lights off after it defects light.
| Item Specifics | |
|---|---|
| UPC : | Does not apply |
| Brand : | Unbranded |
| MPN : | Does not apply |
Payment:
- We accept payment through Paypal ONLY.
If you do not have Paypal account, please registered with (https://www.paypal.com) Payment must be received within 5 days after auctions ended. Please do not bid if you are not intending to buy. Unpaid dispute will be filed to ebay for the non payable bidders.
Shipping and handling:
- We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay.
- Items will be shipped within 1-3 business day when we received payment.
- Delivery time depends on destination and other factors;
- International buyers please note:
- a.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyer’s responsibility. We will try our best to reduce the risk of the custom duties.
- b.Please check with your country's customs office to determine what these additional costs will be prior to buying.
Return:
- We can exchange the item within 14 days after you received it if it is defective. Returned item must have all original packaging and accessories with Approval Return Code.
- Buyer are responsible for the returning shipping costs. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item.
- It may take up to 3 business days to process your return after we receive your product.
Customer Services:
- Customer Satisfaction is invaluable for us. Any questions, please let us know first.
- We will reply all you questions in one working day. If you have questions or problem about your purchases, full support will be given and QKMall LLC will try to sort all your concern out.
- Any question, please send us message via ebay
USA SELLER - QKMall LLC
Shop Category Picture
New List Item
Help & Info Payment Policy Shipping Policy Return Policy FAQ About Us |

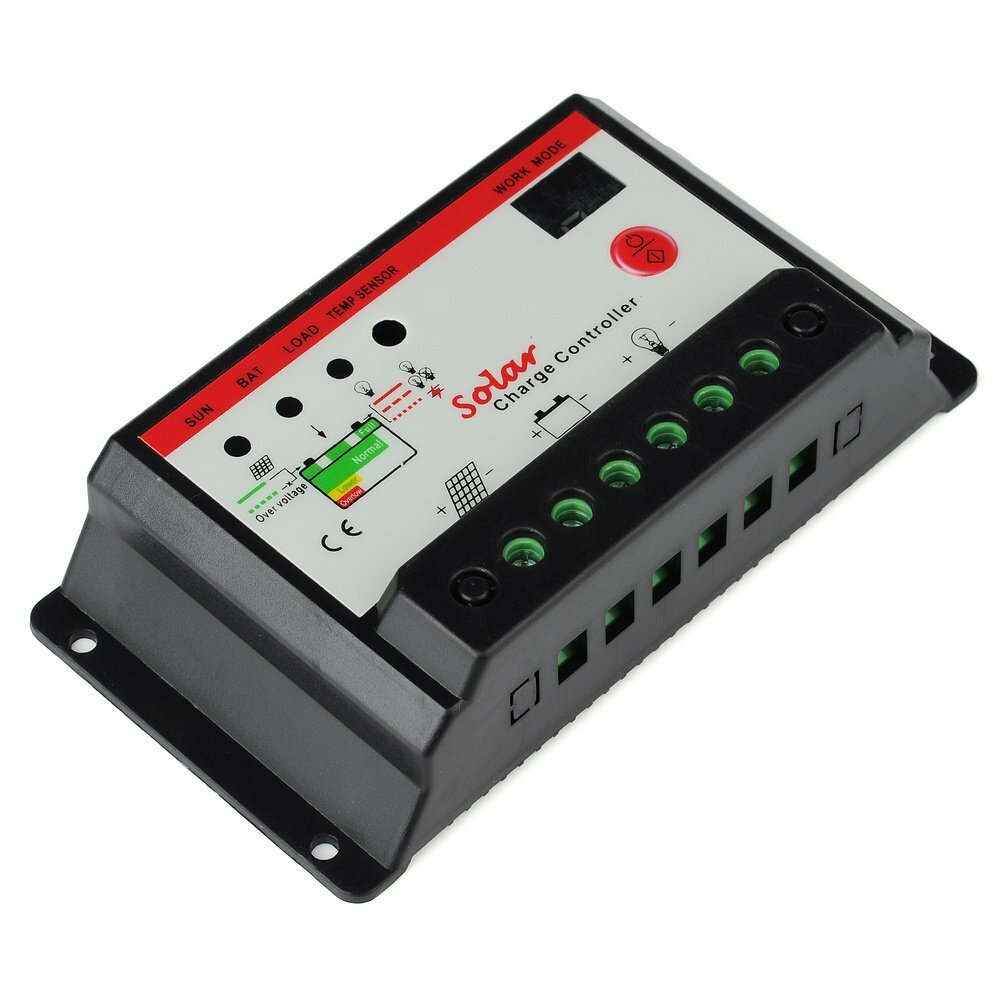

Intelligent 10A PWM Solar Panel Charge Controller 12V 24V Battery Regulator MT
