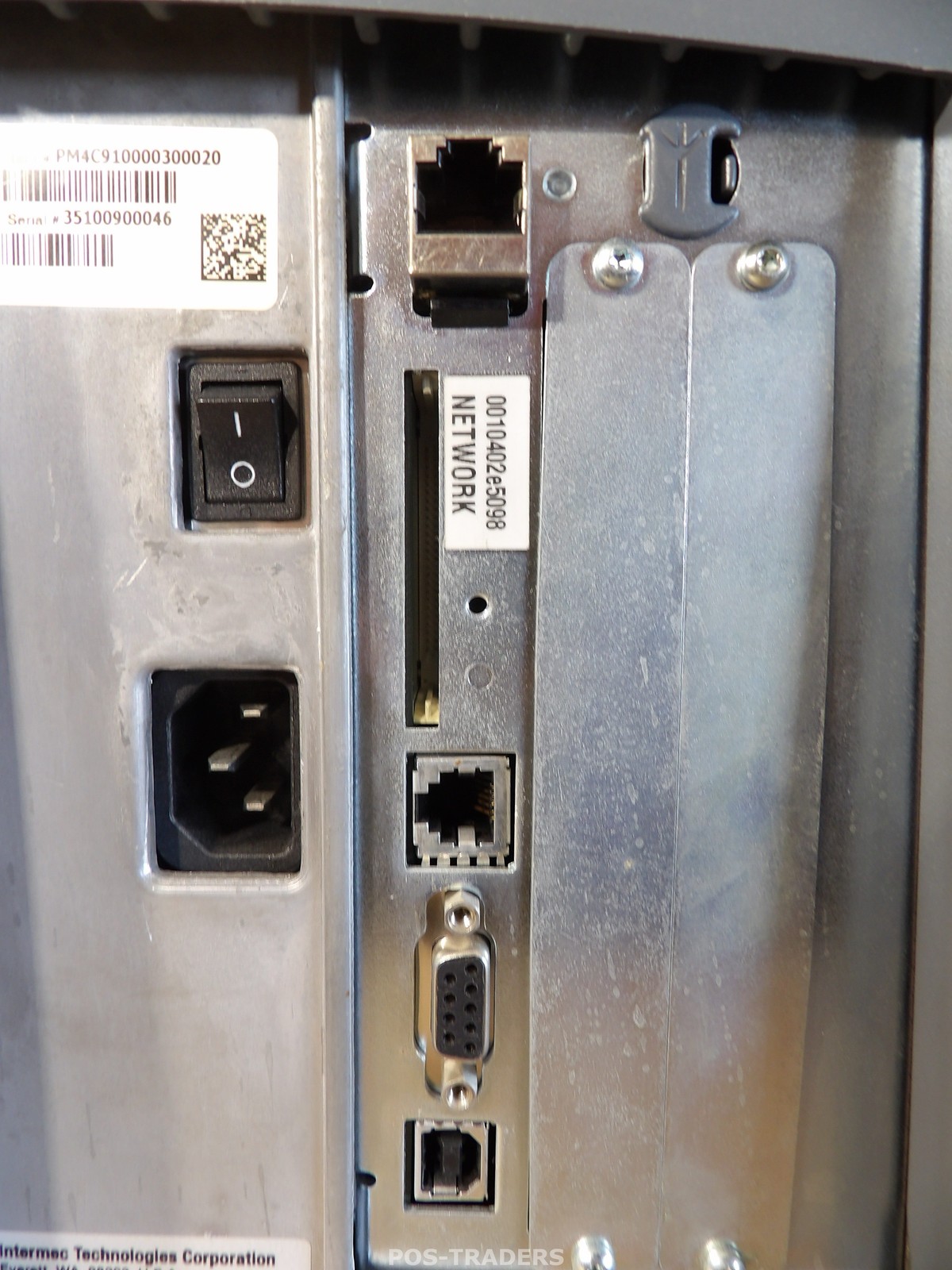

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0
Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.
Memory
Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Print Specifications
Max Width:
104 mm (4.09 in) at 203 dpi
Max Length:
4095 mm (161.2 in) at 203 dpi
Max Label Width:
114.3 mm (4.5 in)
Thickness:
2.5 to 8.7 mil
Style:
Roll-fed or fanfold
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Resolution:
8 dots/mm (203 dpi)
Print Speed:
100 - 200 mm/s (4 - 8 ips) variable (203 dpi)
Media Type:
Direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.
Supported Bar Code Symbologies
1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported
