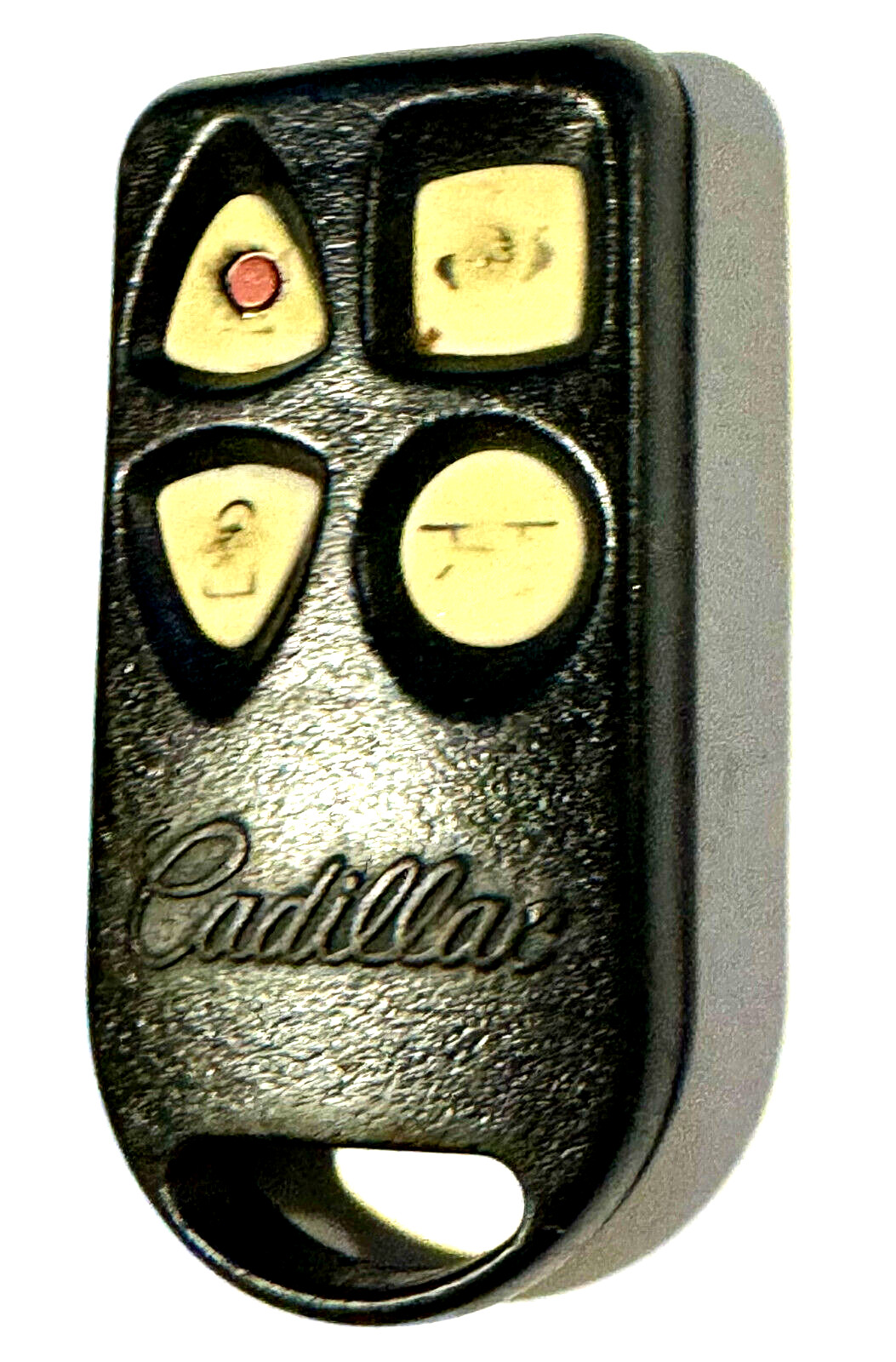

See pictures for an example of what you will receive.
ONE (1)
OEM Factory Original Equipment Manufacturer
remote keyless entry fob alarm controller
Transmitter control clicker keyfob controller replacement
|
FCC ID #: ABO0702T ABOO702T AB00702T Part Number: 10269729 or 10178734 Buttons: 4: Lock, Unlock, Trunk Release, Light Frequency: 318 Mhz Battery: 1; CR2032 (installed) See Item Specifications for more details
|
||||||||||||||||||||||||||||
|
Compatible Vehicle’s
NOTE: The part numbers listed above are for the Cadillac Deville, Eldorado and Seville only. Key fob part numbers for the 1994-96 Cadillac Fleetwood can be found below… RKE Key Fobs (remotes) part numbers.
The #1 and #2 remotes look identical - the only difference is the number on the back, which determines the order that they are programmed
|
||||||||||||||||||||||||||||
|
Cadillac SEVILLE |
1991 1992 1993 1994 1995 91 92 93 94 95 All Models With Keyless Entry |
|||||||||||||||||||||||||||
|
Cadillac Eldorado |
1991 1992 1993 1994 1995 91 92 93 94 95 All Models With Keyless Entry |
|||||||||||||||||||||||||||
|
Cadillac FLEETWOOD |
1993 1994 1995 93 94 95 All Models With Keyless Entry |
|||||||||||||||||||||||||||
|
Cadillac Deville |
1994 1995 94 95 All Models With Keyless Entry |
|||||||||||||||||||||||||||
|
PROGRAMMING REQUIREMENTS: The manufacturer’s programming instructions for your vehicle make model and year specify diagnostic programming required. Your vehicle’s RKE (remote keyless entry) System requires programming by your local auto locksmith. The procedure can be done with a scan tool /diagnostic equipment & takes a few minutes to complete. We suggest a local Automotive locksmith. You may want to call ahead to get a price quote and to ensure they have the proper equipment to pair your particular vehicle’s RKE system to your remote. You will need; 1. the remote and 2. the vehicle you will be syncing the remote to . (BEWARE: if you choose to take the remote to your local DEALER: many dealers will charge for 1 hour of labor to do this & often times they will tell you that it will not work so that you will have to purchase a remote from them at 2-3 times the cost) or STOCK # 102 FCC ID #: ABO0702T ABOO702T AB00702T Part Number: 10269729 or 10178734 Programming Instructions 1993
Cadillac Fleetwood 2. Connect cavity G with a ground using a fused jumper wire. Your vehicle will respond by locking and unlocking the door locks within 2 seconds. 3. Press any button on first remote to be programmed. Locks will lock and unlock verifying remote was programmed. 4.Press any button on second remote to be programmed if applicable. Locks will lock and unlock to verify remote was programmed. 5. Remove jumper wire and test remote(s). 1994 - 1996
Cadillac Fleetwood Obtain all remote transmitters for this vehicle. 1. Access programming connector in LH side of trunk (passenger side) you may need to pull back some trim to find or access it. Connector will not be connected to anything and should be one black/white wire that ends with a black connector. It will have a single hole in it or a port. 2. Jump programming connector using a suitable jumper wire with ground. Jumping the connector means to use a wire or paperclip to make a connection between the port and the ground. Be sure you are making contact with the metal inside the port and touch the other end of the jumper wire to a nearby bolt or unpainted metal surface on the body of the vehicle. 3. The system should now lock and unlock doors to indicate successful entry into programming mode. 4. Press any button on the remote one time. The system should now lock and unlock doors to indicate the successful programming of the remote. 5. Repeat step 4. for each additional remote including working ones. 6. To exit programming mode remove the jumper wire and test all remotes. 1994 - 1995
Cadillac DeVille
1993 Cadillac Seville LEASE NOTE: When you begin the programming sequence to sync your remote to your installed remote keyless entry (RKE) system, you MUST HAVE ALL OF YOUR REMOTES (Including PREVIOUSLY PROGRAMMED remote(s)) to be programmed with you at the time of programming… ALL PREVIOUSLY PROGRAMMED REMOTES WILL BE ERASED AT THIS TIME. (This is a safety feature that prevents anyone else from accessing your vehicle.) Note: Before starting this procedure, BOTH transmitters must be present. Reprogramming Transmitter 1. Turn the
Ignition Switch to OFF. After the procedure, check to see if both transmitters operate the door locks. Repeat the programming procedure or replace transmitters as necessary. 1994 - 1995 Cadillac Seville 1. Collect
all remotes that you wish to program. This procedure will erase all
previously programmed 2. Insert the key into the ignition and turn it to the on position. Do not start the car. 3. Access
the programming connector in the trunk of the car. It will be located next to
the latch for the trunk 4. Press
the unlock button on the remote being programmed twice. Locks will cycle
again confirming 5. Remove jumper wire to exit programming mode. 1993 - 1995 Cadillac Eldorado 1.Switch ignition to the ON position (don’t crank engine). 2.Locate the Programming Connector (See item 2 in Figure 4) at the back end of the trunk base (not the trunk lid) above the rear bumper. You may have to pull back the trim to access the connector. It is a plastic connector with one wire leading up to it that is NOT plugged into anything. 3. The connector should have one terminal. Ground this terminal to a suitable location (bolt, antenna, etc.) and keep it grounded until completion of the programming sequence. Within 2 seconds of grounding the programming connector, the door locks will automatically cycle (lock then unlock) to indicate entry into programming mode. 4.Press the UNLOCK button on the first transmitter TWO TIMES (pause one second between presses). In response, the door locks will cycle once within 2 seconds. (NOTE: If only one transmitter will be used, press the UNLOCK button TWO TIMES again on the same transmitter and the door locks will cycle once more.) 5.If a second transmitter is to be programmed (including your old one), press the UNLOCK button on the second transmitter TWO TIMES, pausing one second between presses. In response, the door locks will cycle once within 2 seconds. 6.Remove the jumper wire from the Keyless Programming Connector and switch ignition OFF.
|
How to find out if this remote is compatible with your Vehicles’ installed RKE System
If you're not sure your vehicle can use this remote, please ask questions or contact your local dealer first.
1. Check the back of your current or old keyless remote to match FCC ID /Part #’s.
2. Contact your local dealer and tell them your VIN# and ask what part # / FCC ID you need.
Your vehicle will be installed with one of the following keyless entry systems:
a. Standard Keyless Remote Packages: Installed at time of manufacture.
b. Optional Keyless Remote Packages: Installed by a dealer.
c. Aftermarket Keyless Remote Packages: Installed by previous owner or a car/audio shop.
d. No remote keyless entry system at all.
The above information can change which
remote you need
for your installed remote keyless system.
Payment: We accept payment via PayPal or Credit Card. Please contact us via eBay messages for any questions concerning payments. Payment is expected within 5 days
PA SALES TAX: As per the State of PA Franchise Board we must collect sales tax from PA Residents for any purchase made from our store.
Contact/Email: Due to scams etc, we DO NOT respond to emails. We only read/respond to EBAY MESSAGES. Messages & Best Offers are checked throughout the day & we typically respond 7 days a week. Please contact us with questions via eBay messages (keyless4u).
100% Guarantee Remote Shipping / Return Policy
Warranty/Returns:
1. We have a 30 day return policy.
2. All returns for replacements and refund need an RMA #.
3. Please contact us before returning items so we can give you the RMA # and the proper return address.
4. No refunds / replacements will be granted without an RMA#
We ensure proper working condition of all previously used or new remotes through a serious of tests performed with the Santronics Testing device. Each button is tested for functionality prior to shipment and then logged.
Please Note: Each remote and circuit board is UV ID’d prior to shipment – All returns receive a UV ID inspection to verify originality of remote sent prior to refund or replacement.
Does this keyless remote entry come with a battery?
Yes. It will have a working battery installed.
Battery Condition:
A. All remotes sold on Keyless4u include working batteries.
B. Installed batteries are not tested for battery life- they are simply working.
Some are new and some are used.
.
