LED Touch Controller DC12V-24V 18A Wireless RF Panel Dimmer for RGB Strip Light

tiaochongyi

$12

CONTACT SELLER SEE ON EBAY

tiaochongyi

$12

DESCRIPTION

Description

LED Touch Controller DC12V-24V 18A Wireless RF Panel Dimmer for RGB Strip Light

escription

Voltage: DC 12V-24V
Current: 6A×3 channel
Wattage: 144W-12V, 288W-24V
Connection mode: common anode
Remote battery required: 3 AAA batteries (not included)
Controller size: L 110mm×W 42mm×H27mm

Features:

Compatible with LED RGB products; Unique touch panel; Userfriendly operation; Automatically adapt to LED light. Works at DC 12V or DC 24V. The touch panel ring is used for easy color changing,there are four builtin pattern modes: static color, gradual, hopping and white light.

Remote Operation Instruction:
The RF remote touch RGB controller has 4 modes in total,and can change its mode by touching the ON key.
1.static color mode
2.gradual change mode
3.hopping change mode
4.white light mode
Under static color mode ，both color and brightness are adjustable. NOTE:Under this mode ,speed function are invalid.
Under gradual change mode，both speed and brightness are adjustable. NOTE:Under this mode ,color ring are invalid.
Under hopping change mode，both speed and brightness are adjustable. NOTE:Under this mode ,color ring are invalid.
Under white light mode，only brightness can be adjustable. NOTE:Under this mode ,both speed and color ring are invalid.
Attentions :

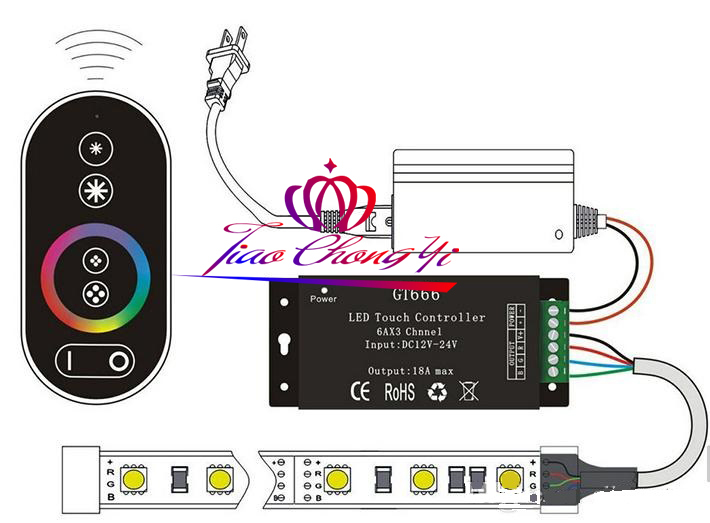

Input voltage of remote control must be the same as RGB strips.
Matching the color of output wiring when connecting.
When the color doesn't match, for example, it displays blue when touching green, or displays green when touching blue, please check whether the wiring is correct.
If not, exchange blue and green into their right connections.

Package includes:

1x RGB controller
1x RF touch remote
1x User Manual
