DESCRIPTION

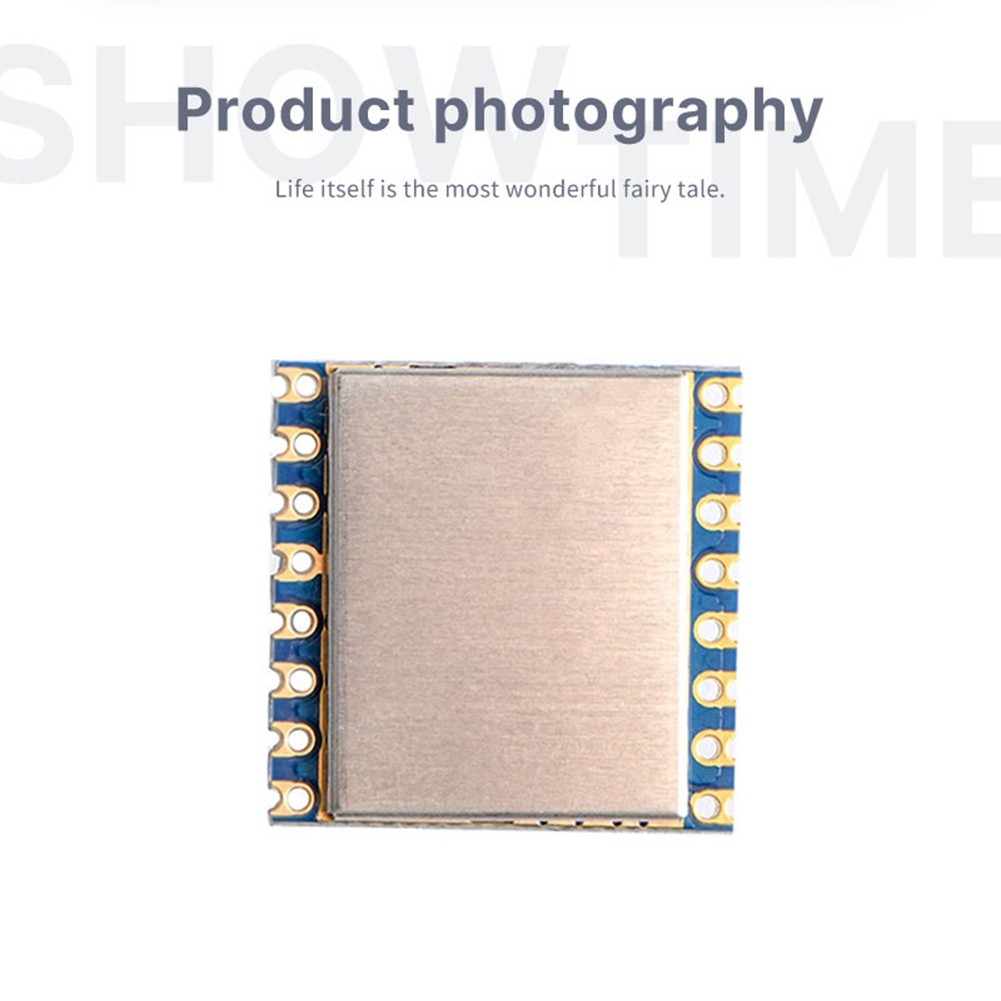

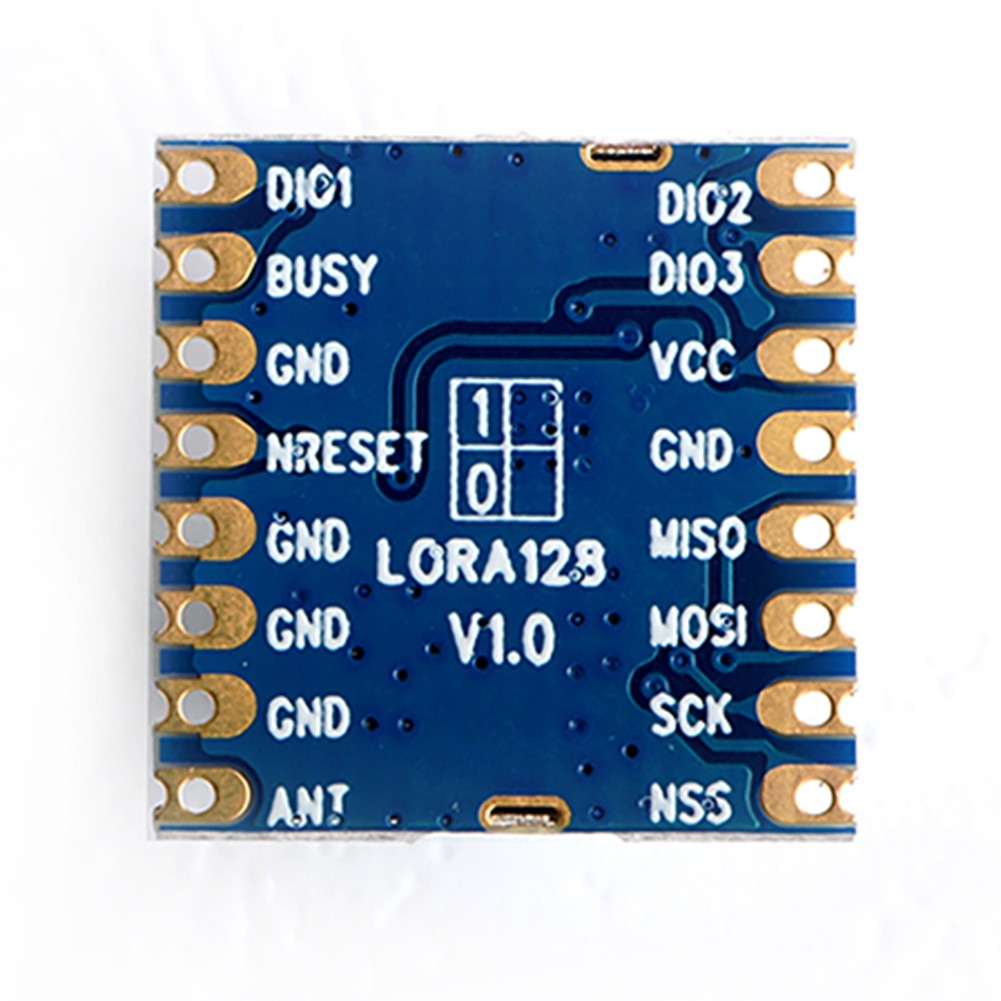

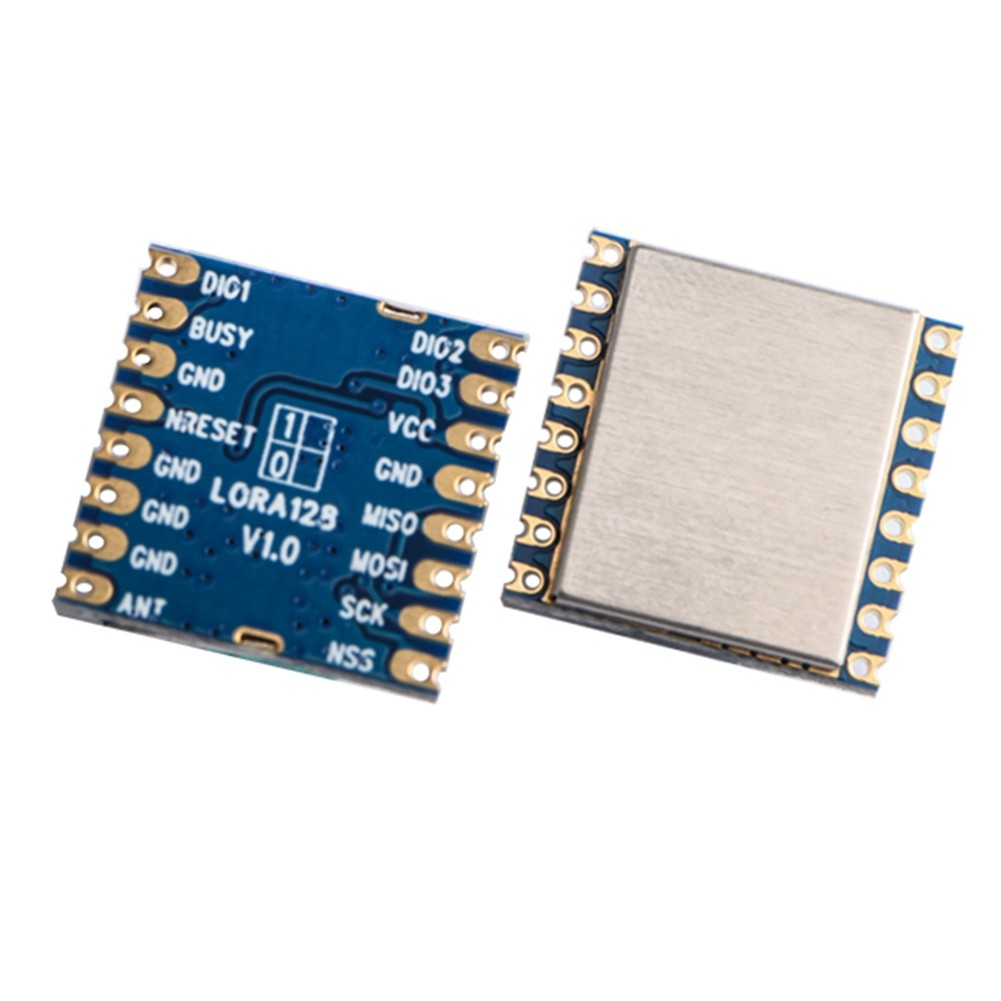

LORA1280-TCXO 2.4GHz Range Measurement LoRa Module J8B36467
Operating frequency range: 2400-2500MHZ
LoRa FLRC FSK modulation
Data transfer rate: @LoRa=0.476-202 Kbps
Maximum output power: 12.5dBm
Sensitivity up to -132dBm@LoRa
Overview:
LORA1280-TCXO is 2.4G wireless transceiver module. This module use SX1280 from . It is LoRa modulation with maximum 12.5dBm output power. This wireless module has good sensitivity and good ant-interference. Also Lora1280 can measure the range between the transmitter and receiver.
TCXo Crystal
Packet communication mode (receiving FIFO 256 bytes)
Operating voltage range:1.8-3.7 V
Operating temperature range:-40-+85℃
Application:
Wireless remote
Smart home
Toy control
Health monitoring
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC
Package Contents:
1 * module
LoRa FLRC FSK modulation
Data transfer rate: @LoRa=0.476-202 Kbps
Maximum output power: 12.5dBm
Sensitivity up to -132dBm@LoRa
Overview:
LORA1280-TCXO is 2.4G wireless transceiver module. This module use SX1280 from . It is LoRa modulation with maximum 12.5dBm output power. This wireless module has good sensitivity and good ant-interference. Also Lora1280 can measure the range between the transmitter and receiver.
TCXo Crystal
Packet communication mode (receiving FIFO 256 bytes)
Operating voltage range:1.8-3.7 V
Operating temperature range:-40-+85℃
Application:
Wireless remote
Smart home
Toy control
Health monitoring
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC
Package Contents:
1 * module
