LS173 colorimeter Smart Touch screen automotive paint Color Difference Anayzer
LS173 is a portable multifunctional colorimeter with D/8° (SCI) optical geometry design. The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, providing an excellent operating experience. The colorimeter integrates multiple natural color charts, and can quickly match the measured color to the closest color codes. The color difference meter also has a color difference comparison function, supports a variety of standard color addition methods, the color difference threshold can be set. The color difference formula can be flexibly selected, which can realize rapid QC testing.
Application
LS173 usually used in paint, metal, stone, ceramic tiles and plastics industries for color measurement and management, color difference quality control. The colorimeter is illuminated by an integrating sphere diffused light source, which is very suitable for color measurement of high-gloss samples.
Parameters
Parameter | Value |
Illumination geometry | D/8, specular component include (SCI) |
Illumination light source | Full spectrum LED light source |
Measuring aperture | 8mm |
Measurement conditions | Light source D65, field of view 10° |
Measuring time | About 1s |
Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
Repeatability | Standard deviation ΔE*ab ≤ 0.03
(Measurement condition: the average value of 30 measurements on the whiteboard at aninterval of 3s after calibration) |
Dimension | 86mm×62.5mm×158mm |
Weight | About 245g |
Power supply | Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 times continuously under full charge |
Display | 480×320 dot matrix IPS color screen |
Language | Simplified Chinese, English |
Charging port | USB (Type-C) |
Operating temperature range | 0~45℃, 0~85%RH (no condensation) |
Storage temperature range | -25~55℃, 0~85%RH (no condensation) |
The large 3.5-inch touch screen makes the operation more convenient
The colorimeter comes with a 3.5-inch IPS color touch screen, no button operation is required. The screen is tilted at 20 degrees, a perfect viewing angle, convenient for reading. The color analyzer has a good user experience and human-computer interaction interface
Color measurement and color comparison function
Color measurement can be achieved by touching the screen button or pressing the power button, and the color value can be measured in 1 second.
Two clicks can complete the color difference comparison, turn on the QC detection function, batch detection can be conducted,
and the color difference threshold can be set to quickly achieve quality control
Lab values indication makes color adjustment easier
Providing the color deviation indicator of the three color channels of Lab and assistance for color adjustment
7 color spaces and 6 color difference formulas
The color analyzer has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas, meeting the color measurement needs of various industries
Integrating multiple electronic color charts
Built-in multiple standard electronic color charts can quickly match the 3 closest color codes with an accuracy rate of over 90%
Portable size
Smart and portable, easy to store and carry
Measuring locating plate to make measurement more accurate
The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate

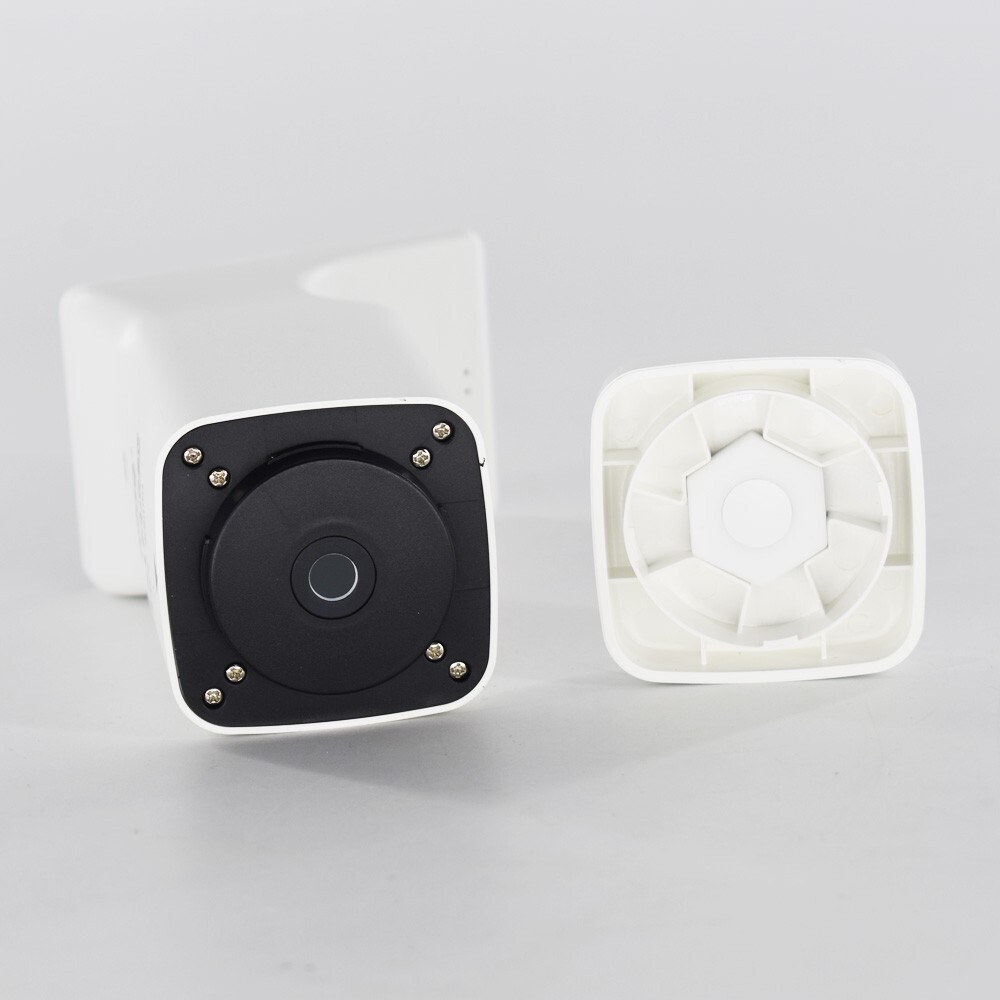

White tile calibration, simple operation
The bottom cover integrates a calibration white tile, so there is no need to worry about losing it. No need for tedious operation
Packing
No. | Description | Quantity | Unit |
1 | Colorimeter | 1 | Set |
2 | USB cable | 1 | pcs |
3 | Cleaning cloth | 1 | pcs |
4 | Locating plate | 1 | pcs |
5 | User manual | 1 | pcs |
6 | Certificate / Warranty card | 1 | pcs |
