Single Head Automatic Liquid Bottle Tube Filling Machine Digital Control Filler For Perfume Oil Water Juice(3L Big Flow)
Description
This filling machine is made of 304 stainless steel, which is safe, reliable, corrosion-resistant, and won't burden your body, so you can use it with confidence. In addition, the filling machine features high accuracy, high work efficiency, and simple operation. It meets your different needs and is a good filling machine worth buying.
Key Features
High-end Material: This filling machine is made of 304 stainless steel, which is safe, durable, corrosion-resistant, and rustproof, so you can use it with confidence.
Good Safety Performance: The switch of this product can be stopped in an emergency. At the same time, the conveyor belt has a waterproof function, so it can better protect your safety. You can use it with confidence.
High Adaptability: The filling range of this filling machine is 5-3000ml/0.21-126.8oz, you can adjust the height of the filling nozzle and the width of the inlet according to the volume to be filled and the size of the bottle to fully meet different filling needs.
High-Temperature Resistance: This filling machine can be used for liquids of about 200 ℃/392°F. Such excellent resistance to high temperatures makes this filling machine suitable for many different liquids.
Powerful Electric Eye: The filling machine is equipped with an electric eye, and uses an infrared probe to sense, which can accurately detect bottles and control the machine, ensuring the efficient and stable operation of the machine, and releasing your hands.
High Working Efficiency: The filling machine adopts fully automatic belt transportation to ensure efficient operation, and 5-30 cans can be produced per minute, which saves your time and cost to a great extent.
High Precision: The product uses a magnetic pump and a digital panel to achieve precise control, and the accuracy can achieve ≤±1%, helping you achieve better filling.
Easy to Install: The filling machine is designed with holes on both sides of the transmission belt, and an English manual is also provided, so you can easily install it, without cumbersome steps, greatly saving you time.
Simple Operation: The filling machine is equipped with a digital panel, through which you can directly set the filling speed, filling time and other data, which is very convenient.
Easy to Clean: The filling machine has a smooth surface, and the inlet and outlet nozzles can be disassembled and replaced, so you don’t need to spend much effort cleaning. At the same time, the filling nozzle can also prevent dripping and leakage, which is conducive to maintaining cleanliness.
Worry-free Service:We have been working hard to provide better service and quality for our customers, which is our goal. If there is any quality problem with our filling machines. Please contact us in time.
Details
Exhaust Port: There are several exhaust ports evenly arranged on the side of the machine to provide good heat dissipation and further extend the service life of the machine.
Foot Pad: The foot pad is set at the bottom of the product, which can prevent skidding, making the machine more stable and not easy to shake.
Speed Control Button: The button is installed at the beginning of the waterproof conveyor belt, through which you can directly adjust the speed.

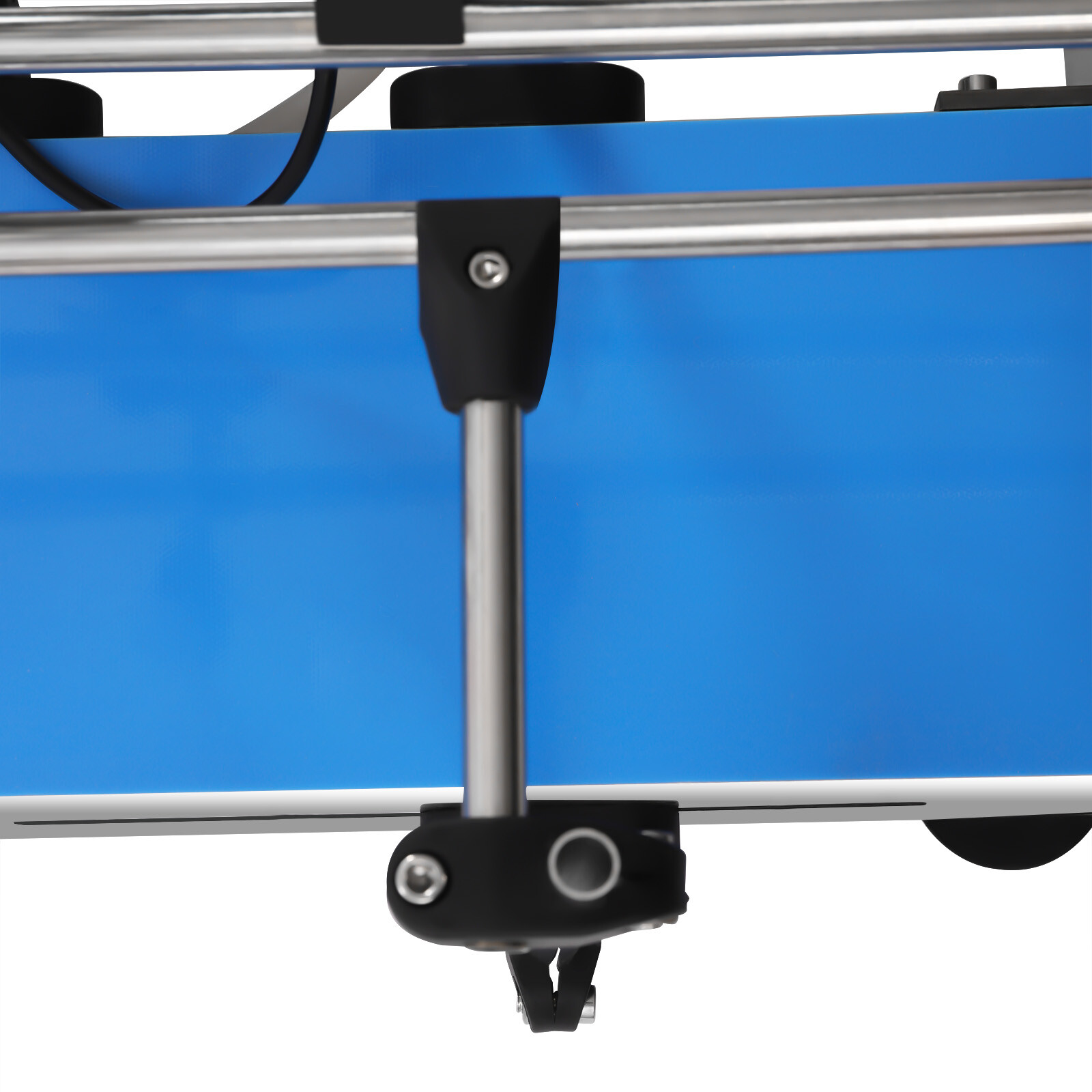

Protective Rod: The filling machine is designed with a protective rod to prevent bottles from falling and reduce the danger and other losses.
Application
This filling machine is widely used in milk, perfume, pesticide, vinegar, lemon juice, edible oil, soft drinks, and almost all liquid that can flow.
Specification
Color: Silver
Model: YT-1
Material: 304 Stainless Steel
Plug Type: US Standard
Voltage: 110V
Power: 300W
Frequency: 60Hz
Net Weight: 28kg/61.73lbs
Gross Weight: 30kg/66.14lbs
Product Size: 120*40*30/47.24*15.74*11.81inch
Package Size: 125*60*38cm/12.6*23.62*14.96inch
Conveyor Belt Size: 12*120cm/4.72*47.24inch
Maximum Liquid Temperature: 200 ℃/392℉
Filling Range: 5-3000ml/0.21-126.8oz
Accuracy: ≤±1%
Output: 5-30 Cans per Minute
Bearing Capacity: 15kg/33.07lbs
Filling Head Diameter: 8mm/0.315inch
Maximum Flow Rate: 3L/min(0.79gallon/min)
Intelligent Sensing Distance: ≤1cm/0.39inch
Package Included
1* Single Head Numerical Control Liquid Filling Machine
1* Power Cable
1* English Manual
All Accessories for Installation
Notes
- The load that the conveyor can bear must be within 15kg/33.07lbs.
- Please keep dry after cleaning.
- The filling material cannot contain particles.
