Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
-
PCB 1mm wider.
-
Identical performance as previous version.
-
Wide 6V to 60V Operating Input Range
-
Start-up Voltage >=6.7V
-
VOut 5V, 9V or 12V Adj. Default is 5V.
-
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
-
Continuous load current: Depends on input voltage and heat dissipation.
-

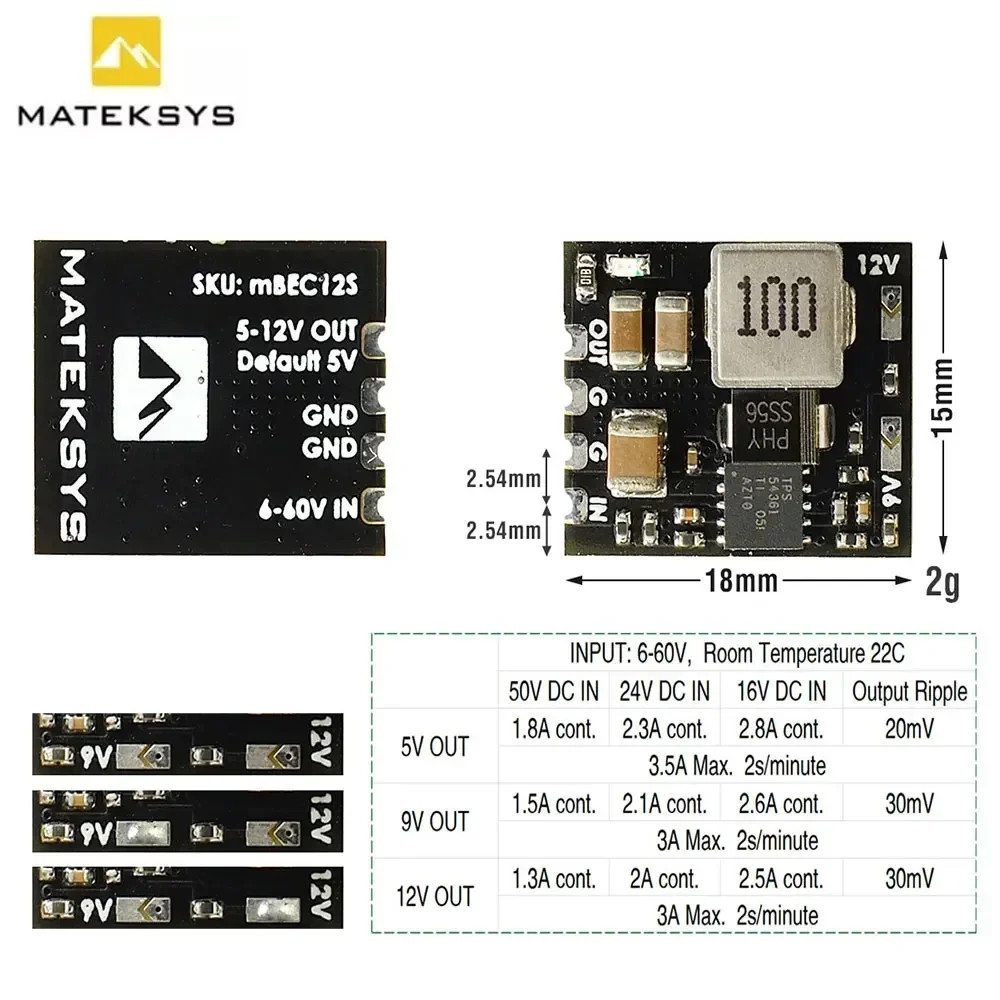

INPUT: 6-60V, Room Temperature. 22C, without additional heat sink
50V DC IN
24V DC IN
16V DC IN
Output Ripple
5V OUT
1.8A cont.
2.3A cont.
2.8A cont.
20mV
3.5A Max. 2s/minute
9V OUT
1.5A cont.
2.1A cont.
2.6A cont.
30mV
3A Max. 2s/minute
12V OUT
1.3A cont.
2A cont.
2.5A cont.
30mV
3A Max. 2s/minute
-
-
Standby current: <5mA
-
OCP Protection and Hiccup
-
Thermal Shutdown
-
Output Short-circuit tolerant (3 seconds/minute)
-
No protection for reversed input polarity
-
Pins distance: 2.54mm
-

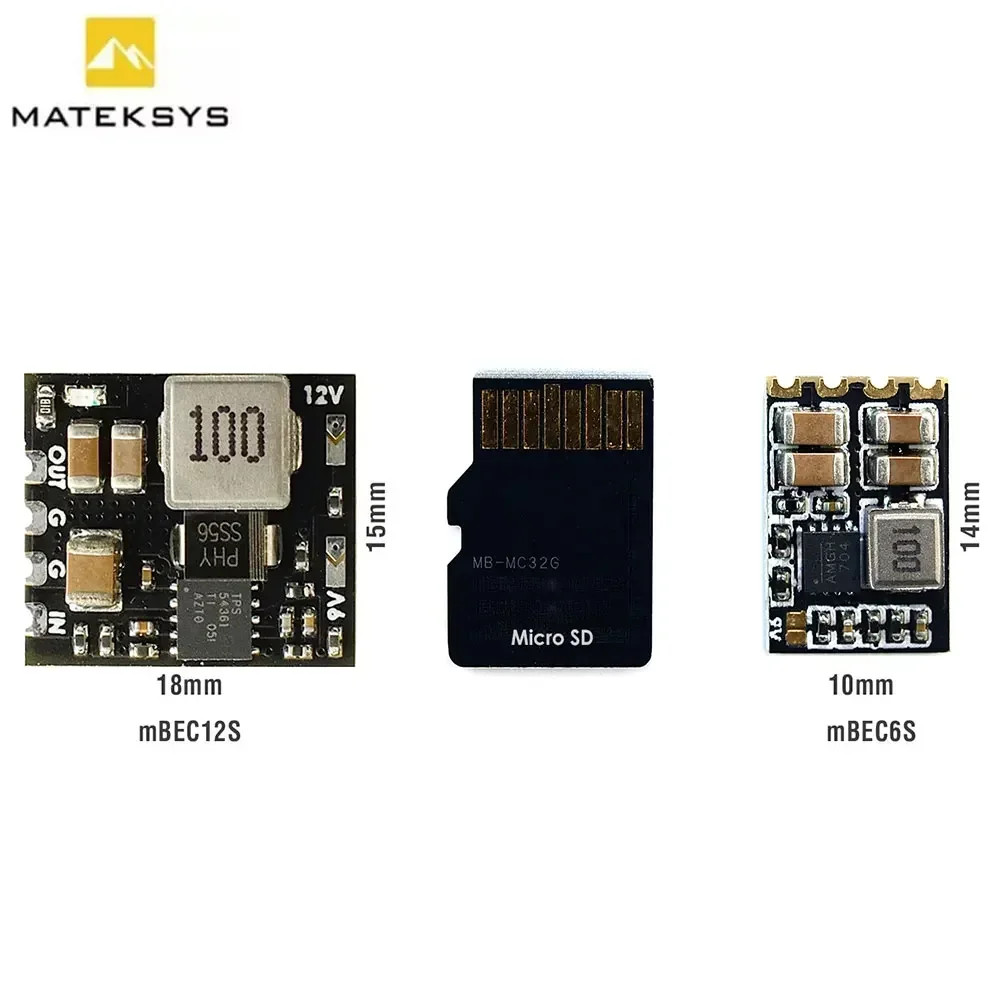

Size & Weight: 18×15(16)x4.5mm, 2g
-
Packing: 1pc/package
