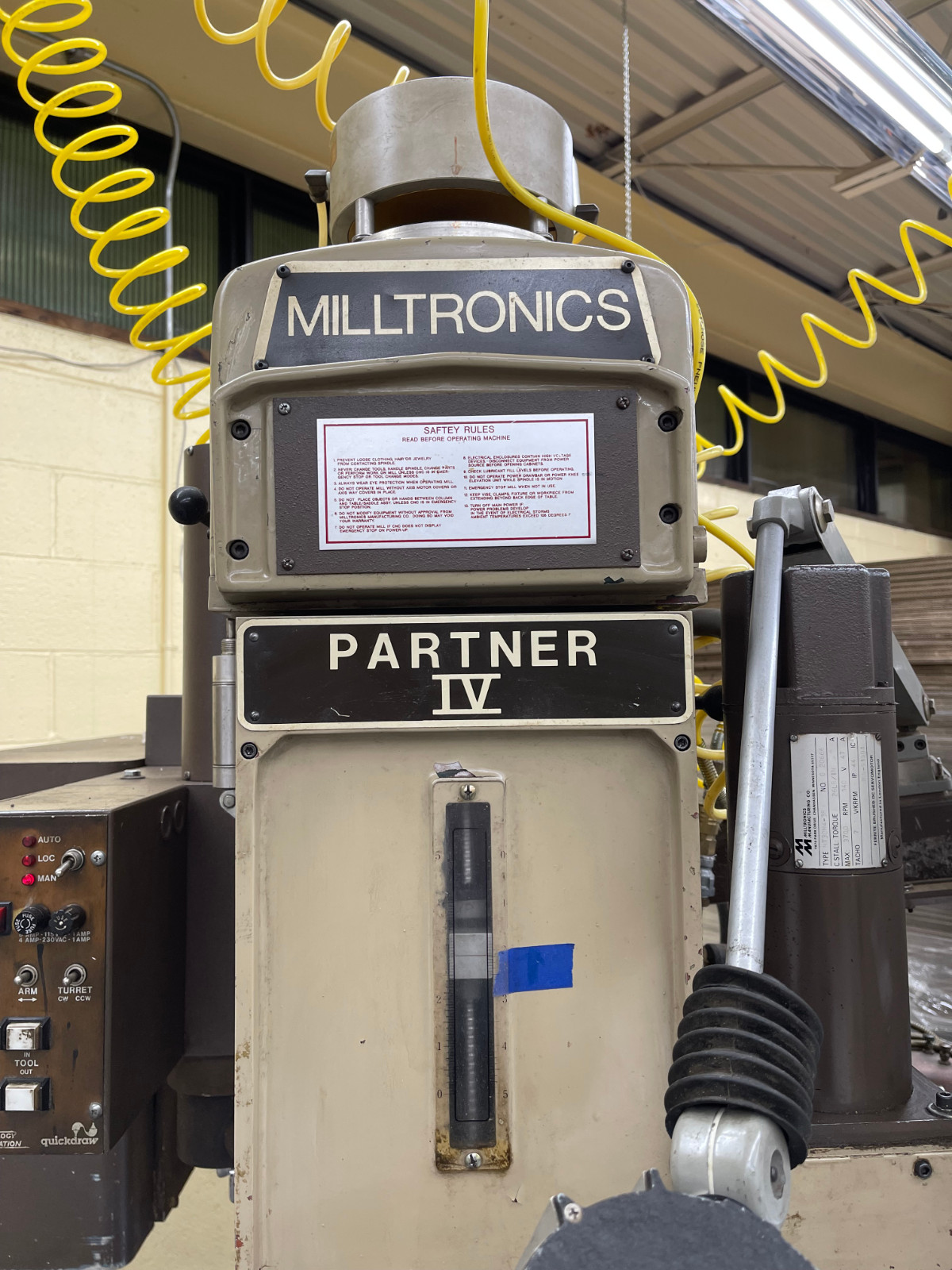

MILLTRONICS "PARTNER IV"

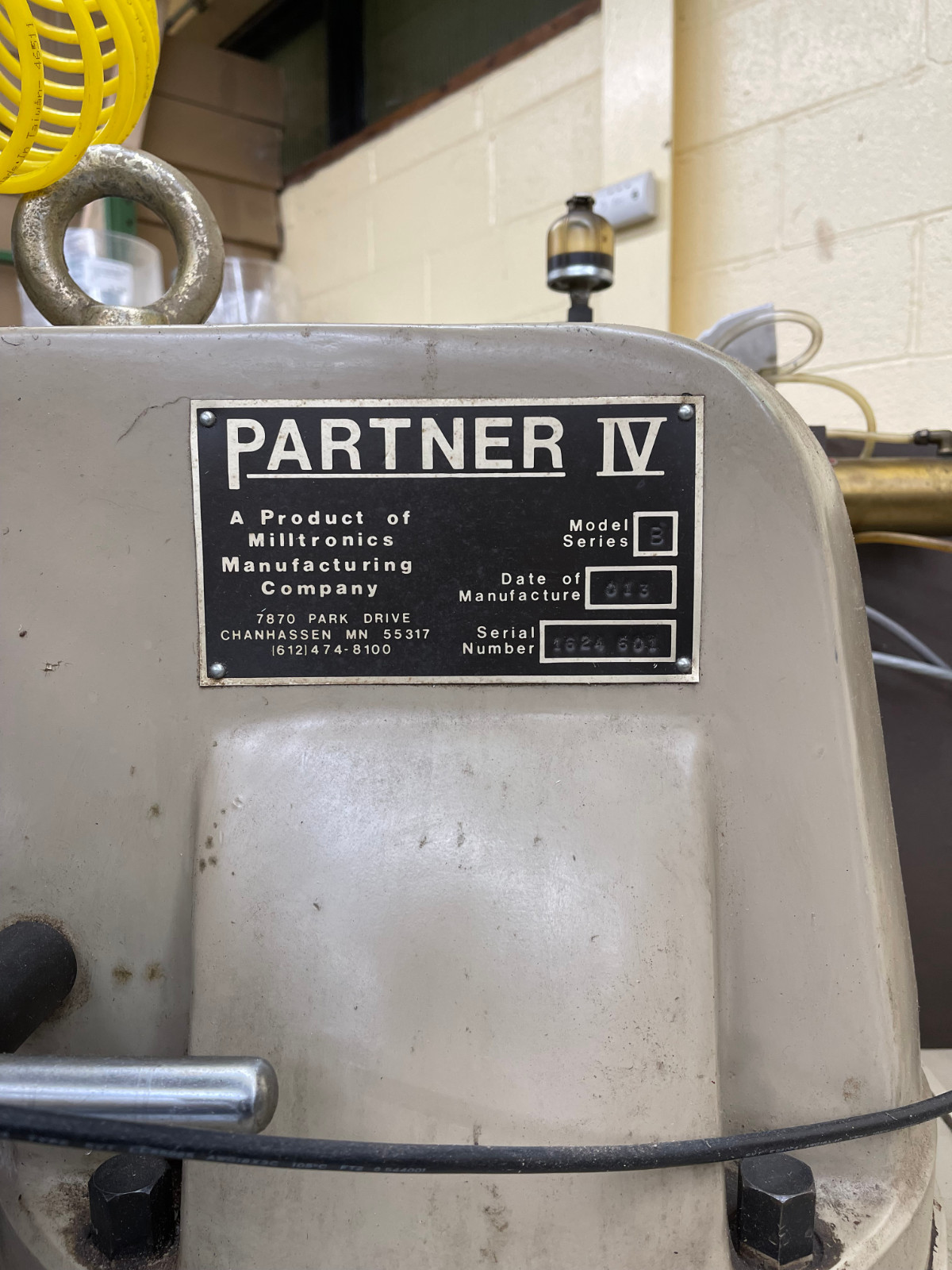

Serial No. 1624-602, Model Partner IV, Series B
CATALOGUE SPECIFICATIONS:
Table Dimensions, W x L 13" x 42"
Table Longitudinal Travel (X-Axis) 32"
Saddle Cross Travel (Y-Axis) 16"
Vertical Head Travel (Z-Axis) 5"
Table Load Capacity 800 LBS
Spindle to Table, Maximum 17"
Spindle to Table, Minimum 0"
Spindle Taper #40 CAT
Spindle Speeds, Range 60 to 4000 RPM
Feed rate Range .1 to 200 IPM
Power Rapid Traverse Rate (X&Y-Axis) 300 IPM
