Features:
Material: Stainless Steel SUS
Cable Length:About 30cm
Working Temperature:-30℃~+125℃
Color:Silver Tone
Body Material:SUS304

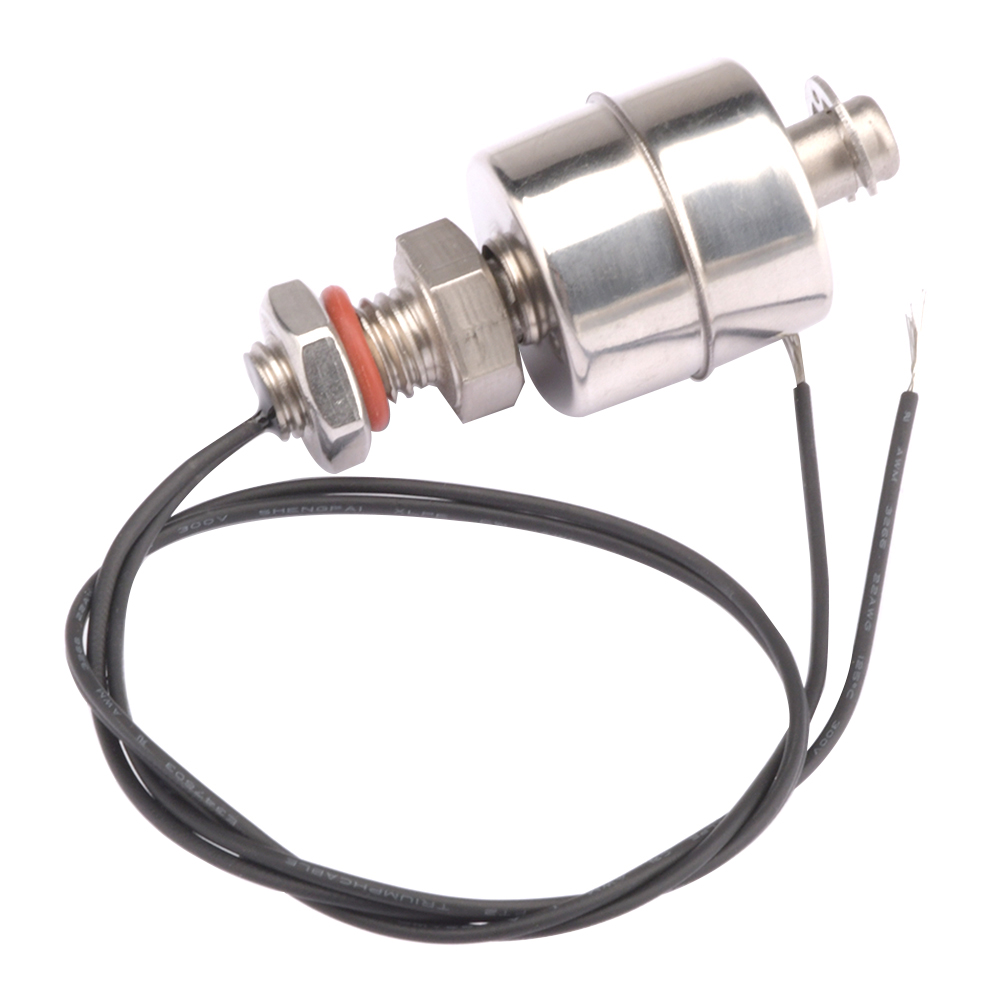

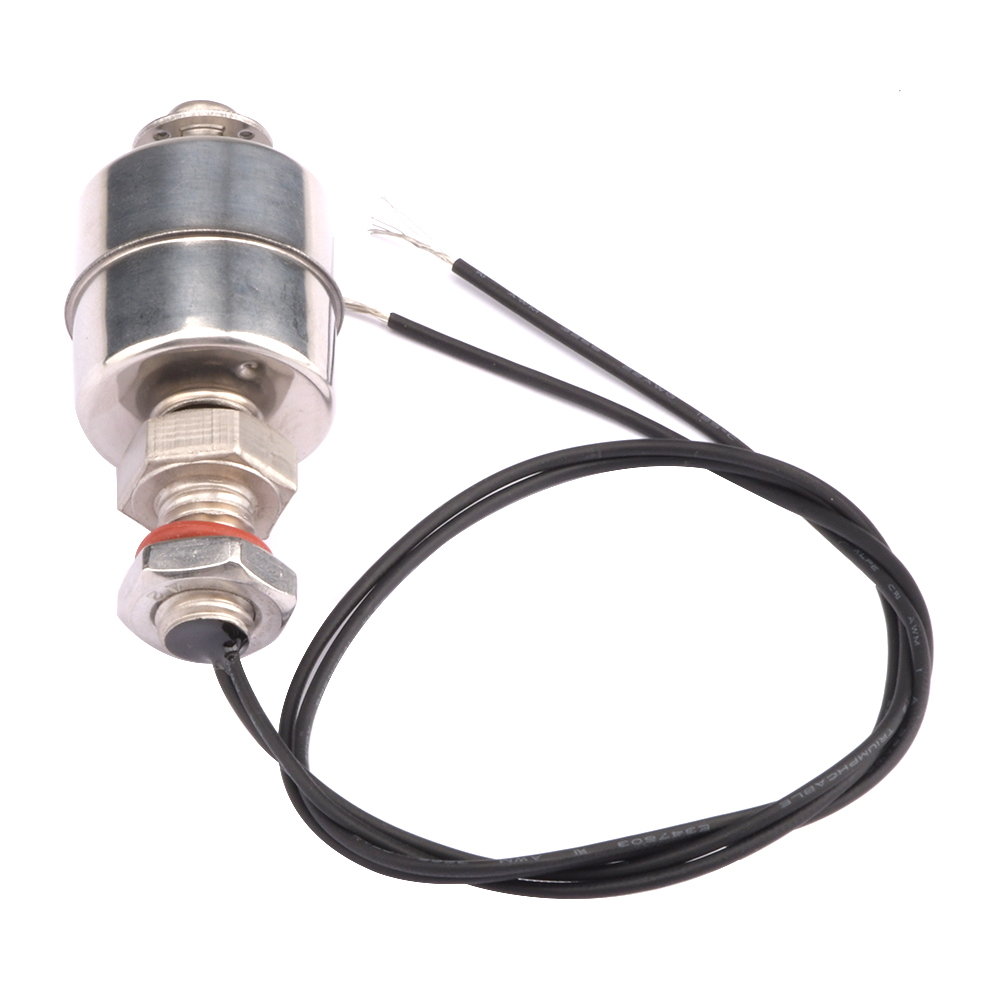

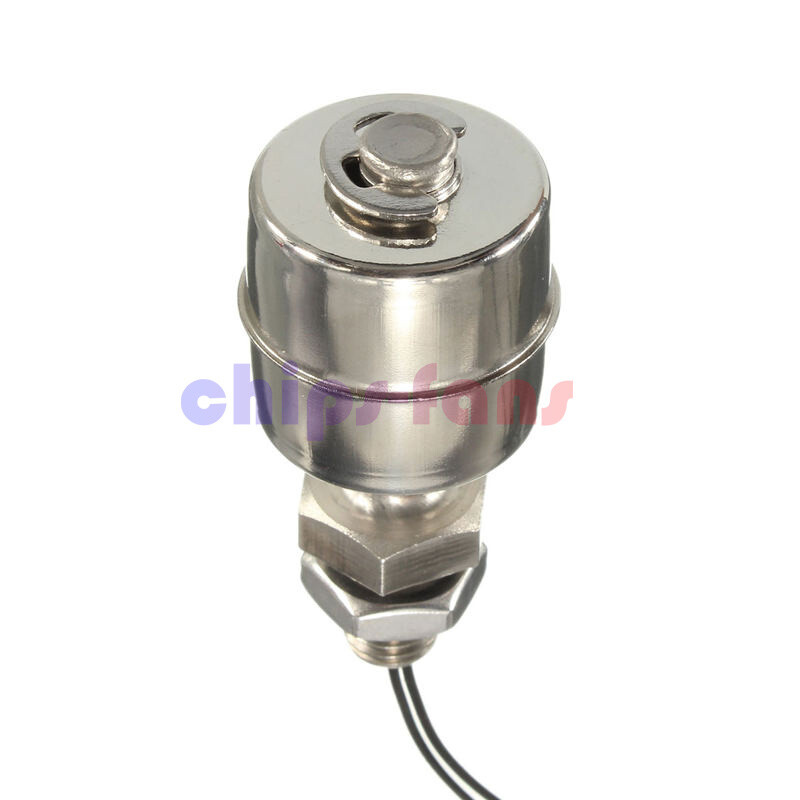

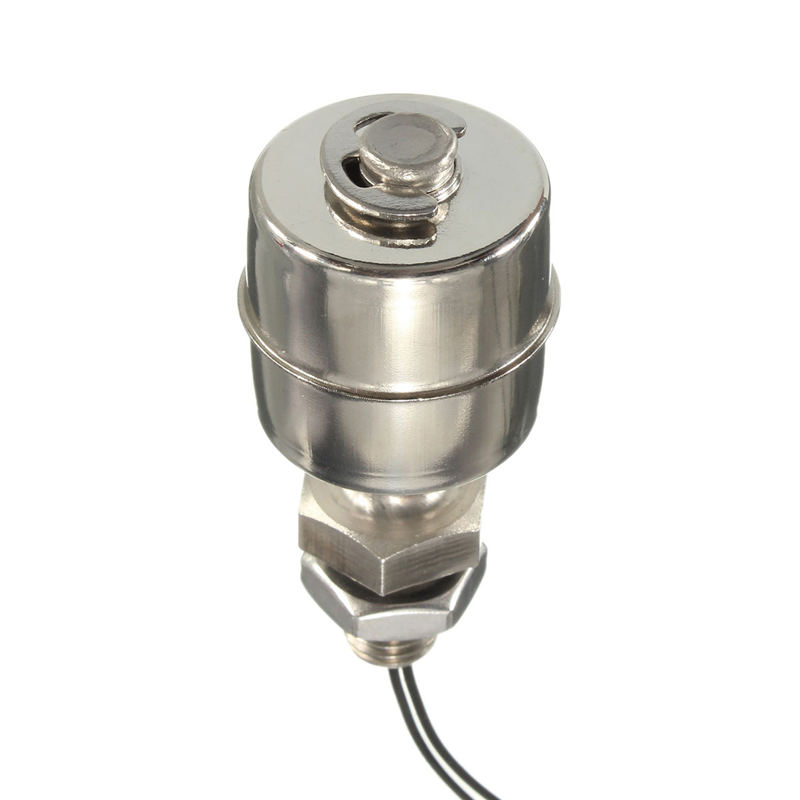

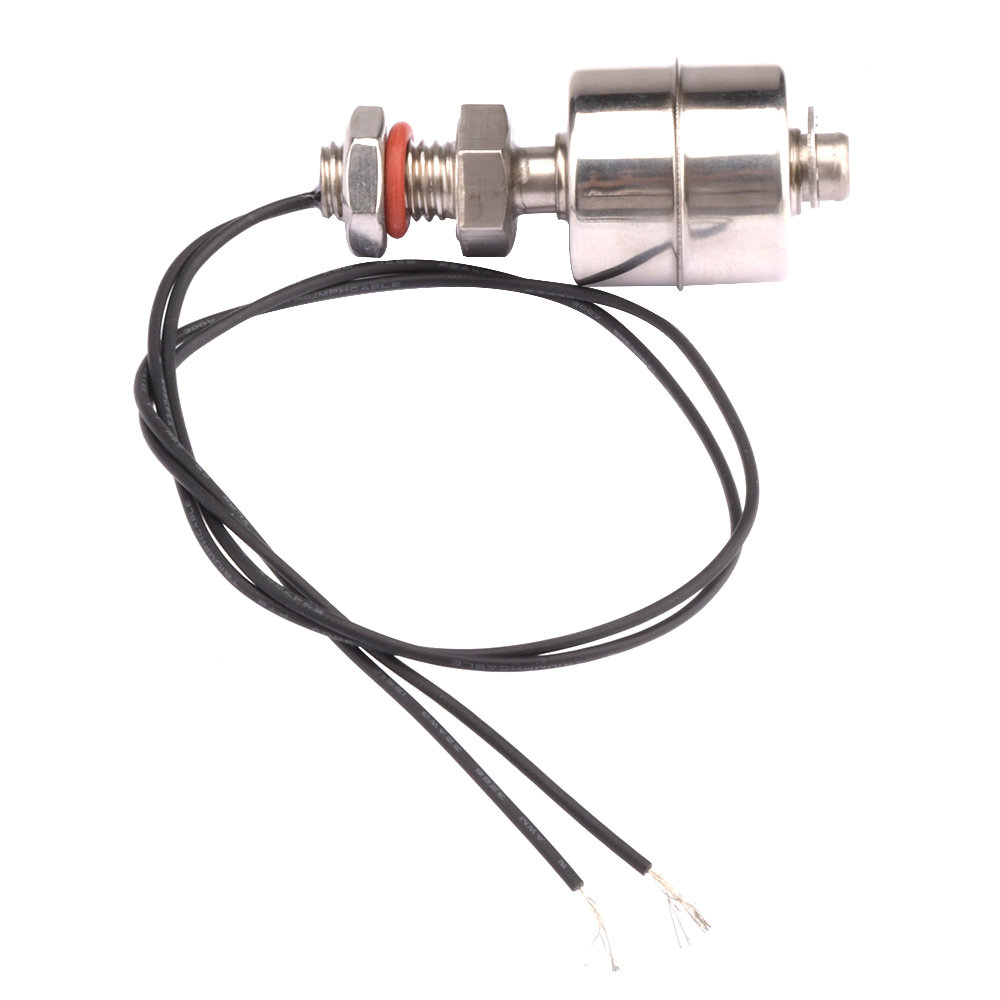

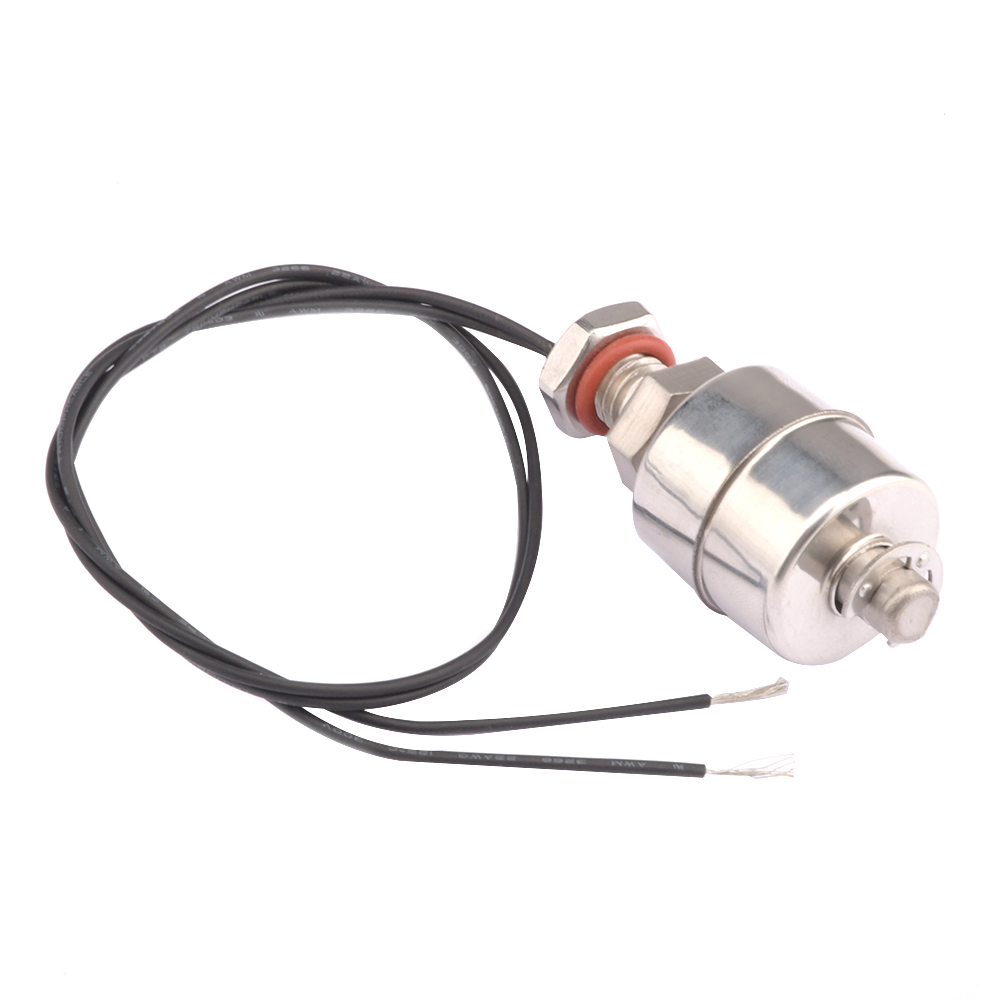

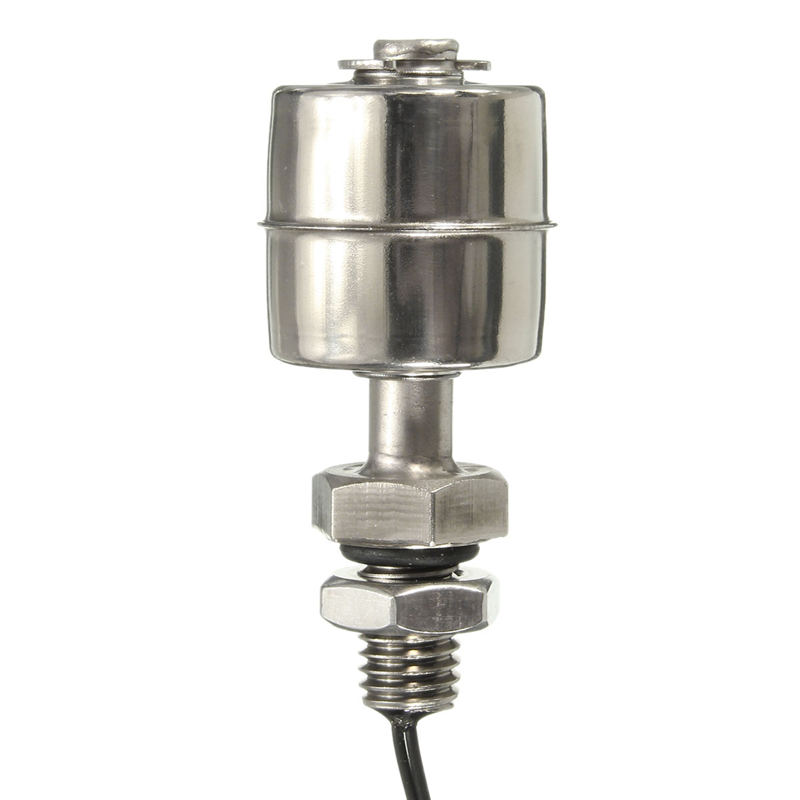

1x Stainless Steel Vertical Water Level Switch
Max Contact Rating: 10W/SPST
Max Switching Current: 0.5A
Max Carry Current: 1A
Max Switching Voltage: 100VDC
Max Breakdown Voltage: 220V DC
Max Contact Resistance: 100mΩ

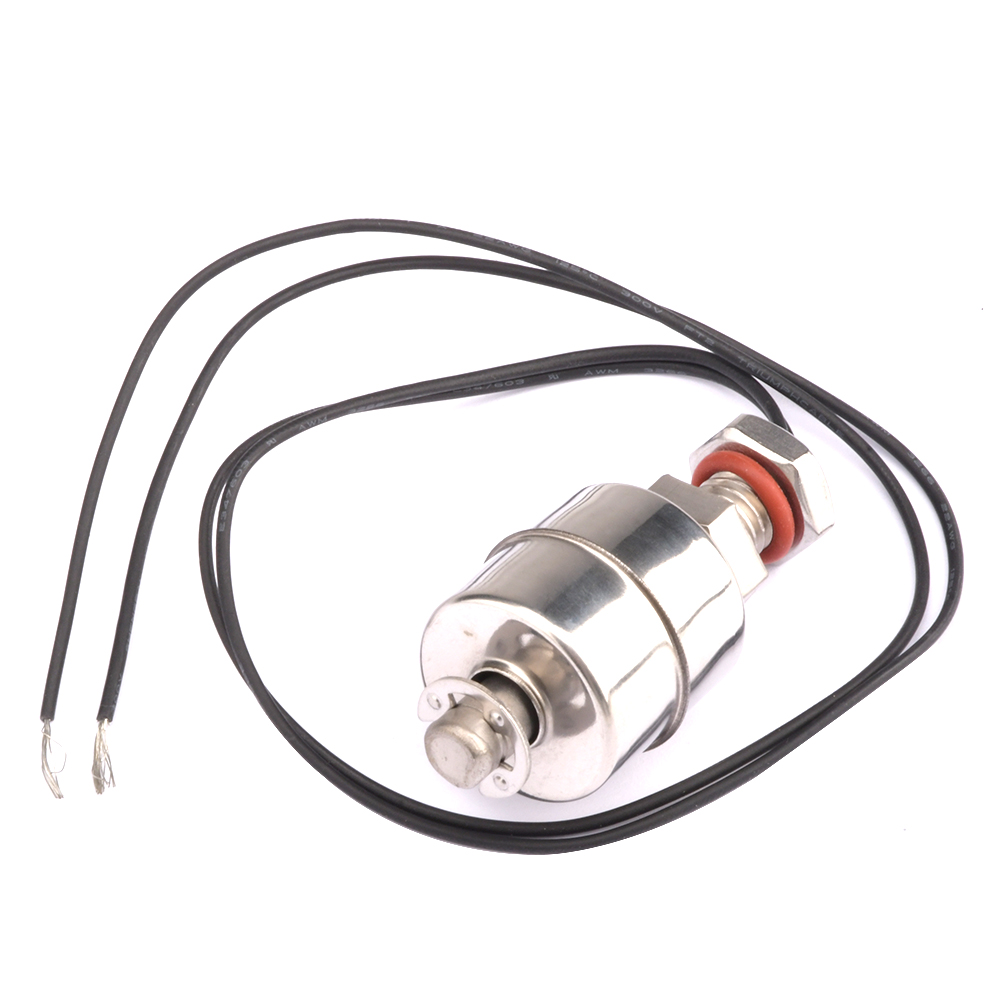

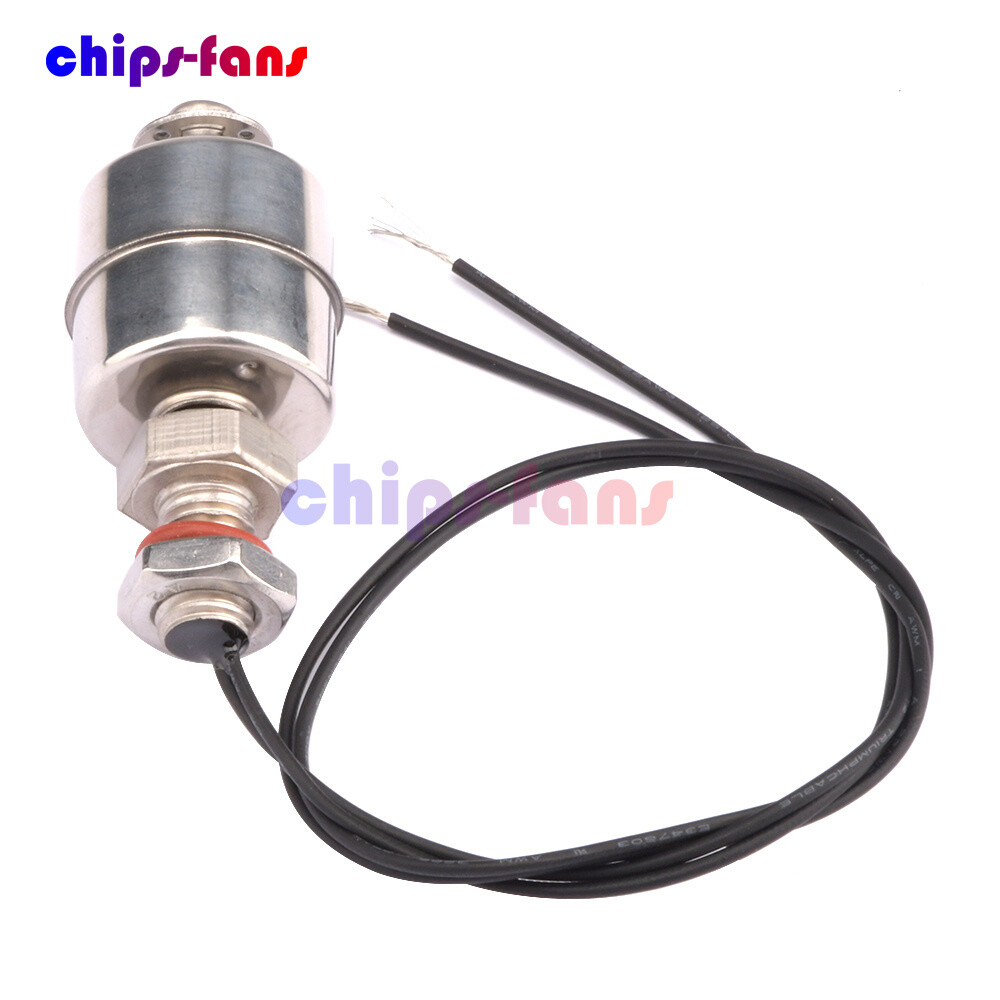

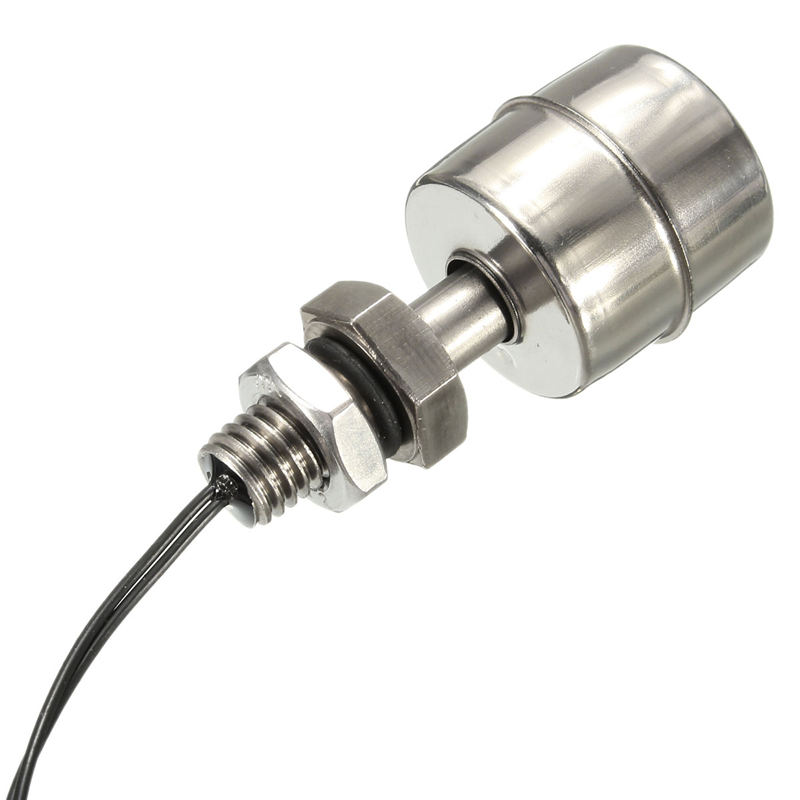

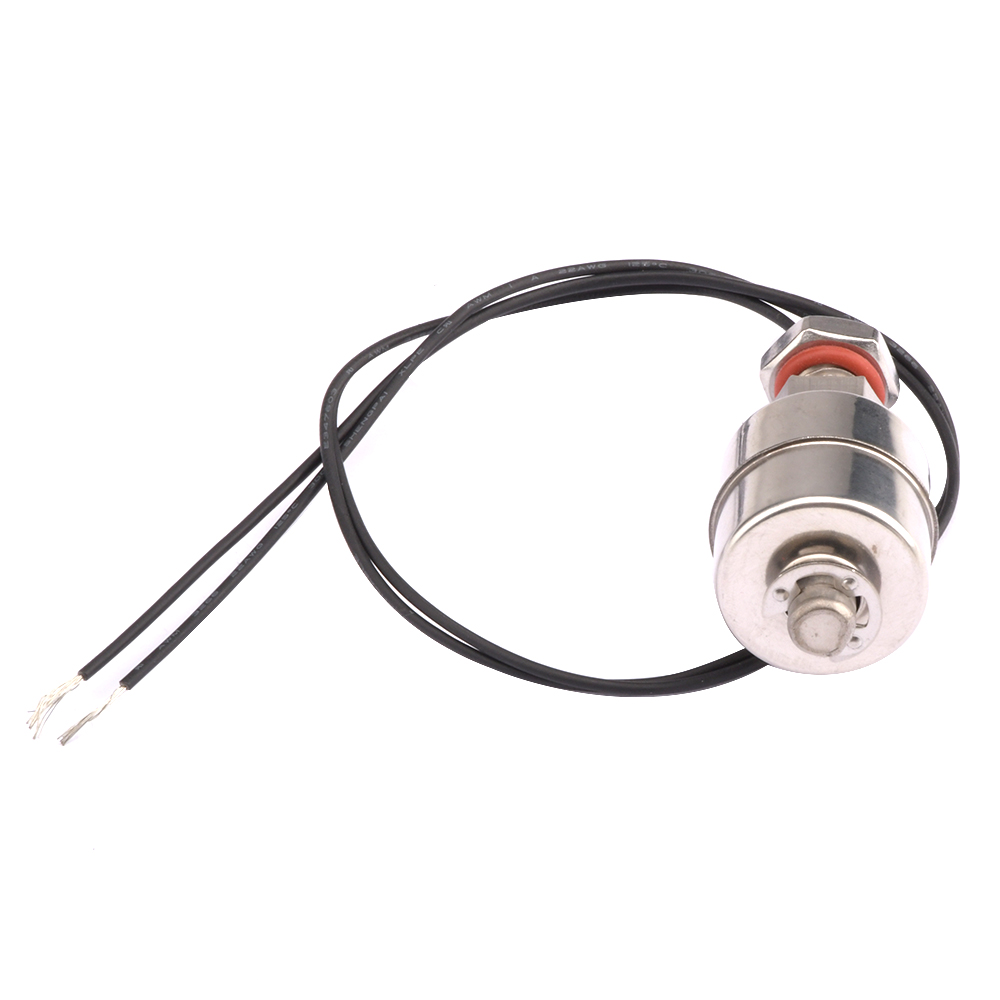

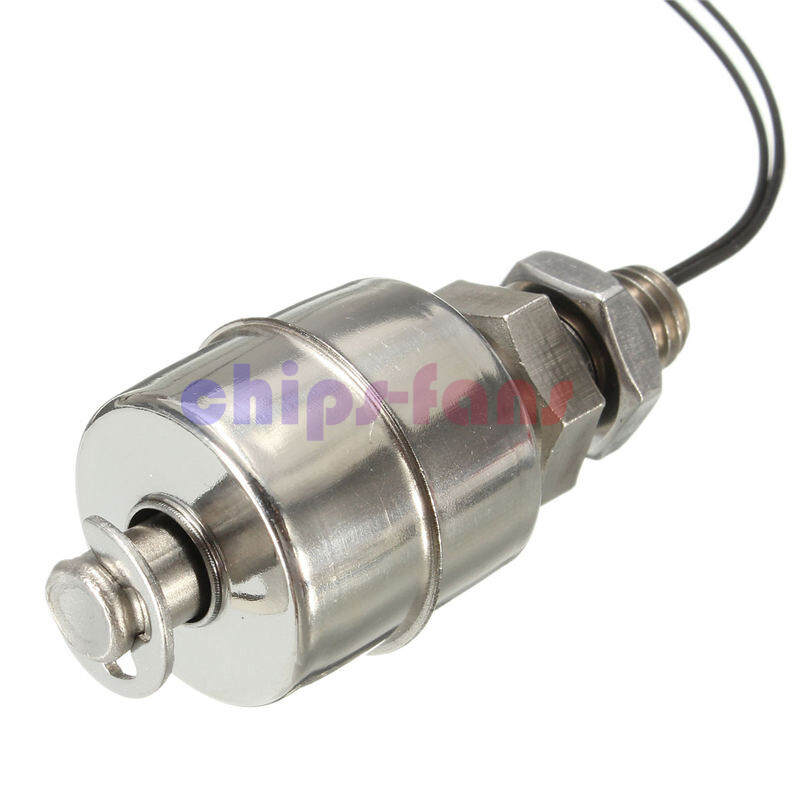

This is a Mini stainless steel float switch,contains no mercury.
This float switch is a device used to sense the level of liquid within a tank,the switch may activate a pump,an indicator,an alarm,or other device.
This Mini float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperature can be used in any environment.
Light weight and simple working principle,high reliability.
The versatility of this vertically monted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water`s rise or fall.
The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
Package Include:

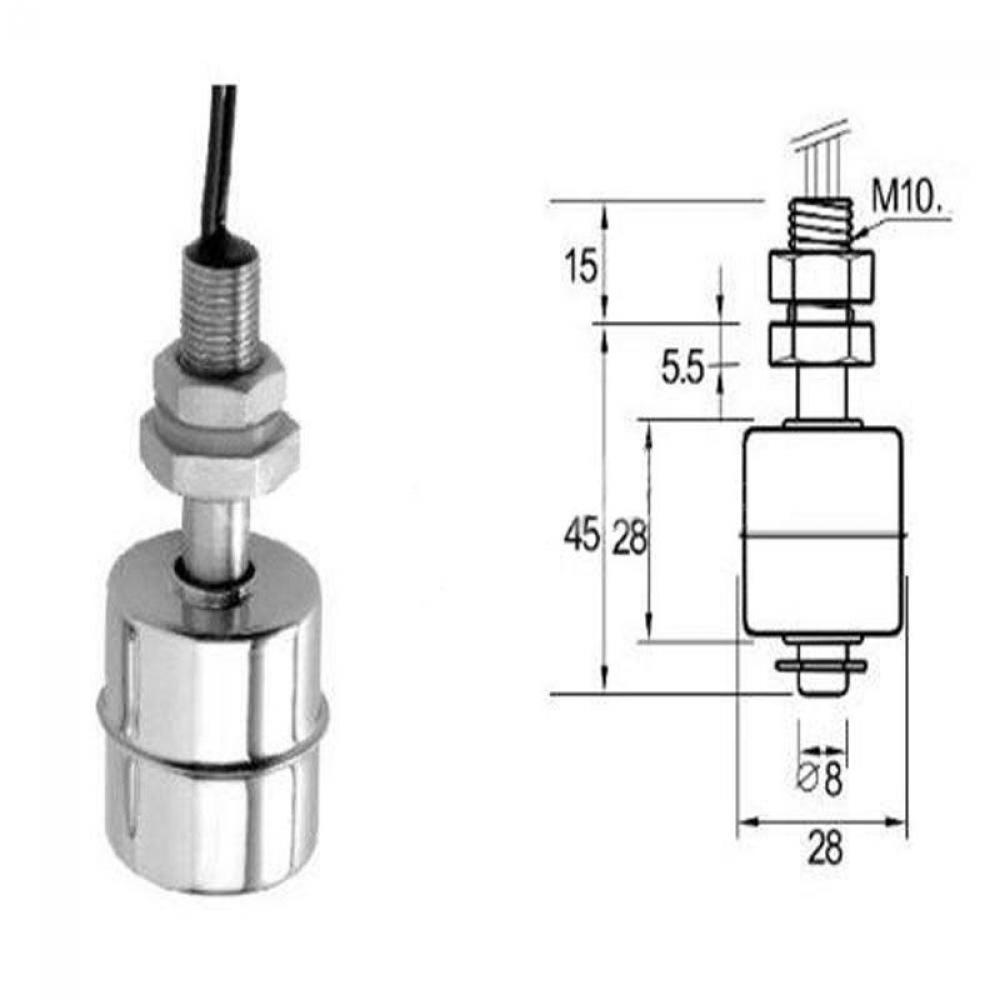

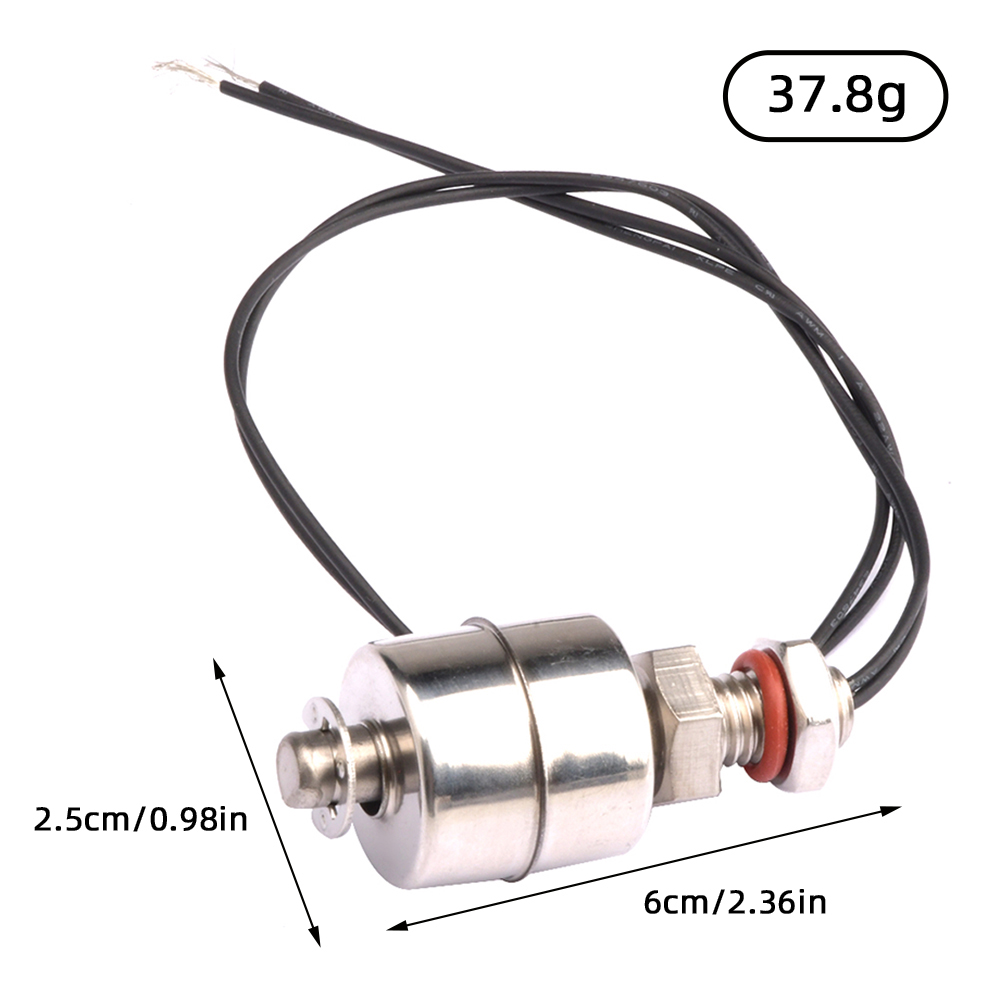

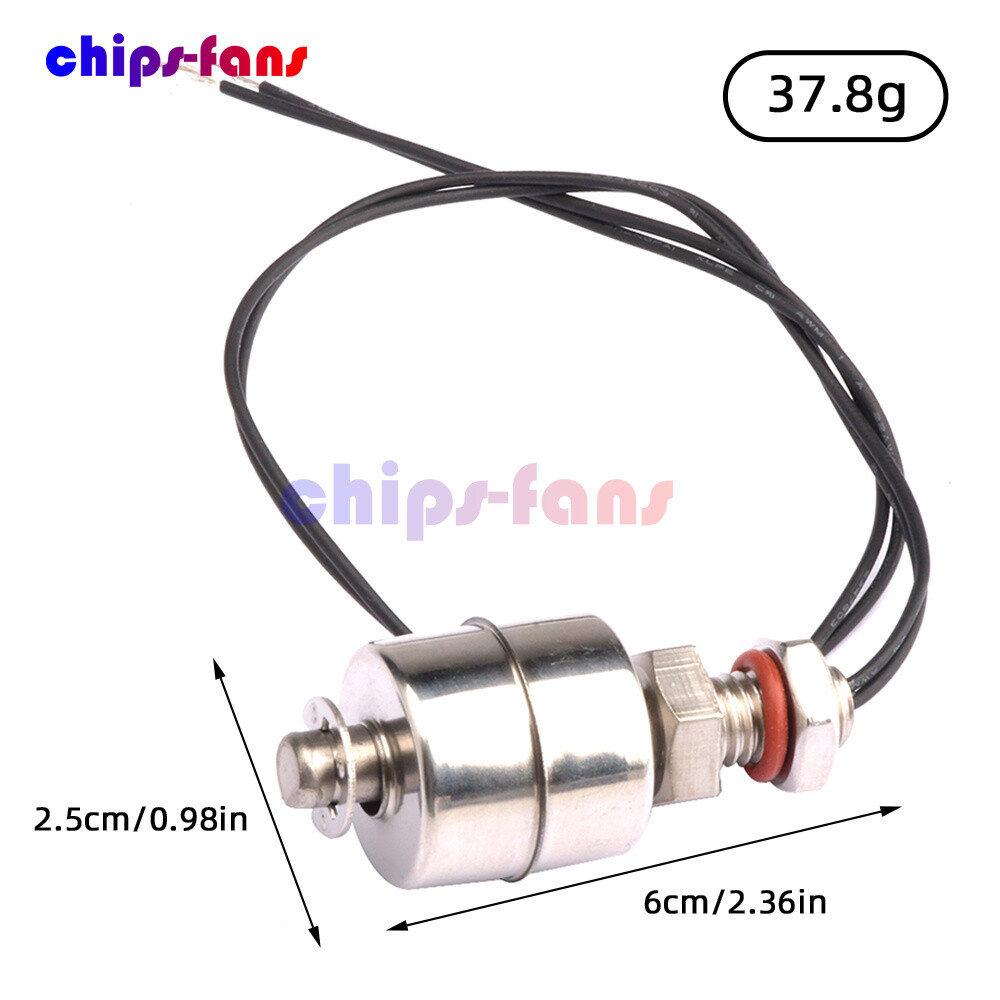

1 x MINI Indicator Vertical Water Level Sensor Stainless Steel 45mm Float Switch
