• Electronic

  No
  Is Batteries Included

  No
• Item Weight

  0.24
  Item Height

  3cm
• Item Width

  18.5cm
  Item Length

  16.5cm
• External Testing Certification

  ce
  Model Name

  Mpps V21 infinite Reset Version
• Software Version

  Newest
  Hardware Version

  MPPS V21 1.08.21
• Brand Name

  SKDOBD
  Origin

  Mainland China
• Certification

  CE
  Item Type

  Other

High Quality Red Version PCB Display:
advantage:
1.Compared to the old MPPS V21, the new MPPS V21 has no risk of locking up after 10 uses. The new MPPS V21 has a reset button for lifetime use
2.This module adds support for advanced functions on for Marelli ECU's. MPPS covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, for Delphi, for Siemens, for Marelli, for Delco, for Sagem, for Trionic and many other.

Note:
2. Please close anti-virus program.
3.Please install driver well then open the software, or software can't be opened. Please make sure you use the driver from our CD, NOT use driver for other MPPS version.

Function:
1. Recalculation of checksum

2. Read / write flash

3. Read and write the Data of Engine ECU

MPPS V21 Features:

1.Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
2.Selectable full / partial reading and writing when the ECU allows this function.

3.Selectable reading / writing speed.

4.Writing “changes only” function for faster programming (when supported by the ECU).

5.Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.

6.Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.

7.Boot mode support for ECU’s with C167 and ST10 processors.

8.EEprom read/write functions for some ECU’s are included.

Tricore Boot + OBD Unlock Module:

1.TPROT / DS check feature, for testing if TPROT is active without opening ECU

2.Auto detects ECU and processor type. No need to select from list, everything is automatic!

3.Read/Write of all memories Eeprom, Irom, Xrom (where possible)

4.Patch function for OBD Flashing of TPROT ECU’s in boot mode (supports only VAG at the moment)

5.Support for unlocking of VAG Simos PCR and Simos 8 with external eeprom.

6.Checksum Correction supported for Bosch MEDC17 irom and eeprom.

7.Checksum Correction supported for Simos PCR, Simos 8 and SID208, SID209, SID305, SID807 irom

8.NEW!Support for Bosch Service Mode to read password on ECUs using TP12+

9.NEW!Special file utility for creating OBD unlock files from VAS FRF/SGO containers (flash containers are not provided!). This function will allow you to work completely from OBD on locked ECUs!

Support Multi-languages:
Afrikaans, Albanees, Bahasa Melayu, Czech, Cymraeg, Dansk, Deutsch, Esti, English, Espanol, Filipino, Finnish, Francais, Galego, German, Hrvatski, Indonesia, Italiano, Kiswahili, Latviesu, Lietuviskai, Magyar, Malti, Nederlands, Norsk, Polska, Portuguese, Romanian, Slovencina, Slovenski, Srpski, Suomea, Svensk, Turkish

Support System:
win7/win10

Packing list:

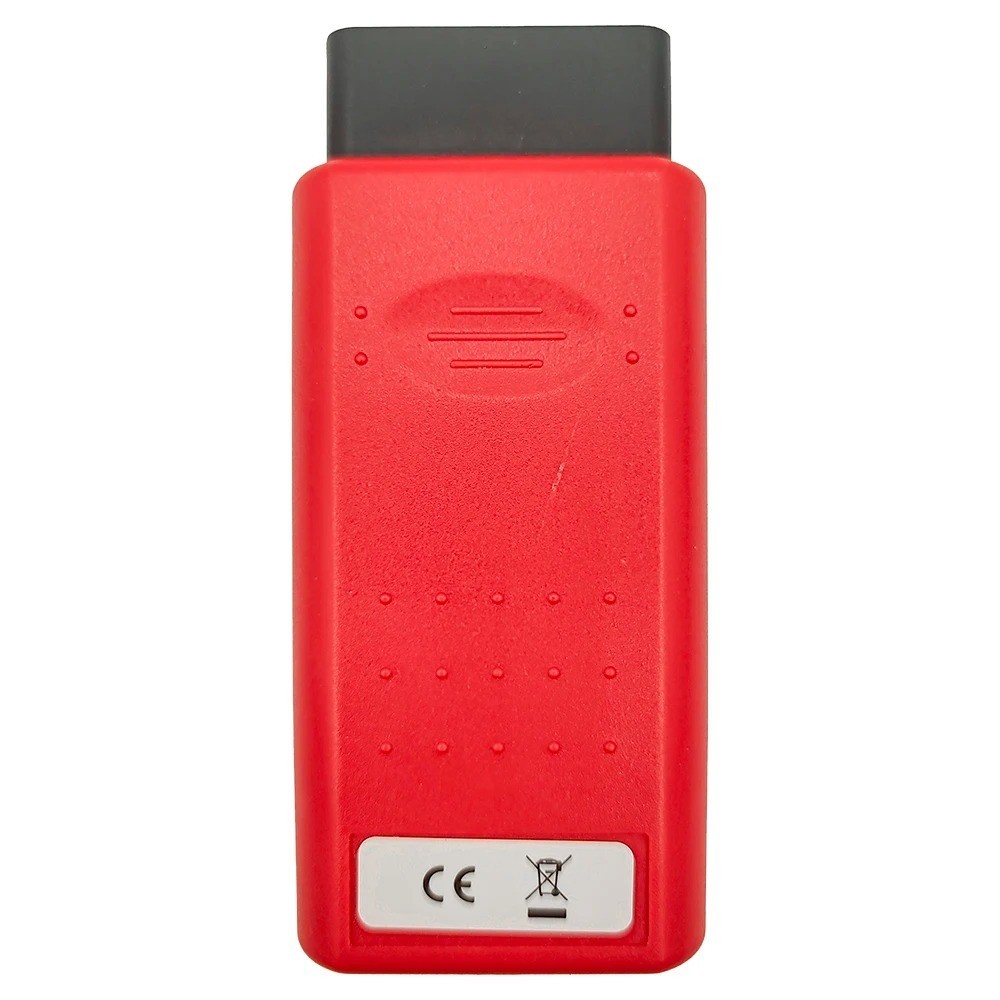

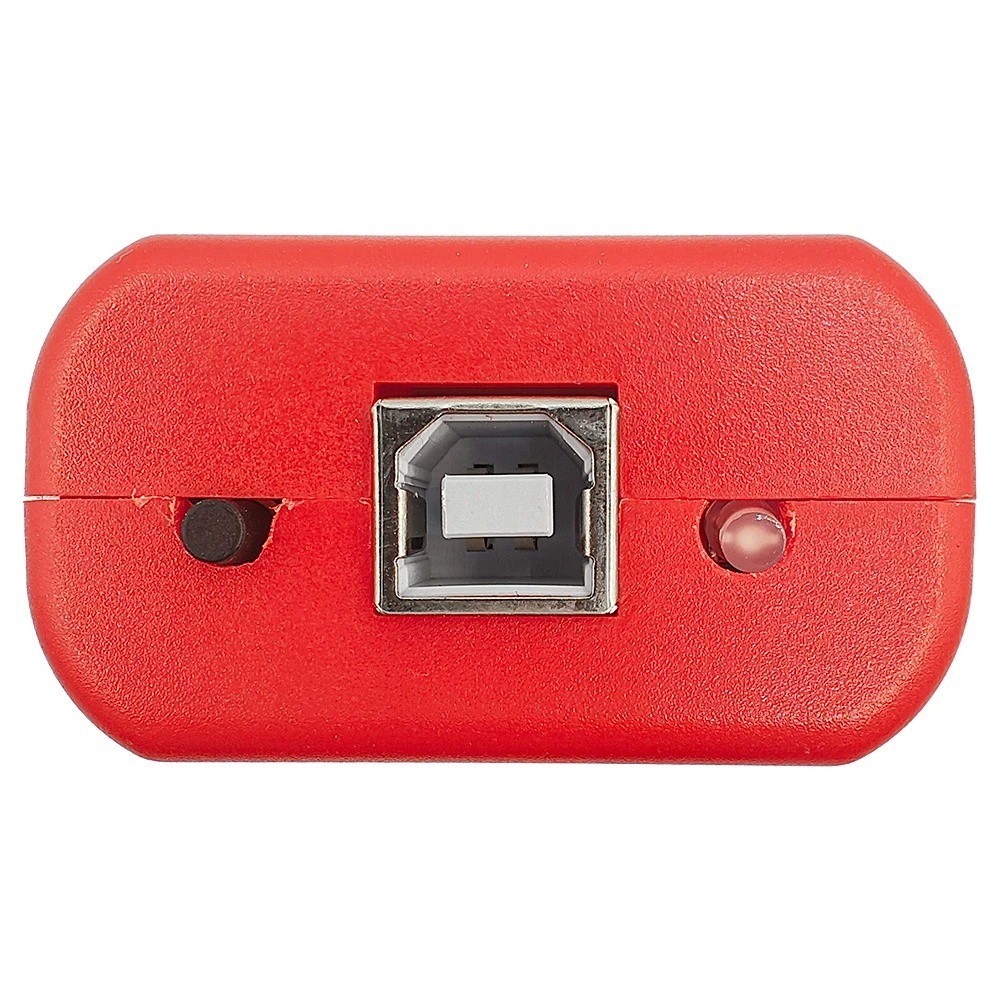

1* MPPS main unit
1* USB cable
