DESCRIPTION

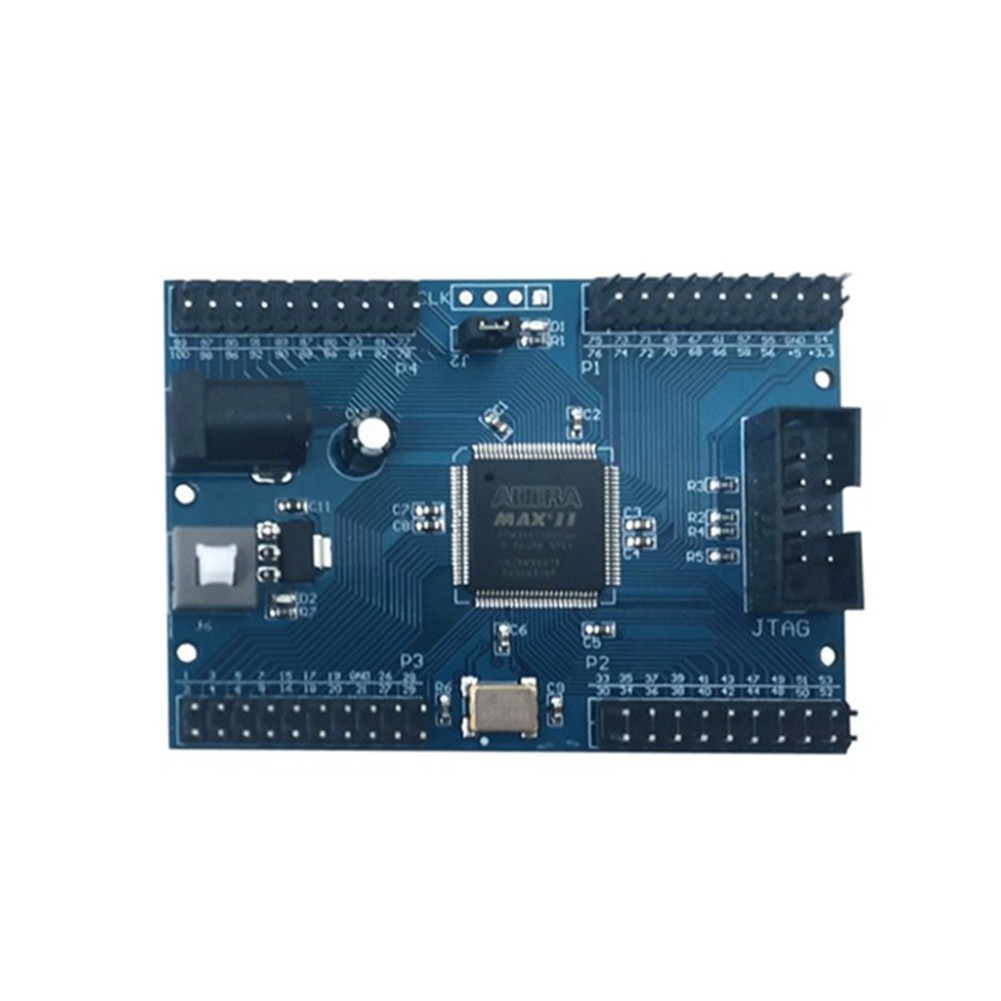

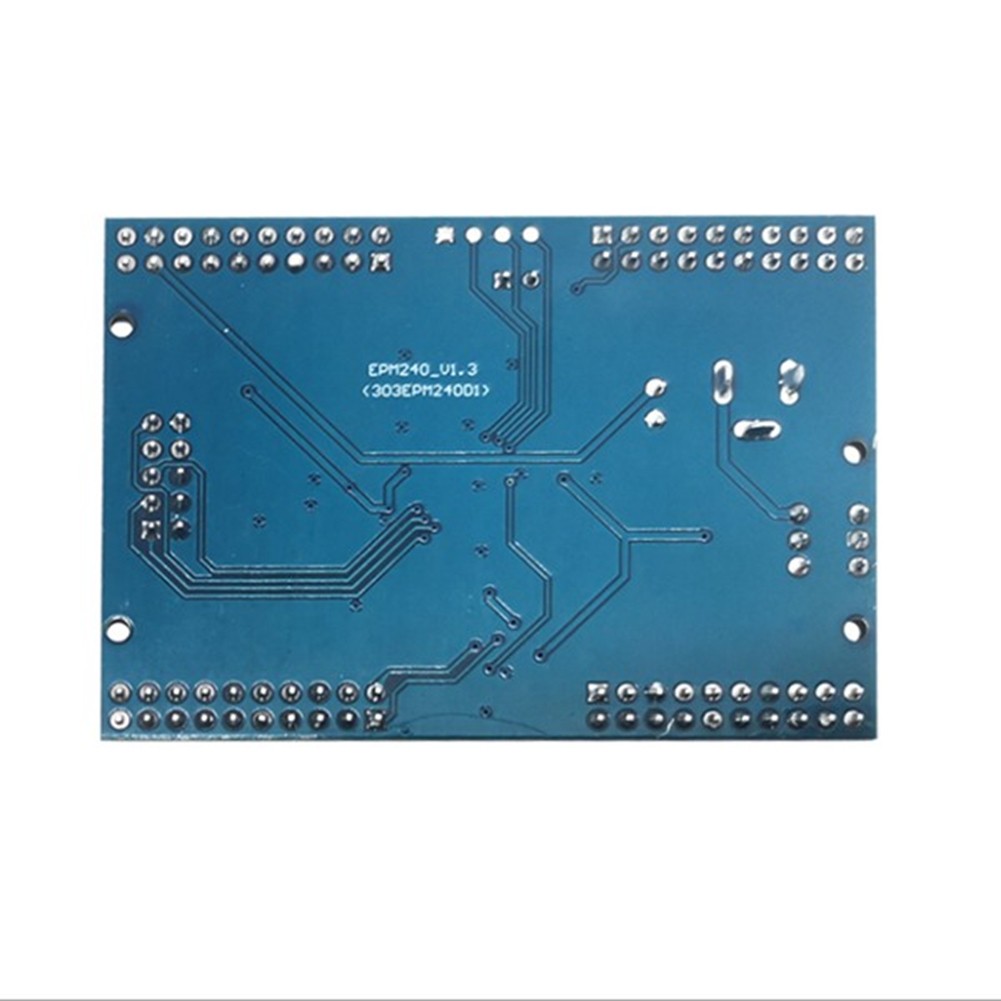

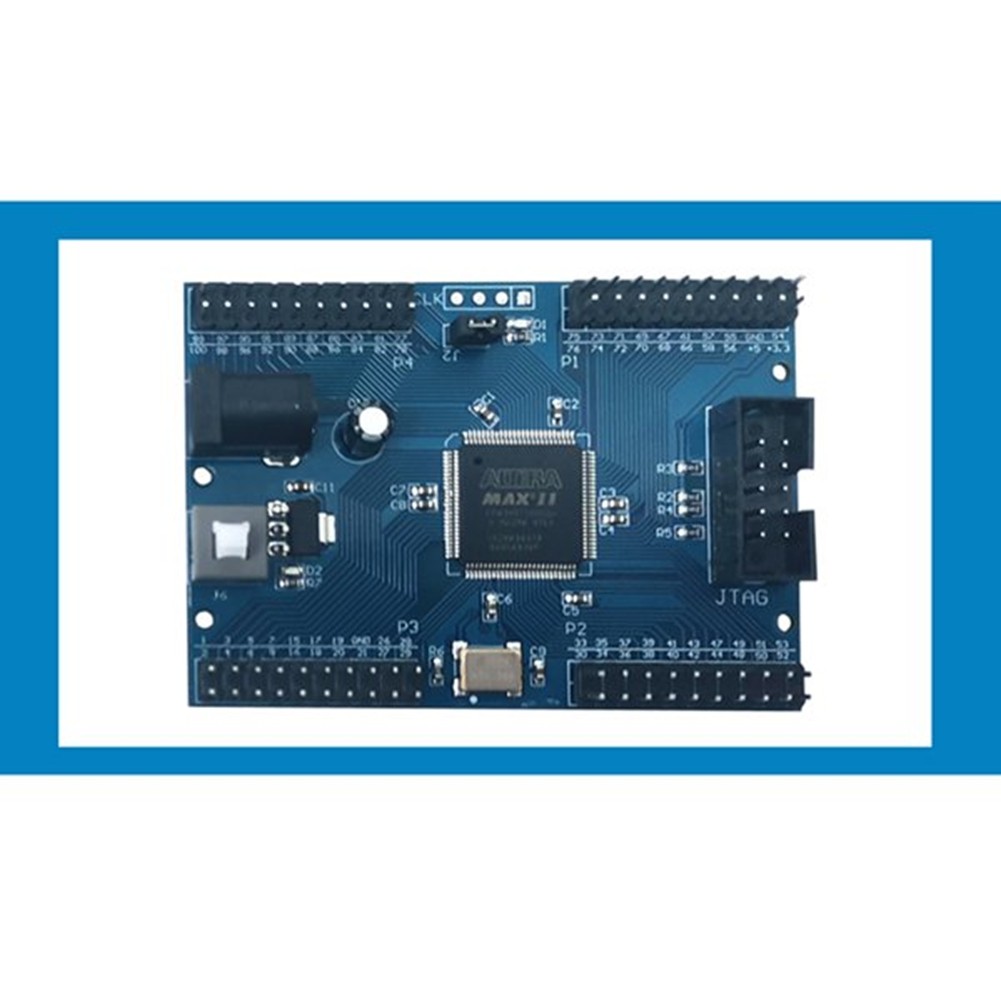

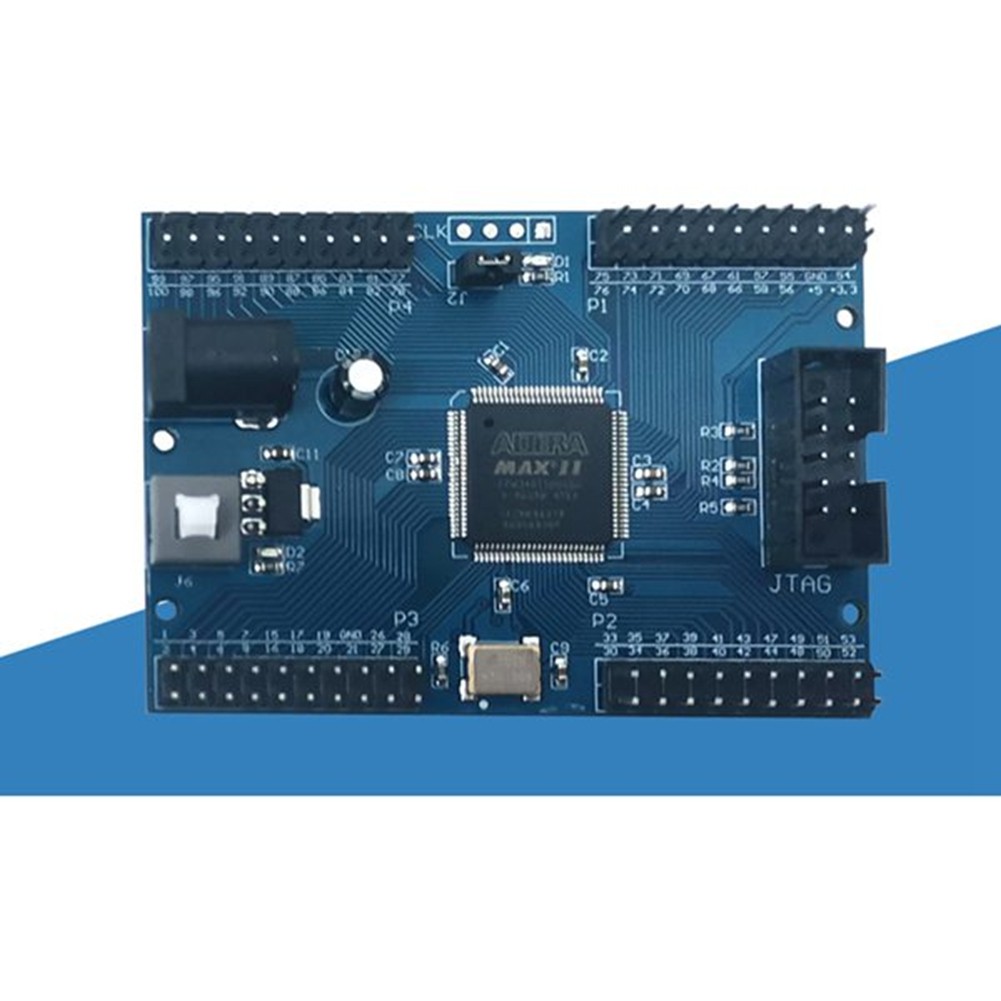

Max II EPM240 CPLD Development Board Learning Board USB USB Cable7176
Feature: Fully compatible with original USB-.
Supported target voltage : 1.0V-5.5V.
Support all device.
CPLD:MAX 3000A.MAX 7000A.MAX 7000B.MAX 7000S.MAX 9000.MAX 9000A and MAX II.
FPGA:Stratix.Stratix II.Stratix GX.Cyclone.Cyclone II.Cyclone III.ACEX 1K. II. 20K. 20KE. 20KC.FLEX 10K.FLEX 10KE.FLEX 10KA.FLEX 6000.FLEX 8000.EPCS1.EPCS4.EPCS16.EPCS64EPC1.EPC4.EPC8.EPC16.
Support:JTAG, AS, PS Mode.
Support NiosII embeded core based debug.
Supports Quartus II SignalTap? II Logic Analyzer (for logic analysis).
High performance, 6 times faster than ByteBlasterII.
USB interface with status and Power LED.
Material: PC+Metal
colour: As Shown
Package Contents:
1 x Max II EPM240 CPLD Development Board Kit
