Mini MP1584EN DC-DC Buck Converter Adjustable Power Module 24V to 12V 9V 5V 3...
US
$26
Mini MP1584EN DC-DC Buck Converter Adjustable Power Module 24V to 12V 9V 5V 3V6 Pack

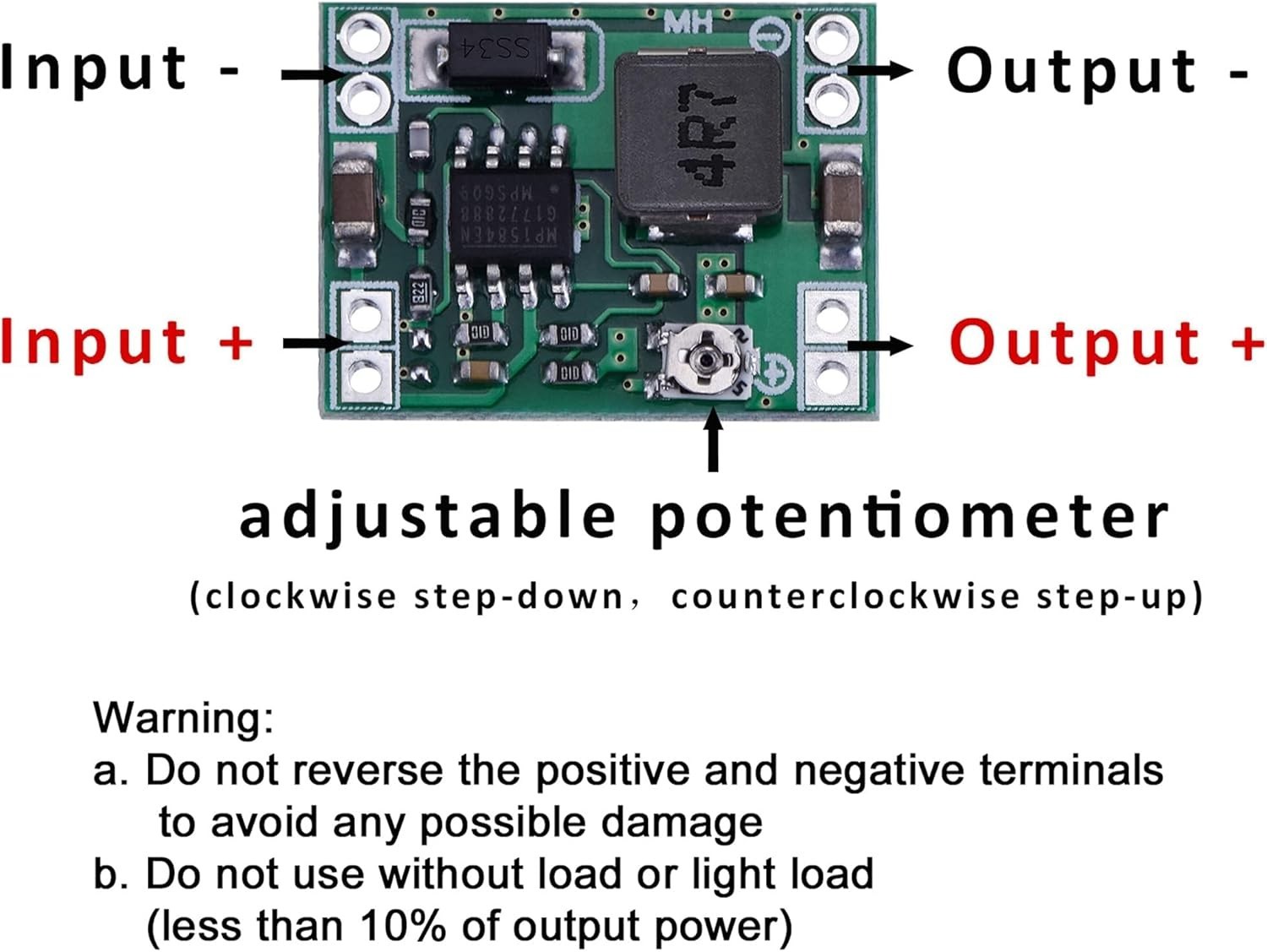

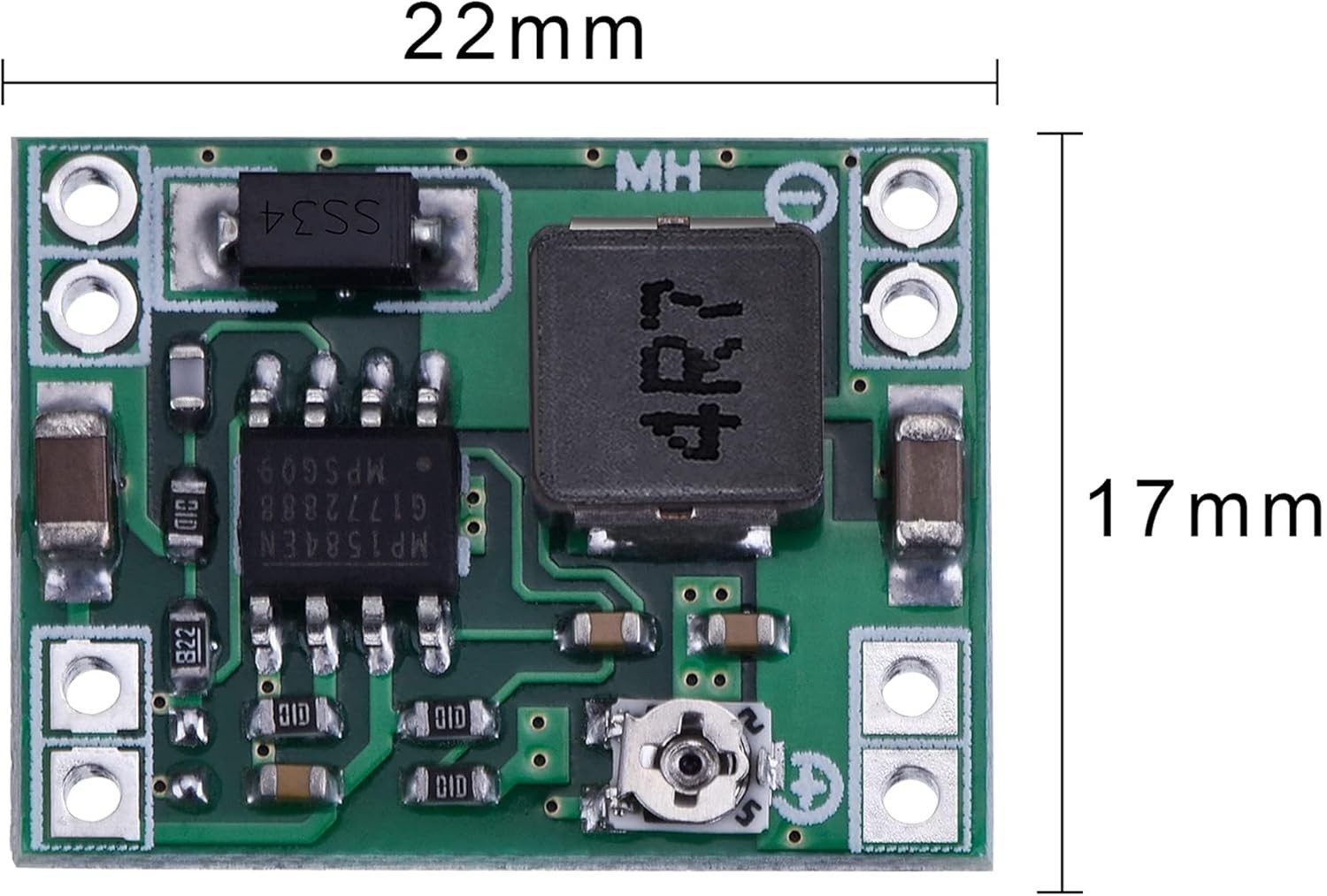

Mini MP1584EN DC to DC buck converter module with a wide operating range Input voltage: V to 28 V; Output voltage: V to 20 V Output current: 3 A (maximum); Conversion efficiency: 92% (maximum) Output ripple: less than 30 mV; Switching frequency: MHz (highest), typically 1 MHz Operating temperature: -45 ℃ to 85 ℃; Size: 22 mm by 17 mm by 4 mm; Warning: do not reverse the positive and negative terminals to avoid any possible damage; Do not use light load (less than 10% of output power) or without load
