Specifications:
Product Name: Reverse polarity switch
Switch Type: DPDT
Operation Type: Self reset
Position: ON-Off-ON 3 position
Voltage and current: AC 125V / 20A; AC 250V / 16A; DC 12V / 10A

Features:
1. This switch has a red LED that lights up when you press and hold the switch. When you let go, the red LED doesn't light up.
2. The polarity reversal switch is suitable for all kinds of electrical equipment, and its main function is to upgrade your equipment to reverse direction.
3. Application: Very suitable for linear actuator motor. For example, it can be applied to power wheels quad, motorhome and other scenarios.

Package Included:
2 x rocker switch with wires

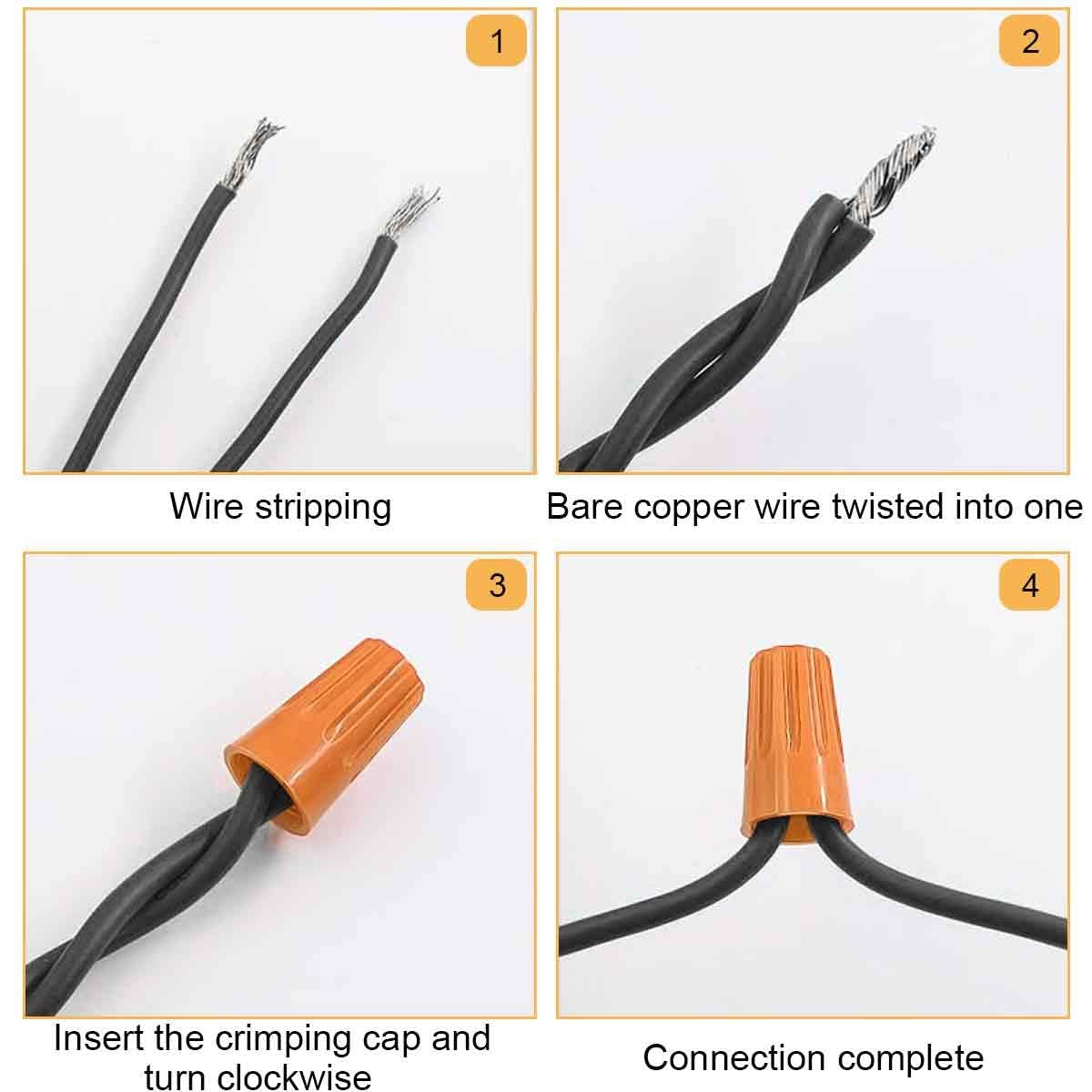

8 x wire connectors

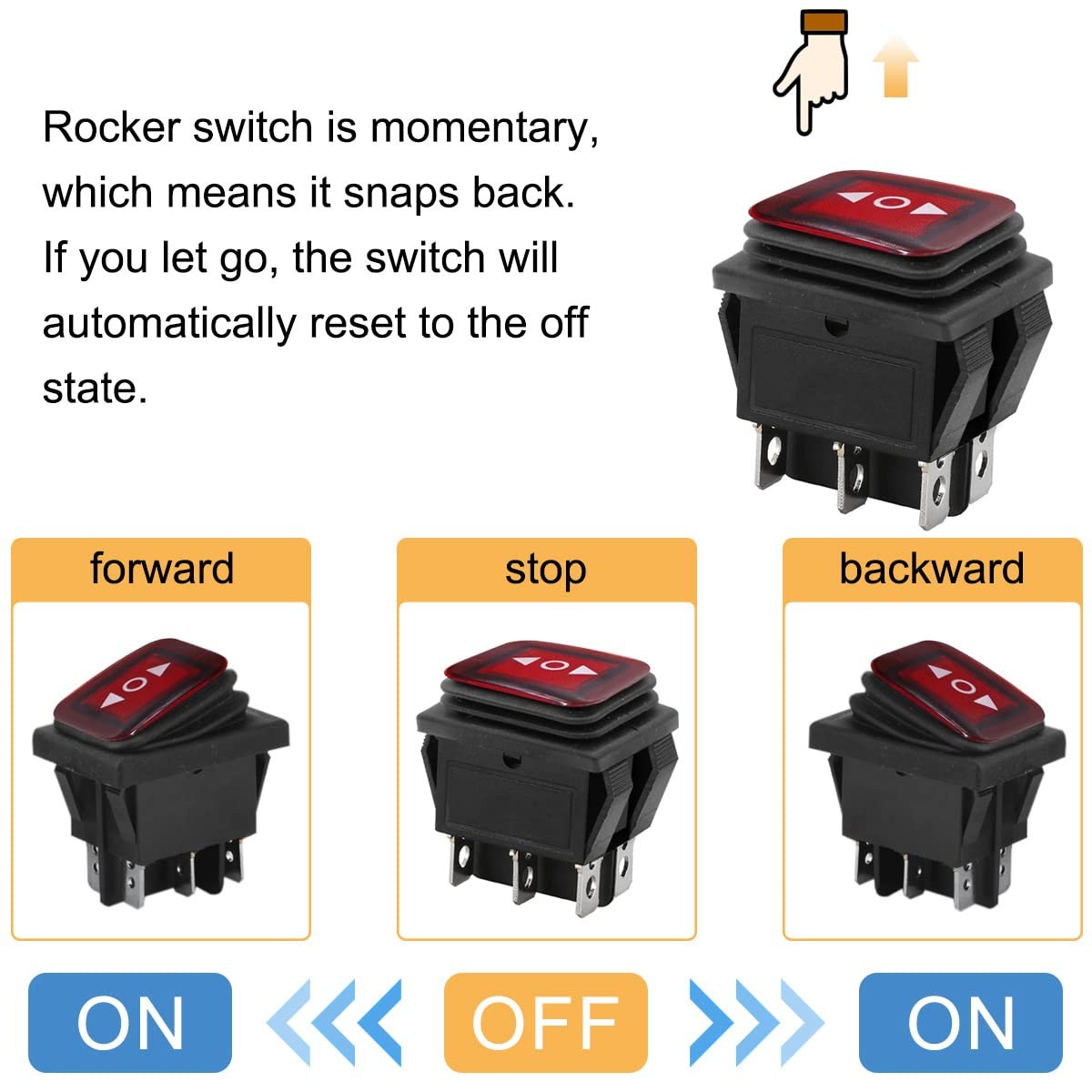

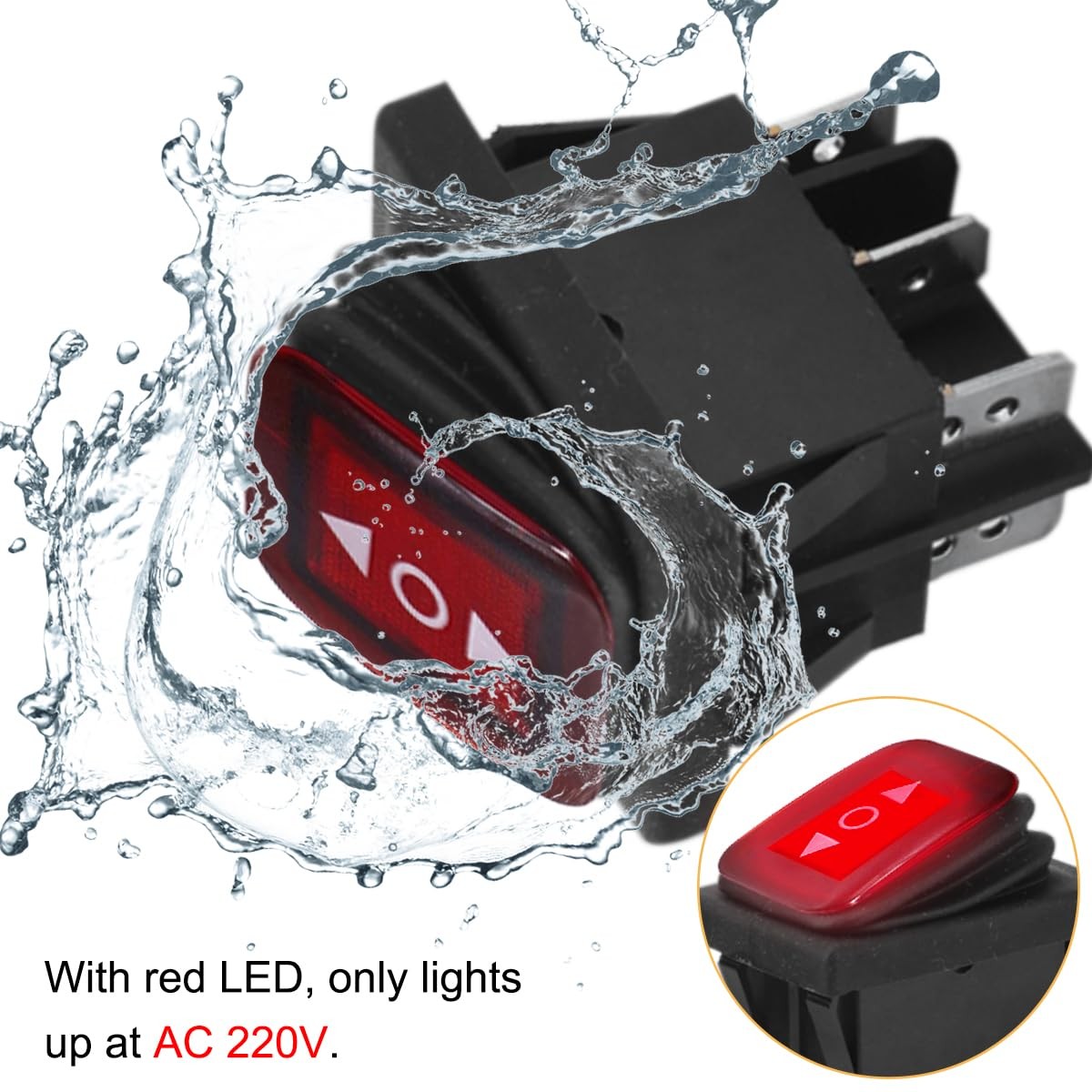

Feature: Rocker switch is momentary meaning it springs back to the center off position when the toggle is released. The switch will reset automatic back to off if released. With red LED, only lights up at AC 220V.

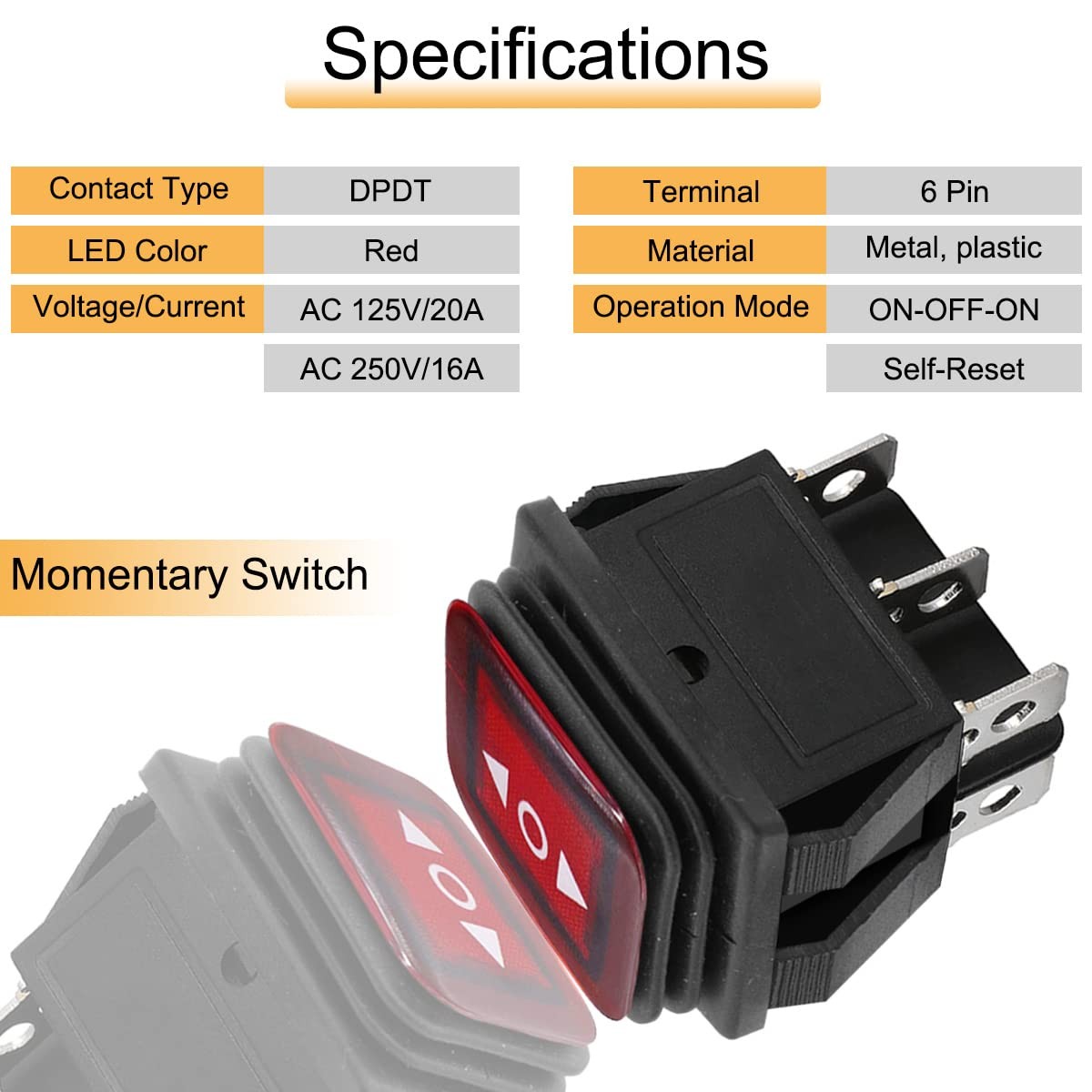

Specifications: Voltage and current: AC 250 16A / AC 125V 20A / DC 12V 10A; Switch type: DPDT; Operation type: self reset. Position: ON-Off-ON 3 position.

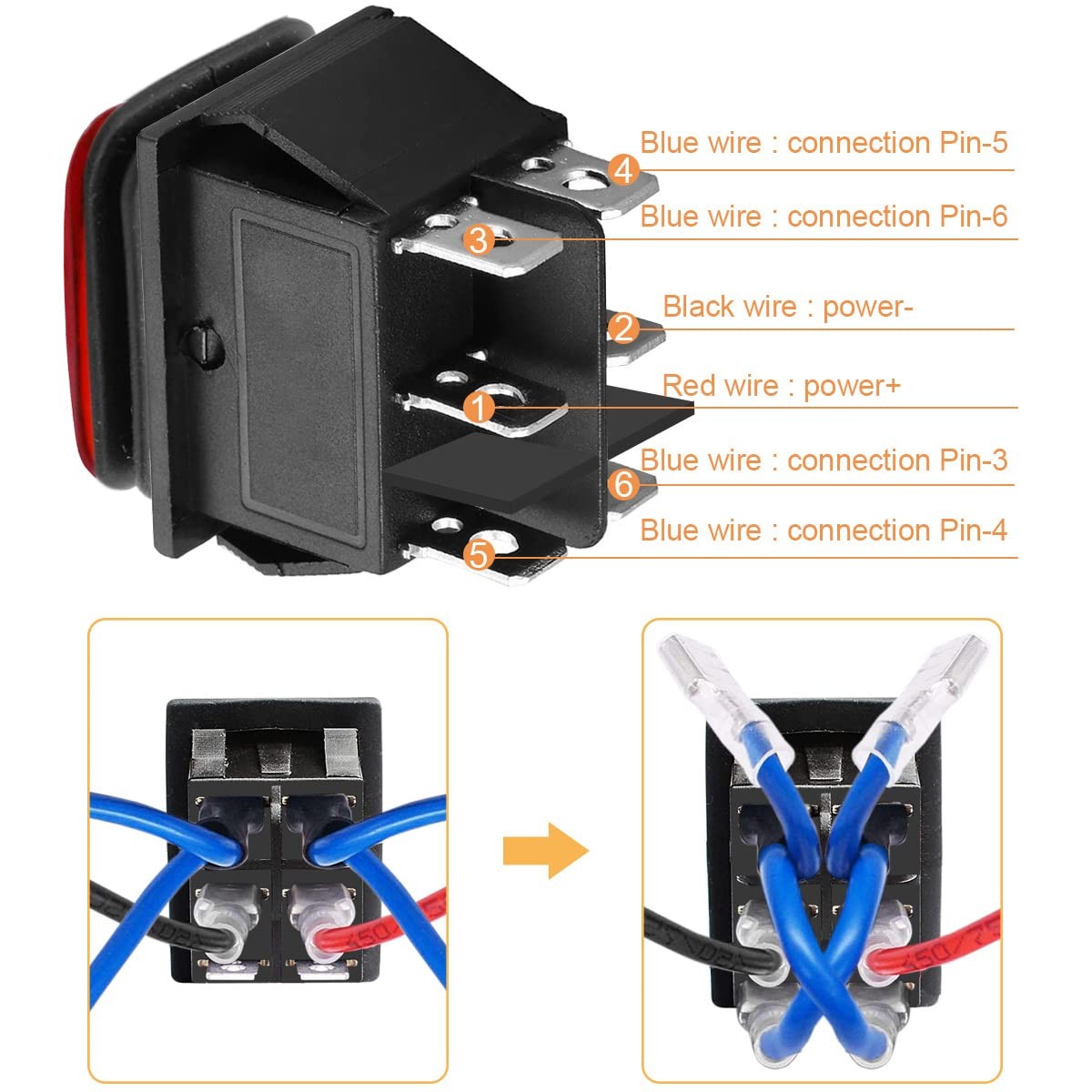

Easy To Use: When the red wire is connected to the positive pole of the power supply and the black wire is connected to the negative pole of the power supply, and the blue wire is connected to the motor, the DC motor will reverse the motor direction through the switch. It is configured for polarity reversal. Simply connect power and ground and the two DC motor leads and the switch will reverse the motor direction.

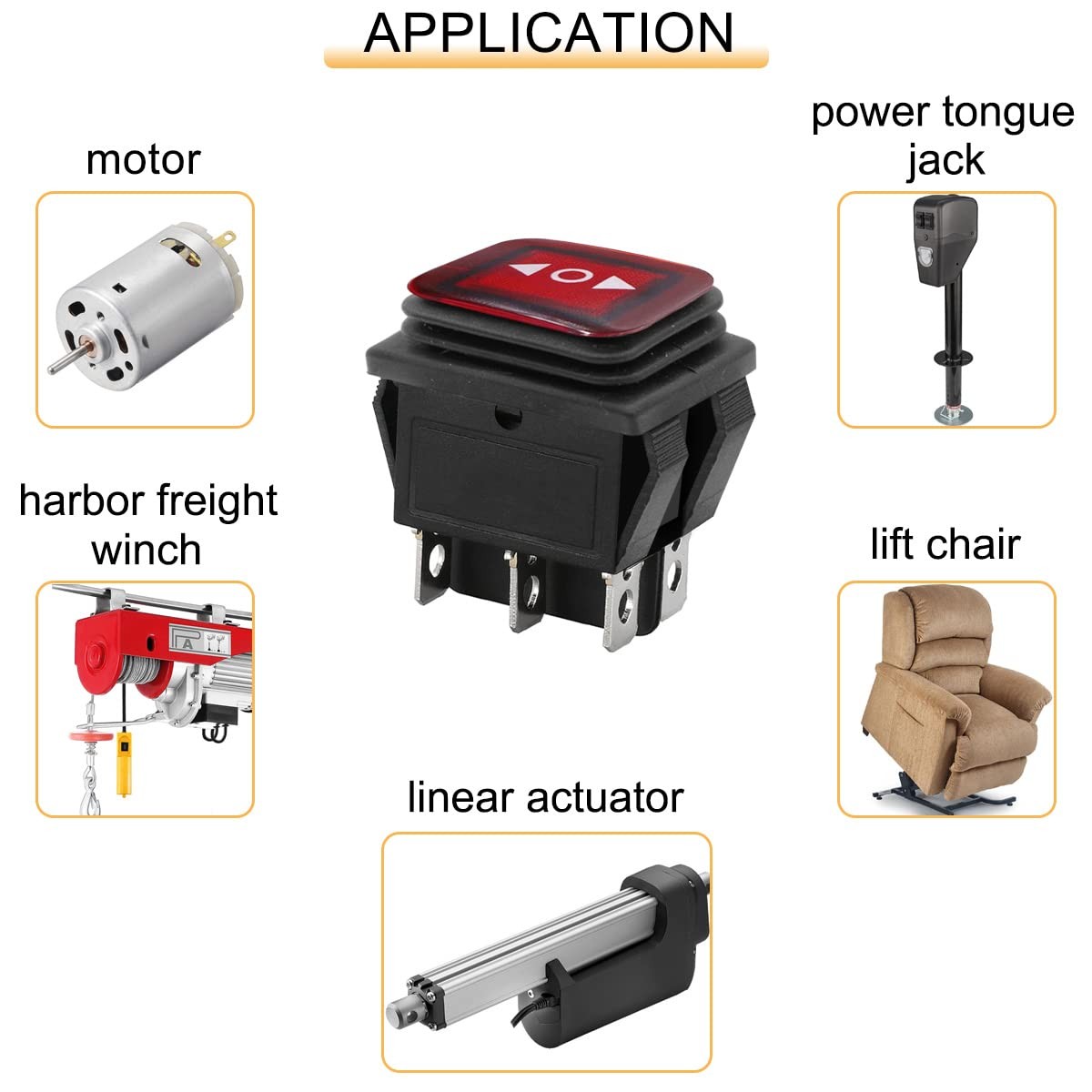

Application: Very suitable for linear actuator motor. This polarity reversing switch replacement for most RV/trailer power tongue Jacks wheel. This switch can be used in cars, campers, RVs, boats, trucks, motorcycles, electronic modifications.
Package Content: 2 pcs rocker switch with wires; 8 pcs wire connectors.
