DESCRIPTION
Description:
1: Due to the error of the components, there may be two light bars inputting the same signal in parallel, and the displayed amplitude of the two light bars may be different.
2: In very extreme cases, there may be very slight high-frequency noise, please pay attention to separate power supply, and try to replace the input line of the light board with a shielded line (the shielding layer must be grounded is electronic common sense) Display of the new software Effects (8 effects in total)
1: Main light bar + fall after peak stop
2: Main light bar + disappears after peak stop
3: Main light bar (no peak)
4: Main light bar + peak flow disappears to the right
5: Main light bar segment display ((2 lights)
6: The main light bar is displayed (1 light) - this is a new effect
7: Main light bar + peak back and forth marquee
8: The main light bar + peak light jumps two light positions to the right and then falls
With ultra-wide range of AGC mode and professional DB mode
1: Due to the error of the components, there may be two light bars inputting the same signal in parallel, and the displayed amplitude of the two light bars may be different.
2: In very extreme cases, there may be very slight high-frequency noise, please pay attention to separate power supply, and try to replace the input line of the light board with a shielded line (the shielding layer must be grounded is electronic common sense) Display of the new software Effects (8 effects in total)
1: Main light bar + fall after peak stop
2: Main light bar + disappears after peak stop
3: Main light bar (no peak)
4: Main light bar + peak flow disappears to the right
5: Main light bar segment display ((2 lights)
6: The main light bar is displayed (1 light) - this is a new effect
7: Main light bar + peak back and forth marquee
8: The main light bar + peak light jumps two light positions to the right and then falls
With ultra-wide range of AGC mode and professional DB mode
Product Description:
The REV1.10 version changes the real-time mode to dB mode, adding a single-point effect
Specific operation: (When pressing the button, there will be a corresponding LED indicating the button time)
I. In normal mode:
1. Press the button for 1 second - mode switch (there will be a corresponding preview)
2. Press the button for 3 seconds - switch between real-time mode and AGC mode (there will be a corresponding preview)
3. Press the key for 5 seconds - enter the speed setting mode
4. Press the key for 10 seconds - restore factory settings
5. Double-click the button - adjust the brightness of the level light, low light - medium light - high light cycle
The REV1.10 version changes the real-time mode to dB mode, adding a single-point effect
Specific operation: (When pressing the button, there will be a corresponding LED indicating the button time)
I. In normal mode:
1. Press the button for 1 second - mode switch (there will be a corresponding preview)
2. Press the button for 3 seconds - switch between real-time mode and AGC mode (there will be a corresponding preview)
3. Press the key for 5 seconds - enter the speed setting mode
4. Press the key for 10 seconds - restore factory settings
5. Double-click the button - adjust the brightness of the level light, low light - medium light - high light cycle
II. Speed setting mode: (in normal mode, press and hold for 5 seconds to enter, and when exiting, press and hold for 5 seconds to exit)
1. Press the key for 1 second - in
1. Main body ascending speed (15-level speed optional)
2. Main body descending speed (15-level speed optional)
3. Peak dwell time (15 levels of time optional)
4. Peak descent speed (15 levels of speed optional)
5. Zoom in or zoom out in dB mode (15 levels optional, 80%-120%)
6. Light bar brightness adjustment (15 levels of brightness optional)
function ring switch
2. Click the button - cycle to change the set parameters
1. Press the key for 1 second - in
1. Main body ascending speed (15-level speed optional)
2. Main body descending speed (15-level speed optional)
3. Peak dwell time (15 levels of time optional)
4. Peak descent speed (15 levels of speed optional)
5. Zoom in or zoom out in dB mode (15 levels optional, 80%-120%)
6. Light bar brightness adjustment (15 levels of brightness optional)
function ring switch
2. Click the button - cycle to change the set parameters
Package Include:

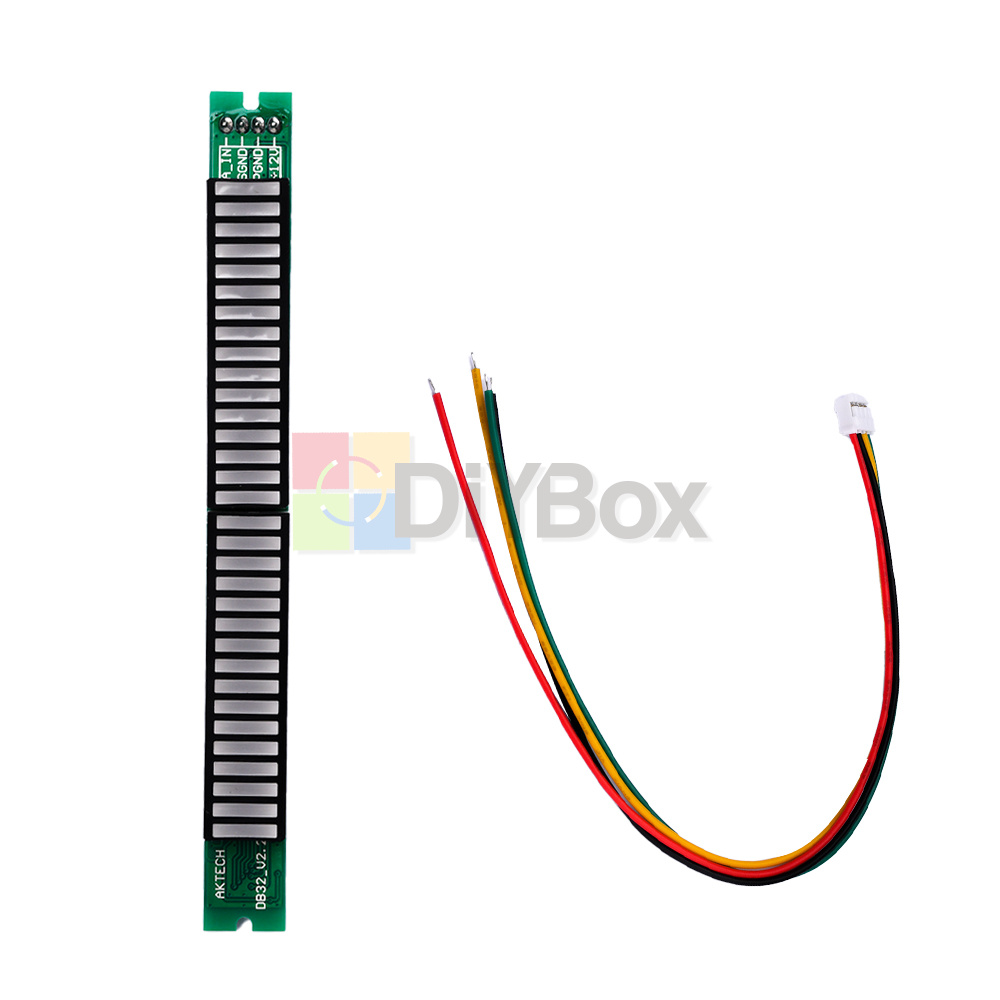

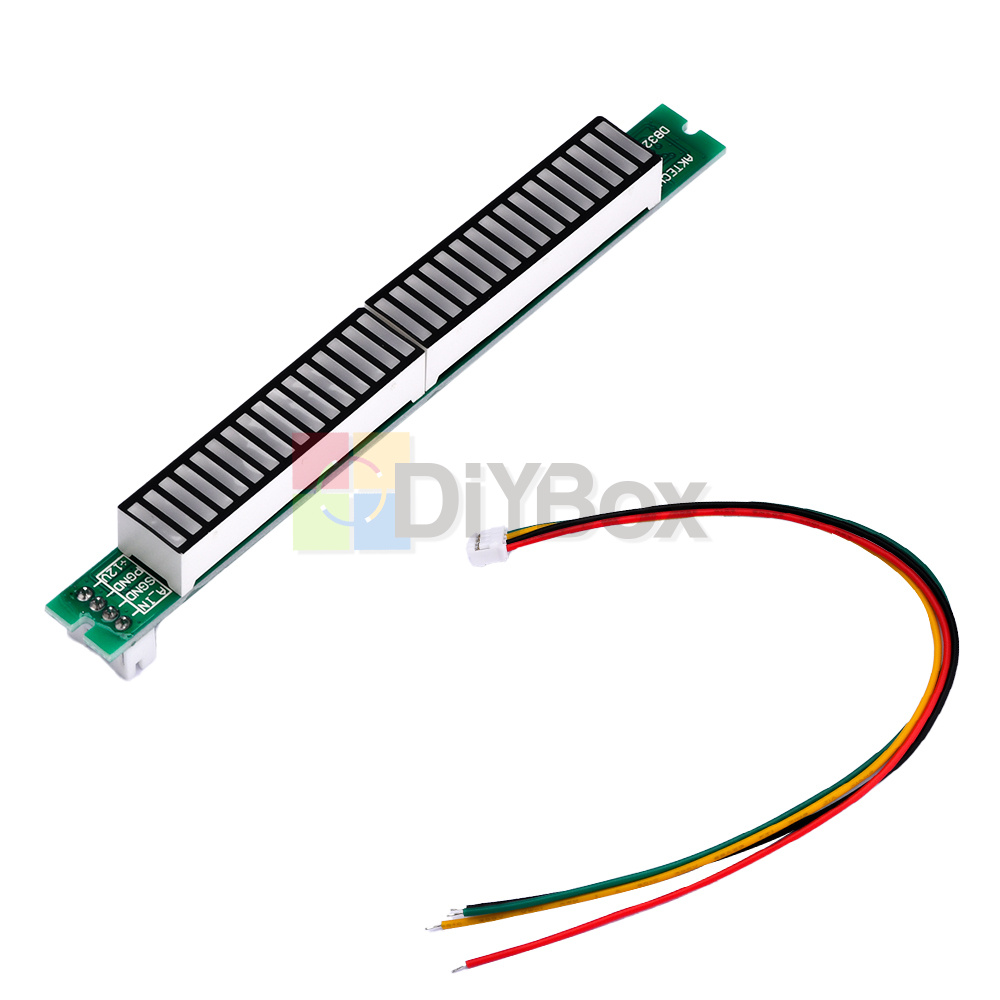

Module X1
Cable X1"
Module X1
Cable X1"
