DESCRIPTION

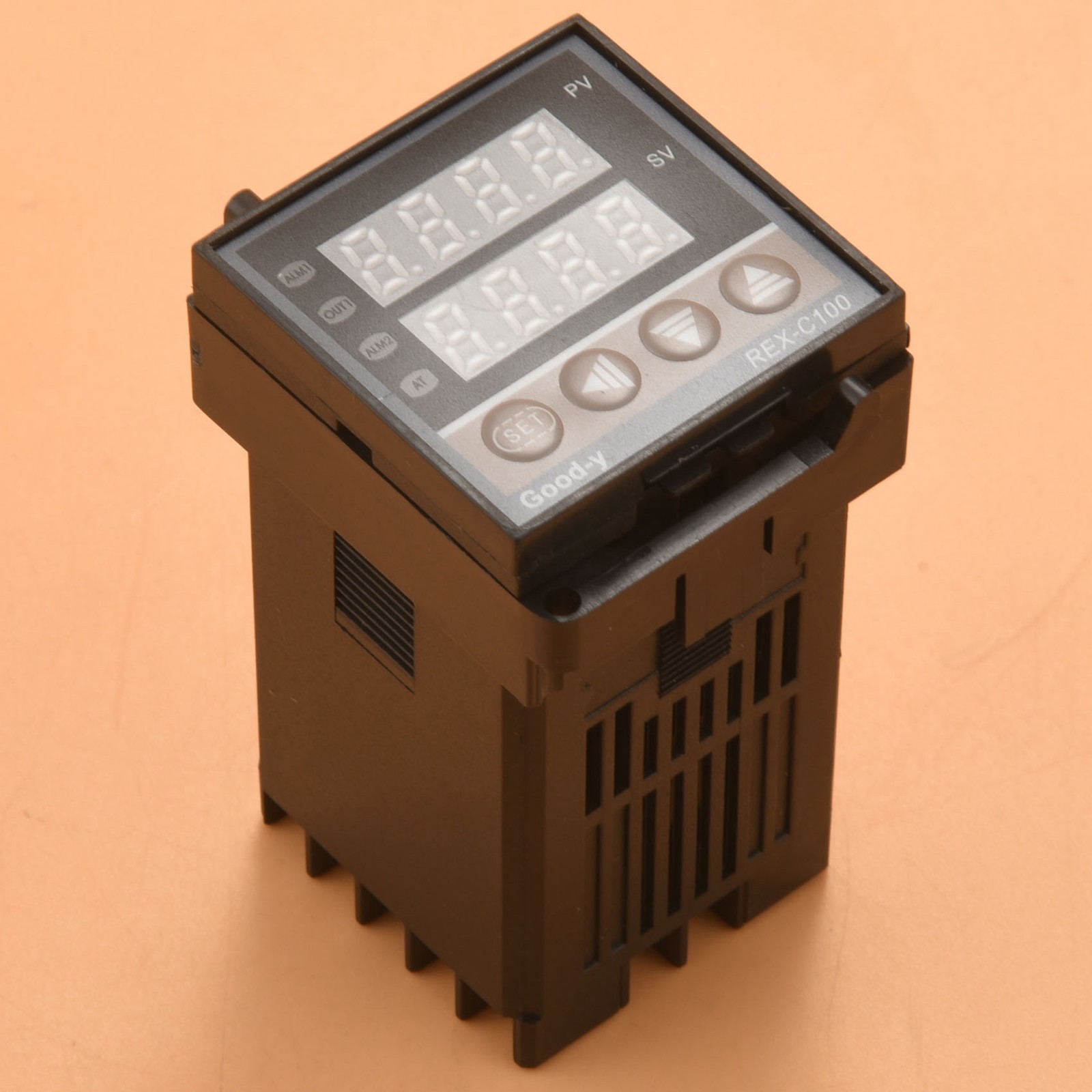

Multi-Input Digital Temperature Controller -C100 Professional Alarm2955
Dual display for both set temperature and process temperature
Universal input, support 10 different types of thermocouples and RTD inputs by customers at panels.
Auto-tune function can find the best PID parameter automatically
Displays temperature in Celsius
Four digits LED display can go up to "9999"
Can be powered by either DC or AC power source
Uses it for Kiln,Furnace,Oven,Incubator temperature control
Uses it in heating control as well as for cooling control

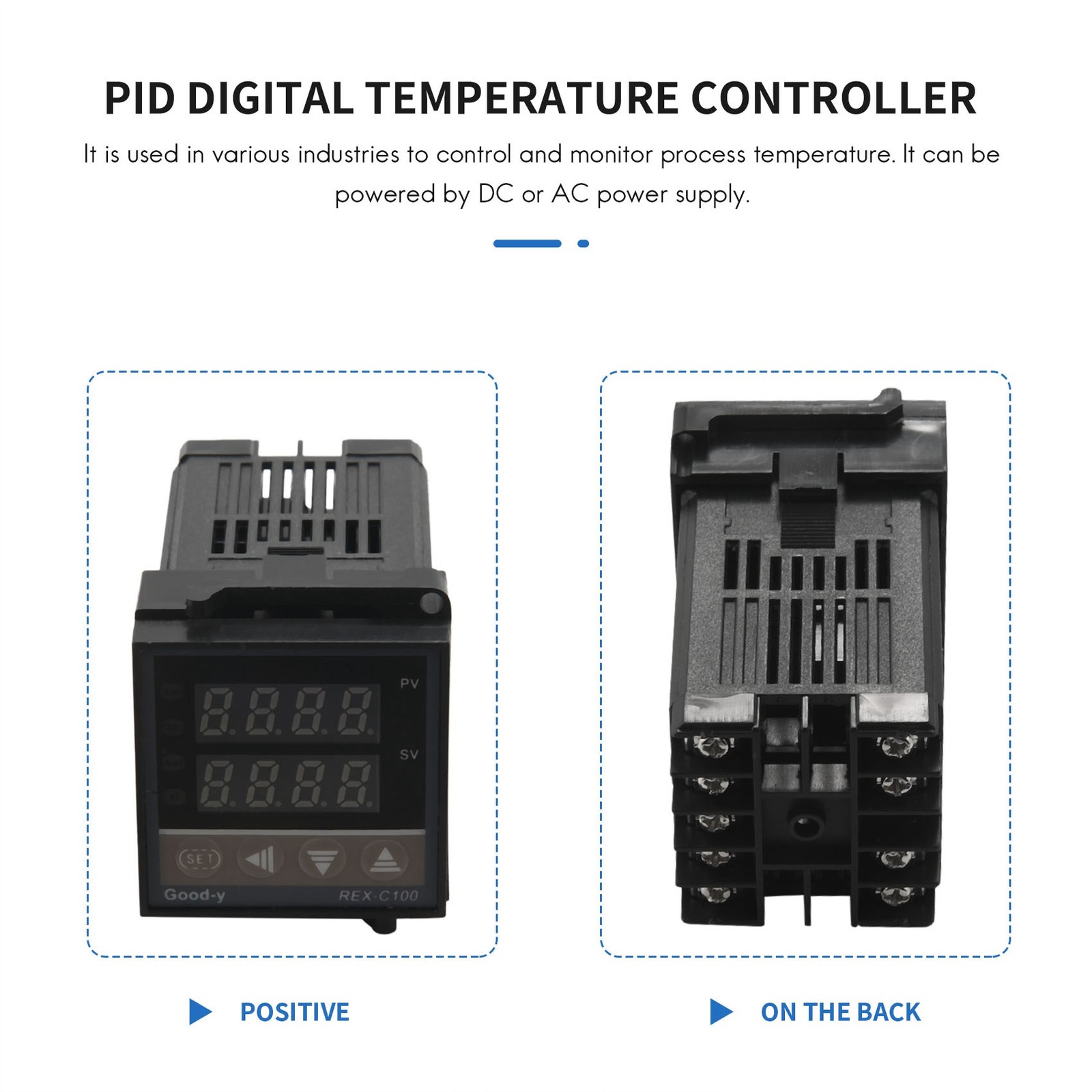

It is used in various industries to control and monitor process temperatures
Product Main Specifications:
Input type:
TC: K, E, S, R, J, T, B, WRe3-WRe25. RTD: Pt100, Cu50
Input range: K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display:Two lines, Four digits. °C.
Display Resolution:1°C, or 0.1°C with Pt100
Accuracy: +/- 0.5% or +/- 1 unit of full input range
Control mode:PID, On-Off
Output mode:Relay contact: 3A at 240 VAC
Alarm:Upper-limit bias alarm
Power consumption: less than 2 Watt
Power supply voltage rating:85~265VAC/50~60Hz
Colour: black
Material: ABS + electronic components
Size: 48 x 48 x 90mm
Package Contents:
1 x PID Digital Temperature Controller (NOT include thermocouple)
1 x English User Manual
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
