Product Description：
- Reference Model: NE-1024-2MD
- Notice: It is a replacement,not original part
Product Specification:
Encoding method | Incremental |
Power supply voltage | 5 VDC -5% to 12 VDC +10% (ripple (p-p): 5% Max.) |
Current consumption | 30mA DC Max. |
Inrush current | Current: approx. 9 A |
Resolution (Single turn type) | 200 P/R |
Output phases | A |
Control output (Output type) | NPN voltage output |
Control output (Output resistance) | 2 k OHM |
Control output (Load current) | 20 mA Max. |
Control output (Residual voltage) | (DC) 0.4 V Max. (load current:at 20mA Max.) |
Starting positional point | Not equipped |
Max. response frequency | 30 kHz |
Output duty factor | 50 -25% to +25% |
Rise and fall times of output | Rise time of output: 1 us Max. (Cable length: 500mm, sink current: 10mA) |
Starting torque | Room temperature: 1 mN.m Max. |
Moment of inertia | 1*10-7kg.m2 Max. |
Shaft loading | Radial: 10 N |
Max. permissible rotation | 5000 r/min |
Mechanical life expectancy | 100 million rotations Min. |
Ambient temperature | Operating: -10 to 55 CEL |
Ambient humidity | Operating: 35 to 85 %RH |
Insulation resistance | 20 M OHM Min. at 500 VDC between charged parts and the case |
Dielectric strength | 500 VAC at 50/60 Hz for 1 minute between charged parts and the case |
Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
Shock resistance | 500m/s2 for 3 times each in X, Y, and Z directions |
Degree of protection | IEC60529: IP50 |
Applicable standard (EC Directive (EMC Directive)) | EMI: EN50081-2 |
Connection method | Pre-wired models (Cable length: 2 m) |
Material (case) | Aluminum alloy |
Material (body) | Aluminum |
Material (shaft) | SUS420J2 |
Tightening torque | 0.5 N.m Max. (with M3 screw) |
Accessories | Instruction manual, coupling and hex-head spanner |
Package Included:

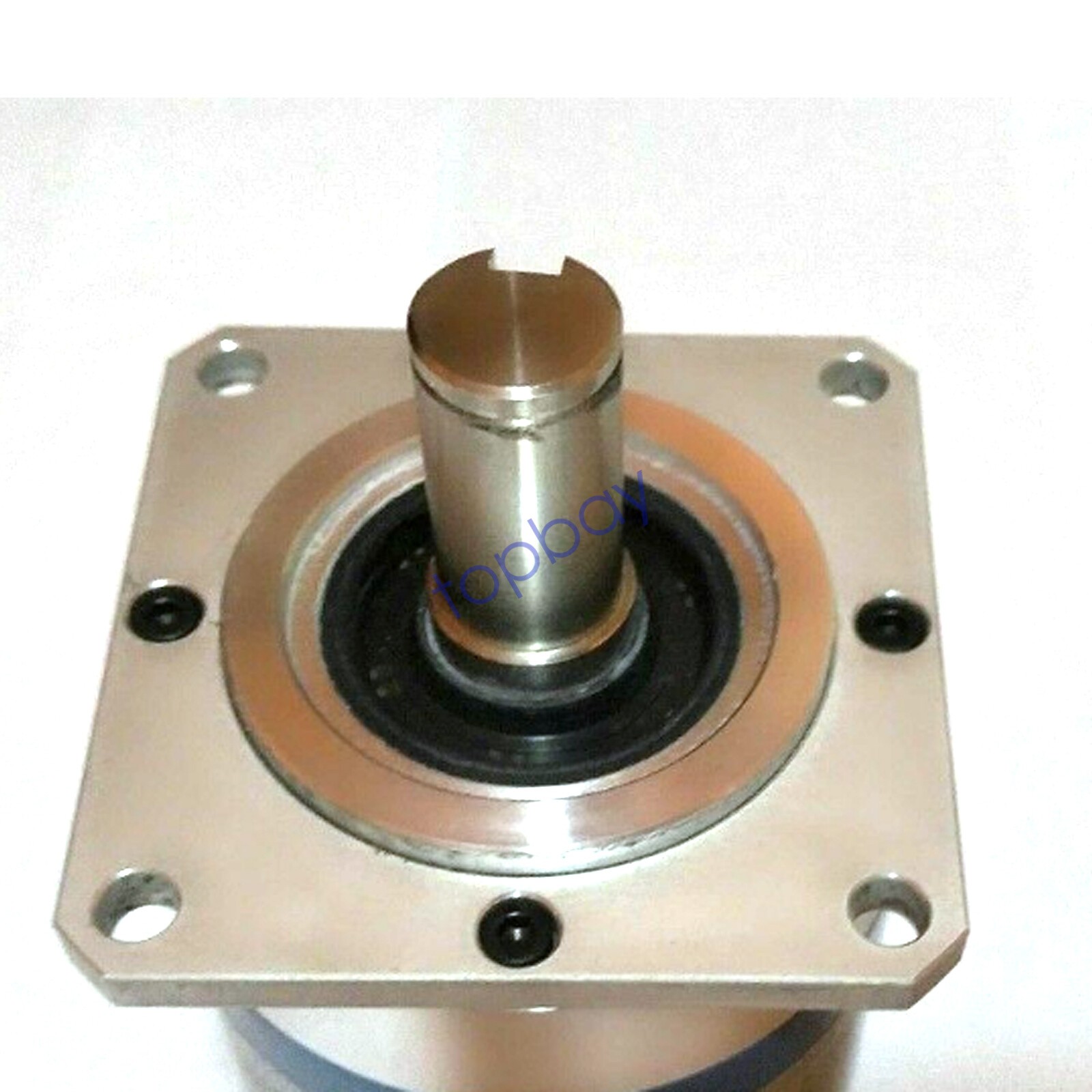

- 1 x NEW Fanuc NE-1024-2MD Main Shaft Rotary Encoder
