NOYITO DC to DC 5V 2A 3A Converter Buck Module 12V 16V 6V-22V Buck to 5V 3A Max Power Converter IP67 Waterproof with Overcurrent Overheat Short-Circuit Undervoltage Protection (5V 3A)
Product Details
Size: 5V 2A
Color: Black
Brand: NOYITO
MPN: NYT15-K1205
UPC: 680613660824
EAN: 0680613660824
- Brand: NOYITO
- Color: Black
- Item Weight: 30 Grams
- Input Voltage: 12 Volts (DC)
- Item dimensions L x W x H: 1.81 x 1.06 x 0.55 inches
- Product Dimensions: 1.81 x 1.06 x 0.55 inches
- Item Weight: 1.06 ounces
- Item model number: NYT15-K1205
- Is Discontinued By Manufacturer: No
- Date First Available: September 14, 2018
- Manufacturer: NOYITO
- Input voltage: DC 12V 8V-22V.
- Output voltage: DC5V 0.25V.
- Output current: 3A Max.This product has been upgraded, from the old version's maximum 2A current output to the new version's maximum 3A current.
- Conversion efficiency: about 95%. Waterproof level: IP67.Shockproof
- Protection function:Overcurrent protection,Overheat protection,Short circuit protection,Undervoltage protection.
- If the module works for a long time it is recommended that the current does not exceed 2A

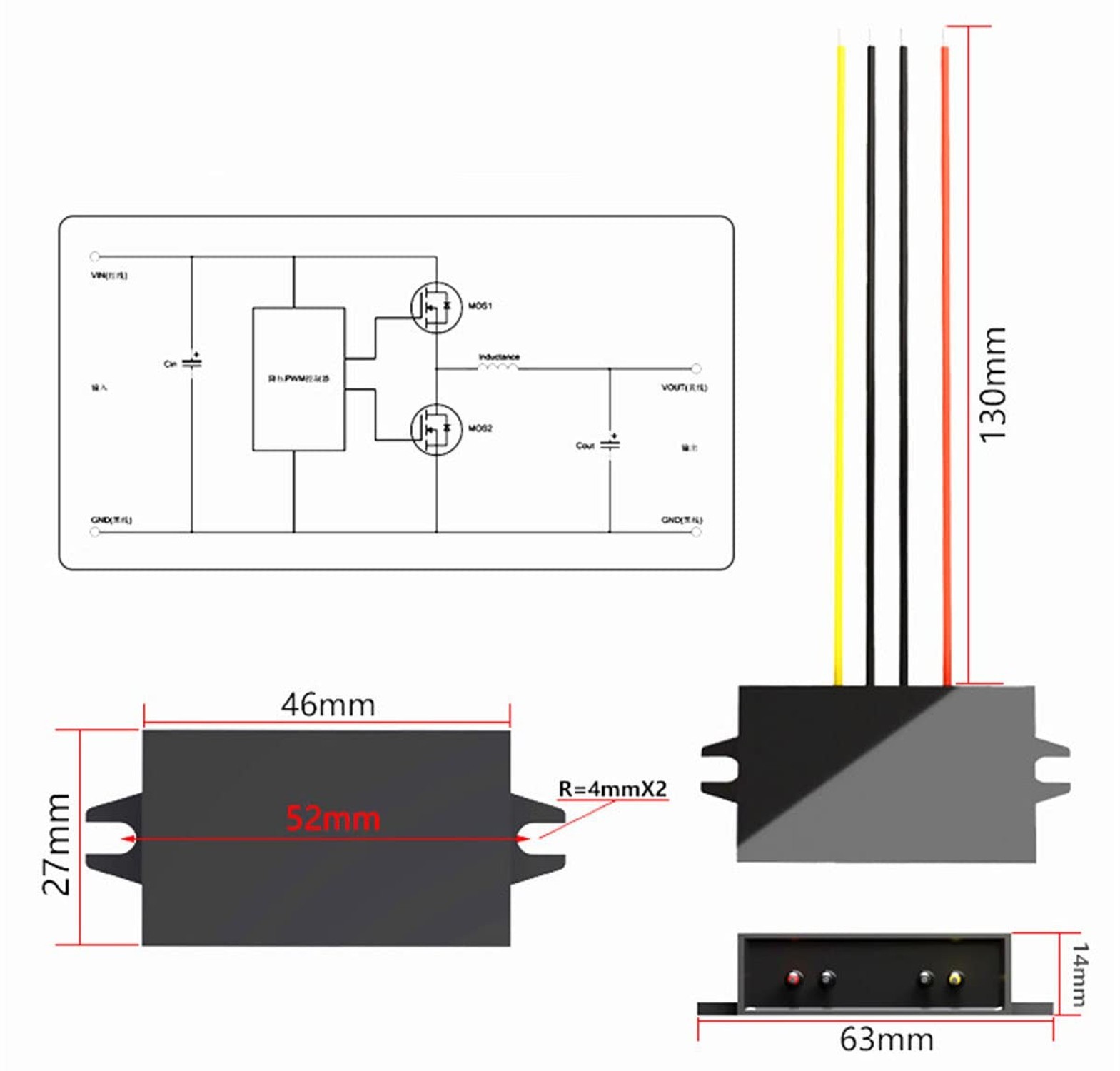

： 1. This product is a fixed ratio buck power converter. To ensure the normal work of the converter, the input voltage must be higher than the output voltage value of 2V or more. If there is no voltage difference of 2V, the output voltage will become lower, but the converter will not be damaged. 2. The chip works in light load mode when no load is applied, and the output voltage may vary within a certain range. 3. The output positive and negative terminals are short-circuited, and the chip starts short-circuit protection. 4. It is recommended to add a suitable fuse to the input when using. Parameter: Input voltage: DC 12V 8V-22V. Output voltage: DC5V ±0.25V. Output current: 3A Max. Output power: 15W. Conversion efficiency: about 95%. Modular nature: Non-isolated buck power converter. Protection level: IP67. Working temperature: -20 ° C - +85 ° C. Dimensions: 46x27x14mm (please see the second picture on the left). Weight: about 30g. Mounting wire length: about 13cm. Protection function：Overcurrent protection，Overheat protection，Short circuit protection，Undervoltage protection. Wiring instructions: Input: Positive: Red wire. Negative: Black wire. Output: Positive: Yellow wire. Negative: Black wire. Package Included: 1Pcs NOYITO DC-DC 5V 3A Converter Buck Module
