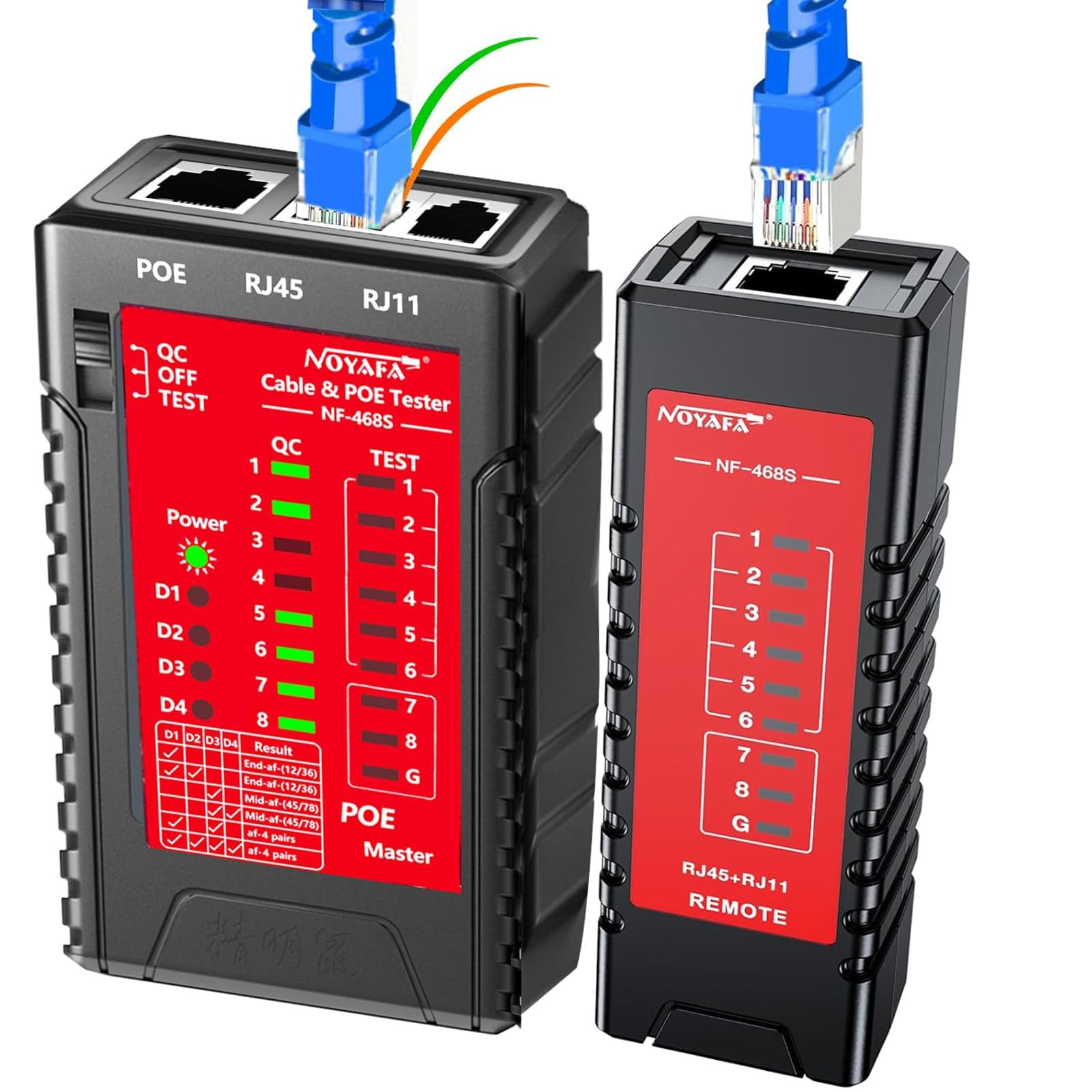

Network Ethernet Cable Tester for RJ11 RJ12 RJ45 CAT5 CAT6 Telephone Line PoE

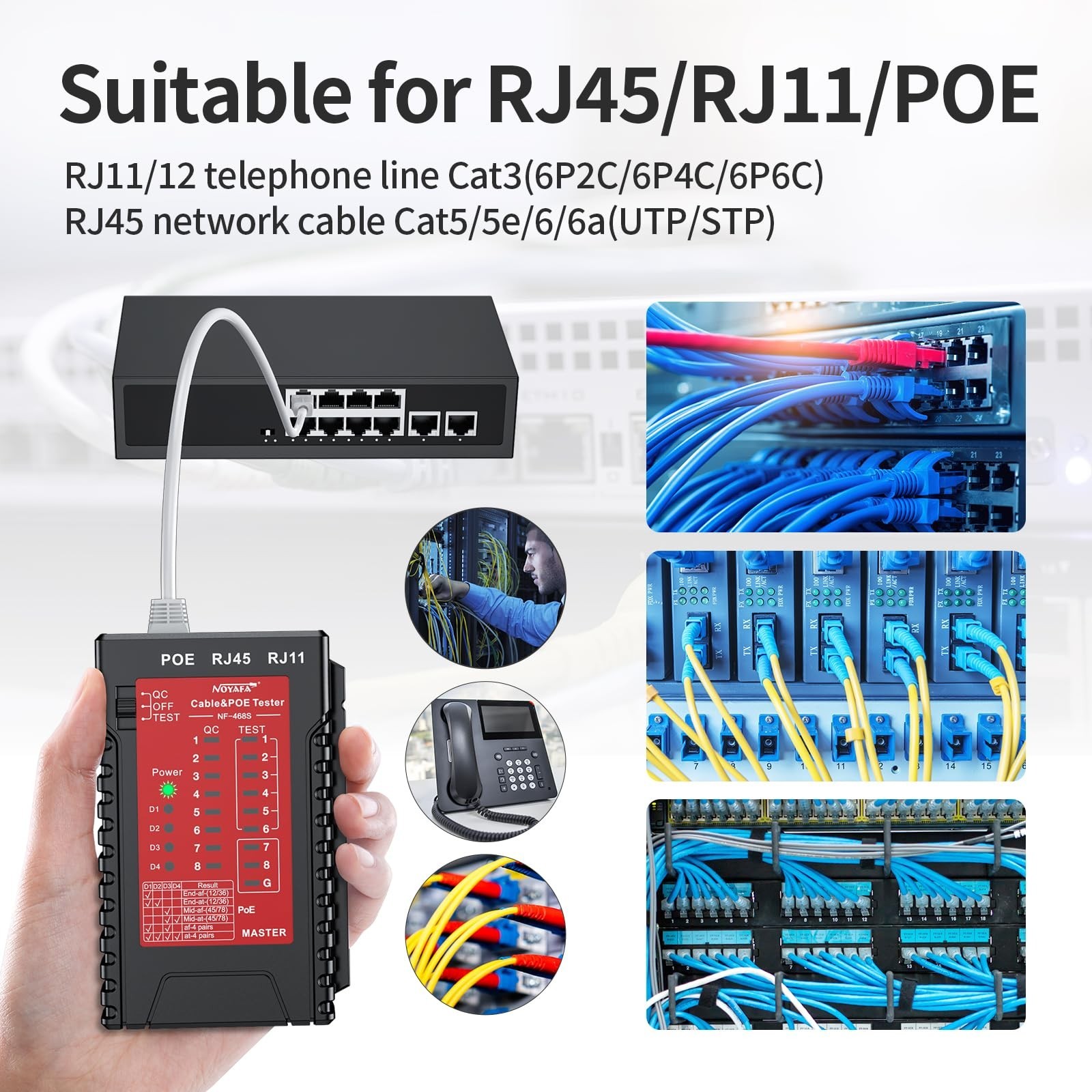

【Applicable wire type】NF468S Ethernet tester is suitable for RJ45 CAT5, CAT5E, CAT6, CAT6A, RJ11, RJ12 telephone line CAT3, 6P2C, 6P4C, 6P6C, POE tester
︎【QC detection function】 NF468S Network Cable Tester quickly tests network cables for open, crossover, straight-through and short-circuit results, quickly detects crystal head crimping, and can also measure special shielded network cables UTP/STP.

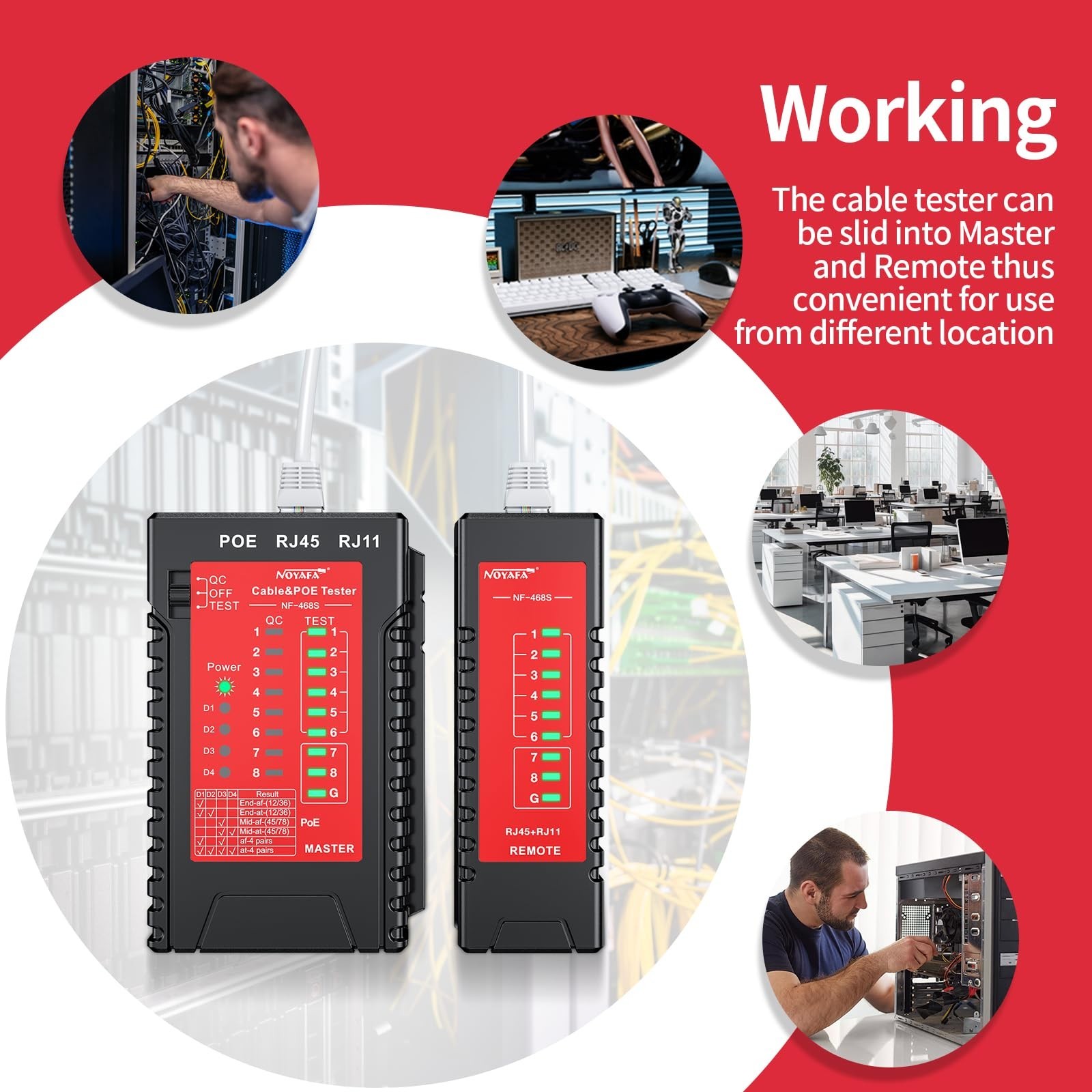

︎【HOST & REMOTE】 NF468S Ethernet cable tester is used to detect short circuits, open circuits and cross-point wiring faults of wired lines, hosts and remote ends to maintain smooth operation of the network. The maximum test distance is 500m.

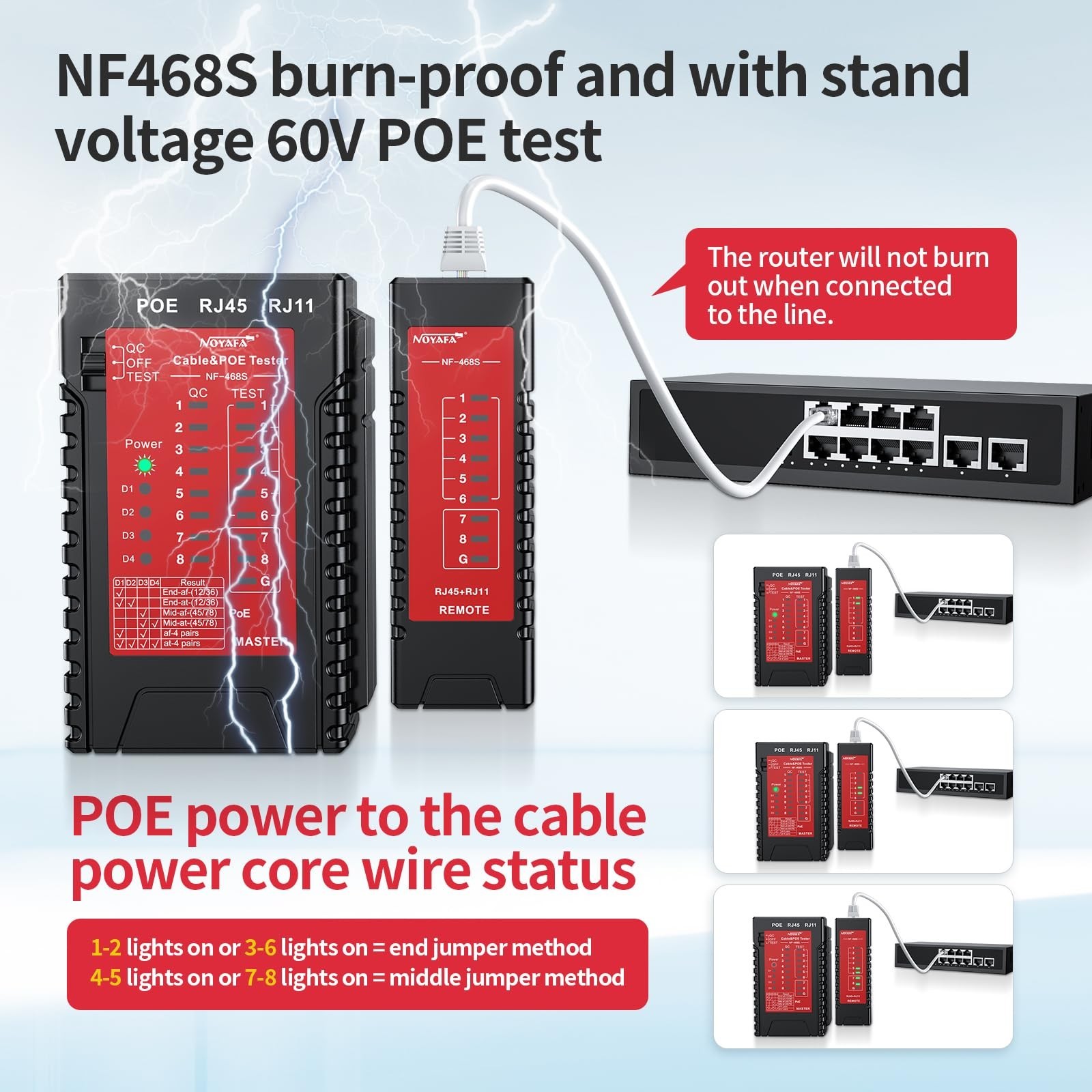

︎【POE TEST】 NF468S Ethernet cable tester can test 60V power supply, quickly determine the power supply type and status of POE switch, and the LED light can intuitively display the battery power and low voltage results
︎【POE Two Standards】NF468S Network cable tester supports 802.3af and 802.3at standards. It is easy to use and has a novel design. It can be used in various fields such as home and industry. If you encounter any difficulties during use, please contact us.
1, ordinary tester can not determine whether the crystal head ends of the network cable is successfully crimped (QC function: Single head test crystal head Quickly detect when the Crystal head is pressed), this NF-468S can save time and effort,.
2, POE tester is an intelligent network cable tester for telephone and network cable connection and quick test, it can check the connection of crystal head and wire bundle, and accurately judge the crimping of crystal head.
3, is a good helper for every home network maintenance and engineering wiring decoration, can accurately determine the connection between the crystal head and the two ends of the network cable, the perfect solution to the ordinary network tester can not determine the network cable has a problem end of the product.
4, for example: the host is connected to the crystal head on the first floor, the secondary machine is connected to the corresponding crystal head on the fifth floor, you can measure the distance of the network cable: 500 meters, withstand voltage: ≤ 60V
5, Power by: 9V 6F22 alkaline (NOT included)
For network 1.2.3.4.5.6.7.8.G pairs; telephone lines 1.2.3.4.5.6 pairs; root-by-root (pair) test, the
For network 1.2.3.4.5.6.7.8.G pairs; telephone lines 1.2.3.4.5.6 pairs; root-by-root (pair) test, the
where (pairs) of interlaced lines, short circuits and open circuits can be distinguished and determined.
1 、Turn the power switch to (TEST) position, (TEST) power indicator red light blinking.
2 、the network plug and telephone plug into the main test machine and remote test machine, respectively
The sequence indicator of the main unit and remote unit flashes from 1 to G one by one.
3、if the connection is not correct, should be handled as follows:
(1) When the network line such as line 1-2 is disconnected, neither the main measuring instrument nor the remote measuring instrument 1- 2 light is on.
(2) When multiple lines are not connected, the corresponding lights are not lit. When less than two wires are connected, the light goes out.
(3) When both ends of the network cable are disconnected, the main tester remains unchanged: 1-2-3-4-5-6-7-8-G
while the remote tester is: 1-2-5-4-3 -6-7-8-G
(4) When there are two ends of the network cable short-circuit, the main tester does not change, while the two corresponding lights of the remote tester indicating the short-circuit will light up very dark. If there are more than three (including three) short-circuited network cables, several short-circuit indicators will go out.
4、When testing the network cable with the switch with the main unit, the voltage of the main unit connected to the tester should not exceed 60V.
5, one end of the network cable is connected to the POE switch, the other end is inserted into the test port (TEST) RJ45 of the host computer.
1-G port sequence is correct, the sequence indicator will light up, the incorrectly wired port does not light up.
Package include:
1x Cable tester(Not include battery)
