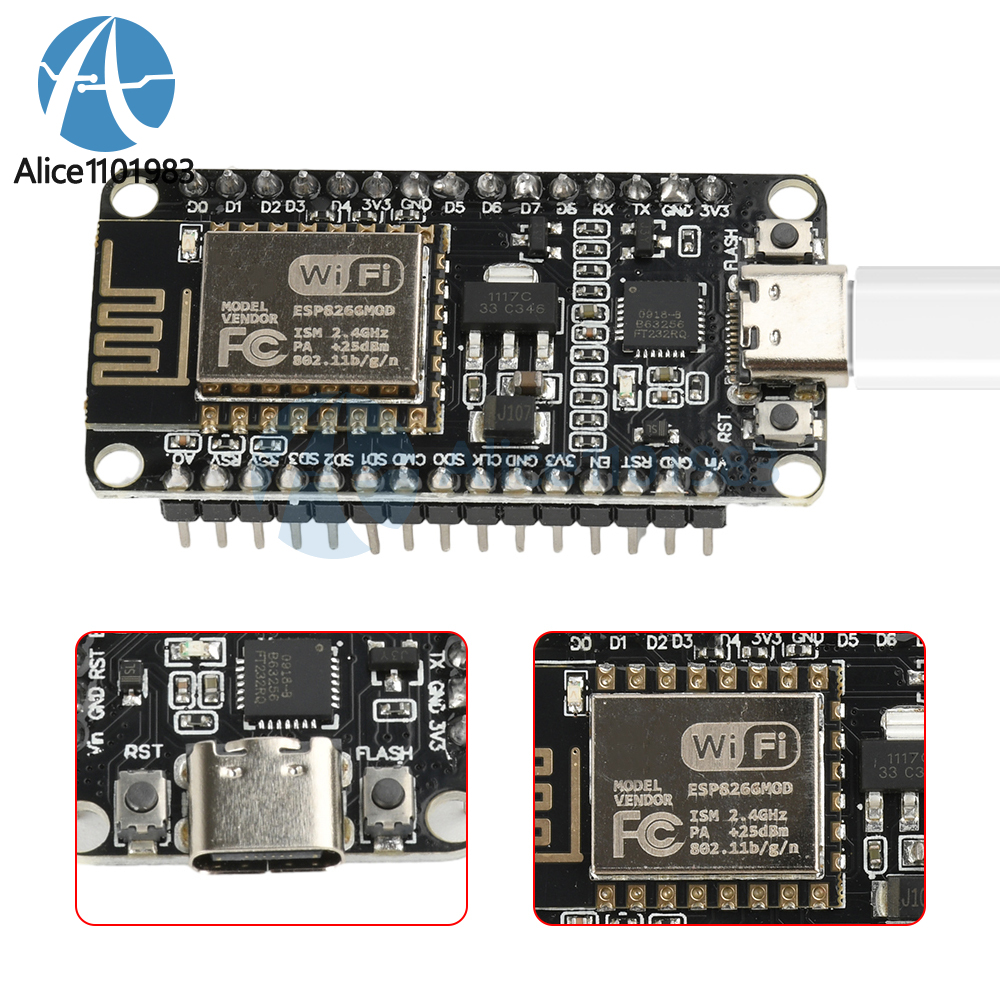

Features
1.Using high quality materials, quality is guaranteed, stable performance;
2.ESP8266 full IO port leads, direct download without reset;
3. Based on the ESP8266 development of NodeMCU, compatible with the existing version;
4. This product adopts the mainstream TYPE-C interface on the market, a wide range of applications.
Specification
Chip Model: FT232
Interface: TYPE-C

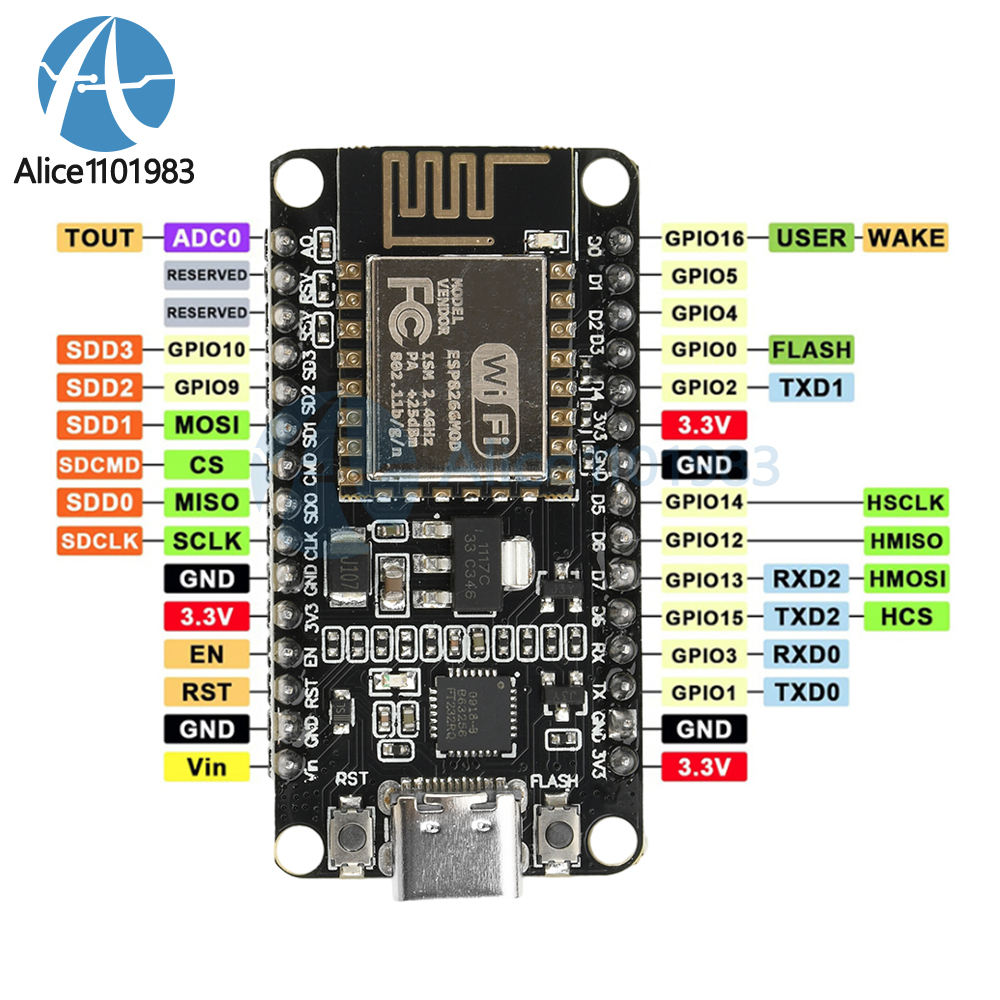

ESP8266 full IO port pinout, direct download without reset
802.11 b/g/n
Built-in 10 bit high precision ADC
Built-in TCP/IP protocol stack
Built-in TR switch, balun, LNA, power amplifier and matching network
Built-in PLL, regulator and power management components, +20 dBm output power in 802.11b mode A-MPDU, A-MSDU aggregation and 0.4 s protection interval
WiFi @24 GHz ,support WPAWPA2 security mode
Support AT remote upgrade and cloud OTA upgrade.
Support STAAP/STA+AP working mode.
Support Smart Config function
HSPI, UART, 12C, 12S, IR Remote Control, PWM, GPIO deep sleep current is 10 uA, shutdown current is less than 5 uA.
Wake up, connect and transfer data packets within 2ms.
Standby power consumption less than 1.0 mW (DTIM3)
Operating temperature range:-40℃~125
Built-in Tensilica L106 ultra-low-power 32-bit micro-MCU with 80 MHz and 160 MHz main frequency support.
Support RTOS
Applications:
-Home automation for household appliances
-Smart sockets, smart lights
-Industrial wireless control.
-Baby monitor
-IP cameras
-Sensor Networks Wearable Electronics
-Wireless Location Sensing Devices
-Security ID tags
-Wireless location system beacons
Package Includes
1 x Development Board
