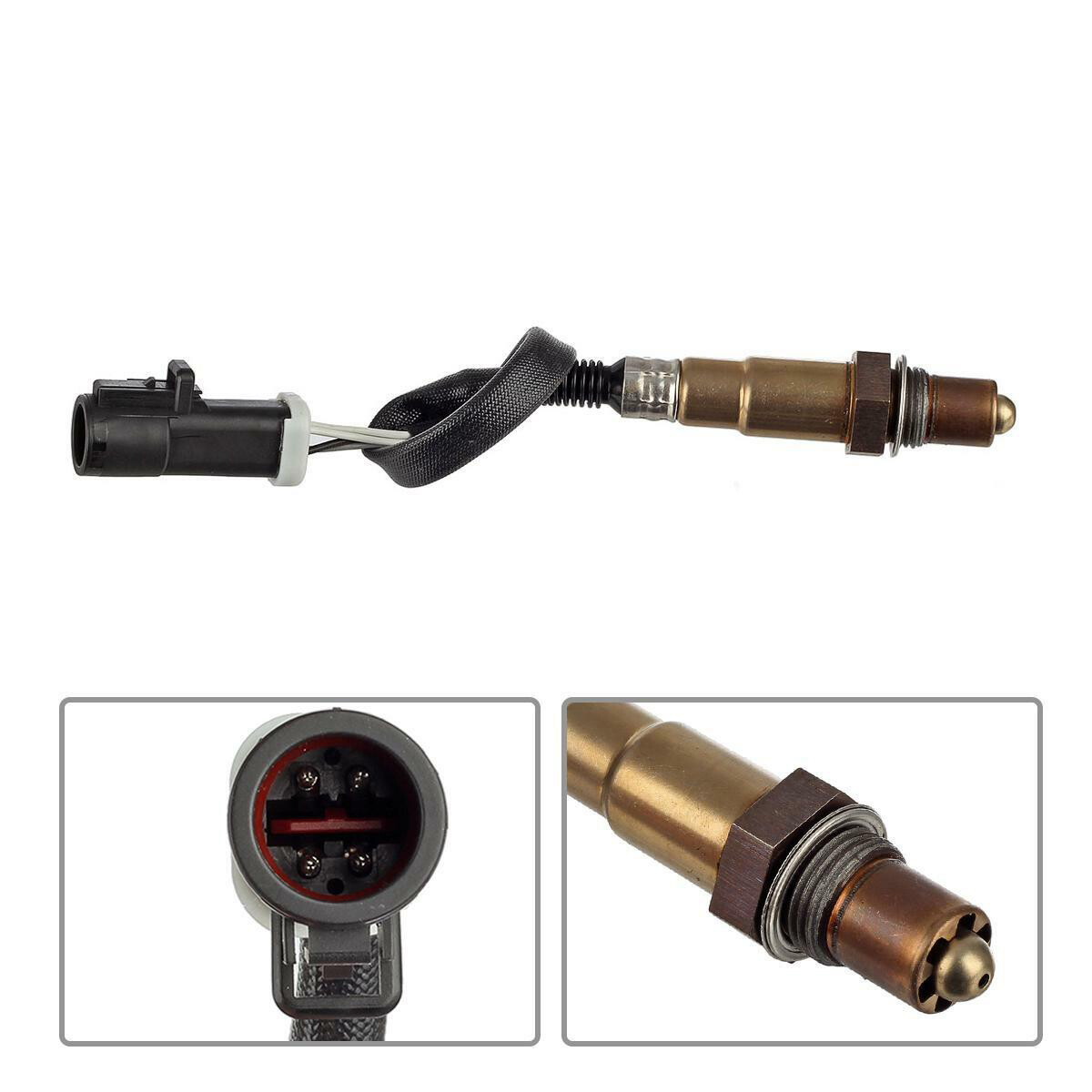

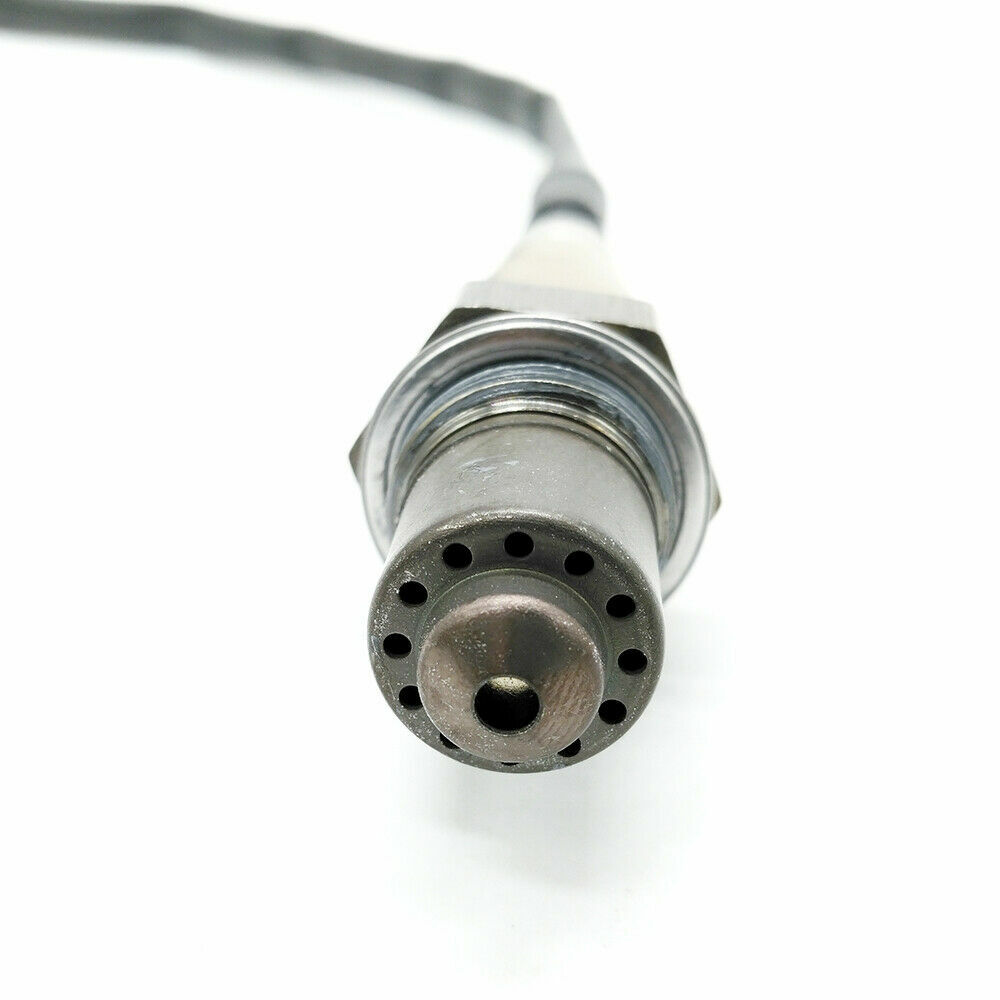

Specification:
* Line length: 400mm
* 4 wire configuration
* Interchange Part Number: 234-4401
* Package Include 1 x Oxygen Sensor
Warranty: 3 year
Fit Vehicles:
Please see compatibility chart.
Ford
Ranger
2.3L L4 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
3.0L V6 2001 2002 2003 2004 2005 2006 2007 2008
Windstar 3.8L V6 2000 2001 2002 2003
Freestar
3.9L V6 2004 2005 2006 2007
4.2L V6 2004 2005 2006 2007
Explorer
4.0L V6 2004 2005 2006 2007 2008 2009 2010
4.0L V6 OHV 2000
4.6L V8 2004 2005 2006 2007 2008 2009 2010
5.0L V8 2000 2001
Explorer Sport Trac
4.0L V6 2004 2005 2007 2008 2009 2010
4.6L V8 2007 2008 2009 2010
E-150 4.2L V6 2002 2003
E-250 4.2L V6 2002 2003
F-150
4.2L V6 2002 2003 2005 2006 2007 2008
4.6L V8 2004 2005 2006 2007 2008
5.4L V8 2001 2002 2003 2004 2005 2006 2007 2008
5.4L V8 Supercharged 2000 2001 2002 2003
Expedition 5.4L V8 2001 2002 2005 2006 2007 2008
F-150 Heritage
5.4L V8 2004
5.4L V8 Supercharged 2004
E-350 6.8L V10 2009 2010 2011 2012
Mazda
B2300 2.3L L4 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
B3000 3.0L V6 2001 2002 2003 2004 2005 2006 2007 2008
Lincoln
Mark LT 5.4L V8 2006 2007 2008
Navigator
5.4L V8 2001 2002 2006 2007 2008
5.4L V8 DOHC 2005
5.4L V8 SOHC 2005
Mercury
Mountaineer
4.0L V6 2004 2005 2006 2007 2008 2009 2010
4.6L V8 2004 2005 2006 2007 2008 2009 2010
5.0L V8 2000 2001
Monterey 4.2L V6 2004 2005 2006 2007
"Please check the part number and item pics clearly, confirm suited to your needs.”
（It is best to note that your car model is in the order
when you place an order, so that we have dedicated technicians to help you
check whether the product you have purchased matches your car model. Thank you）
Must Know Before Buying:
The following information is for instructional and guidance reference only. We try and make them as accurate as we can.
If Check Engine Light is on or an OBDII Trouble/Fault code occurs after installation, check the sensor with a voltmeter as below.
If the sensor is good, further diagnosis is required. There're many different codes for specific functional failures, which are NOT necessarily relevant to the sensor. Find out what the Code means before leaving any feedbacks.
Items that have been installed, altered or contaminated are non-returnable.
1. ONLY a defective sensor after tested by a voltmeter is applied to manufacturer warranty.
2. 20% restocking fee is required if buyer bought wrong items due to not paying attention to fitment information and ask for return.
The Price, Quality & Functionality of the O2 Sensor is fully covered under our warranty & return policy. However, refund for any labor cost, expense in a dealer shop or damage due to wrong installation is NOT covered.
Q: How do I know the O2 sensor is good or not?
A: The only way to know if the O2 sensor is functioning normally is to check its responsiveness to changes in the air/fuel mixture, by Voltage Measurement or Waveform Simulation.
Use a 10-megaohm digital voltmeter. Hook up the voltmeter's red probe to the sensor's signal wire and the black probe to engine ground. (Use back probe method, DO NOT pierce the wire.) For a good sensor, voltage should fluctuate constantly between 0.1 and 0.9 volts after starting the engine for 2 or 3 minutes.
