I2C interface, I / O expansion module, two I / O scalability 8 I / O (up to 8 simultaneous use the PCF8574 expanded to 64 I / O)
Most important feature: 1. Supports two interface types access target board: Pin or row seat,
Support I2C bus cascade (by pin header row seat docking methods can be used simultaneously multiple I2C modules)
Typical application: I / O resource shortage MCU I / O expansion
Main resources: the PCF8574 I2C interface, 8-bit parallel
Information includes:
Test procedures (AVR, STM8, C8051F)
Circuit schematics
Related PDF data
Package Included:1 x PCF8574 IO Expansion Board I/O Expander I2C-Bus Evaluation Development Module
PCF8574T(Red)

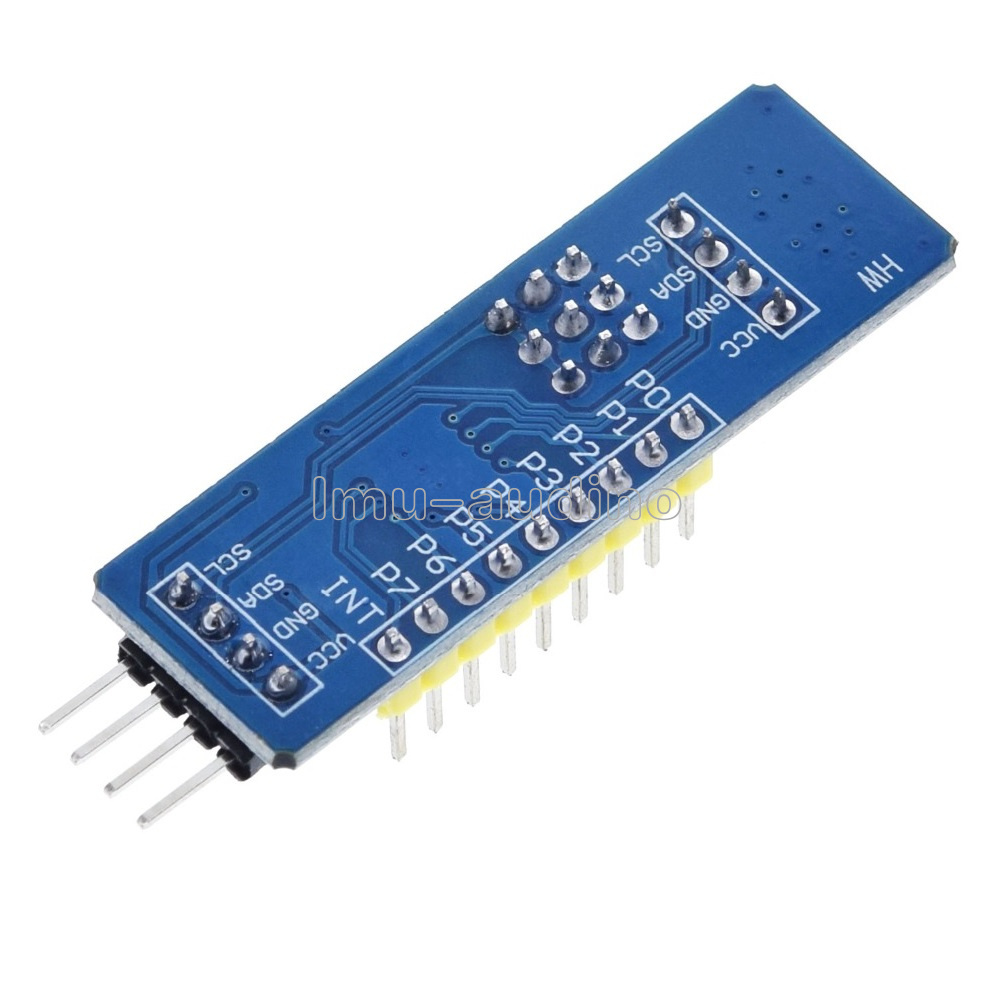

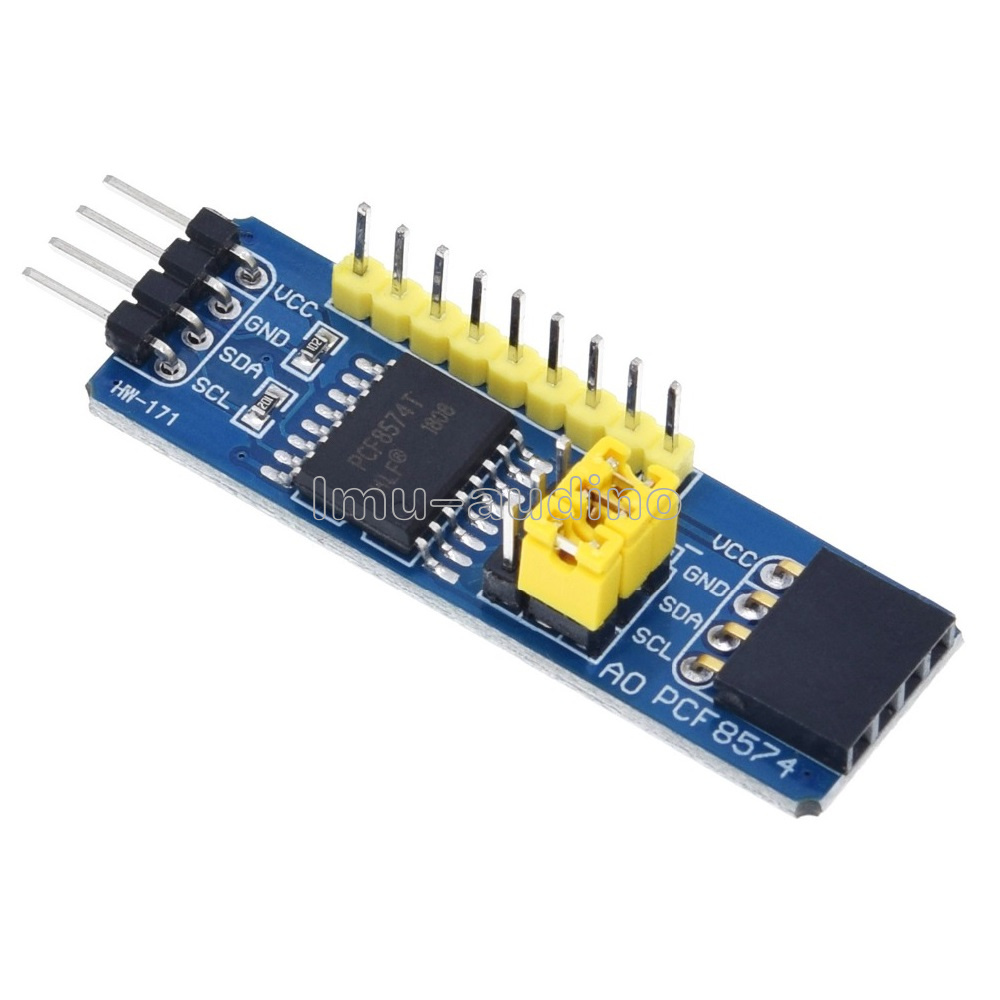

This is the I/O extended module, which use for I2C interface, you can use two of the module to extend 8 I/O.
Support cascading, and you can use at most 8 modules to extend 64 I/O at the same time.
Can be changed the address by set toggle switch
PCB Size: 36 x 16mm/1.41*0.62"
Every 2 seconds, make P0-P7 port output High level, Low level, and put 3 toggle switches to ON, the address of module is 0x27
Package Included:1PCS * PCF8574T I/O Fr I2C Port Interface Support Arduino Cascading Extended Module TOP
