DESCRIPTION

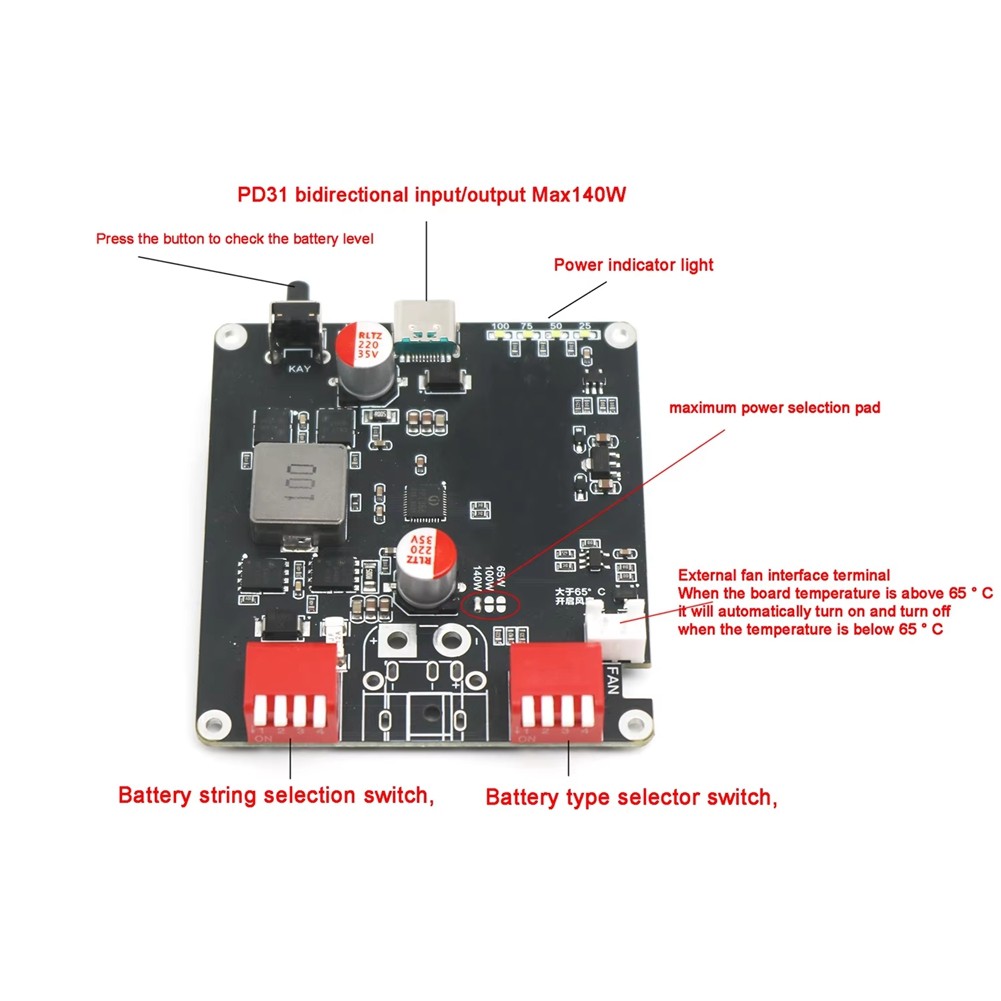

PD3.1 140W Bidirectional Fast Charging Module IP2366 2S 3S 4S 5S 6S Lithium2361
Not supporting private protocols
2S 3S recommended maximum power 65W gear
4S recommended maximum power 100W gear
5S 6S recommended maximum power 140W gear
If the internal resistance of the battery pack is relatively high, it is recommended to reduce the power consumption. If the capacity of the battery pack is relatively large ( 800OMAH), it is recommended to do a good job of heat dissipation or reduce the power consumption
Fast charging specifications:Integrated FCP Input/Output Fast Charging Protocol
Integrated AFC Input/Output Fast Charging Protocol
Integrated SCP Input/Output Fast Charging Protocol
Integrate Try protocol, PD3.1 input-output fast charging protocol
Integrated QC2.0/QC3.0/QC3.0+output fast charging protocol
Supports 5V, 9V, 12V, 15V, 20V, 28V gear voltages, with a maximum support of 28V5A, 140W
Colour:Black
Material:ABS
Package Contents:
1 x 140W two-way fast charging module (Printing labels vary from batch to batch)
