Partsam Led Submersible Trailer Tail Lights Kit, Waterproof 12V Square LED Trailer Lights Halo Glow with Wiring Harness Combination Brake Stop Turn Running License Lights for RV Marine Boat Trailer
- WONDERFUL DESIGN: This Halo Glow Square Trailer Tail Light kit is visually distinctive from most normal square tail lights on market. The light gives your truck or trailer a distinctive look and it is completely street legal. Our Halo glow tail light has a unique solid light pattern when lit, so your lights stand out from the rest, adding both style and value to your truck or trailer.
- FUNCTIONS & LED: This Submersible Waterproof trailer tail light kit serves 7 functions: brake, tail, turn, side marker, side reflector, rear reflector, and license plate light; 32 Diodes ( 20 Red+8 Red+4 Red ) LED Combination stop turn tail light-Curb side; 38 Diodes ( 20 Red++8 Red+4 Red+6 White ) LED Combination stop turn tail light-Street side with license illuminator
- SEALED WATERPROOF TRAILER LIGHT & APPLICATIONS: The waterproof construction of this light makes it ideal for use on trailers that may be submerged, like a boat trailer. The circuit board is sealed, which means that water will not damage the diodes or circuit board; Compliant with DOT standards, perfect replacement trailer lights for under 80 Inch width towing vechile, like boat trailer, RV, tractors, canoes,truck, trailer, bus, Lorry, Van, caravan, snowmobile etc.

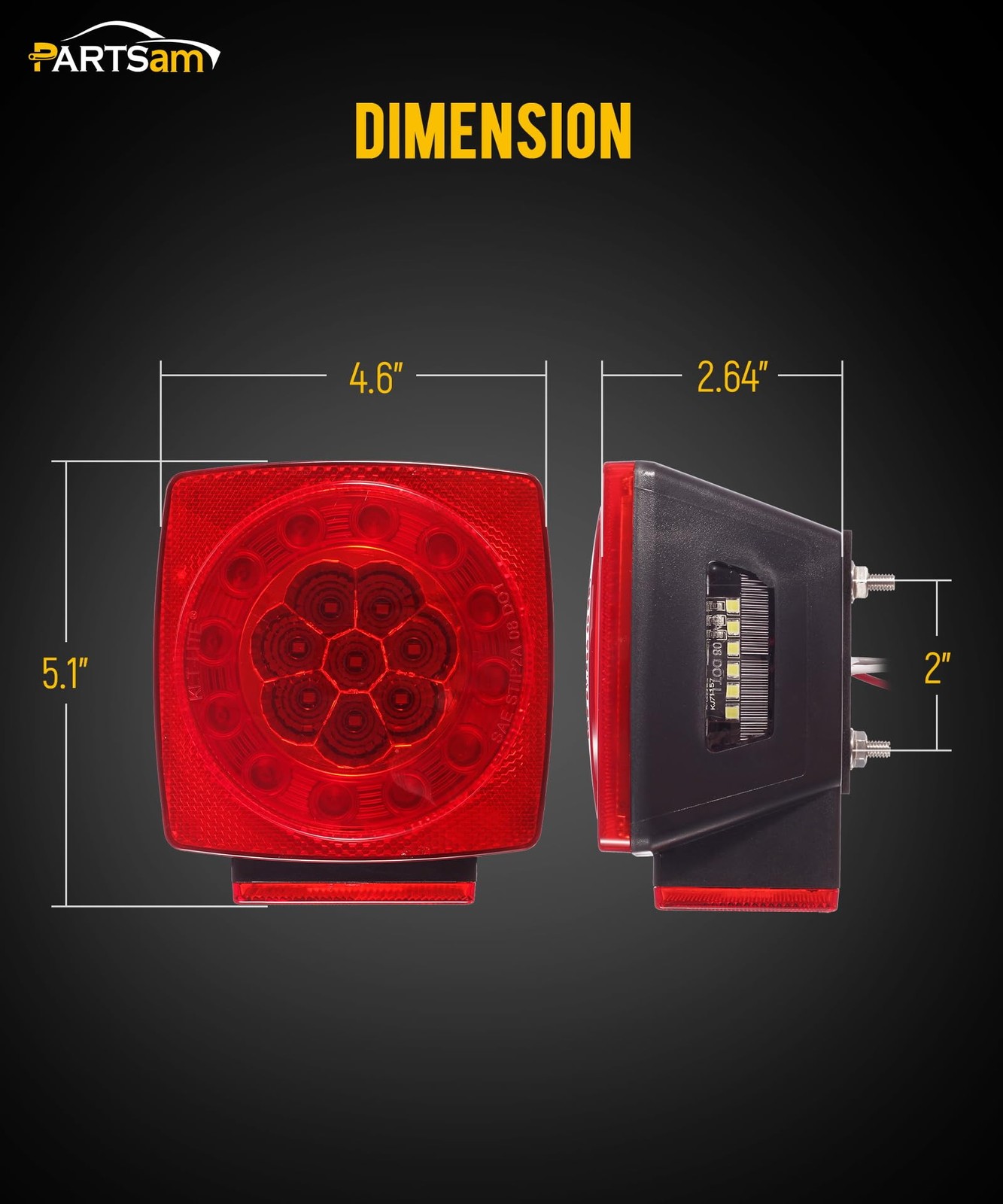

- 3-WIRE PIGTAIL: This 12v led trailer light kit includes 2 combination tail and turn signal lights,25-ft wiring harness,license plate bracket and mounting hardware bag and has a 3-wire pigtail as pictured above. The pigtail hardwires into your trailer's wiring. The white wire is for the ground, the gary is for your tail lights, and the red is for your brake light and turn signal. This is a surface-mount light, so it will extend out from your trailer. The mounting studs are 2" apart on center.
- SURFACE MOUNT: These square tail lights are surface mount and protect the LEDs from shock and vibration better than through-hole technology because the diodes are soldered directly to the surface of a printed circuit board instead of attached with wires that run through holes in the board. The result is a circuit board that is smaller yet provides more routing area and that offers superior performance, reliability, and durability.
Submersible Completely Sealed Trailer Boat LED Stop Turn Tail Side Marker License Plate Lights Kit w/Wire Harness&Bracket

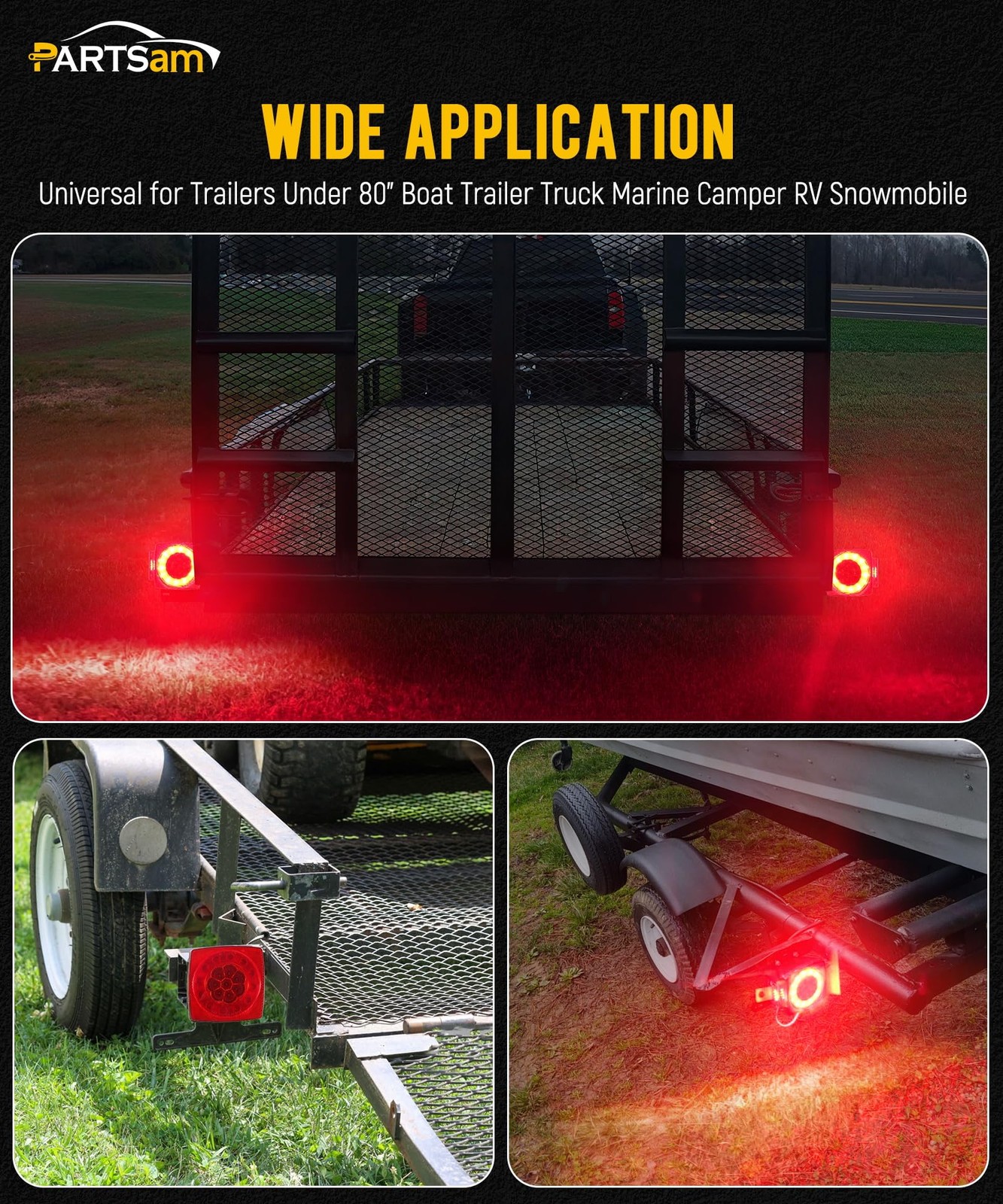

Application: Universal for Trucks, trailers Under 80", tractors, semi-trailer,Dump Truck, bus, boat, special vehicle,etc.
Description:
32 Diodes ( 20 Red+8 Red+4 Red ) LED Combination stop turn tail light-Curb side
38 Diodes ( 20 Red++8 Red+4 Red+6 White ) LED Combination stop turn tail light-Street side with license illuminator
High visibility safety lights are easy to mount
Add or upgrade the lights on boat, snowmobile, camper, or utility trailer
These Lights are Sealed Stop/Turn/Tail Lights (Outer ring has 20 and the Inner has 8)
Kit includes 25" trailer wiring harness, 4" trunk connector, license plate bracket and mounting hardware.
Includes one pair multi-functions tail lights, parts pack with all fasteners and commectors needed for installation
low heat, low current, high reliability, faster on and off and you can install as many LED lights on your boat and trailer as you want!
Wire Connection Tips:
Left side:
White Wire is the Ground;
White+Red, front side works as high brightness;
White+Gray, Three sides work, front side is low brightness.
Right side:
White Wire is the Ground;
White+Red, front side works and is high brightness;
White+Gray, Two sides work, front side is low brightness.
Tips: There is one more white light on the left side as license plate light.
Package include:
Pairs IP68 Submersible Trailer Boat LED Stop Turn Tail License Plate Lights Kit w/Wire Harness &Bracket
