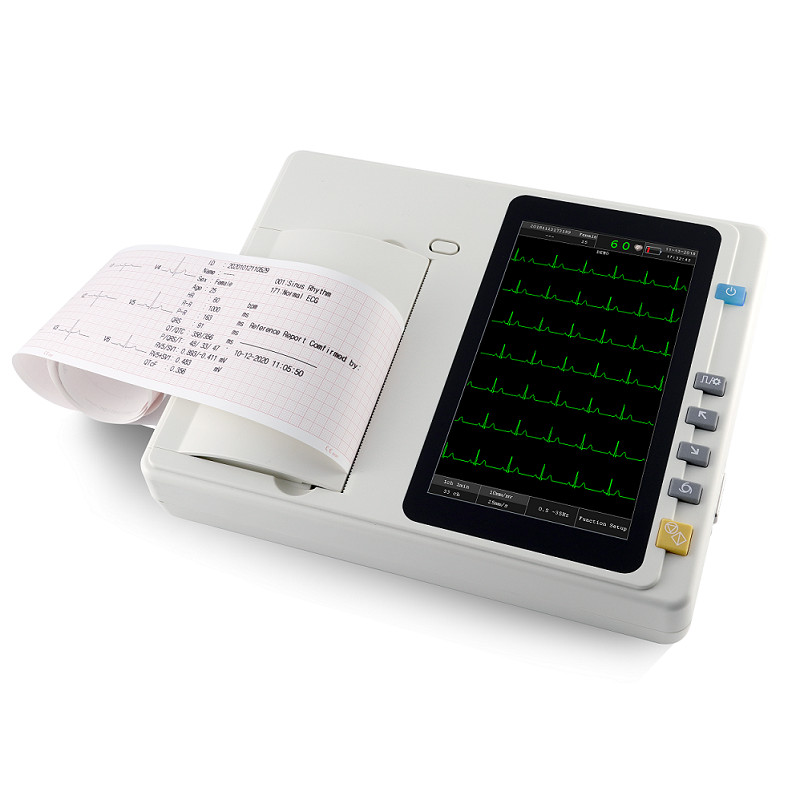

Professional 12-Lead 3-Channel ECG Machine – 7" Touch Screen, Auto-Diagnosis, Portable
Model: ECG 301
Type: Digital Electrocardiograph (ECG/EKG)
Included: Standard Accessories
Key Features:
✔ 7-Inch High-Resolution Color Touch Screen – Intuitive operation with clear waveform display.
✔ 12-Lead Simultaneous Acquisition – Accurate, real-time heart monitoring.
✔ Auto Analysis & Diagnosis – Measures routine ECG parameters automatically.
✔ 3-Channel Thermal Printing – Supports multiple print formats (3CH×4+1R, 6CH×2, etc.).
✔ Expandable Memory – Save data via USB flash drive or micro SD card.
✔ Upgradable Software – Easy updates via USB/SD card.
✔ Portable & Rechargeable – Built-in 2200mAh lithium battery (DC 14.8V) + AC power (100-240V).
✔ Advanced Safety – Defibrillator protection, low noise (<15µVp-p), and floating input circuit.

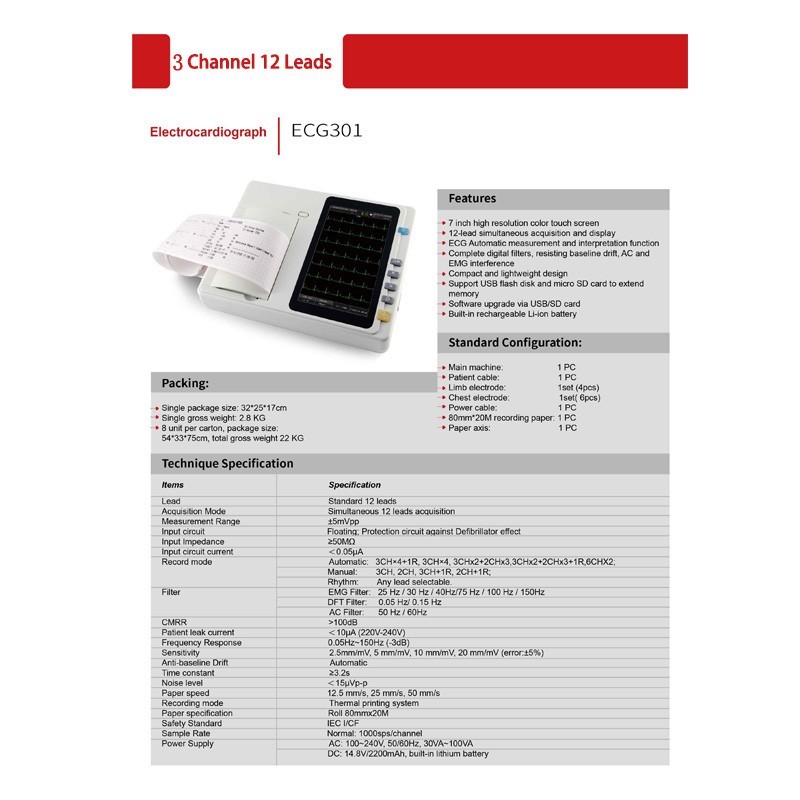

Technical Specifications:
-
Leads: Standard 12-lead
-
Filters: EMG (25-150Hz), DFT (0.05/0.15Hz), AC (50/60Hz)
-
Recording Paper: 80mm x 20m roll (thermal printing)
-
Paper Speed: 12.5/25/50 mm/s
-
Safety Compliance: IEC I/CF
-
Input Impedance: ≥50MΩ
-
CMRR: 100dB
Package Includes:
Why Choose This ECG Machine?
✅ Hospital-Grade Accuracy – Ideal for clinics, home care, or medical training.
✅ User-Friendly – Large touch screen and automatic analysis save time.
✅ Reliable & Durable – Built-in protections against interference and defibrillator surges.
Note: For professional use only. Consult a healthcare provider for diagnosis.
