Pyronix KX15DQ
Advanced Digital Quad Signal Processing
Pyro-Electric PIR Motion Sensor
With Blue Wave Technology
Part No: FPKX15DQ
Wired Sensor
Quantity = 1 Wired Sensor
Brand New & Boxed
The KX15DQ consists of a dual-element
pyro-electric PIR sensor, which works by constantly monitoring the infrared
energy levels around a room. The detector will recognise any changes caused by
the entry of an intruder and inform the panel to go into an alarm condition.
The Pyronix KX15DQ has a coverage area of up to 15 metres making it ideal for
large rooms while the superior signal analysis via the innovative digital quad
software, enables more accurate detection of potential intruders.
Features
Volumetric 85° Lens
Large Area 15m Detection Coverage
Digital Temperature Compensation
Independent Floating Threshold (IFT)
Selectable EOL (End of Line) Resistors
Blue Wave Technology (BWT)
Automatic Sensitivity Feature
Sensitivity Levels: Auto / High / Low
Optical 3D System
White Light Filter
Sealed Optics
Tamper Protection
Ceiling & Wall Brackets Included
Details
Manufacturer: Pyronix / Hikvision
Model: KX15DQ
Part No: FPKX15DQ
Type: Dual Element Pyro-Electric PIR
Lens: 85° Coverage, 60 Zones, 7 Planes
Connectivity: Wired
Detection Range: 15m
Operating Voltage: 9-16vDC, 13.8vDC Nominal
Tamper Switch
Case Material: ABS Plastics
Case Colour: White
LED Colour: Blue
Compliance: Grade 2, Class 2
Dimensions: 117 x 69 x 50mm
Weight: 125g
Listing Includes
Pyronix KX15DQ PIR
Installation Guide / Leaflet
Ceiling & Wall Bracket
Fittings Pack - Screws / Plugs / Jumpers

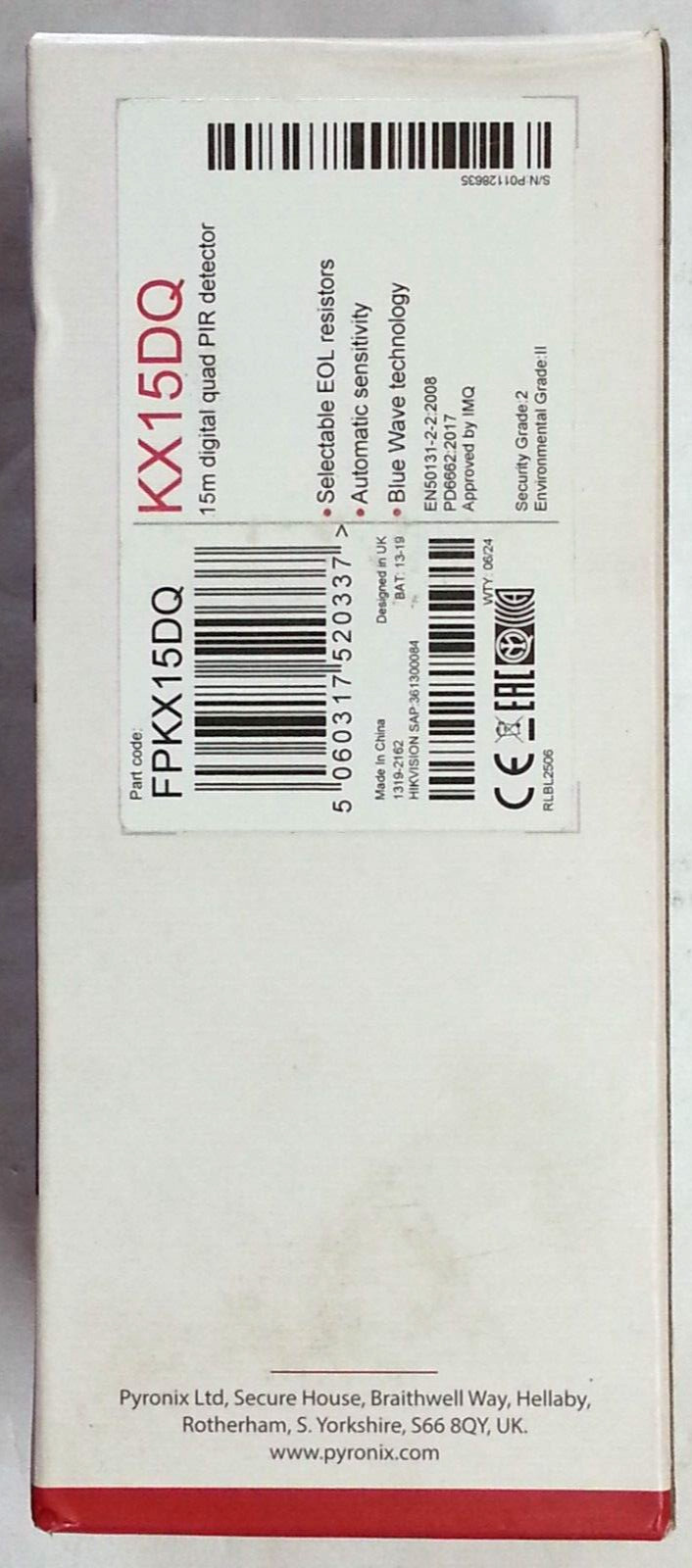

Comes Boxed
Please message me if you want any more information
