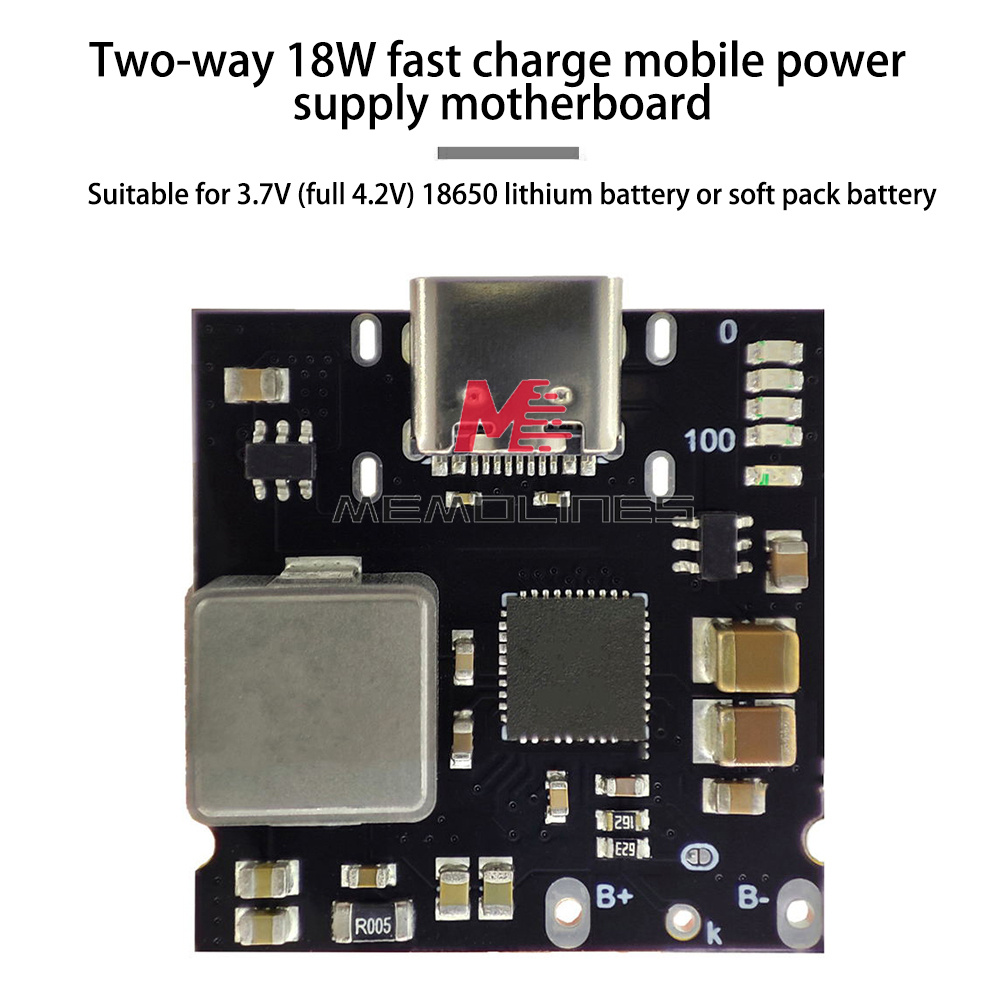

Product Feature:
1. The product is made of high-quality materials with guaranteed quality
2. The product can support protocols such as PD3.0, QC3.0, AFC, FCP, PE2.0, etc
3. Stable product performance and long service life
4. Trigger fast charging with a maximum current of 4A

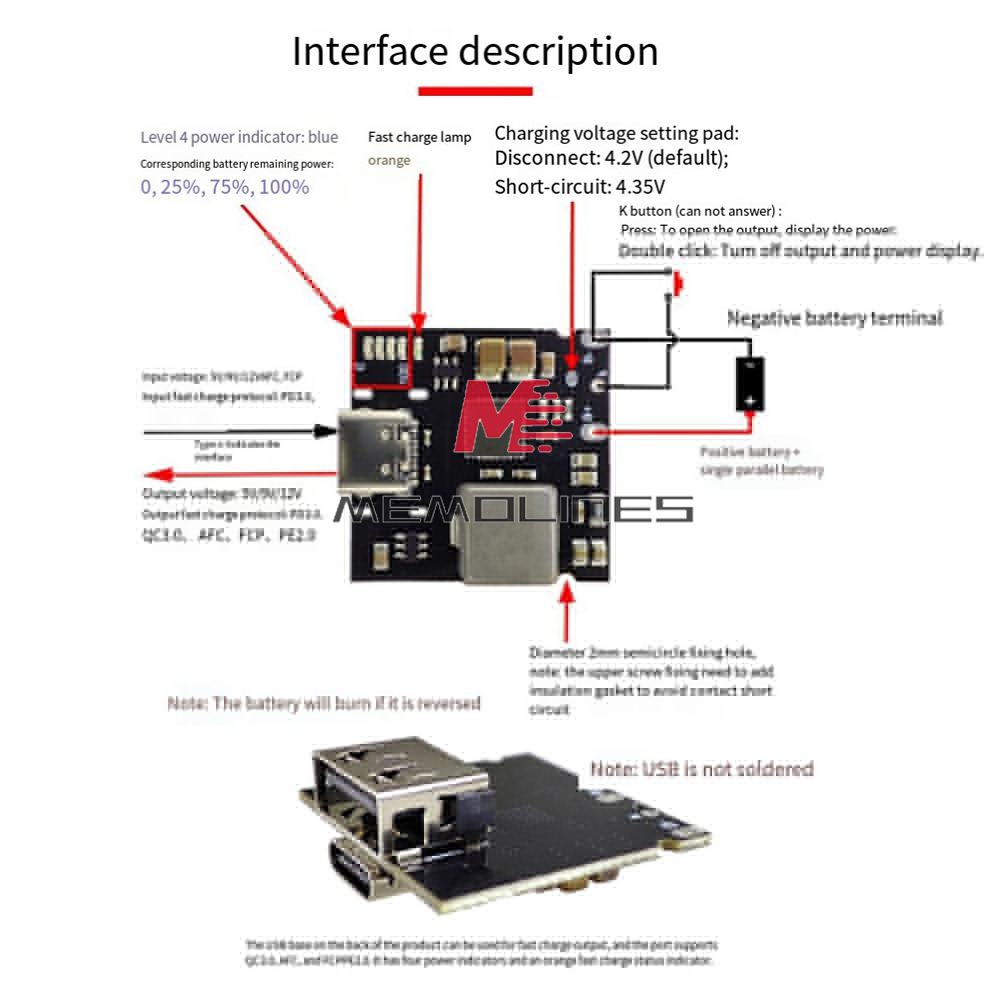

5. Equipped with four battery indicator lights and an orange fast charging status indicator light

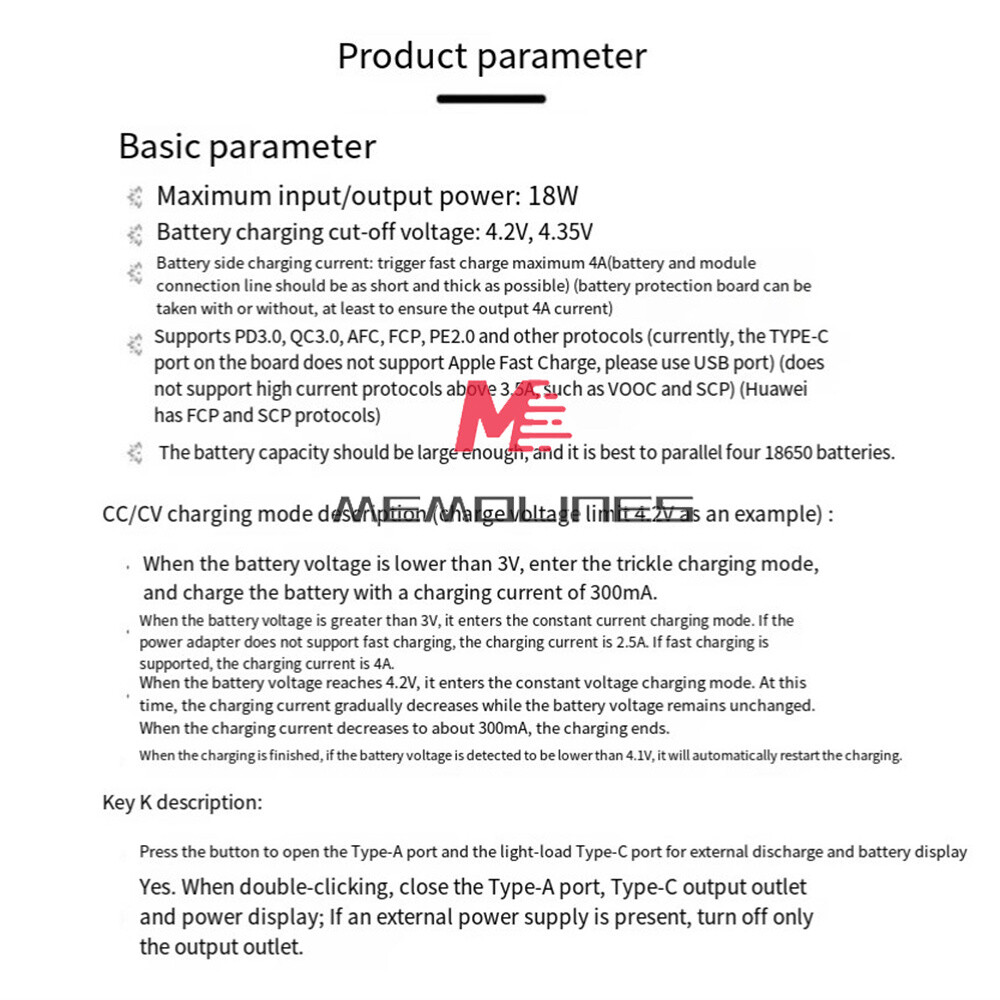

Basic product parameters:
Maximum input and output power: 18W
Battery charging cut-off voltage: 4.2V, 4.35V
Battery charging current: Trigger fast charging with a maximum of 4A (the connection wire between the battery and module should be as short and thick as possible) (the battery protection board can be equipped or not, ensuring at least an output of 4A current)
Supports protocols such as PD3.0, QC3.0, AFC, FCP, PE2.0, etc. (Currently, the TYPE-C port of the board does not support Apple fast charging, please use USB port) (does not support high current protocols above 3.5A, such as VOOC and SCP) (Huawei has FCP and SCP protocols)
The battery capacity should be large enough, and it is best to connect four 18650 batteries in parallel
Shipping list:
Module X1
