Working temperature: -20-60℃
Input Voltage: DC 12V-24V
Output Voltage: DC 12V-24V

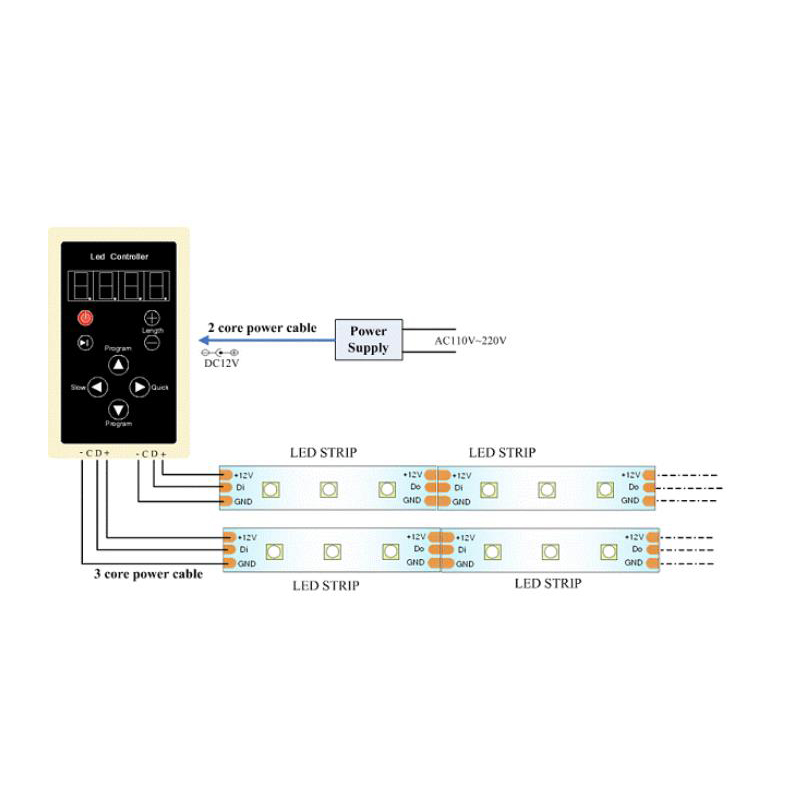

Output: Tow group SPI signal
Length setup function
A lot of programs to chose
Memory function
With digital tube, left two reveal the mode, right two reveal the speed

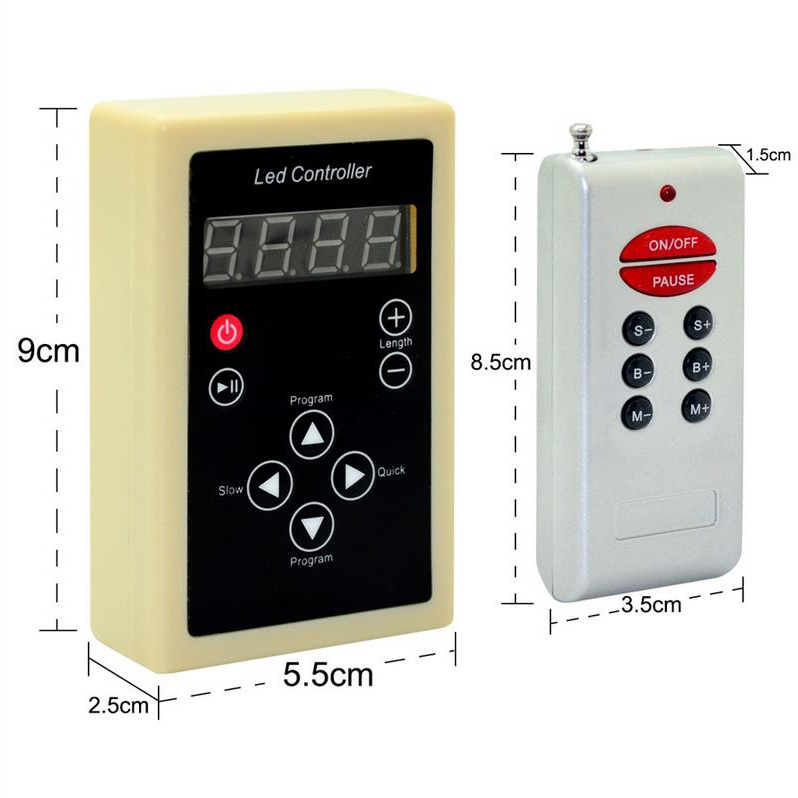

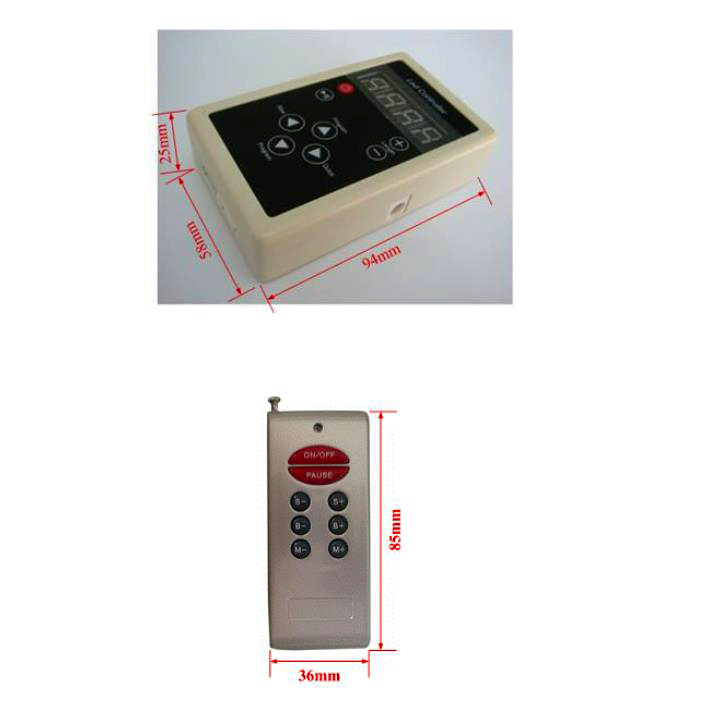

Controller size：L94×W58×H25mm
Remote size：L90×W36×H15mm
Function of remote panels:
ON/OFF: ON/OFF button, it can open or close led anytime.
MODE: Play/pause button, pressing this button to pause, you can see the static affection of led.
- S+: Speed quick button, the least number is 1
- S-: Speed slow button, there are 100 step in all, the most number is 100
- B+: Program choosing button, up direction there are 94 programs in all.
- B-: Program choosing button, down direction.
M-:Reducing button,to reduce the IC NUMBER,the least number is 3.
Applications:
Waterproof 5050 SMD Dream Color Pixel LED Light Strip
Come with 132 different changing types RF Controller
Great for holiday, disco, party, home, garden and shops decoration etc.
Package included :

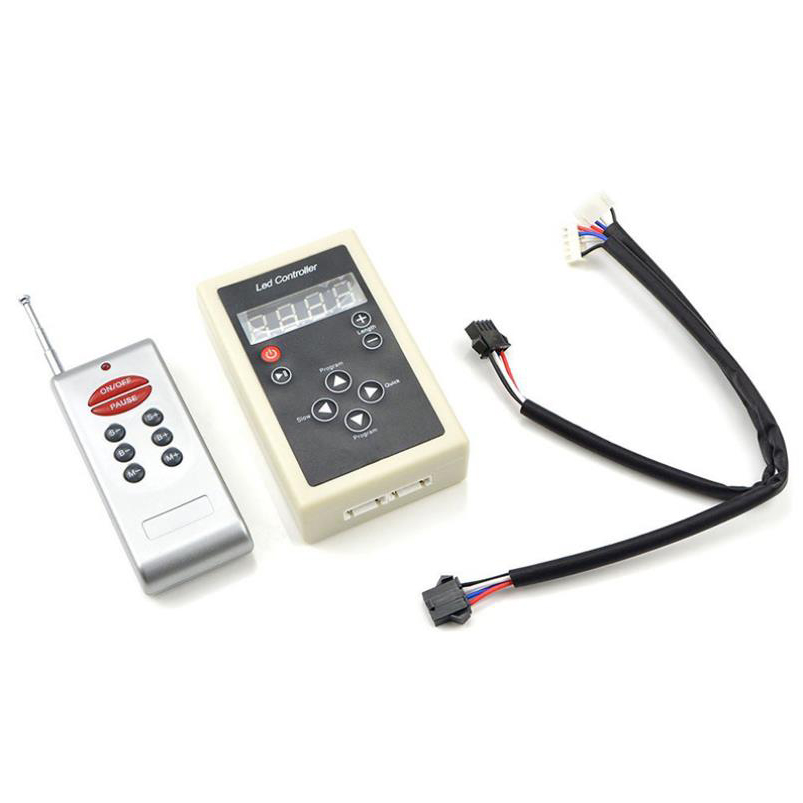

1 x 133 changing types controller
1 x Remote
