Description:
-PNI geomagnetic sensor RM3100. PNI three-dimensional magnetic sensor kit RM3100. RM3100 consists of two SEN-XY sensors and a SEN-Z sensor and the driving chip MagI2C and so on.
-PNI geomagnetic sensor technology provides high-resolution, low-power geomagnetic sensors with high resolution, high repeatability, and low noise. In the whole operating temperature range, the RM3100 has a wide measurement application range, excellent anti-noise capability, no hysteresis, and very stable temperature characteristics. Not only that, PNI magnetic sensors are the lowest power geomagnetic sensors in the industry. RM3100 magnetic sensor driver chip MagI2C
Features:
-Wide magnetic field measurement range +/- 800uT.
-Low noise 15 nT @ 200 Cycle Count.
-13 nT higher resolution @ 200 Cycle Count.
-Low power consumption.
-Fully compliant with RoHs standards.
-Use common surface mount packages.
Application:
-Handheld devices (mobile phones, PND, PDA, etc.)
-Video game controller
-TV remote control
-Camera
-Robot
-Rearview mirror
-Patrol car navigation system
Package Included:

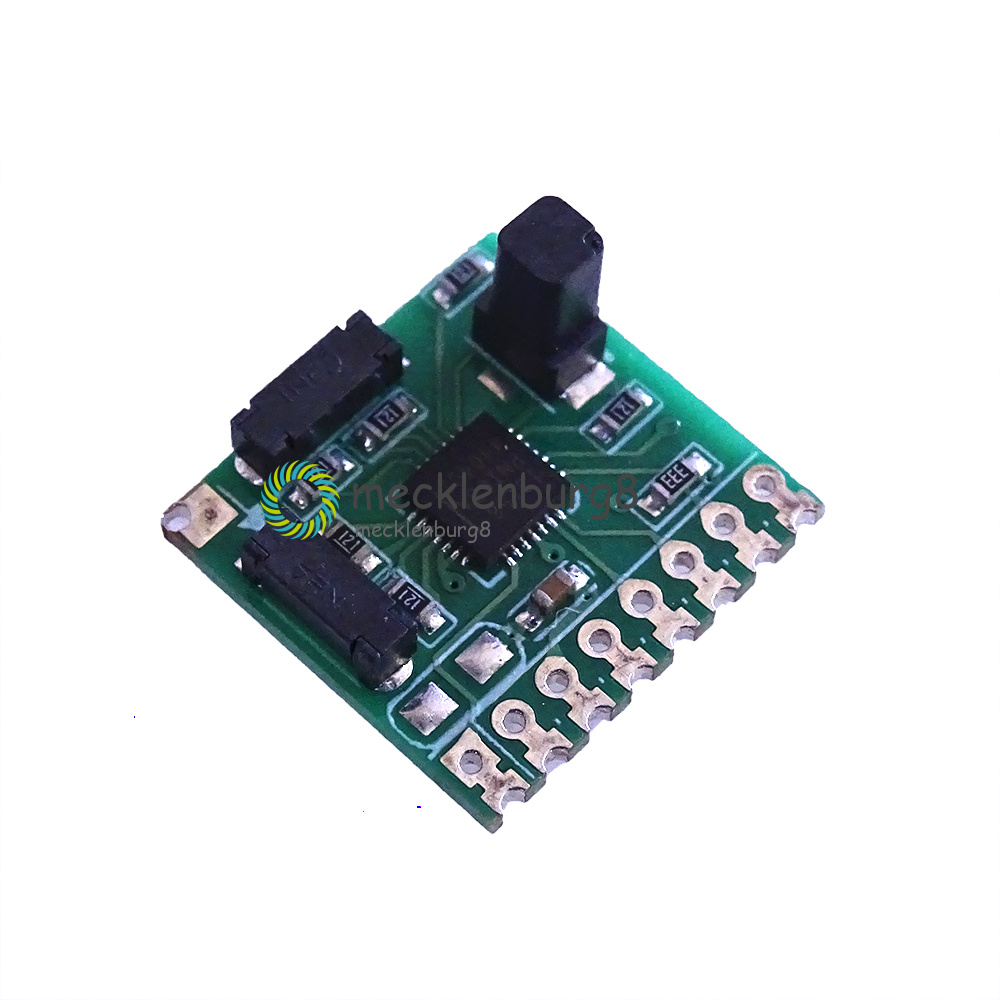

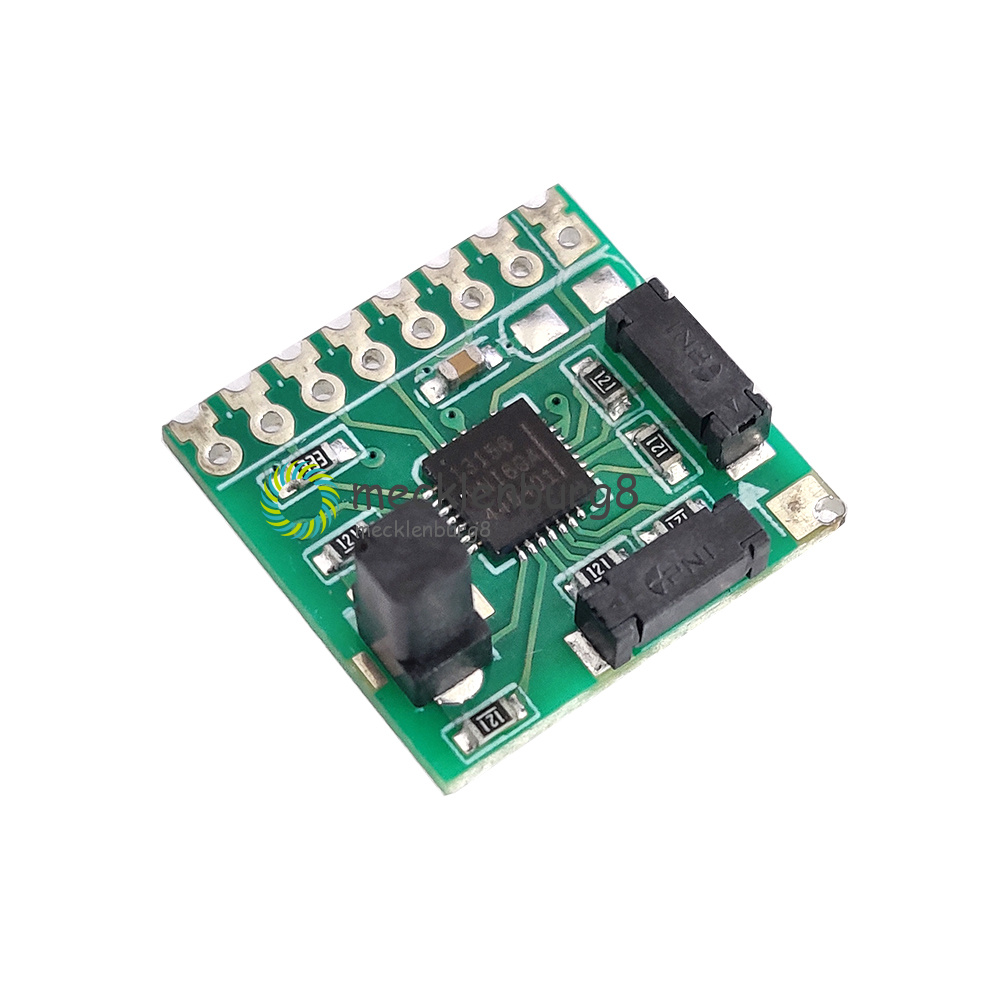

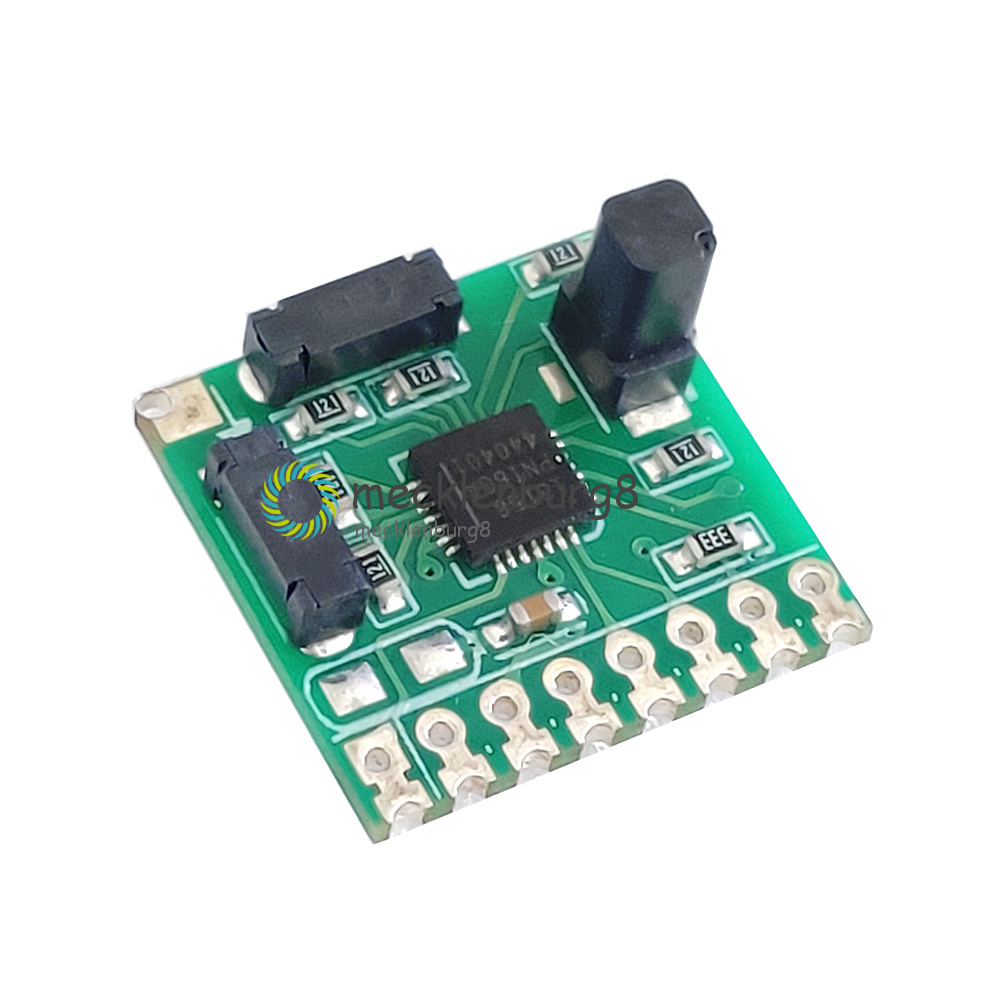

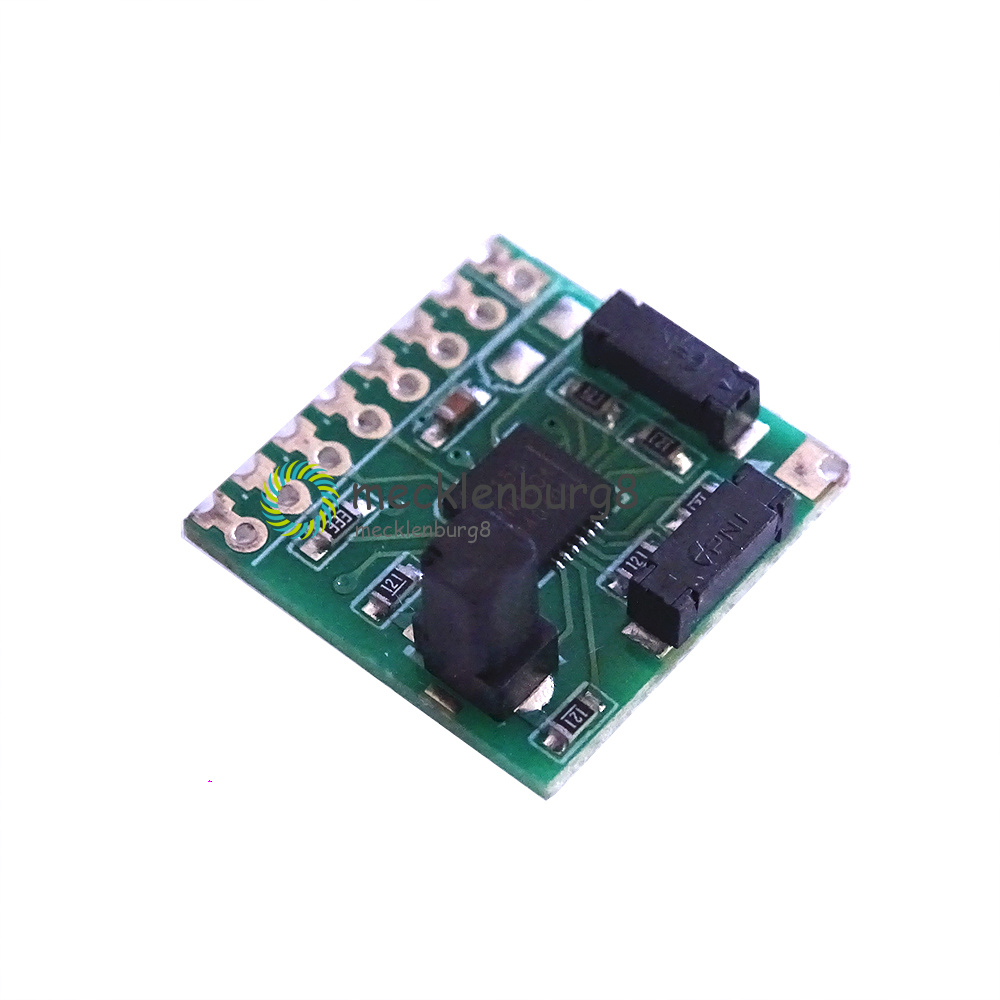

1 x RM3100 Circuit Board
